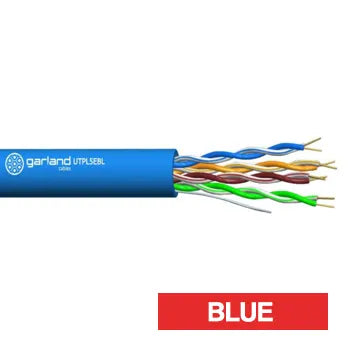

Garland Cat5E UTP Cable – 4 Pair, Solid 24AWG, 305m Box | TC500002 | UL Listed, Blue PVC Jacket, ANSI/TIA 568-C.2 Compliant

Garland Cat5E UTP Cable – 4 Pair, Solid 24AWG, 305m Box | TC500002 | UL Listed, Blue PVC Jacket, ANSI/TIA 568-C.2 Compliant

$227.46 AUD
$265.20 AUD $227.46 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Garland TC500002 is a high-quality Cat5E UTP cable designed for performance-driven structured cabling systems. With 4 twisted pairs of solid 24AWG tinned copper (PACW) conductors, this cable supports reliable Ethernet data transmission up to 100 Mbps across Class D links.

Each conductor is insulated with polyethylene (PE) and colour-coded for easy pair identification, enclosed in a durable blue PVC outer sheath. A rip cord is included for convenient jacket stripping during installation. This UL-listed Cat5E cable meets a wide array of international and regional standards, including UL444, ANSI/TIA 568-C.2, ISO/IEC 11801, AS/CA S-008, AS/NZS 3080, and AS 1049.

What's Included in the Box

  • 1 x 305m Pull Box of Garland TC500002 Cat5E UTP Cable (Blue Jacket)

Main Features

  • High-Quality Conductor: Solid 24AWG PACW provides consistent signal transmission with excellent conductivity.

  • Four Twisted Pairs: Reduces cross-talk and maintains signal integrity in Ethernet and data applications.

  • Polyethylene Insulation: Low-loss dielectric ensures optimal electrical performance.

  • Rip Cord Feature: Integrated rip cord simplifies cable stripping during installation.

  • Durable Sheath: Blue PVC jacket offers flexibility and resistance to wear during pulls.

  • Standards-Compliant: Meets UL444, ANSI/TIA 568-C.2, ISO/IEC 11801, AS/CA S-008, AS 1049, and AS/NZS 3080.

  • Easy Identification: Colour-coded insulation: Blue/White-Blue, Green/White-Green, Orange/White-Orange, Brown/White-Brown.

Detailed Specifications

Parameter Specification
Part Number UTPL5EBL305BW
Product Code TC500002
Conductor Size 24AWG Solid (1/0.51mm) PACW
Number of Pairs 4
Insulation Material PE (Polyethylene)
Insulation Diameter 0.9 mm
Sheath Material PVC
Sheath Colour Blue (RAL standard, refer to supply info)
Outer Diameter (Nominal) 5.3 mm
Rip Cord Included
Approx. Weight 3.4 kg/100m (≈10.4 kg total)

Electrical Properties

Test Parameter Value
Max. Conductor DC Resistance @ 20°C 93.8 Ω/km
Max. DC Resistance Unbalance 5%
Max. Mutual Capacitance @ 1kHz 56 pF/m
Max. Capacitance Unbalance 330 pF/100m
Nominal Velocity of Propagation (NVP) 68%
Characteristic Impedance (1–100 MHz) 100 ±15 Ω
Max. Propagation Delay @ 100 MHz 538 ns/100m

Transmission Performance (20°C)

Frequency (MHz) 1 10 100
Return Loss (dB) 20.0 25.0 20.1
Insertion Loss (dB) 2.0 6.5 22.0
NEXT (dB) 65.3 50.3 35.3
PSNEXT (dB) 62.3 47.3 32.3
ELFEXT (dB) 63.8 43.8 23.8
PSELFEXT (dB) 60.8 41.8 20.8

Mechanical Properties

Parameter Value
Operating Temperature Range -15°C to +75°C
Max. Pulling Tension 111N
Min. Bend Radius (Install) 54 mm

Warranty Information

  • Warranty Period: 1 Year

  • Warranty Type: Return to Base (RTB)

  • Warranty Provider: Garland Cables (via authorized distribution network)

Brand Description

Garland Cables is a leading supplier of high-performance structured cabling solutions throughout Australia and New Zealand. Their reputation is built on the consistent quality, durability, and regulatory compliance of their products, trusted by professionals in data, security, and automation industries.

SKU

  • Product Code: TC500002

  • Part Number: UTPL5EBL305BW

Practical Use Scenarios

  • LAN Installations: Ideal for horizontal cabling in offices and commercial buildings.

  • 10BaseT / 100BaseT Networks: Optimized for fast Ethernet transmission in Class D structured cabling environments.

  • Retail & POS Systems: Used in point-of-sale networking and inventory control systems.

  • Home Networking: High-performance solution for residential data cabling.

  • Data Centre Infrastructure: Suitable for patch leads, trunk runs, and backbone Ethernet connections.

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

The Garland TC500002 Cat5E UTP cable is precision-designed to meet the technical and environmental demands of Australia and New Zealand. Fully compliant with AS/CA S-008, AS/NZS 3080, and ISO/IEC 11801 standards, this cable is built for performance, safety, and longevity in local conditions. Sourced through authorized Garland channels, it includes full warranty support and consistent build quality installers can trust.

 FAQs

Q1: Is the Garland Cat5E UTP cable (TC500002) suitable for 100 Mbps Ethernet?
A1: Yes, it supports up to 100 Mbps over Class D links and is compatible with 10BaseT and 100BaseT Ethernet standards.

Q2: What is the conductor configuration in TC500002?
A2: It features 4 pairs (8 conductors total) of solid 24AWG tinned annealed copper (PACW).

Q3: Does this Cat5E cable meet Australian standards?
A3: Yes, it complies with AS/CA S-008, AS/NZS 3080, and ISO/IEC 11801 standards for structured cabling.

Q4: What is the maximum cable length for Ethernet transmission using TC500002?
A4: For 100BaseT Ethernet, the standard maximum cable length is 100 metres per run.

Q5: Is TC500002 UL listed?
A5: Yes, this cable is UL Listed and meets UL444 requirements for Cat5E cable construction.
