Garland 305m CAT6A UTP LSZH Cable – 23AWG Solid Violet Data Cable | MADUTPL6AHFGY305A

Garland 305m CAT6A UTP LSZH Cable – 23AWG Solid Violet Data Cable | MADUTPL6AHFGY305A

$600.78 AUD
$702.78 AUD $600.78 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

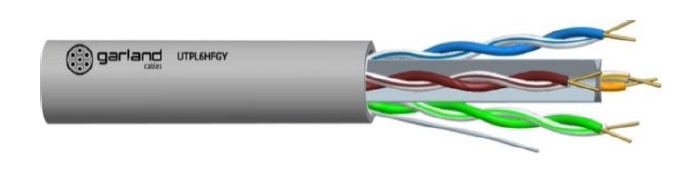

The Garland MADUTPL6AHFGY305A is a premium CAT6A unscreened twisted pair (UTP) cable engineered for high-speed network infrastructure. Constructed with 23AWG solid copper conductors and encased in a flame-retardant LSZH (Low Smoke Zero Halogen) sheath, this cable ensures optimal safety and performance in demanding installations. Its violet colour and enhanced construction make it ideal for structured cabling systems supporting 10 Gigabit Ethernet on Class EA links.

Designed to meet and exceed key global standards (IEC61156-5, ISO/IEC 11801-2, AS/CA S-008, AS 1049), this 305-metre reel provides flexible and durable cabling for mission-critical networking.

What's Included in the Box:

  • 1 x 305m Reel of Garland CAT6A UTP Cable – Violet (UTPL6AHFGY305A)

Main Features:

  • High-performance CAT6A UTP cable

  • 23AWG solid PACW conductors

  • LSZH flame-retardant jacket (Violet)

  • Suitable for 10GBaseT, 1000BaseT, 100BaseT, and 10BaseT

  • Foam and solid PE insulation with cross-web separator

  • Excellent transmission parameters with enhanced NEXT and ACRF

  • Supplied on a 305m plywood reel

Detailed Specifications:

Feature Details
Cable Type CAT6A UTP
Conductor 23AWG Solid PACW
Pairs 4 (Twisted with LH or “S” direction)
Insulation PE, 1.02mm nominal diameter
Jacket LSZH (Violet), Nominal O.D. 7.2mm
Operating Temperature -15°C to 75°C
Max Pulling Tension 126N
Minimum Bend Radius 65mm
Electrical Impedance 100 ± 15Ω (1–250 MHz), 100 ± 22Ω (250–500 MHz)
Velocity of Propagation 65%
Approx. Weight 5.6kg per 100m

Warranty Information:
Backed by a 12-month manufacturer’s warranty, this product ensures durability and peace of mind for all structured cabling projects.

Brand Description:
Garland is a trusted name in the Australian cabling industry, delivering high-quality networking solutions. Known for innovation, safety, and compliance, Garland cables are the preferred choice for enterprise, commercial, and industrial installations.

SKU Field:
SKU: MADUTPL6AHFGY305A
Supplier SKU: UTPL6AHFGY305A

Practical Use Scenarios:

  • Horizontal cabling in structured networks

  • High-speed data centers and server rooms

  • Backbone connections in commercial buildings

  • Educational institutions and enterprise networks

Datasheets & Downloads:

Excellence for the Australian and New Zealand Market:
Tailored to meet the rigorous demands of Australian and New Zealand standards, this Garland cable guarantees electrical performance and fire safety compliance. Fully sourced from authorized distributors, this product ensures reliable warranty support and regional compatibility.

Frequently Asked Questions (FAQs):

Q1: What performance category does the MADUTPL6AHFGY305A cable belong to?
A1: It is a Category 6A (CAT6A) cable, suitable for 10 Gigabit Ethernet applications.

Q2: Is the cable jacket low smoke and halogen-free?
A2: Yes, it features a flame-retardant LSZH sheath for maximum safety.

Q3: What is the total cable length per reel?
A3: Each reel includes 305 metres of CAT6A UTP cable.

Q4: Can this cable be used for outdoor installation?
A4: It is suitable for indoor use and structured horizontal cabling. For outdoor use, specific environmental protection is advised.

Q5: Does the cable comply with Australian standards?
A5: Yes, it complies with AS/CA S-008 and AS 1049 among others.
