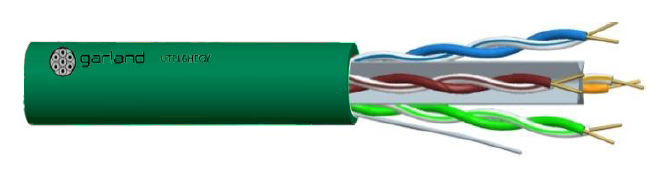

Garland 305m CAT6 UTP Green Cable Reel – 23AWG, 4 Pair, PE Insulation, LSZH Sheath | MADUTPL6HFGN305RBA

Garland 305m CAT6 UTP Green Cable Reel – 23AWG, 4 Pair, PE Insulation, LSZH Sheath | MADUTPL6HFGN305RBA

$365.67 AUD
$510.00 AUD $365.67 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Garland MADUTPL6HFGN305RBA is a premium-grade 305-metre CAT6 UTP cable reel, engineered for high-performance structured cabling and computer networks. Designed with 23AWG solid conductors, this cable supports up to 1 Gbps transmission over Class E links. Its LSZH (Low Smoke Zero Halogen) sheath ensures enhanced fire safety and minimal toxic emissions, making it ideal for commercial and industrial network installations where safety compliance is critical.

What's Included in the Box:

  • 1 x Garland 305m CAT6 UTP Cable Reel – Green (UTPL6HFGN305RBA)

Main Features:

  • CAT6 UTP cable for high-speed Ethernet applications

  • Solid 23AWG PACW conductors for enhanced performance

  • 4 twisted pairs with colour-coded HDPE insulation

  • Cross-web separator and rip cord for easy installation

  • LSZH sheath reduces smoke and toxic gas emissions during fire

  • Ideal for 10/100/1000BaseT Ethernet applications

  • Supplied on a reel in a box for convenience

Detailed Specifications:

Feature Description
Cable Type CAT6 UTP
Conductor 23AWG Solid PACW
Insulation HDPE, 4 colour-coded pairs
Sheath LSZH (Low Smoke Zero Halogen)
Outer Diameter Approx. 6.2mm
Electrical Impedance 100 ± 15 Ohms
Max. Conductor Resistance 7.3 Ω/km
Compliance ANSI/TIA 568-C.2, ISO/IEC 11801-2, AS/NZS 3080
Jacket Colour Green
Cable Length 305 metres
Packing Reel-in-a-box, 38 x 38 x 32 cm

Warranty Information:
Includes a 12-month manufacturer's warranty for peace of mind.

Brand Description:
Garland Cables is a leading name in Australian networking infrastructure, offering robust, standards-compliant cabling solutions for residential, commercial, and industrial environments. Their commitment to quality ensures reliable performance across all networking needs.

SKU Field:
SKU: MADUTPL6HFGN305RBA
Supplier SKU: UTPL6HFGN305RBA

Practical Use Scenarios:

  • Commercial data centre installations

  • Horizontal cabling in structured LAN systems

  • Safety-conscious network builds requiring LSZH materials

  • Government, education, and healthcare premises

Datasheets & Downloads:

Excellence for the Australian and New Zealand Market:
This cable is engineered to comply with AS/NZS 3080, AS/CA S-008, and AS 1049 standards. Featuring LSZH sheathing, it aligns with stringent building codes and fire safety requirements. Supplied through authorised channels across Australia and New Zealand, with full warranty and support coverage.

Frequently Asked Questions (FAQs):

Q1: What standards does the MADUTPL6HFGN305RBA cable comply with?
A1: It complies with ANSI/TIA 568-C.2, ISO/IEC 11801-2, AS/NZS 3080, AS/CA S-008, and AS 1049.

Q2: Is this CAT6 cable suitable for Gigabit Ethernet?
A2: Yes, it supports up to 1Gbps over Class E structured cabling links.

Q3: What is the sheath material used in the cable?
A3: The cable uses a Low Smoke Zero Halogen (LSZH) sheath for improved fire safety.

Q4: Can this cable be used for outdoor installations?
A4: It is suitable for fixed horizontal wiring but should be protected in outdoor conduit as it lacks UV-resistant rating.

Q5: How is the MADUTPL6HFGN305RBA cable packaged?
A5: It is supplied in a user-friendly reel-in-a-box format for ease of pulling and installation.
