FSS1-S | High Security Surface Mount Door Monitoring Sensor – SCEC SL4 & UL 634 Level 2 Approved – IP67 Rated – Manufacturer’s Warranty Applied

The FSS1-S is a surface mount conduit version of the award-winning FSS1 Series High Security Door Monitoring Sensors. Designed for retrofit and replacement applications, it serves as a superior alternative to traditional magnetic balanced reed sensors, providing a true high-security door position monitoring solution for critical facilities.

Engineered with seven Hall effect sensors and up to eight array magnets, the FSS1-S reads a unique magnetic footprint, detecting door position, polarity, strength, and magnet alignment. This advanced sensing method delivers exceptional accuracy and sophisticated anti-tamper protection, making it ideal for government, military, and high-security commercial applications.

The FSS1-S is SCEC Security Level 4 (SL4) approved, UL 634 Level 2 certified, IP67 rated, and RCM compliant. It also features compatibility with Type 1/1A and Class 5 End-of-Line (E.O.L) modules, making it an adaptable, future-ready solution.

What’s Included in the Box

• FSS1-S Surface Mount High Security Door Monitoring Sensor

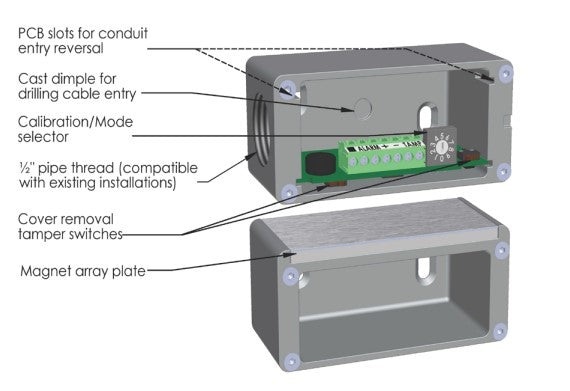

• Magnetic face plate with unique array magnet configuration

• Mounting hardware

• Manufacturer’s Warranty Applied

Main Features

• Surface mount conduit version – ideal for retrofits or replacing reed sensors

• SCEC SL4 Approved and UL 634 Level 2 certified

• IP67 rated for water and dust ingress protection

• Seven Hall effect sensors and up to eight array magnets for unique footprint detection

• Alarm & tamper contacts: N.C., common N.O., 0.2A @ 30V, plus changeover contacts

• Compatible with Type 1/1A and Class 5 E.O.L. modules

• Space for end-of-line encryption modules or resistors

• Door gap tolerance: 1–7mm; door movement: 15mm

• Designed and manufactured in Australia

• Awarded 2022 Platinum Govies Award in Intrusion Detection & Prevention Solutions

Detailed Specifications

Warranty Information

Manufacturer’s Warranty Applied – covers manufacturing defects and operational performance, with technical support from authorized distributors.

Brand Description

The FSS1 Series is an Australian-designed and manufactured high-security door monitoring solution, trusted by government, defence, and critical infrastructure operators worldwide for its unmatched reliability, accuracy, and tamper resistance.

Practical Use Scenarios

• Government & Defence: Securing classified access points with tamper-proof monitoring.

• Data Centres: Protecting sensitive server rooms and restricted areas.

• Financial Institutions: Safeguarding vault and secure room access.

• High-Security Commercial Sites: Integrating with intrusion detection and access control systems.

Datasheets / Downloads

FSS1-S DATASHEET

Excellence for the Australian and New Zealand Market

The FSS1-S meets Australian SCEC SL4 security requirements and UL 634 Level 2 standards, ensuring exceptional compliance and performance. Exclusively sourced from authorized representatives, it guarantees authenticity and reliable warranty support.

FAQs (Product Code: FSS1-S)

1. What security ratings does the FSS1-S have?
   It is SCEC SL4 Approved and UL 634 Level 2 certified.

2. Is the FSS1-S weatherproof?
   Yes, it is IP67 rated for dust and water resistance.

3. What door tolerances does the FSS1-S support?
   It supports a 1–7mm gap and 15mm movement.

4. Is the FSS1-S suitable for retrofits?
   Yes, it is designed for surface mount installation, making it ideal for retrofits.

5. Where is the FSS1-S manufactured?
   It is designed and manufactured in Australia.
