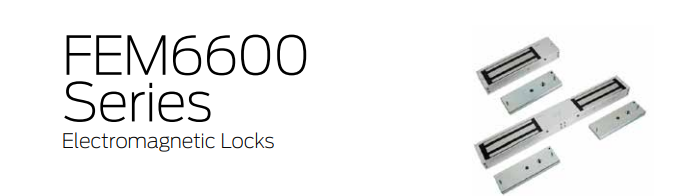

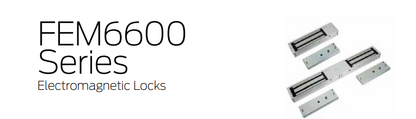

FSH FEM6600M Series Electro Magnetic Lock

FSH FEM6600M Series Electro Magnetic Lock

$339.66 AUD
$420.24 AUD $339.66 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Lock type

The FSH FEM6600 Series Electro Magnetic Lock is a high-strength security solution designed for robust access control in commercial and industrial environments. This series includes non-monitored and monitored versions, offering options for single and double door configurations to meet varied security requirements. With an impressive holding force of up to 580 kg and dual voltage compatibility, the FEM6600 series ensures reliable and secure door locking for high-traffic areas.

Key Features

  • Strong Holding Force: Up to 580 kg, ensuring doors remain securely locked to protect people and property.
  • Dual Voltage Compatibility: Operates on either 12VDC or 24VDC, making it adaptable to various installation requirements.
  • Optional Monitoring: Monitored versions (FEM6600M and FEM6600DM) include a red-green bi-color LED to indicate door and lock status, enhancing security management.
  • No Residual Magnetism: Designed to eliminate residual magnetism once powered off, prolonging the life of both the lock and the door.
  • Surge Protection: Built-in varistor (MOV) for surge protection to safeguard the lock’s electronics from power fluctuations.

Technical Specifications

  • Models:

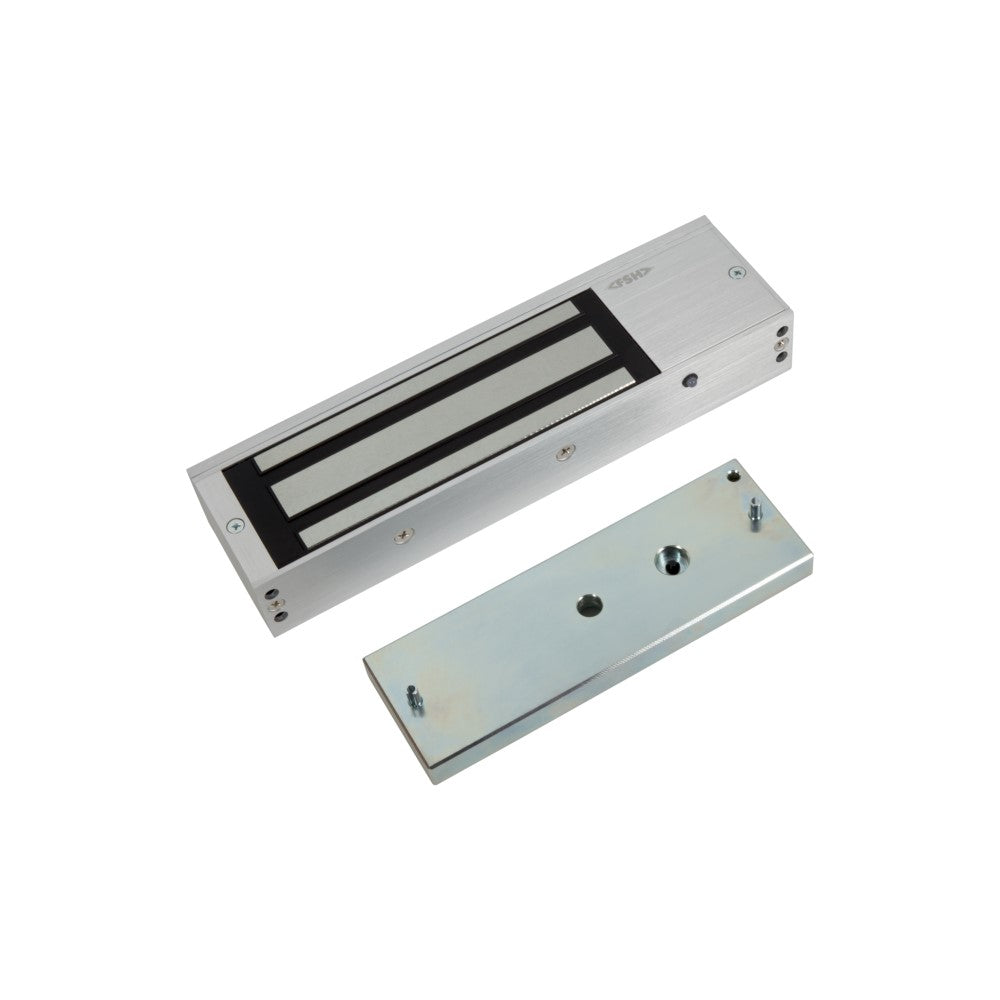

    • FEM6600: Single non-monitored magnetic lock
    • FEM6600D: Double non-monitored magnetic lock

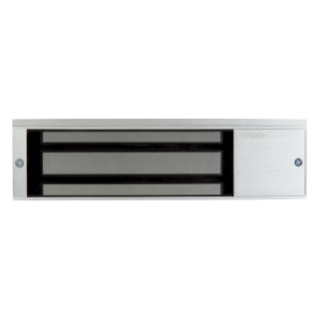

    • FEM6600M: Single monitored magnetic lock with status indicators

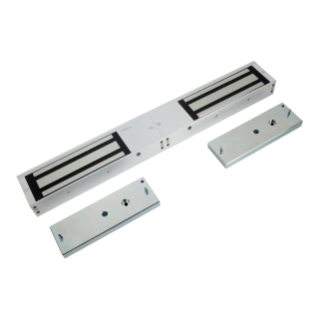

    • FEM6600DM: Double monitored magnetic lock with status indicators
  • Holding Strength: Up to 580 kg (for single magnetic lock)
  • Voltage/Current Requirements:
    • 12 VDC – 500 mA (double x2)
    • 24 VDC – 500 mA (double x2)
  • Fire Rating: 2-hour fire rated in accordance with AS1905.1:2015
  • Dimensions:
    • Single Lock Magnet: 268 mm (L) x 73 mm (W) x 40 mm (D)
    • Double Lock Magnet: 535 mm (L) x 73 mm (W) x 40 mm (D)
    • Armature Plate: 190 mm (L) x 61 mm (W) x 16 mm (D) (double includes 2 plates)

Applications

  • Access Control Compatibility: Works with credential readers, including PIN pads and fob readers, making it ideal for high-security locations like office buildings, warehouses, and healthcare facilities.

Additional Features (Monitored Models)

  • Door Status Sensor (DSS) and Lock Status Sensor (LSS): Enhances security by providing real-time status monitoring.
  • LED Indicator: Bi-color (red-green) LED on monitored versions allows quick visual assessment of lock status.

Included in the Box

  • FSH FEM6600 Series Magnetic Lock (specific model as ordered)
  • Armature plate(s) and mounting hardware
  • User and installation manual

Warranty

  • Mechanical: 5 years
  • Electronic: 5 years

The FSH FEM6600 Series Electro Magnetic Lock provides a highly secure and versatile access control solution that combines exceptional holding force with options for monitoring, fire rating, and low-maintenance design, making it ideal for demanding security applications.
