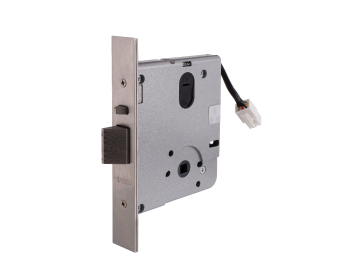

FSH FEL990 Series Electric Mortice Lock

FSH FEL990 Series Electric Mortice Lock

$804.78 AUD
$918.00 AUD $804.78 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The FSH FEL990 Series Electric Mortice Lock is a high-performance, multi-functional locking solution designed for flexibility and ease of installation. Engineered with simplicity and versatility in mind, the FEL990 Series allows for adaptable configurations and provides options for both monitored and non-monitored models, making it suitable for a variety of commercial security applications.

Key Features

  • Configurable Locking Modes:
    • Single-Sided Locking (Vestibule) or Double-Sided Locking (Combination): Field-configurable to secure one or both sides as needed.
    • Fail Safe or Fail Secure: Configurable on-site to either fail-safe (power to lock) or fail-secure (power to open), allowing the same product to meet different security requirements.
    • Handing Options: Field-selectable for left-hand or right-hand door operations.
  • Comprehensive Monitoring (FEL990M Model Only):
    • Door Position Monitoring: Monitors door status with a reed switch.
    • Lock Status Monitoring: Uses a combination of locking parameters, including locking bar, hub handle, deadlatching bolt, and latchbolt status.
    • Dual Key Override Monitoring (KOM): Provides dual monitoring for key override.
    • Request-to-Exit (REX): Enabled via hub handle for easy exit functionality.
    • LED Indication: Visual lock status via LED for monitored versions.
  • Robust Build and Finish:
    • Constructed with a standard satin stainless steel finish, with other finishes available on request.

Technical Specifications

  • Models: FEL990 (non-monitored), FEL990M (monitored)
  • Voltage/Current:
    • Multi-voltage 12-24VDC
    • 200 mA momentary, 100 mA continuous operating (with LED indicator)
    • Reverse polarity protection to prevent damage from incorrect wiring
  • Monitoring (990M version only):
    • Door position, lock status, dual key override monitoring, request-to-exit, and LED indication.
  • Environmental: Operates in temperatures from -20°C to +60°C
  • Backset: Standard 60mm; optional backsets of 70mm, 89mm, and 127mm available
  • Door Thickness: Suitable for doors 32 to 50 mm thick
  • Cabling: Includes a 3-meter cable with a new 12-pin plug design for straightforward installation

Approvals and Compliance

  • Fire Rating: Tested to 2 hours on fire-rated doors (AS/NZ1905.1:2015)
  • Security and Durability: Conforms to Australian Lock Standard AS4145.2:1993 for S3 Security and D3 Durability, ensuring reliable and long-lasting performance
  • C-tick: Certified for electromagnetic compatibility

Factory Configuration

  • Default: Vestibule mode, 60 mm backset, fail-safe, left-handed, satin chrome finish

Included in the Box

  • FEL990 Series Electric Mortice Lock (model as specified)
  • 3-meter connection cable with 12-pin plug
  • Installation manual

Warranty

  • Mechanical and Electronic: 5 years

The FSH FEL990 Series Electric Mortice Lock combines advanced functionality with ease of installation and adaptability, making it an ideal choice for secure commercial and institutional applications that require a flexible, monitored locking solution.
