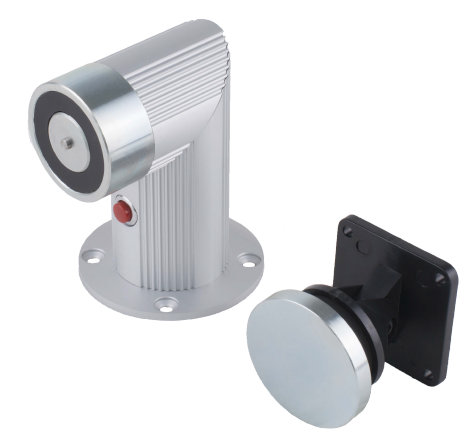

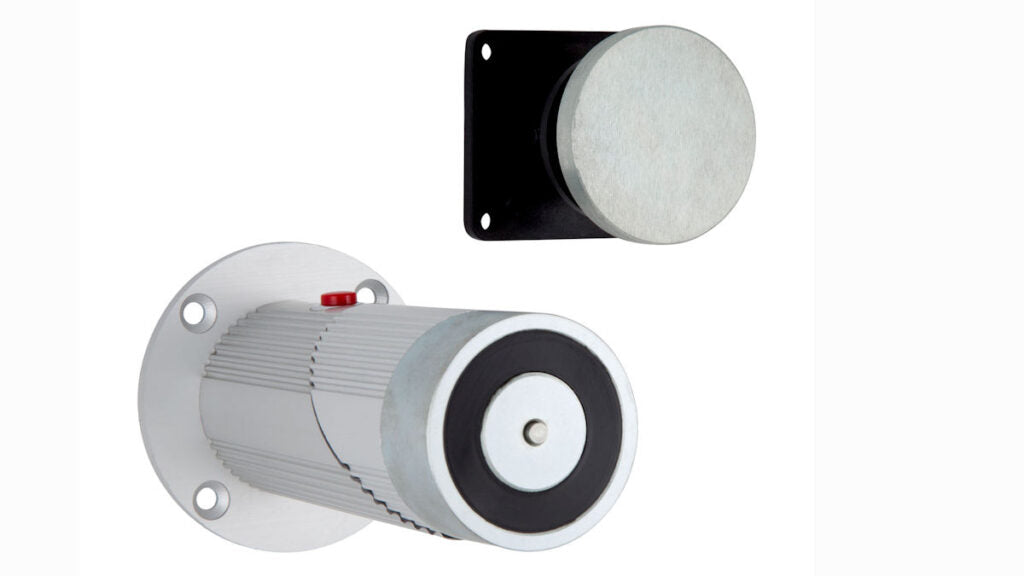

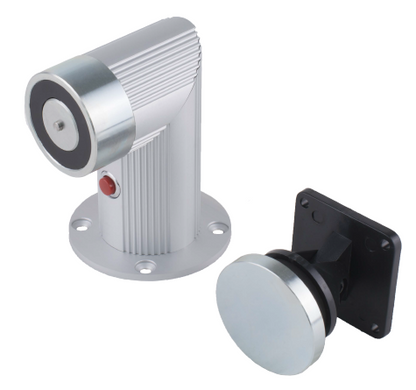

FSH FDH50 Series Electromagnetic Door Holder

The FDH50 Series Electromagnetic Door Holder is designed for secure and efficient door holding in both floor and wall mount applications. With a strong holding force of up to 45 kg, it ensures doors remain open as needed, making it ideal for areas that require controlled access and easy entry in commercial and industrial settings.

Key Features

• Dual Mounting Options: Supports both floor and wall mounting, making it versatile for various architectural requirements.
• Strong Holding Force: With a holding strength of up to 45 kg, it reliably secures doors, enhancing accessibility and safety.
• Low Power Consumption: Operates efficiently with minimal power—12 VDC at 200 mA or 24 VDC at 100 mA—making it cost-effective for long-term use.
• Fire Rating: Tested to Australian Fire Test Standards AS1905.1:2015, it offers up to 4 hours of fire resistance, providing peace of mind in emergency scenarios.
• Dual Voltage Compatibility: Accepts either 12VDC or 24VDC, allowing flexible installation with various power sources.

Technical Specifications

• Model: FDH50
• Mounting Options: Floor and wall mount for swing doors
• Holding Strength: Up to 45 kg
• Voltage/Current Requirements:
  • 12 VDC – 200 mA
  • 24 VDC – 100 mA
• Fire Rating: 4 hours, compliant with AS1905.1:2015
• Dimensions: Compact design suitable for varied installation spaces (detailed dimensions in installation manual)

Installation Instructions

1. Position the strikes against the frame, marking and drilling holes as per provided diagrams.
2. Drill the cable exit hole on the door frame.
3. Ensure correct electrical connections.
4. Verify that the door face has no pressure on the strike keeper when closed.

Included in the Box

• FDH50 Electromagnetic Door Holder
• Mounting hardware
• Pre-wired assembly with plugs for easy installation
• User and installation manual

Warranty

The FDH50 Series is backed by a 5 year limited warranty

Compliance and Certifications

• Fire Safety: Certified for up to 4 hours of fire resistance on fire door assemblies (AS1905.1:2015).
• Design and Patents: Protected by registered designs and patents, ensuring quality and authenticity.

The FDH50 Series Electromagnetic Door Holder offers a robust, fire-rated, and efficient solution for secure door management in high-traffic areas, meeting the safety and operational needs of commercial and industrial environments
