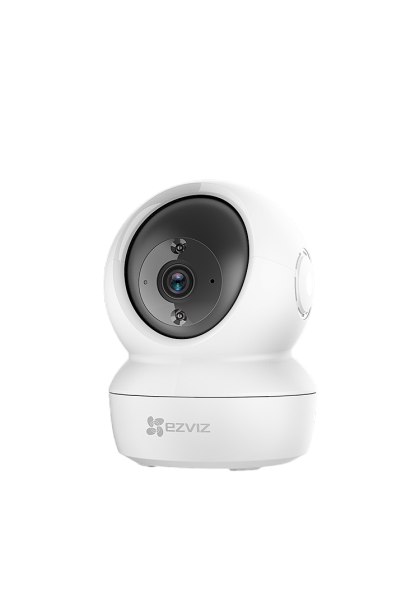

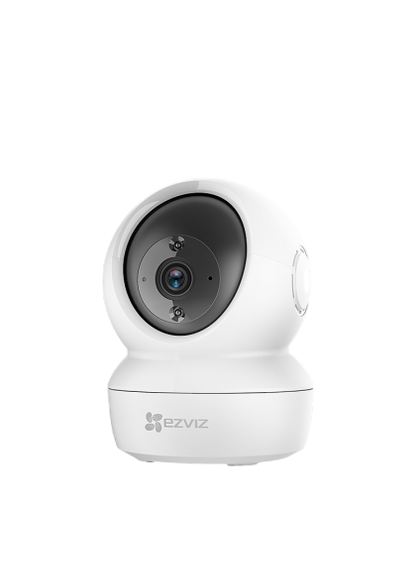

EZVIZ CS-C6N-D0-8B4WF 2K+ Smart Wi-Fi Pan/Tilt Indoor Camera with Night Vision, Motion Detection & 2-Way Audio

The EZVIZ CS-C6N-D0-8B4WF is a compact and intelligent 2K+ indoor Wi-Fi security camera built for seamless home and small business monitoring. With 2K+ Quad HD resolution (2560 × 1440), pan and tilt rotation, and infrared night vision up to 10 meters, this camera ensures that no corner of your room goes unwatched.

Whether you're looking to keep an eye on your pets, children, or indoor property, this model supports motion detection alerts, two-way audio, and smart video compression using H.265. Its built-in MicroSD slot (up to 256GB) allows local storage, while EZVIZ Cloud services offer additional backup options. With secure wireless connectivity and compatibility with EZVIZ’s mobile app, managing your home’s security is effortless.

What’s Included in the Box

• 1 × EZVIZ CS-C6N Camera

• 1 × Camera Base

• 1 × Screw Kit

• 1 × 3m Power Cable

• 1 × Power Adapter

• 1 × Drill Template

• 1 × Quick Start Guide

• 1 × Regulatory Information Sheet

Key Features

• 2K+ Quad HD Video (2560 × 1440) for sharper indoor monitoring

• Pan & Tilt function covers wide-area surveillance

• IR Night Vision up to 10m for clear viewing in complete darkness

• Motion Detection with instant alerts to your smartphone

• Two-Way Audio to communicate with family or pets

• 3D DNR & Digital WDR for better image clarity

• MicroSD Card Slot supports up to 256GB local storage

• H.265 Compression saves bandwidth and storage

• EZVIZ Cloud Protocol for secure remote access

• Wi-Fi or Ethernet Connectivity (10M/100M adaptive)

• Low Power Consumption — only 5W max

• Mobile App Access via Android/iOS

• Sleek and Modern Design fits any interior

Detailed Specifications

Model

• Model Number: CS-C6N-D0-8B4WF

Camera

• Image Sensor: 1/3" Progressive Scan CMOS, F2.2

• Resolution: Max 2560 × 1440 (2K+)

• Shutter: Self-adaptive

• Lens: 4 mm, Fixed, M12 Mount

• View Angle: Diagonal: 88°, Horizontal: 75°, Vertical: 41°

• Day/Night: IR-Cut filter with auto-switching

• IR Night Vision: Up to 10 meters

• DNR: 3D Digital Noise Reduction

• WDR: Digital Wide Dynamic Range

Video & Compression

• Compression: H.265 / H.264

• Bit Rate Options: Quad HD / Full HD / HD / Standard (Adaptive)

• Frame Rate: Max 20 fps (self-adjusts with network speed)

Smart Detection

• Motion Detection: Yes

• Smart Alerts: Sends alerts to EZVIZ App

Audio

• Two-Way Audio: Supported (microphone and speaker built-in)

Network & Connectivity

• Wi-Fi: IEEE802.11b/g/n (2.4 GHz), up to 72 Mbps

• Security Protocols: 64/128-bit WEP, WPA/WPA2

• Wired Network: 1 × RJ45 (10/100M)

• Wi-Fi Pairing: AP pairing

Storage

• Local: MicroSD card slot (supports up to 256 GB)

• Cloud: EZVIZ Cloud (subscription-based, optional)

Power & Environmental

• Power Input: DC 5V/2A via Micro USB

• Power Consumption: Max 5W

• Operating Conditions: –10°C to 45°C, ≤95% RH (non-condensing)

• Dimensions: 88 × 88.2 × 119 mm

• Weight: 252g

Certifications

• Compliance: FCC, UL, CE, WEEE, REACH, RoHS

Warranty Information

2-Year Limited Warranty via Authorized Australian and New Zealand Resellers

Brand Description

EZVIZ is a leading smart home security brand, recognized for its innovative cloud-based camera solutions and easy-to-use mobile platforms. Their products are designed for everyday users, making smart surveillance accessible and secure.

SKU

CS-C6N-D0-8B4WF

Practical Use Scenarios

• Nursery Monitoring – Quietly monitor sleeping babies with two-way talk

• Pet Watching – Stay connected with pets while away from home

• Elderly Care – Keep an eye on loved ones living alone

• Small Business – Secure your retail floor or office space

• Holiday Home Monitoring – Remote surveillance and alerts during travel

Excellence for the Australian and New Zealand Market

• Fully optimized for Australian/NZ power and wireless standards

• Certified for CE, FCC, UL, RoHS, and REACH compliance

• Meets local data security and privacy expectations via EZVIZ Cloud protocols

• Available through authorized AU/NZ distributors

• Backed by direct regional warranty support

Datasheet / Downloadable Resources

Download Full Datasheet (PDF)

 FAQs

Q1: Does the CS-C6N-D0-8B4WF support local recording without a cloud plan?
Yes, the CS-C6N-D0-8B4WF supports MicroSD cards up to 256GB for local video storage, no cloud plan required.

Q2: Can I pan or tilt the CS-C6N-D0-8B4WF camera remotely?
Yes, this model supports pan and tilt functions controlled via the EZVIZ app, giving you wider coverage of your room.

Q3: What kind of alerts does this camera send?
The CS-C6N-D0-8B4WF sends motion detection alerts directly to your smartphone in real-time.

Q4: Can I connect this camera over Ethernet instead of Wi-Fi?
Yes, it includes a 10/100M RJ45 Ethernet port for wired network setup.

Q5: Is it compatible with Australian power outlets?
Absolutely. The included DC 5V/2A adapter is fully compatible with AU/NZ power standards.

Q6: What is the night vision range of the CS-C6N-D0-8B4WF?
This camera provides clear IR night vision up to 10 meters, ensuring round-the-clock surveillance.
