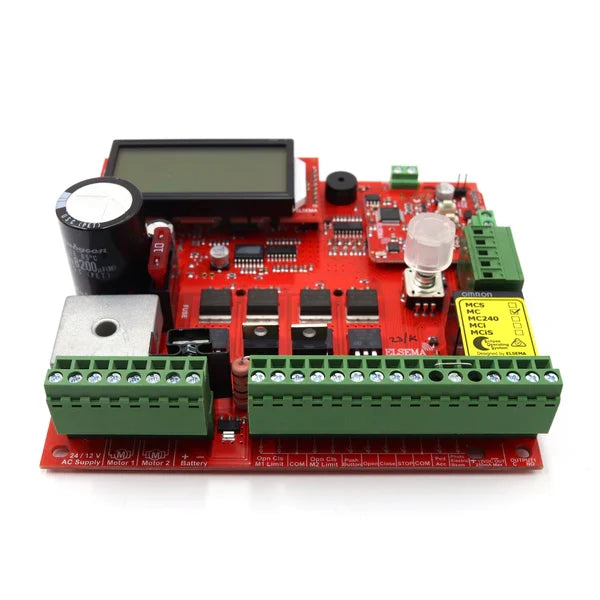

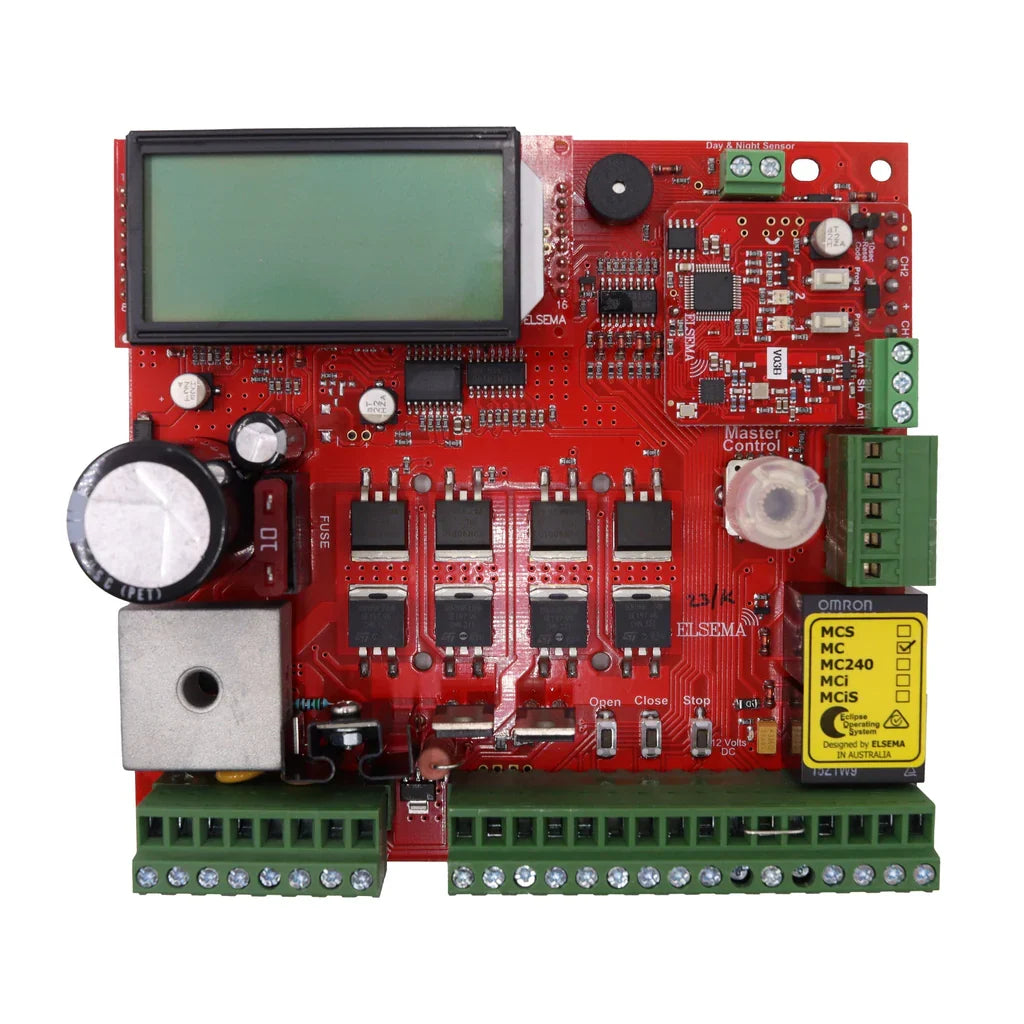

ELSEMA Eclipse Gate Controller MC12E – IP66 Enclosure, 12V DC/24V DC

The ELSEMA Eclipse Gate Controller (MC12E) is a high-performance automatic gate control system designed for both single and double gate applications. Featuring the advanced Eclipse Operating System (EOS), this intelligent controller offers user-friendly setup and operation. The large 4-line LCD screen provides real-time status updates, motor performance data, and intuitive setup instructions, making installation and maintenance effortless.

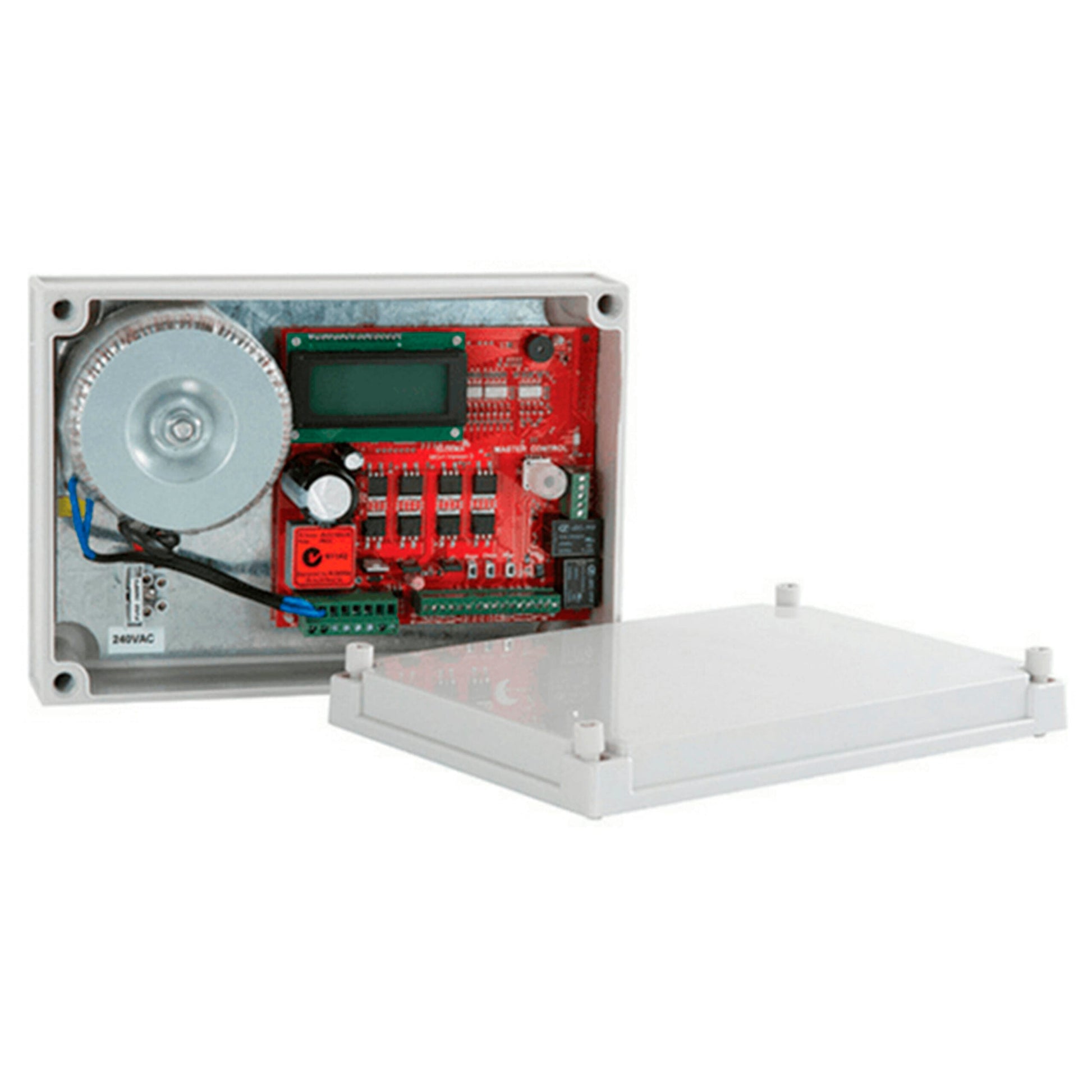

Engineered for reliability, the MC12E comes housed in an IP66-rated weatherproof enclosure, ensuring durability in outdoor installations. Its energy-efficient design, with a low 12mA standby current, makes it an ideal choice for solar-powered gates. With multiple input and output options, adjustable settings, and intelligent learning technology, the MC12E is the ultimate gate controller for residential, commercial, and industrial applications.

Key Features:

• Compatible with both swing and sliding gates

• Supports single and double motor operation

• Intelligent Eclipse Operating System (EOS) for advanced automation

• Day and night sensor (DNS) for optimized performance

• 12V or 24V DC motor operation

• Soft start and soft stop functionality to extend motor lifespan

• Speed and force adjustment for customized operation

• Large 4-line LCD display for easy navigation and setup

• Auto-profiling and i-Learning for quick and intelligent gate operation setup

• Adjustable auto-close, obstruction detection, and pedestrian access settings

• Multiple input options: push button, open only, close only, stop, pedestrian, and photoelectric beam

• Supports limit switch inputs or mechanical stops

• Adjustable lock and courtesy light outputs

• Energy-saving mode for reduced power consumption

• 12V and 24V DC output available for powering accessories

• Built-in 12V and 24V battery charger for backup power solutions

• Designed for solar gate applications with an ultra-low standby current of 12mA

• Compatible with ELSEMA PentaCODE® and PentaFOB® remotes

• IP66-rated weatherproof enclosure for outdoor installations

Technical Specifications:

• Operating Voltage: 12V DC / 24V DC

• Motor Compatibility: Single or double motor operation

• User Interface: 4-line LCD display with intuitive menu navigation

• Enclosure Rating: IP66 (dustproof and water-resistant)

• Input Options: Push button, open/close only, stop, pedestrian access, photoelectric beam

• Output Options: Lock output, courtesy light output, strobe/warning light output, service call output

• Auto Close Settings: Normal auto close, photoelectric trigger close, auto close after power failure

• Safety Features: Adjustable obstruction detection, anti-jam, electronic braking

• Memory Capacity: Stores up to 100 event history records

• Backup Power: Built-in 12V/24V battery charger (backup batteries sold separately)

• Solar Compatibility: Optimized for solar applications with low standby power usage

• Accessories Compatibility: Supports ELSEMA remote controls, keypads, and photoelectric beams

What’s Included in the Box?

• ELSEMA MC12E Eclipse Gate Controller

• IP66-rated weatherproof enclosure

• User manual and setup guide

• Necessary wiring connections

Excellence for the Australian and New Zealand Market:

• Fully compliant with Australian safety and quality standards

• Designed for harsh outdoor conditions with an IP66-rated enclosure

• Optimized for solar gate applications, making it ideal for remote locations

• Supplied exclusively through authorized ELSEMA distributors

• Warranty support and service available directly from ELSEMA

FAQs:

Q1: Can the ELSEMA MC12E be used for both swing and sliding gates?
A1: Yes, the MC12E is compatible with both swing and sliding gate motors, supporting single and double gate operation.

Q2: What power supply is needed for the ELSEMA MC12E?
A2: The controller supports 12V DC and 24V DC operation and includes a built-in battery charger for backup power solutions.

Q3: Is the ELSEMA MC12E suitable for solar-powered gates?
A3: Absolutely! With an ultra-low standby current of 12mA, it is optimized for solar applications when used with ELSEMA solar kits.

Q4: Does the MC12E include a backup battery?
A4: No, backup batteries are sold separately. However, the controller has a built-in charger that supports 12V and 24V backup battery options.

Q5: What remote controls are compatible with the MC12E?
A5: The MC12E is compatible with ELSEMA PentaCODE® and PentaFOB® remote controls, ensuring secure and reliable operation.

Q6: Is professional installation required?
A6: While the MC12E features a user-friendly interface with easy setup, professional installation is highly recommended to ensure proper wiring and safety compliance.

Datasheets and Downloadable Resources:

• ELSEMA MC12E User Manual
