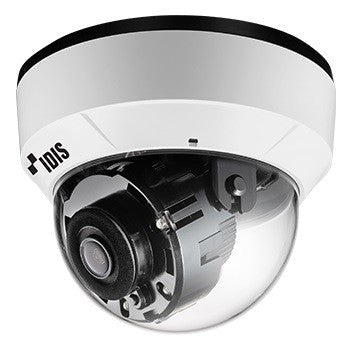

DC‑D4517RX 2.8 mm 5MP H.265 IR Dome Camera – Fixed Lens, PoE, WDR, ONVIF

DC‑D4517RX 2.8 mm 5MP H.265 IR Dome Camera – Fixed Lens, PoE, WDR, ONVIF

$325.38 AUD
$406.98 AUD $325.38 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The DC‑D4517RX 2.8 mm is a high‑performance 5MP dome network camera designed for seamless integration into surveillance systems. It features H.265 video compression with Intelligent Codec, true wide dynamic range (WDR), and 24/7 day/night operation (ICR). With PoE (IEEE 802.3af Class 3) power support and IR LEDs with up to 20 m illumination, this camera is reliable for both indoor and sheltered outdoor installations. It's ideal for use in security systems requiring crisp resolution, efficient bandwidth usage, and adaptability under challenging lighting conditions.

What’s Included in the Box

  • 1 × DC‑D4517RX 2.8 mm 5MP IR Dome Camera

  • Mounting hardware (screws, anchors)

  • Quick Start / Installation Guide

  • Warranty / compliance documentation

Main Features

  • 5MP resolution (2592 × 1944) with H.265 / H.264 / MJPEG compression

  • Intelligent Codec for efficient video streaming

  • True WDR support (120 dB) for high contrast scenes

  • IR LED illumination up to 20 m (4 LEDs)

  • Fixed 2.8 mm lens offering wide field of view

  • Day/night functionality with IR cut filter (ICR)

  • PoE support (IEEE 802.3af, Class 3)

  • ONVIF Profile S / T compatibility

  • Intelligent video features: motion detection, tampering alarm, trip zone

  • Privacy masking (8 zones)

  • Backlight compensation (BLC), de‑fog, mirroring / pivot

  • Robust mechanical capabilities: ± pan, tilt, rotation ranges

Detailed Specifications

Category Specification
Image / Video
Image Sensor 1/2.8″ CMOS
Max Resolution 2592 × 1944
Scanning Mode Progressive
Lens Type Fixed‑focal
Focal Length 2.8 mm
Aperture F2.0
Iris Control Fixed
Field of View 4:3 mode: 104.8° (H) × 76.9° (V) × 130° (D)
16:9 mode: 104.8° (H) × 57.2° (V) × 123° (D)
Minimum Illumination Color: 0.15 lux @ F2.0
B/W (IR on): 0 lux
Dynamic Range 120 dB (True WDR)
Electronic Shutter Auto / Manual (1/30 – 1/10,000); Anti‑Flicker; Slow Shutter (1/7.5, 1/15)
Day / Night Yes (with ICR)
IR Distance Up to 20 m (4 IR LEDs)
Image Adjustments Exposure, White Balance, Sharpness, Contrast, Brightness, Self‑Adjusting Mode
BLC (Backlight Comp) Supported
De‑fog Yes
Privacy Masking 8 zones
Intelligent Video Motion Detection, Active Tampering Alarm, Trip Zone
Mirroring / Pivot Horizontal / Vertical / Pivot
Network / Compression
Video Compression H.265, H.264 (MP), MJPEG
Intelligent Codec Yes
Bitrate Control CBR / VBR modes
Protocols DirectIP 2.0, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTSP/UDP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
ONVIF Profile S / T
Frame Rate 4:3 mode: 30 fps @ 2592×1944 (WDR)
16:9 mode: 30 fps @ 2592×1456 (WDR)
Multi‑streaming Up to 4 streams (Quad streaming)
Security Digest authentication, password protection, user logs, IP filtering, IEEE 802.1x (EAP‑TLS), SSL / HTTPS encryption
Ethernet RJ‑45 (10/100 Mbps)
Recording Buffer NLTSrec support (up to 60 MB buffer)
Alarm / Event
Trigger Events Motion detection, tampering, trip zone
Notifications Remote software, email with image
Environmental / Mechanical / Electrical
Operating Temperature ‑10 °C to +50 °C
Operating Humidity 0% – 90%
Power (PoE) IEEE 802.3af Class 3, ~7.5 W
Approvals FCC, CE, KC

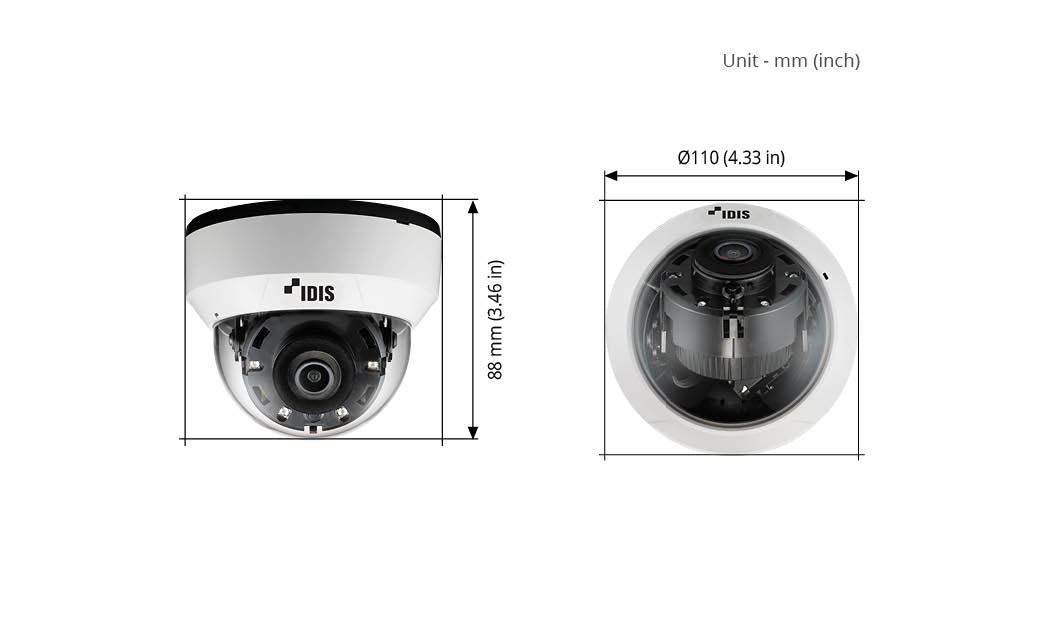

Dimensions Ø110 × 88 mm
Weight ~0.2 kg

Applications & Use Cases

  • Ideal for retail stores, office interiors, lobbies, and corridors

  • Monitoring entrances, hallways, and open spaces where wide coverage is beneficial

  • Suitable for 24/7 surveillance systems needing clear imagery under varying light

  • Use with DirectIP NVR systems or ONVIF‑compatible third-party NVR / VMS

  • Can be part of hybrid systems requiring AI analytics or multi-stream integration

SKU / Product Code

You may assign your own SKU (e.g. DC-D4517RX‑2.8) to help cataloging in your inventory system.

Brand / Quality Assurance

This camera belongs to IDIS’s DC‑D4000 series, designed for reliable surveillance use with compliance to industry standards (FCC, CE, KC). Its design supports day/night operation, WDR, and network security features to resist misuse or tampering.

 FAQ

Q: What is the model and lens specification of this camera (DC‑D4517RX)?
A: This is the DC‑D4517RX 2.8 mm dome camera with a fixed 2.8 mm lens and 5 MP resolution.

Q: Does the DC‑D4517RX support PoE?
A: Yes, it supports PoE (IEEE 802.3af Class 3), consuming around 7.5 W.

Q: What is the IR range for the DC‑D4517RX 2.8 mm model?
A: The infrared LEDs can illuminate up to 20 meters (65.6 ft) for night vision.

Q: Can the DC‑D4517RX work in difficult lighting / contrast scenes?
A: Yes — it supports True WDR (120 dB) to manage scenes with bright highlights and dark shadows.

Q: Is the DC‑D4517RX 2.8 mm compatible with third‑party NVRs?
A: Yes, it supports ONVIF (Profile S / T) and standard video streaming protocols.

Q: What compression formats are supported by DC‑D4517RX?
A: It supports H.265, H.264 (MP), and MJPEG, along with an Intelligent Codec for efficient streaming.
