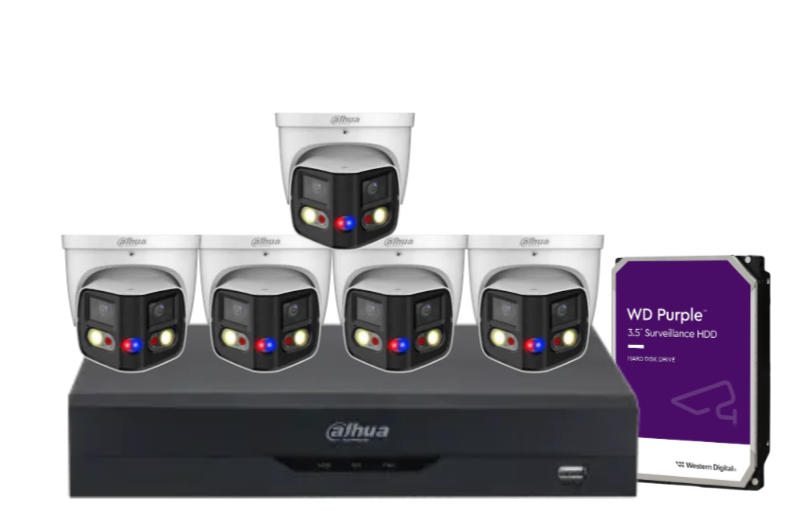

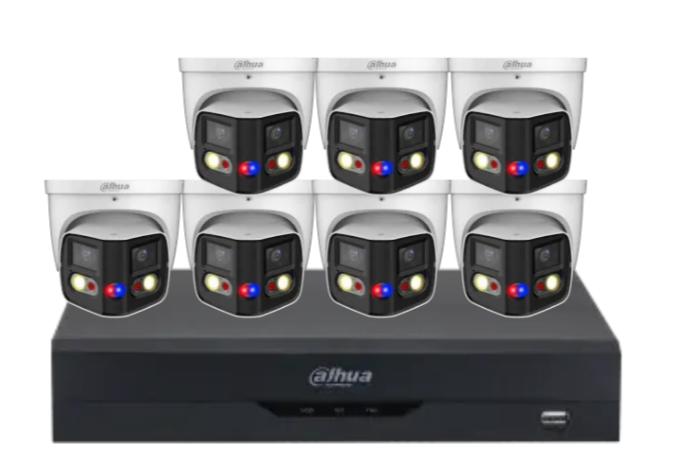

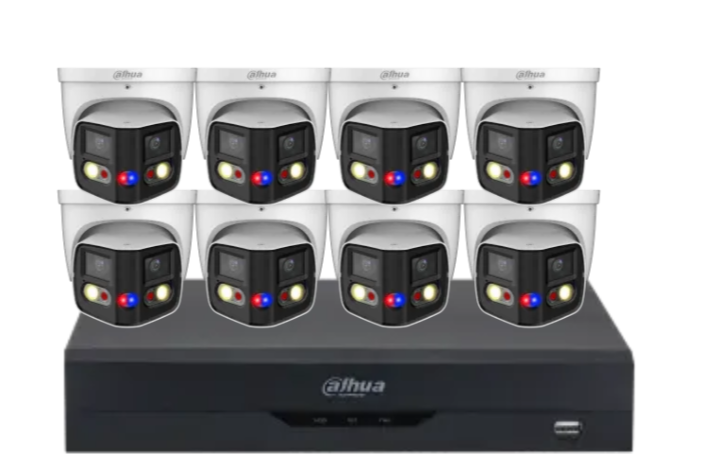

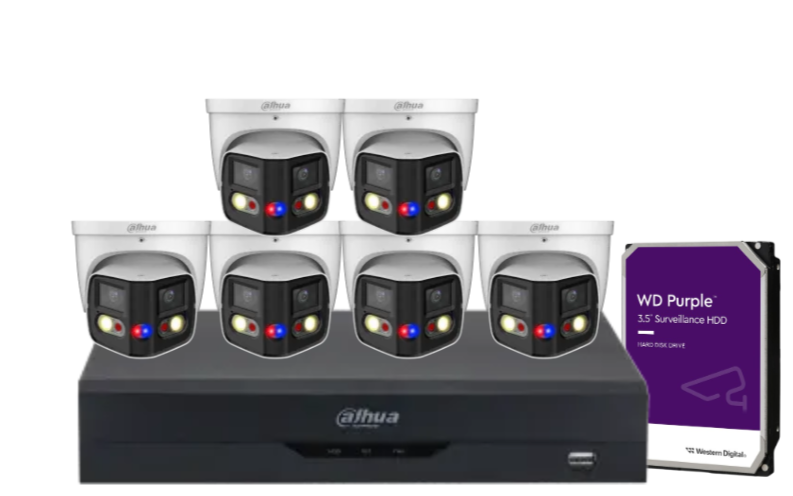

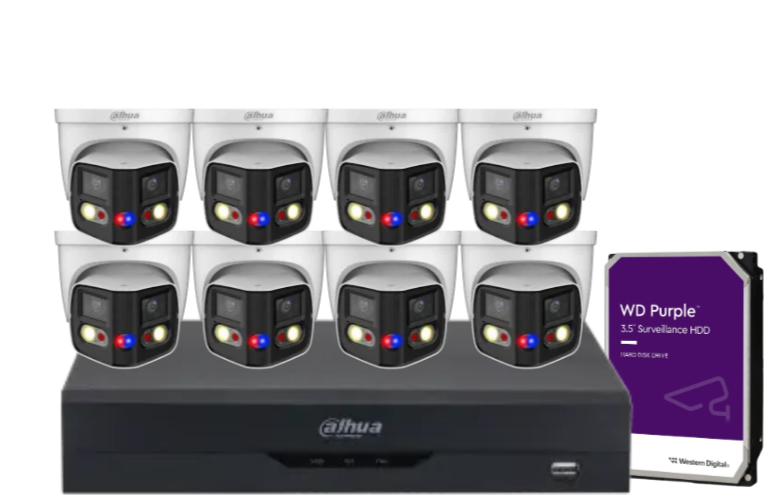

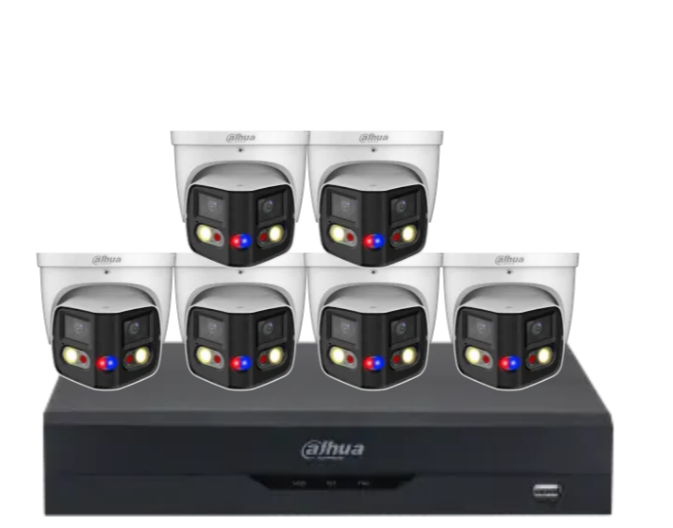

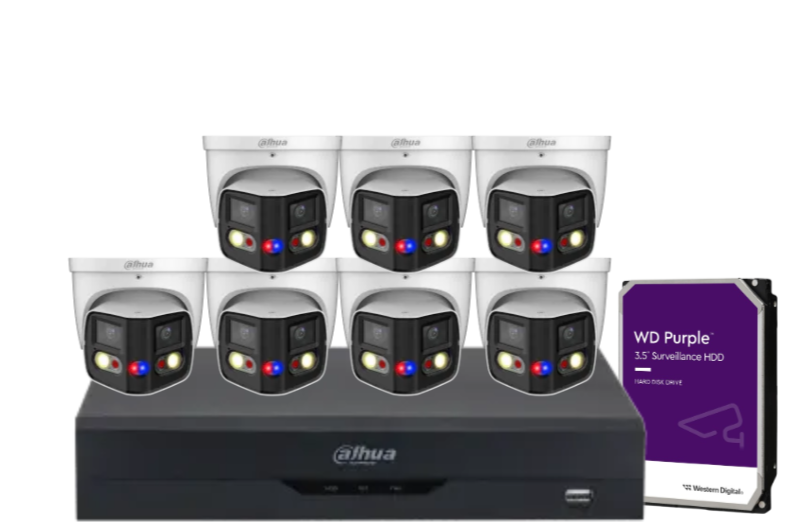

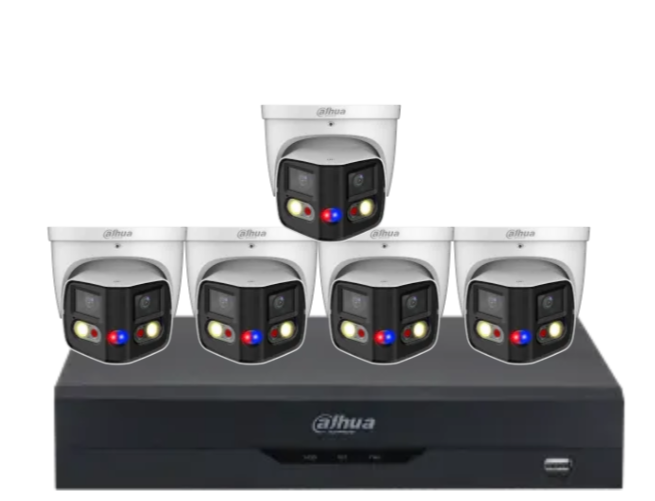

Dahua x8 8MP AI Full-Colour 180° TIOC Duo CCTV Kit with Dual-Lens WizSense Cameras, 8-Channel PoE NVR & HDD – DH-IPC-PDW3849-A180-AS-PV-ANZ-1

Introducing the Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ WizSense Series IP Camera Kit, a powerful AI-driven surveillance solution engineered for expansive, high-clarity, and intelligent monitoring. Featuring dual 4MP lenses, 180° panoramic coverage, and full-colour imaging, this CCTV kit combines advanced video analytics with user-friendly integration. Whether safeguarding your residence or securing commercial premises, this system provides unmatched peace of mind with AI-enhanced protection and a robust build ideal for Australian and New Zealand environments.

Powered by WizSense AI technology, the system delivers smart motion detection (SMD 4.0), perimeter protection, and Quick Pick search capabilities. With EPTZ functionality, intelligent alarms can automatically enlarge and track targets in real-time.

This kit supports up to 8 Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ cameras connected to an 8-channel PoE AI NVR (DHI-NVR4108HS-8P-AI/ANZ), offering seamless video recording with smart compression (H.265+/AI H.265). The integrated HDD ensures continuous storage, while the full-metal IP67-rated construction enables all-weather performance.

What's Included in the Box

• 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8-Channel AI NVR

• Up to 8 × Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ Dual-Lens IP Cameras

• 1 × HDD

• 1 × Power Adapter


• 1 × USB Mouse

• 1 × Quick Start Guide

Main Features

• AI 180° TIOC Duo dual-lens design for full panoramic views

• 2x 4MP image sensors with H.265+ smart compression

• EPTZ tracking for dynamic zoom and movement following

• Smart Detection: Perimeter protection, SMD 4.0, Quick Pick

• Full-colour night vision with IR + warm LED up to 20m

• Durable IP67-rated metal housing for outdoor use

• 8 PoE channels with intelligent NVR AI processing

• Built-in microphone and speaker for two-way audio

• 3-year warranty with local support in AU/NZ

Technical Specifications

Camera: DH-IPC-PDW3849-A180-AS-PV-ANZ

• Image Sensor: Dual 1/2.7" CMOS

• Max. Resolution: 4096 × 1860

• Lens: Fixed 2.8 mm, 180° Horizontal FOV

• Low Light Performance: 0.005 Lux (Color); 0 Lux (IR on)

• Illumination: IR + Warm LED, 20–25m range

• WDR: 120 dB for high-contrast environments

• Smart Functions: IVS (Tripwire, Intrusion), SMD 4.0, EPTZ

• Audio: Built-in mic and speaker

• Ingress Protection: IP67 Weatherproof

NVR: DHI-NVR4108HS-8P-AI/ANZ

• AI Processing: Face Recognition, Perimeter Protection, SMD Plus

• Video Compression: H.265+/H.264+ with AI optimization

• Storage: 1 × SATA HDD bay (up to 16TB)

• Decoding Capability: Up to 16 × 1080p @ 30fps

• Network Bandwidth: 256 Mbps (180 Mbps with AI enabled)

• PoE Ports: 8 × 802.3af/at compliant

• Output: HDMI (4K) + VGA

Warranty Information

This Dahua CCTV kit is backed by a 3-year manufacturer warranty, ensuring long-term performance and reliability. Support and warranty handling are managed through authorized AU/NZ service channels.

Brand Description

Dahua Technology is a globally recognized leader in AI-powered security solutions. With an emphasis on innovation, Dahua delivers reliable, high-performance surveillance systems that serve government, commercial, and residential sectors worldwide. The WizSense Series focuses on intelligent, accessible, and efficient security driven by deep learning algorithms.

SKU

DH-IPC-PDW3849-A180-AS-PV-ANZ-1

Practical Use Scenarios

• Home Security: Monitor large outdoor areas, driveways, and entrances with AI-powered alerts and 180° coverage.

• Retail Stores: Gain insights with people counting, smart motion detection, and facial recognition.

• Warehouse Facilities: Ensure safe and efficient operation with perimeter alerts and smart tracking.

• Office Buildings: Manage access and monitor sensitive zones intelligently with facial and vehicle recognition.

Excellence for the Australian and New Zealand Market

• RCM and CE Certified for Australian standards

• NDSS-compliant for professional-grade security deployments

• Optimized for AU/NZ Networks – Seamless integration with local ISPs and equipment

• Genuine Product from Authorized Channels – Direct-from-manufacturer sourcing

• Local Warranty Support – All warranty claims handled by official regional representatives

FAQs – Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ-1

Q: Does the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 camera offer full-colour night vision?
A: Yes, it features full-colour night vision with built-in warm LED lighting, providing clear images up to 20 meters in darkness.

Q: What is the video recording capacity of the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 kit?
A: The included NVR supports up to 16TB HDD storage and 8 channels of 4MP AI-enhanced recording.

Q: Can I use the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 with other third-party cameras?
A: Yes, the Dahua NVR supports ONVIF-compliant cameras, allowing integration with select third-party brands.

Q: Is remote monitoring supported with the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 system?
A: Absolutely. You can access live feeds and playback via the Dahua DMSS mobile app (iOS/Android) or web browsers.

Q: Is this kit weatherproof for outdoor installation?
A: Yes, the cameras in the DH-IPC-PDW3849-A180-AS-PV-ANZ-1 are IP67-rated, making them highly durable in harsh weather conditions.
