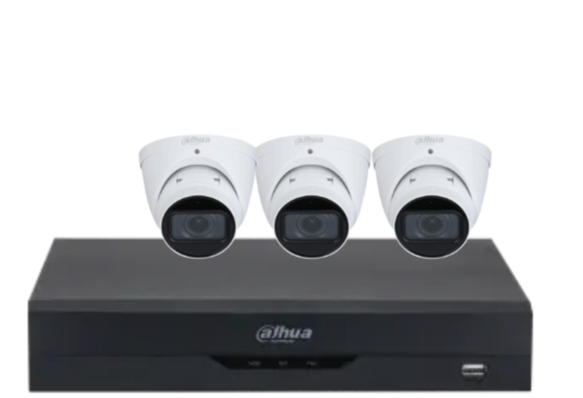

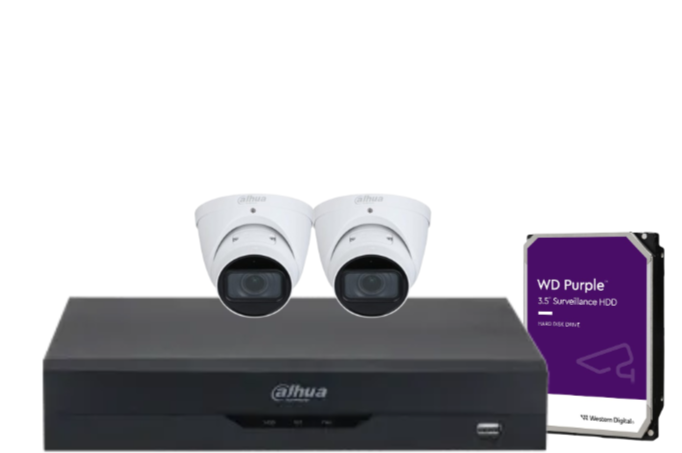

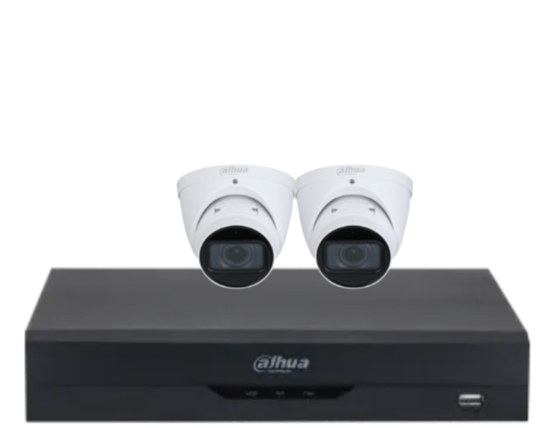

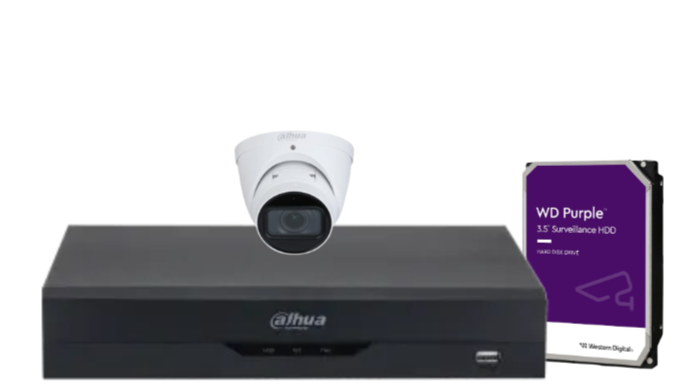

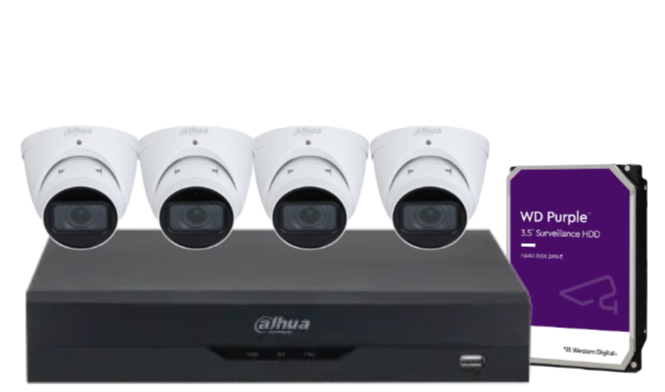

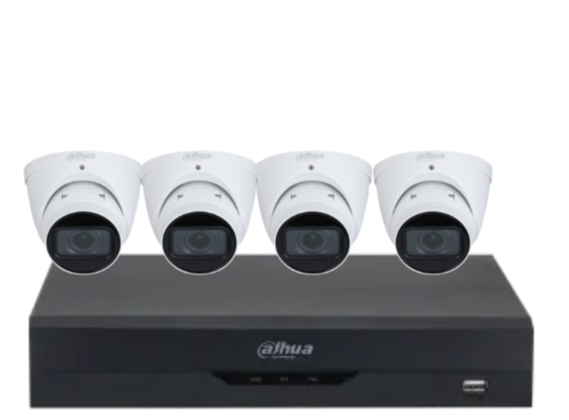

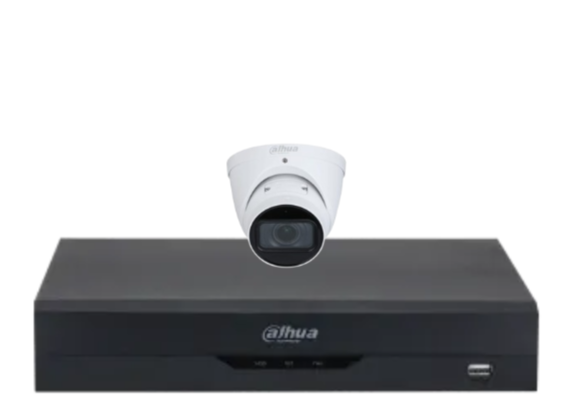

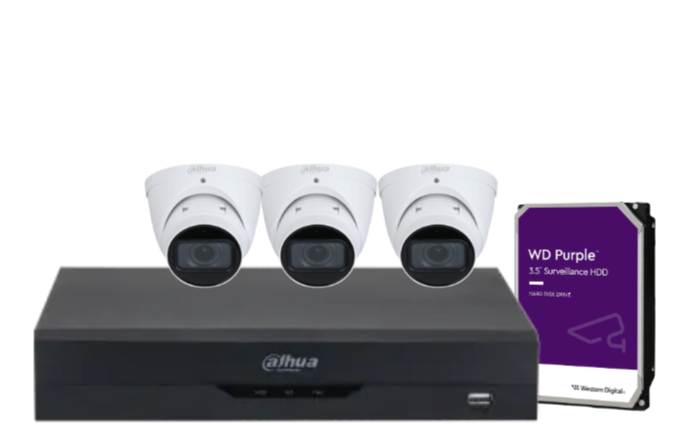

Dahua x4 4MP AI CCTV Kit with 4-Channel WizSense NVR, Vari-Focal Eyeball Cameras + HDD – IPC-HDW3441T-ZAS + DHI-NVR4104HS-P-AI/ANZ

The Dahua 4MP AI CCTV Kit is a professional-grade surveillance package ideal for homes, retail, and small businesses seeking smart security. It includes up to four Dahua IPC-HDW3441T-ZAS 4MP IR Vari-focal WizSense Eyeball Cameras paired with a Dahua DHI-NVR4104HS-P-AI/ANZ 4-Channel PoE AI NVR and a pre-installed HDD for seamless recording and AI-powered video analytics.

This system leverages advanced WizSense AI technology, providing accurate human and vehicle classification, face recognition, perimeter protection, and intelligent motion detection (SMD Plus). With 4MP high-resolution imaging, motorized vari-focal lenses, Smart IR night vision (up to 40m), and a weather-resistant IP67 rating, these cameras are designed for versatile indoor and outdoor use.

What’s in the Box

• Up to 4 × Dahua IPC-HDW3441T-ZAS 4MP IR Vari-focal WizSense Network Cameras

• 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4-Channel PoE AI NVR

• 1 × Hard Disk Drive (HDD) (Choose your HDD below)

• Power Adapter


• Quick Start Guide


Main Features

IPC-HDW3441T-ZAS Cameras:

• 4MP (2688 × 1520) resolution @30fps

• 1/3" CMOS progressive scan sensor with low-light performance

• Motorized vari-focal lens (2.7–13.5mm) with remote zoom

• Built-in Smart IR LEDs with 40m night vision range

• Advanced WDR (120dB), 3D DNR, BLC, and HLC for optimal image clarity

• Smart Detection: Tripwire and intrusion detection with vehicle/human classification

• Event Alerts: Motion, tampering, audio detection, SD card errors, and more

• Built-in microphone for real-time audio capture

• H.265+/H.264+ video compression for storage efficiency

• IP67-rated metal housing for outdoor durability

• Supports microSD cards up to 256GB

DHI-NVR4104HS-P-AI/ANZ NVR:

• 4 PoE ports for direct camera connection

• Supports up to 4 IP cameras with AI functionality

• Smart H.265+ compression for optimal bandwidth use

• AI Features:

  • 1-channel face recognition

  • 2-channel perimeter protection

  • 4-channel SMD Plus (accurate human/vehicle detection)

  • ANPR (license plate recognition), people counting, heat maps (via compatible cameras)

• Max. decoding: 3-ch 8MP @30fps with AI enabled

• AI search and Smart Quick Pick event review

• HDMI (4K) and VGA (1080p) outputs for dual display

• 1 × SATA interface (up to 16TB HDD)

• ONVIF support for third-party camera integration

• Mobile access via Dahua DMSS app (iOS/Android)

Detailed Specifications

Camera – IPC-HDW3441T-ZAS:

• Sensor: 1/3" 4MP CMOS

• Resolution: 2688 × 1520

• Lens: 2.7–13.5mm motorized, F1.5

• Field of View: H: 104°–27°, V: 55°–15°, D: 124°–31°

• IR Range: Up to 40m

• Audio: Built-in microphone

• Storage: microSD up to 256GB

• Intelligence: Tripwire, intrusion, motion detection, tampering, voltage alerts

• Ingress Protection: IP67

• Power: 12V DC or PoE

• Dimensions: 108.3 mm × Φ122 mm

• Weight: 685g (net)

NVR – DHI-NVR4104HS-P-AI/ANZ:

• Channels: 4 IP inputs

• PoE Ports: 4 × IEEE 802.3af

• Max Decoding: 3-ch 8MP @30fps (AI enabled)

• Compression: H.265+/H.264+

• AI Processing: Face recognition, SMD Plus, perimeter protection

• Storage: 1 × SATA (up to 16TB)

• Outputs: 1 HDMI (4K), 1 VGA (1080p)

• Mobile Access: Dahua DMSS app

• Web Interface: Chrome, Firefox, Internet Explorer

• USB Ports: 2 × USB 2.0

• Audio I/O: 1 RCA In / 1 RCA Out

• AI Search: Supports Quick Pick and metadata filtering

Warranty Information

This Dahua CCTV Kit comes with a 3-year manufacturer’s warranty. All warranty claims are supported through Dahua’s authorized distribution channels in Australia and New Zealand, ensuring genuine product support and service.

About Dahua Technology

Dahua Technology is a global leader in video surveillance solutions. Their WizSense series is powered by AI deep learning for enhanced detection, recognition, and intelligent event response. Dahua products are trusted by professionals for their innovation, reliability, and cost-effectiveness.

SKU

• DAHUA-IPC-HDW3441T-ZAS

• DHI-NVR4104HS-P-AI/ANZ-TW-1

Practical Use Scenarios

• Home Security: Monitor front doors, garages, and yards with facial alerts and smart motion detection.

• Retail & Commercial: Prevent unauthorized access, detect loitering, and analyze foot traffic via heat maps.

• Office Surveillance: Manage entry points, monitor attendance, and secure sensitive areas with facial recognition.

• Warehousing & Logistics: Identify human and vehicle movement with precision using perimeter protection and ANPR.

Datasheets & Resources

• Dahua IPC-HDW3441T-ZAS Datasheet

• Dahua DHI-NVR4104HS-P-AI/ANZ User Manual


Excellence for the Australian and New Zealand Market

This Dahua CCTV kit is certified for compliance with Australian and New Zealand standards including RCM, CE-EMC, and RoHS. All components are distributed through authorized channels, ensuring NDSS alignment, full local warranty coverage, and compatibility with local ISP networks and electrical standards.

FAQs – Dahua IPC-HDW3441T-ZAS + DHI-NVR4104HS-P-AI/ANZ

Q1: Does the IPC-HDW3441T-ZAS camera support audio recording? (SKU: DAHUA-IPC-HDW3441T-ZAS)
A1: Yes, it has a built-in microphone for real-time audio capture.

Q2: Can the NVR4104HS-P-AI/ANZ record AI events like face recognition? (SKU: DHI-NVR4104HS-P-AI/ANZ-TW-1)
A2: Yes, it supports 1-channel face recognition and 2-channel perimeter protection with AI-enabled event recording.

Q3: What is the IR range for the Dahua IPC-HDW3441T-ZAS? (SKU: DAHUA-IPC-HDW3441T-ZAS)
A3: The camera provides up to 40 metres of night vision via Smart IR LEDs.

Q4: Can I access this system remotely via smartphone? (SKU: DHI-NVR4104HS-P-AI/ANZ-TW-1)
A4: Yes, the system supports mobile viewing via the Dahua DMSS app for iOS and Android.

Q5: What storage capacity does the NVR support? (SKU: DHI-NVR4104HS-P-AI/ANZ-TW-1)
A5: The NVR includes 1 SATA port supporting up to 16TB HDD storage capacity.
