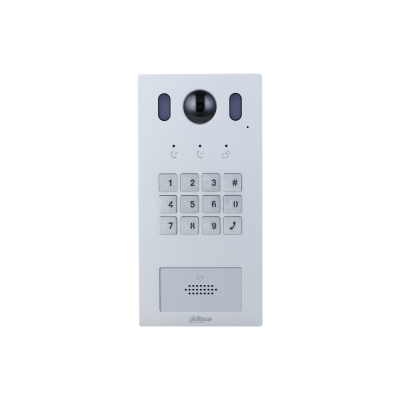

Dahua VTO3222E-P 2-Wire IP Villa Door Station, support 5,000 users 10,000 IC cards

The VTO3222E-P 2-Wire IP Villa Door Station is a high-performance, elegant outdoor intercom solution designed for enhanced security and user convenience. Built with a robust aluminum panel and mechanical keypad, this door station combines durability with a sleek aesthetic, making it ideal for residential or villa installations. Its features include a powerful 2MP HD camera, versatile unlocking options, and compatibility with card readers and controllers.

Key Features:

• High-Resolution Camera: Equipped with a 2MP CMOS sensor, offering a 140° horizontal, 80° vertical, and 160° diagonal field of view. The camera includes Wide Dynamic Range (WDR) at 120 dB for superior clarity in diverse lighting and 3D noise reduction, delivering high-quality video streams at 720p.
• Multiple Unlock Methods: Allows access via password, IC card (Mifare), and remote unlock for flexibility.
• Large User and Card Capacity: Supports up to 5,000 users and 10,000 cards, accommodating substantial security requirements.
• Standard Power Options: Provides 12 VDC, 600 mA power, and supports Power over Ethernet (PoE). Compatible with a PSE switch that meets IEEE 802.3at standards.
• Rugged Design: Rated IP65 for weather resistance and IK08 for impact resistance. (Requires silicone sealant for IP65 compliance; refer to the quick start guide.)
• Digital Two-Wire Communication: Enables efficient communication and connectivity with two-wire digital technology, simplifying installation.
• Advanced Audio System: Two-way audio with built-in echo suppression and digital noise reduction for clear conversations. Features audio compression using G.711a, G.711u, and PCM formats.

Technical Specifications:

• Operating System: Embedded Linux OS
• Button Type: Mechanical, with 12-button keypad
• Video Compression: H.264 and H.265 for efficient streaming
• Light Compensation: Automatic white light adjustment for optimal image quality day and night
• Audio Specifications: 16 kHz sample rate, 16-bit audio, echo suppression, and digital noise reduction
• Storage: Supports Micro SD cards up to 256 GB (card slot located in indoor monitor or door station)
• Card Reader Compatibility: Wiegand protocol support with a reading distance of 0–3 cm

Additional Features:

• Automatic Snapshots and Leave Video Messages: Allows snapshots and video storage if an SD card is inserted in an indoor monitor or connected to an FTP server.
• Web Configuration: Can be configured remotely via web interface for easy management.

What's in the Box:

• VTO3222E-P 2-Wire IP Villa Door Station
• Mounting kit
• Quick Start Guide (with details on IP65 weatherproofing requirements)
• Optional silicone sealant (for outdoor sealing as needed)

Warranty:

Comes with a 3-year manufacturer warranty

The VTO3222E-P is ideal for high-security environments where durability, versatility, and aesthetics are key priorities, providing advanced entry control with ease of use and reliability.
