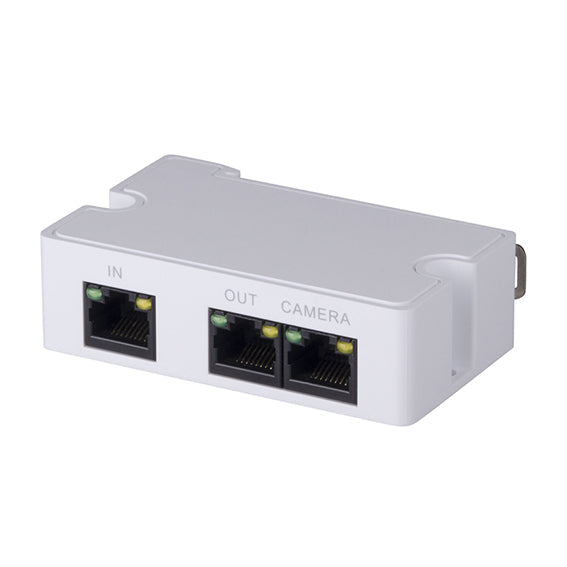

Dahua PFT1300 PoE Extender – IEEE 802.3af/at Compliant, 3-Port Passive PoE Repeater with 300m Transmission Range

The Dahua PFT1300 PoE Extender is a compact, high-performance Power over Ethernet repeater designed to extend both data and power for IP cameras across long distances. Supporting IEEE 802.3af/at PoE standards, the PFT1300 enables passive PoE cascading up to two levels, allowing the connection of up to three IP cameras over 300 meters total transmission range when used with a compatible High PoE Midspan (PFT1200). With three RJ45 ports for input, output to camera, and output to another extender, this unit provides efficient, reliable, and scalable network expansion without additional power supplies. Its versatile mounting options (DIN rail or internal junction box) make it an ideal choice for professional surveillance system installations.

What’s Included in the Box

• 1 × Dahua PoE Extender – PFT1300

• Quick Start Guide


Main Features

• 3-Port PoE Extension: Includes PoE input, one port for IP camera, and one for cascading to the next extender.

• 300m PoE Extension: When used with Dahua PFT1200 midspan, supports 2-level cascading to power 3 IP cameras over a total distance of 300 m.

• IEEE 802.3af/at Compliant: Fully compatible with standard PoE IP cameras.

• Passive Power Transfer: No external power source required; draws power from upstream PoE injector or midspan.

• Compact & Lightweight: Only 57g and 79 × 52 × 23 mm, easy to install in tight spaces.

• Multiple Mounting Options: Supports DIN rail and internal junction box mounting.

• Low Power Consumption: ≤3W, ensuring energy efficiency.

Detailed Specifications

Warranty Information
The Dahua PFT1300 PoE Extender is backed by Dahua's standard hardware warranty. Support and service are provided locally through authorised ANZ distributors and installers.

Brand Description
Dahua Technology is a global leader in innovative video surveillance solutions. Its networking accessories, like the PFT1300 PoE Extender, are designed to complement high-performance IP camera systems with reliability, efficiency, and easy integration.

SKU: PFT1300

Practical Use Scenarios

• Extended Outdoor Camera Installations: Power and connect cameras up to 300m from the NVR or switch using cascading extenders.

• Warehouses & Large Properties: Ideal for projects where power outlets are limited and long-distance cable runs are required.

• Commercial & Retail Complexes: Expand camera coverage across floors or buildings without laying new power lines.

• Smart City Infrastructure: Perfect for pole-mounted or roadside camera installations where power access is restricted.

Datasheets & Downloads
📄 Dahua PFT1300 PoE Extender Datasheet

Excellence for the Australian and New Zealand Market

The Dahua PFT1300 is optimized for demanding installation environments across Australia and New Zealand. Built for durability in fluctuating climates (–30°C to +65°C), and supported through locally authorised channels, this unit ensures compliance with regional standards, including fast turnaround for warranty claims, trusted supply chains, and compatibility with Dahua’s Australian-certified PoE cameras and accessories.

FAQs

Q: What is the maximum transmission distance of the PFT1300 PoE Extender?
A: The PFT1300 supports up to 300m transmission when used with a PFT1200 midspan and total camera load under 25W.

Q: Can the PFT1300 power multiple cameras?
A: Yes, when used in a 2-level cascade setup with PFT1200, the PFT1300 can help power up to three IP cameras in total.

Q: Is the PFT1300 compatible with non-Dahua devices?
A: Yes, the PFT1300 is IEEE 802.3af/at compliant, making it compatible with standard PoE IP cameras from other brands.

Q: Does the PFT1300 require an external power supply?
A: No, the PFT1300 uses passive PoE and draws power from the upstream device such as a PoE midspan or injector.

Q: What mounting options are available for the PFT1300?
A: The PFT1300 supports both DIN rail and junction box internal mounting for flexible installation.
