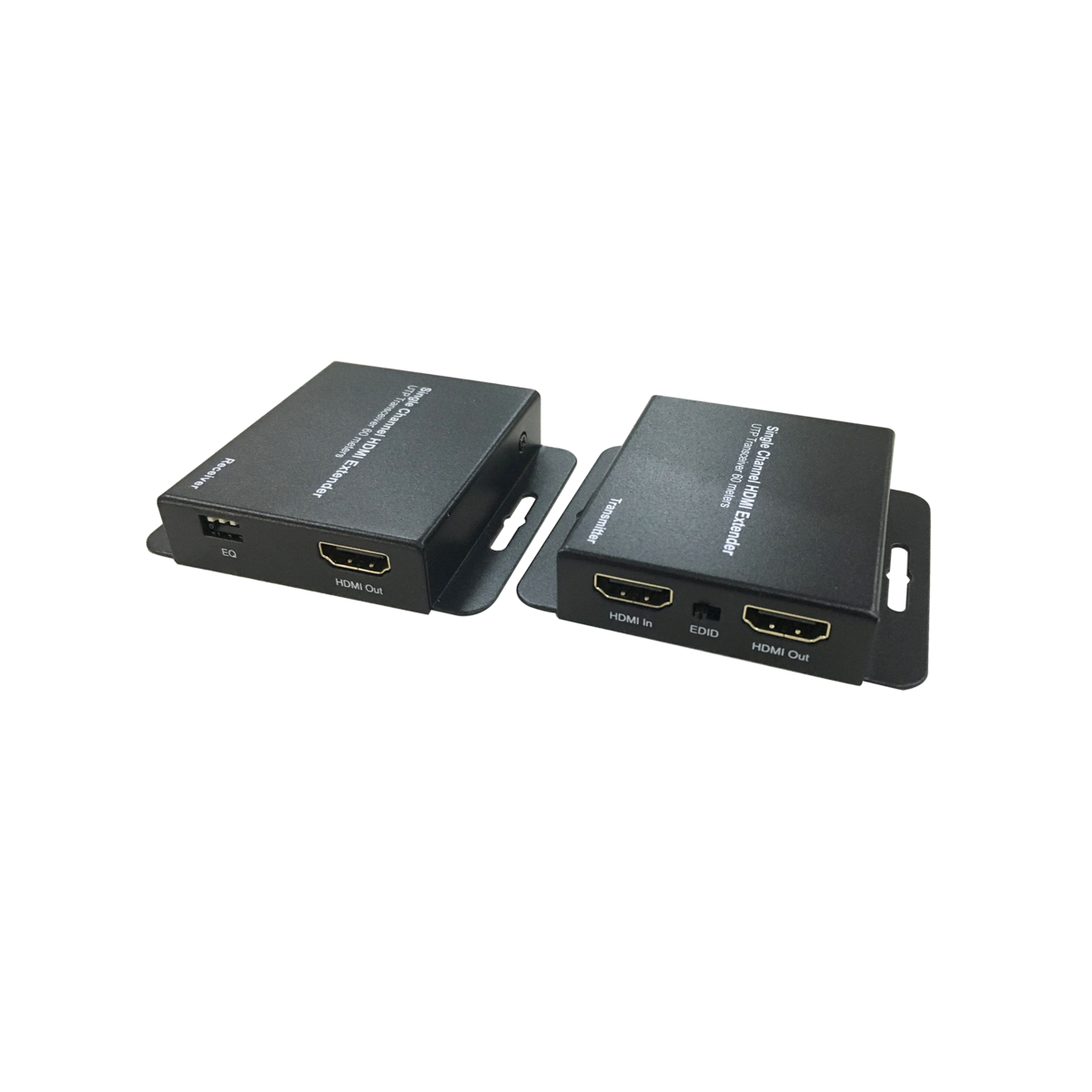

Dahua PFM700-E HDMI Extender – 50m CAT6 Transmission, IR Remote Support, HDMI 1.3, Anti-Interference, CE/FCC Certified

The Dahua PFM700-E HDMI Extender offers a reliable and interference-resistant solution for transmitting full HD HDMI signals up to 50 metres over a single CAT5e or CAT6 cable. Designed with HDMI 1.3 support, real-time zero-delay transmission, and one-way infrared (IR) remote control signal support, this device allows for seamless AV distribution in commercial, educational, or home entertainment setups. With robust protection features including anti-static and anti-thunder capabilities, the PFM700-E delivers excellent performance and durability without the need for additional drivers or network configuration. Compatible with a wide range of resolutions up to 1080p and compliant with CE and FCC certifications, this plug-and-play extender is ideal for HDMI signal extension in demanding installations.

What’s Included in the Box

• 1 × HDMI Extender Transmitter Unit – PFM700-E

• 1 × HDMI Extender Receiver Unit – PFM700-E

• 1 × DC 5V 1A Power Adapter

• 1 × IR Transmitter Cable

• 1 × IR Receiver Cable

• 1 × User Manual

Main Features

• HDMI over Single CAT6: Transmit HDMI signal up to 50m over a single UTP cable (CAT5e/6)

• Real-Time, No-Delay Video Transmission: Ensures smooth signal delivery with strong anti-interference

• IR Control Support: Transmits IR remote control signals for remote device operation

• HDMI Local Loop-Out: Maintain signal at source with loop-through support

• Supports HDMI 1.3 & HDCP 1.2: Compatible with legacy and modern AV devices

• High-Definition Resolutions: Supports up to 1080p, including 1080i, 720p, 576p, and 480p

• Robust Build Quality: Iron casing with CE/FCC certified surge, static, and lightning protection

• Plug-and-Play: No software or network setup required

Detailed Specifications

Warranty Information
The PFM700-E HDMI Extender includes Dahua’s standard 1 year manufacturer warranty. Warranty support and replacements are available through authorised distributors in Australia and New Zealand.

Brand Description
Dahua Technology is a global leader in video surveillance and professional AV transmission technologies. Dahua’s video and signal extension products are engineered for reliability, compatibility, and ease of integration in commercial and industrial settings.

SKU: PFM700-E

Practical Use Scenarios

• Meeting Rooms & Conference Halls: Extend HDMI signals between control room and large displays.

• Classrooms & Lecture Theatres: Link projectors or TVs to teacher consoles with IR remote support.

• Retail Digital Signage: Extend HDMI video to screens positioned at various locations.

• Home AV Systems: Enable centralized AV gear with long-range HDMI transmission and IR control.

• CCTV Monitor Extension: Send live feeds from DVR/NVR to external viewing stations.

Datasheets & Downloads
📄 Dahua PFM700-E HDMI Extender Datasheet

Excellence for the Australian and New Zealand Market

The Dahua PFM700-E is built for robust AV signal extension across challenging environments typical in Australia and New Zealand. Designed to perform reliably in high-temperature and high-humidity conditions, it offers easy integration with Dahua and third-party AV setups. Locally supported and distributed, the product ensures fast service, certified compliance, and guaranteed compatibility for professional installers.

FAQs

Q: What cable type should I use with the Dahua PFM700-E?
A: For best performance, use CAT6 pure copper cable with a DC impedance of less than 9.5 ohm per 100m when using the PFM700-E.

Q: What is the maximum HDMI resolution supported by the PFM700-E?
A: The PFM700-E supports full HD resolutions up to 1080p and is compliant with HDMI 1.3 standards.

Q: Can the PFM700-E transmit IR remote signals?
A: Yes, the PFM700-E supports one-way infrared remote control signal transmission for remote device operation.

Q: Does the PFM700-E require power for both transmitter and receiver?
A: No, only the transmitter needs a 5V power supply; the receiver is powered via the CAT cable.

Q: Is the Dahua PFM700-E certified for use in Australia or New Zealand?
A: Yes, the PFM700-E carries CE and FCC certifications, ensuring compliance with safety and operational standards across the ANZ region.
