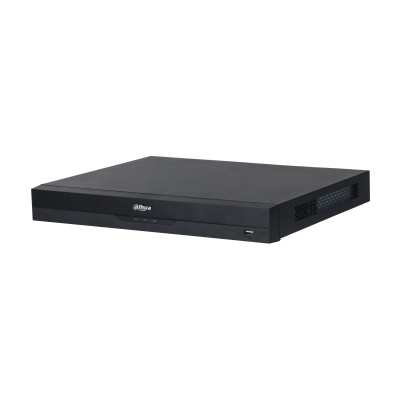

Dahua NVR5216-16P-AI/ANZ 16-Channel 1U 16PoE 2HDD WizSense Network Video Recorder NVR with AcuPick and Advanced AI

Upgrade your surveillance infrastructure with the Dahua NVR5216-16P-AI/ANZ, a powerful 16-channel network video recorder engineered for intelligent security environments. Built with deep-learning AI capabilities, high-performance decoding, and extensive compatibility, this NVR is the perfect centerpiece for modern video surveillance systems.

Designed for flexibility and precision, it supports a wide range of video formats, offers high incoming bandwidth, and seamlessly integrates AI analytics from both the recorder and connected IP cameras. Ideal for commercial, public, and high-security applications, it delivers reliable monitoring and rapid event response.

What’s Included in the Box:

• Dahua NVR5216-16P-AI/ANZ Network Video Recorder
• Power cable
• USB mouse
• SATA data cables
• Quick start guide
• Mounting accessories

Main Features:

• 16-Channel Real-Time Recording: Supports simultaneous video feed access from up to 16 IP cameras.
• Smart Video Compression: Compatible with Smart H.265+/H.265 and Smart H.264+/H.264 for optimized storage usage.
• High Bandwidth Support: Up to 384 Mbps for incoming, recording, and outgoing bandwidth.
• AI by Recorder: Built-in face detection (2 channels), perimeter protection (4 channels), and SMD Plus (8 channels).
• AI by Camera: Enables face recognition, metadata capture, vehicle license plate recognition, people counting, and more.
• AcuPick Technology: Instantly searches and retrieves precise video segments based on human or vehicle targets.
• Heat Map & People Counting: Analyzes crowd density and traffic flow patterns with AI analytics.
• Flexible Playback Options: Multi-channel smart playback with search modes like face, motion detection, and event-based filtering.
• Third-Party Camera Support: ONVIF compliance and support for major third-party IP camera brands.
• User-Friendly Interface: Intuitive GUI with HDMI/VGA output and mobile support for iOS and Android.

Detailed Specifications:

• Video Input Channels: 16
• AI-Enabled Decoding: Supports up to 12 channels at 4MP with AI active

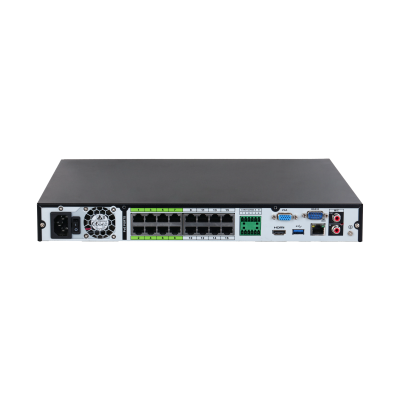

• Video Outputs: 1 HDMI (4K support), 1 VGA
• Storage: 2 SATA ports, up to 16TB per drive
• PoE Ports: 16 ports (10/100 Mbps), IEEE 802.3af/at compliant, ports 1–8 support ePoE
• AI Capabilities by Recorder: Face detection (2 ch), face recognition (2 ch), perimeter protection (4 ch), SMD Plus (8 ch)
• AI Capabilities by Camera: Face recognition, video metadata, perimeter protection, crowd stats, people counting, ANPR
• Audio In/Out: 1-channel RCA each
• Alarm I/O: 4 inputs, 2 outputs
• USB Ports: 1 front USB 2.0, 1 rear USB 3.0
• Power Supply: 100–240 VAC
• Power Consumption: ≤10W (NVR only), 130W PoE budget (max 25.5W per port)
• Operating Temperature: –10°C to +55°C
• Dimensions: 375 mm × 329.3 mm × 53 mm
• Weight: Net: 2.66 kg, Gross: 3.82 kg
• Mounting: Desktop or rack mount

Warranty Information:

This product is backed by a 3-year limited warranty covering manufacturing defects under normal use.

Brand Description:

Dahua Technology is a global leader in video surveillance solutions, renowned for delivering advanced security products driven by innovation and AI. With a strong focus on reliability and performance, Dahua products are widely trusted across commercial, governmental, and industrial sectors.

SKU: DHI-NVR5216-16P-AI/ANZ

Practical Use Scenarios:

• Retail and Malls: Analyze customer movement, reduce shrinkage, and manage crowd density.
• Warehouses and Logistics: Monitor perimeter and manage high-traffic zones with AI analytics.
• Airports and Transport Terminals: Use ANPR and people counting for traffic and security management.
• Education and Campuses: Secure entry points and track movement with face recognition features.
• Office Buildings: Integrate with access control for identity verification and intrusion alerts.

Excellence for the Australian and New Zealand Market:

• Fully compliant with Australian and New Zealand safety and performance standards.
• Sourced exclusively through authorized ANZ distribution channels for genuine product assurance.
• Features optimized firmware for local network environments and regional compliance.
• Backed by local technical support and warranty handling through certified providers.
• Approved for use in both private and commercial security installations across ANZ.

Data sheet

FAQs – Dahua NVR5216-16P-AI/ANZ

Q1: What video formats are supported by the Dahua NVR5216-16P-AI/ANZ?
A1: The Dahua NVR5216-16P-AI/ANZ supports Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG formats.

Q2: How many cameras can I connect to the NVR5216-16P-AI/ANZ?
A2: You can connect up to 16 IP cameras, with support for PoE power across all 16 channels.

Q3: Can the NVR5216-16P-AI/ANZ perform face recognition without an AI camera?
A3: Yes, the recorder itself supports 2-channel face detection and recognition without relying solely on AI-enabled cameras.

Q4: What is AcuPick in the NVR5216-16P-AI/ANZ used for?
A4: AcuPick allows fast retrieval of video clips by selecting human or vehicle targets, reducing investigation time.

Q5: Is the Dahua NVR5216-16P-AI/ANZ compatible with third-party IP cameras?
A5: Yes, it supports ONVIF and is compatible with many third-party brands.

Q6: What is the maximum storage capacity of the NVR5216-16P-AI/ANZ?
A6: The unit supports two HDDs, each up to 16 TB, for a total of 32 TB of storage capacity.

Q7: Does the NVR5216-16P-AI/ANZ support mobile app access?
A7: Yes, it supports mobile viewing on both iOS and Android platforms.

Q8: Can I use the Dahua NVR5216-16P-AI/ANZ in outdoor environments?
A8: The NVR is intended for indoor use but supports outdoor camera integration for external surveillance.

Q9: What certifications does the NVR5216-16P-AI/ANZ meet for ANZ compliance?
A9: It complies with CE, FCC, and other certifications relevant to safety and electromagnetic compatibility.

Q10: How is warranty support handled for the NVR5216-16P-AI/ANZ in Australia and New Zealand?
A10: Warranty and support are provided through authorized distributors and service agents in the ANZ region.
