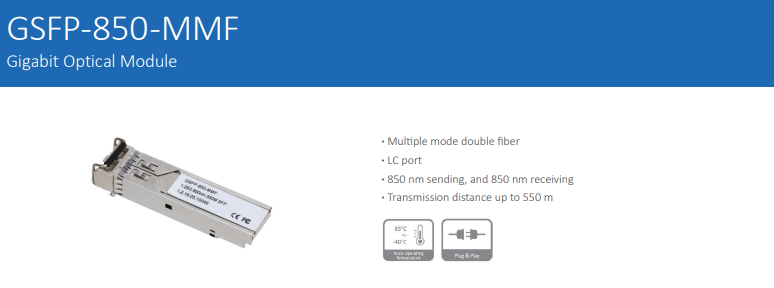

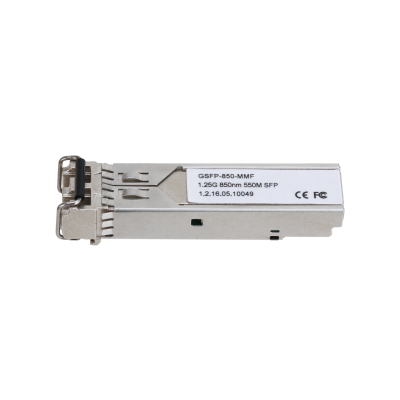

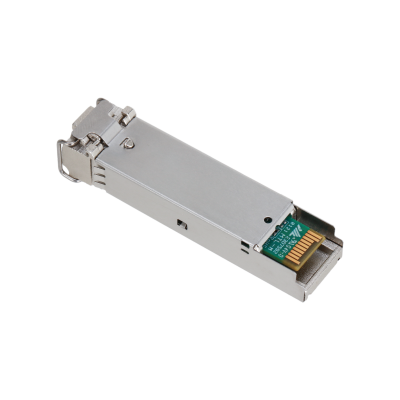

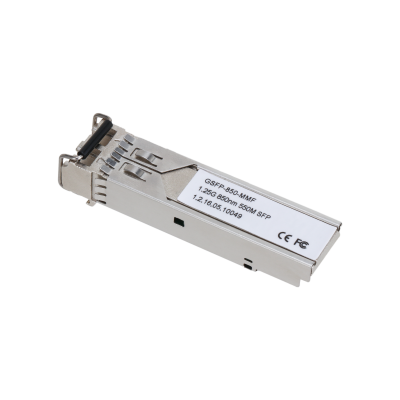

Dahua GSFP-850-MMF Gigabit Optical Module – 1Gbps Multi-Mode LC SFP Transceiver, 850nm, 550m Range

The Dahua Technology GSFP-850-MMF Gigabit Optical Module is a high-performance, hot-pluggable SFP transceiver designed for reliable 1Gbps fibre optic data transmission over multi-mode fibre networks. Engineered for durability and efficiency, this module features 850nm wavelength transmission, an LC dual-fiber interface, and supports distances up to 550 metres, making it ideal for enterprise networking, security systems, and industrial applications. With plug-and-play functionality and an extended operating temperature range, it ensures seamless deployment in both standard and harsh environments.

What’s Included in the Box

• 1 × Dahua GSFP-850-MMF Gigabit Optical Module
• 1 × Protective dust cap (pre-installed)


Main Features

• 1Gbps High-Speed Transmission for stable and efficient network performance
• Multi-Mode Dual Fibre Design for reliable short-range data communication
• LC Optical Port ensuring secure and standard connectivity
• 850nm Transmission & Reception optimized for multi-mode fibre networks
• Up to 550m Transmission Distance ideal for campus and enterprise setups
• Wide Operating Temperature Range (-40°C to +85°C) for harsh environments
• Hot-Pluggable (Plug & Play) for easy installation without configuration
• Industrial-Grade Build Quality for long-term reliability

Detailed Specifications

Hardware

• Optical Fiber Type: Multi-mode double fibre
• Optical Port Type: LC
• Max Data Rate: 1Gbps

Performance

• Wavelength: 850nm (Tx/Rx)
• Transmission Distance: Up to 550m
• Max Optical Port Speed: 1Gbps

Environmental

• Operating Temperature: -40°C to +85°C
• Relative Humidity: 5%–95%

Physical

• Dimensions: 55.5 mm × 13.4 mm × 8.5 mm

Warranty Information

• Backed by standard Dahua manufacturer warranty
• Warranty handled directly through authorized distributors and brand channels

About the Brand

Dahua Technology is a globally recognized provider of video-centric smart IoT solutions and services. Known for innovation, reliability, and industrial-grade products, Dahua delivers high-quality networking and surveillance solutions trusted worldwide.

SKU

GSFP-850-MMF

Practical Use Scenarios

• Enterprise network backbone connections
• CCTV and IP surveillance system fibre links
• Industrial networking in harsh environments (oil, utilities, transport)
• Data centres and campus network extensions
• Telecom and broadband infrastructure deployments

Datasheets / Downloadable Resources

• Official Dahua Datasheet

Excellence for the Australian and New Zealand Market

This Dahua optical module is carefully sourced from authorized distributors, ensuring authenticity and compliance with Australian and New Zealand quality expectations. Designed to perform reliably in diverse environmental conditions found across AU/NZ, it supports robust industrial applications. Warranty support is handled directly through official brand channels, providing peace of mind and dependable after-sales service.

FAQs (Product Code: GSFP-850-MMF)

Q1: What fibre type is compatible with GSFP-850-MMF?
A: The GSFP-850-MMF supports multi-mode double fibre optic cables, making it suitable for short-distance high-speed connections.

Q2: What is the maximum transmission distance of GSFP-850-MMF?
A: The GSFP-850-MMF can transmit data up to 550 metres over multi-mode fibre.

Q3: Is GSFP-850-MMF compatible with standard SFP ports?
A: Yes, the GSFP-850-MMF is a standard hot-pluggable SFP module, compatible with most network switches and devices supporting 1Gbps SFP ports.

Q4: Does GSFP-850-MMF require configuration before use?
A: No, the GSFP-850-MMF features plug-and-play functionality, requiring no configuration.

Q5: What environments is GSFP-850-MMF suitable for?
A: With an operating range of -40°C to +85°C, the GSFP-850-MMF is ideal for both indoor and harsh industrial environments.

Q6: What connector type does GSFP-850-MMF use?
A: The GSFP-850-MMF uses a dual LC optical connector.

Q7: What is the data rate supported by GSFP-850-MMF?
A: The GSFP-850-MMF supports 1Gbps Gigabit Ethernet transmission speeds.
