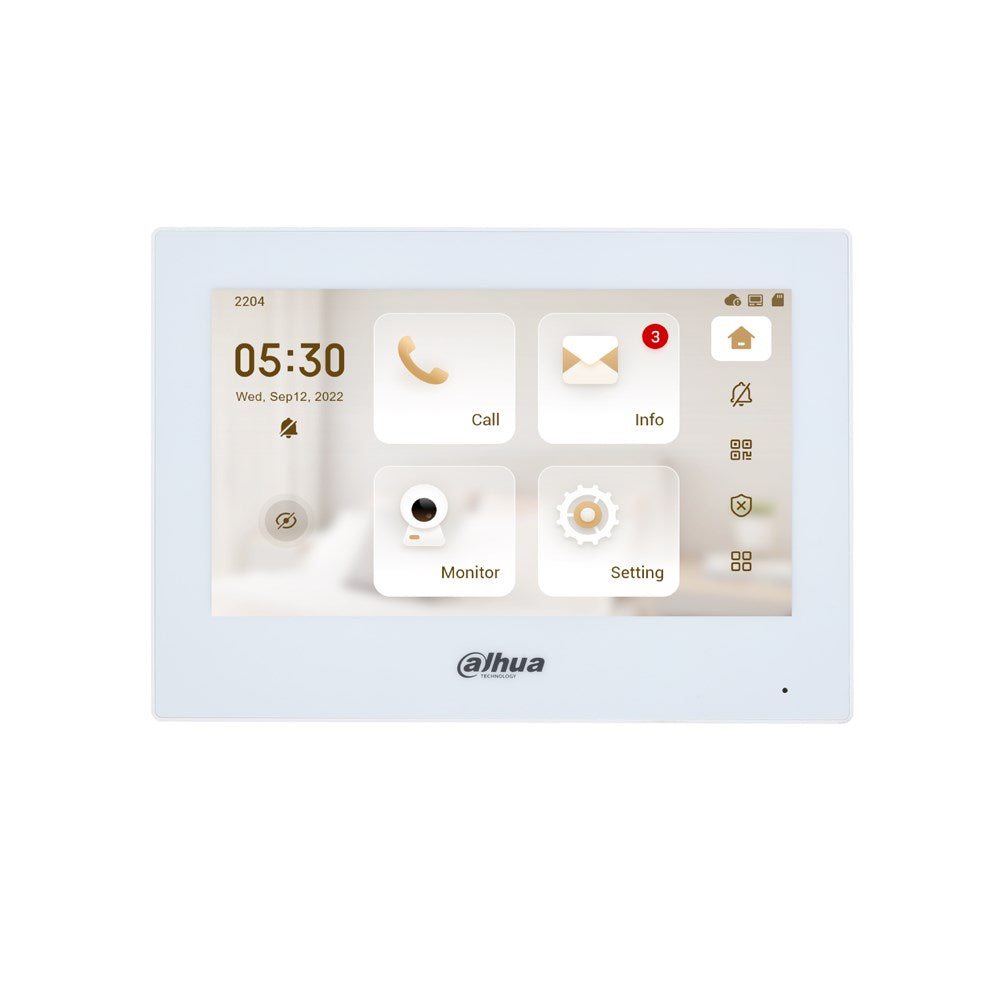

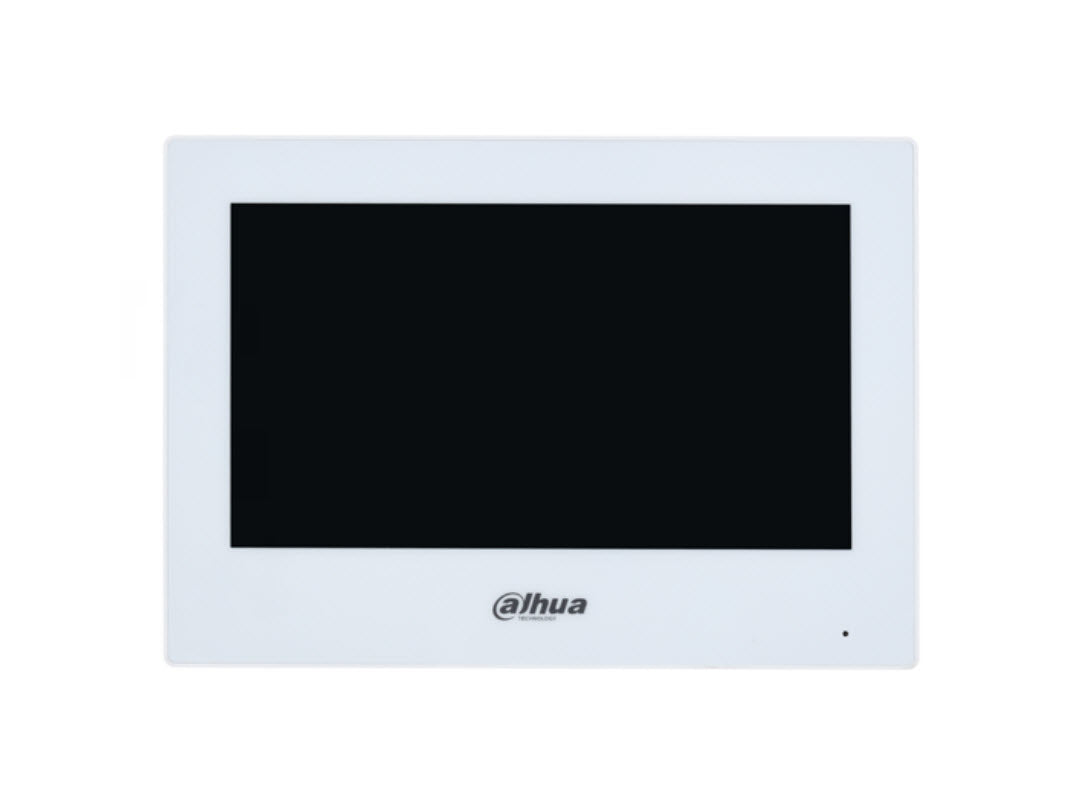

Dahua DHI-VTH2621GW-P 7" IP Indoor intercom Monitor | Touchscreen Display Indoor Station with PoE and Alarm Integration

Dahua DHI-VTH2621GW-P 7" IP Indoor intercom Monitor | Touchscreen Display Indoor Station with PoE and Alarm Integration

$184.62 AUD
$275.40 AUD $184.62 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Upgrade your video intercom and security communication system with the Dahua DHI-VTH2621GW-P, a powerful 7-inch IP indoor monitor built for residential, commercial, and apartment intercom applications. Featuring a capacitive touchscreen, integrated alarm inputs, and PoE connectivity, this unit provides a versatile and modern interface for door stations and IP cameras.

With support for H.265/H.264 decoding, two-way audio, and up to 6 alarm inputs, the DHI-VTH2621GW-P offers flexible integration, high performance, and intuitive controls — all while maintaining a sleek, compact design. Whether part of a smart home system or a commercial-grade video intercom solution, this indoor monitor delivers both functionality and efficiency.

What's Included in the Box

  • 1 x Dahua DHI-VTH2621GW-P 7" IP Indoor Monitor

  • Power Adapter (if not using PoE)

  • Surface Mounting Bracket

  • Installation Accessories

  • User Manual

Main Features

  • 7” Capacitive Touchscreen: Crisp 1024 × 600 resolution with responsive interface for easy operation.

  • Standard PoE Support: Simplified cabling with Power-over-Ethernet compatibility.

  • H.265/H.264 Video Decoding: Efficient, high-quality streaming from compatible door stations and cameras.

  • Two-Way Audio Communication: Built-in microphone and speaker with echo suppression for clear dialogue.

  • Alarm Integration: 6 alarm inputs and 1 output for system-wide security enhancements.

  • Expandable for Multi-Room Communication: Supports up to 9 extensions for villas and 4 for apartments.

  • Full Digital Communication: Ensures secure, stable, and efficient interaction across devices.

  • DND Mode & Information Broadcasts: Set quiet periods and receive messages from a central management system.

Detailed Specifications

Specification Details
Model DHI-VTH2621GW-P
Display 7” TFT Capacitive Touchscreen
Resolution 1024 × 600
Audio Mode Full Duplex 2-Way Audio
Audio Compression G.711a/u, PCM
Echo Cancellation Yes
Video Decoding H.265 / H.264
Alarm Inputs 6
Alarm Outputs 1
Storage Micro SD (up to 64 GB, reserved)
Power Supply Standard PoE or 12V DC
Power Consumption ≤ 2W standby / ≤ 6W operating
Network Interface 10/100 Mbps Ethernet
Installation Surface Mount
Body Material PC + ABS
Dimensions 189.6 × 134.6 × 26 mm (7.5" × 5.3" × 1.0")
Weight Net: 0.34 kg / Gross: 0.58 kg
Certifications CE, FCC
Operating Temperature -10°C to +55°C
Operating Humidity 10%–95% RH (non-condensing)
Compatibility Dahua IP Door Stations, ONVIF-compliant devices
Operating System Embedded Linux

Warranty Information

The Dahua DHI-VTH2621GW-P comes with a 3-Year Manufacturer’s Warranty, with service and support available through certified Dahua representatives in Australia and New Zealand.

About the Brand – Dahua Technology

Dahua Technology is a global leader in advanced video surveillance and smart IoT solutions. Known for innovation and quality, Dahua products are widely used across public, commercial, and residential sectors for their robust performance and cutting-edge features.

SKU

DAHUA-VTH2621GW-P

Practical Use Scenarios

  • Smart Homes: Integrate with IP door stations and home alarm systems for full control.

  • Apartments & Villas: Ideal for multi-room installations, with support for multiple extensions.

  • Offices & Retail Environments: Enable front-desk monitoring and access control with real-time alerts.

  • Security Monitoring Rooms: View live feeds and communicate instantly with entry points.

Datasheets and Downloads

Excellence for the Australian and New Zealand Market

The Dahua DHI-VTH2621GW-P is tailored for the ANZ market, ensuring:

  • Compliance with CE and FCC international standards

  • Local support and distribution through authorized Dahua partners

  • Power compatibility via PoE or 12V DC, aligning with common Australian/New Zealand electrical systems

  • Warranty coverage managed locally, providing peace of mind for residential and commercial installations

  • Optimized performance for ANZ climate and construction conditions

Frequently Asked Questions (FAQs)

Q1: Does the DHI-VTH2621GW-P support PoE for power? (SKU: DAHUA-VTH2621GW-P)
A: Yes, the unit supports standard PoE (IEEE 802.3af) for simplified installation without needing a separate power supply.

Q2: Can I use the DHI-VTH2621GW-P with non-Dahua devices? (SKU: DAHUA-VTH2621GW-P)
A: Yes, the device supports ONVIF, allowing it to integrate with compatible third-party IP door stations and cameras.

Q3: How many alarm inputs are available on the DHI-VTH2621GW-P? (SKU: DAHUA-VTH2621GW-P)
A: It includes 6 alarm input ports and 1 output, making it suitable for integrated security solutions.

Q4: Does the DHI-VTH2621GW-P include an SD card for video messages? (SKU: DAHUA-VTH2621GW-P)
A: No, it supports Micro SD storage up to 64 GB, but the card must be purchased separately and inserted manually.

Q5: What installation method is used for the DHI-VTH2621GW-P? (SKU: DAHUA-VTH2621GW-P)
A: The monitor is surface-mounted and includes the necessary bracket and accessories for straightforward installation.
