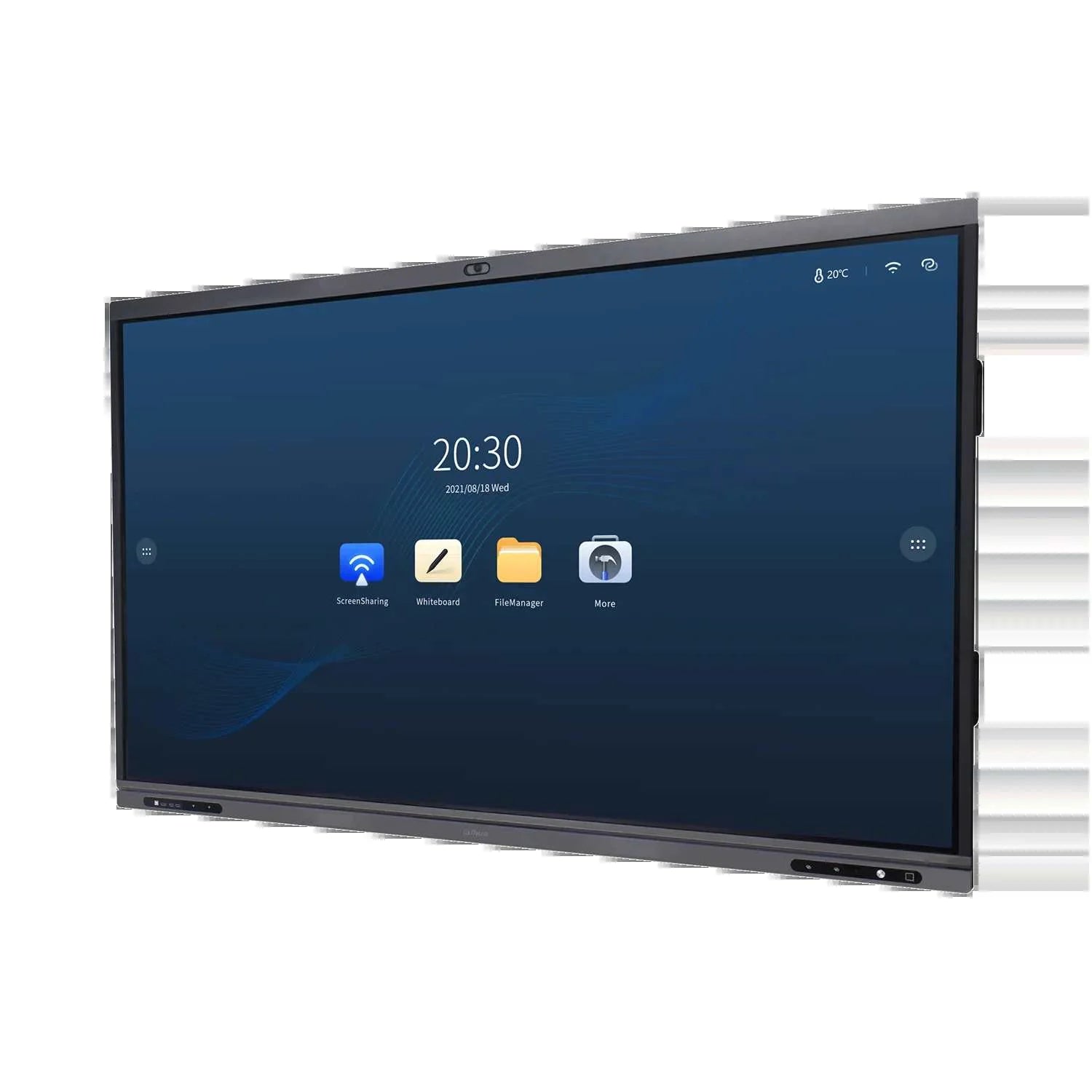

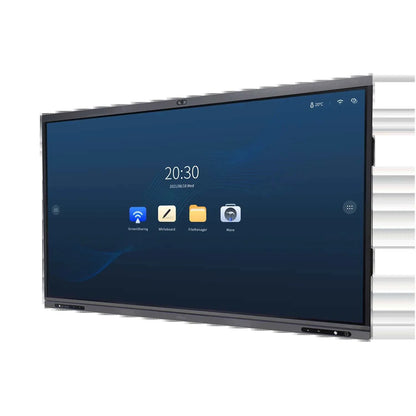

Dahua DHI-LPH86-MT440-C 86'' UHD Smart Interactive Whiteboard

Name: Dahua DHI-LPH86-MT440-C 86'' UHD Smart Interactive Whiteboard
Brand: CCTV Tradie
SKU: DHI-LPH86-MT440-CSEC

Dahua DHI-LPH86-MT440-C 86'' UHD Smart Interactive Whiteboard

$6,832.98 AUD

~~$7,221.60 AUD~~ $6,832.98 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

Product Highlights:

Large 86-inch 4K Display: Features an impressive 86-inch 4K DLED display with Zero Air Gap technology, ensuring sharp, vivid colors and a crystal-clear image for enhanced viewing experiences.
High-Quality Camera and Audio: Includes a built-in 8-MP camera with 4K resolution at 30 fps, and an array of 8 microphones with far-field pickup (6 m–8 m) for excellent video and audio communication.
Wireless Screen Sharing: Enables effortless wireless screen sharing from multiple devices, including advanced features like screen grouping, real-time camera and audio transmission, host mode for control, and split-screen mode displaying up to 9 splits.
Interactive Writing Experience: Utilizes a pressure and tilt-sensitive stylus for a smooth, natural writing experience that mimics real handwriting, enhancing interactivity.
Secure File Sharing: Facilitates quick file sharing via QR code with built-in encryption for privacy and security, requiring a 6-digit password for access.
Optional OPS Module: Supports an optional OPS module with dual-system switchable functionality, providing flexibility for various applications.
Advanced Security Features: Includes a fingerprint lock system with support for up to 256 fingerprints and a resolution of 508 DPI, ensuring robust protection of user information with a false acceptance rate of less than 0.001% and a false rejection rate of less than 0.1%.
Elegant Design and Hidden Antennas: Features a front-hidden antenna design for both Wi-Fi and hotspot, combining aesthetics with stable signal strength for a clean look.

System Overview:

The Dahua Smart Interactive Whiteboard integrates Android 8.0 with powerful hardware, including a 4-core CPU, 4-core GPU, and 4G RAM / 32G ROM. Its high-precision infrared frame with a 2 mm touch identification diameter and 4K DLED module ensures exceptional performance for writing, controlling, and displaying content. Ideal for modernizing meeting rooms and enhancing productivity.

Functions:

4K Camera with Ultra-wide FOV: Captures detailed visuals with a diagonal field of view of 112.7°, horizontal 104°, and vertical 70.2°, suitable for large rooms.
Hidden Antenna Design: The antenna design maintains signal stability and aesthetic appeal.
Wireless Screen Sharing: Offers advanced screen sharing options, including multiple transmission, real-time mobile camera and audio, host mode, and split-screen capabilities.
Real Writing Experience: Provides a natural writing feel with tilt-sensitive, pressure-sensitive stylus pens.
Strong System Security: Features multiple security options including digital, gesture, and fingerprint passwords, with high fingerprint resolution.
Easy File Sharing: Simplifies file sharing with QR codes and encryption, ensuring secure data transfer.

Applications:

Perfect for indoor settings like meeting rooms, command centers, hospitals, and banks, enhancing collaboration and communication.

Specifications:

Panel Dimensions: 86-inch
Brightness: 400 cd/m²
Contrast Ratio: VA: 4000 (typ.)
Refresh Rate: 60 Hz
Response Time: 8 ms (typ.)
Resolution: 3840 × 2160 (4K)
Viewing Angle: H: 178°, V: 178°
Touch Technology: Infrared touch with 20 touch points
Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: 250 W (typ.); 400 W (max.)
Product Dimensions: 1,960.8 mm × 1,204.7 mm × 85.4 mm
Net Weight: 66.75 kg
Gross Weight: 87.05 kg
Installation: Wall mount or floor-standing

Elevate your meeting and collaboration capabilities with the Dahua 86'' UHD Smart Interactive Whiteboard, designed for top-tier performance and secure, efficient interaction.

Dahua DHI-LPH65-MT440-C Technical Specifications

Category	Specification
Built-in System
Operating System	Android 8.0
CPU	Dual-core A53 + dual-core A73
CPU Frequency	1.5 GHz
GPU	Mali-G51
RAM	4 GB
ROM	32 GB
LCD Panel
Panel Dimensions	65-inch; 75-inch; 86-inch
Brightness	65-inch: 350 cd/m²; 75-inch & 86-inch: 400 cd/m²
Static Contrast	VA: 4000 (typ.); IPS: 1200 (typ.)
Display Color	1.07 B/10 bit (8 bit + FRC)
Refresh Rate	60 Hz
Response Time	8 ms (typ.)
Resolution	3840 (H) × 2160 (V)
Aspect Ratio	16:9
Backlight	DLED
Lifespan	30,000 hours
Viewing Angle	H: 178°; V: 178°
Touchscreen
Touch Technology Type	Infrared touch technology
Touch Points	20
Writing Mode	Finger + Pen
Response Time	<10 ms
Valid Touch	2 mm
Communication Mode	USB
Touch Resolution	32767 × 32767
Number of Multi-user Writing Points	2
Anti-light Interference	Anti-dazzle tempered glass
Surface Hardness	8H
Camera
Pixel	8 MP (live view)
Auto Control	Auto white balance
Distortion	≤5%
Max. Resolution	4K@30 fps
Field of View	H: 104°; V: 70.2°; D: 112.7°
Speaker
Built-in Speaker	Full frequency: 15 W × 2; bass: 15 W × 1
Microphone
Pick-up Distance	6 m–8 m (19.69 ft–26.25 ft)
Number of Microphones	8
AGC	Yes
Echo Cancellation	Yes
Intelligent Noise Filtering	Yes
Polar Pattern	Omnidirectional
Fingerprint
Fingerprint Capacity	256
Fingerprint Resolution	508 DPI
FAR	<0.001%
FRR	<0.1%
Function
Operating System of External Module	Windows 7/8/10; Android
WiFi	Dual-band 2.4G/5G
Wi-Fi Hotspot	Dual-band 2.4G/5G; supports simultaneous Hotspot and Wi-Fi
Device Ports
Light Sensor	1
Front Button	1 × power button
Front Ports	1 × HDMI IN; 1 × touch; 2 × USB3.0
Network Port	2 × RJ-45
Wi-Fi	1 × Wi-Fi; 1 × Hotspot
USB	3 × USB3.0; 1 × USB2.0
RS-232	1 × RS-232
Video Input	3 × HDMI IN; 1 × DP; 1 × MINI AV IN; 1 × MINI YPBPR; 1 × VGA IN
Video Output	1 × HDMI OUT
Audio Input	1 × 3.5 mm; 1 × MIC IN
Audio Output	1 × 3.5 mm (EarPhone OUT); 1 × SPDIF
IrDA	1
Others	2 × Touch
General
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	65-inch: 140 W (typ.); 150 W (max.); <br> 75-inch: 170 W (typ.); 300 W (max.); <br> 86-inch: 250 W (typ.); 400 W (max.)
Installation	Wall mount; floor-standing
Product Dimensions	65-inch: 1,504.5 mm × 952.5 mm × 86.1 mm; <br> 75-inch: 1,715.5 mm × 1,066.7 mm × 85.4 mm; <br> 86-inch: 1,960.8 mm × 1,204.7 mm × 85.4 mm
Packaging Dimensions	65-inch: 1,660 mm × 1,045 mm × 245 mm; <br> 75-inch: 1,880 mm × 1,160 mm × 280 mm; <br> 86-inch: 2,140 mm × 1,340 mm × 280 mm
Operating Temperature	–10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature	–20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity	10%–90%
Storage Humidity	10%–90%
Product Material	Metal casing
Casing Color (Frame/Rear)	Bottom: Space gray; top/left/right: black
Net Weight	65-inch: 44 kg; 75-inch: 54 kg; 86-inch: 66.75 kg
Gross Weight	65-inch: 56 kg; 75-inch: 71.5 kg; 86-inch: 87.05 kg
Standby Power Consumption	≤0.5 W
Packing List	Whiteboard × 1, wall mount bracket × 2, remote control × 1, double-end stylus pen × 2, quick start guide × 1, certificate × 1, power cord × 3 (European, UK, US standards), pack of expansion screws for wall mount
Certifications	CE; FCC
