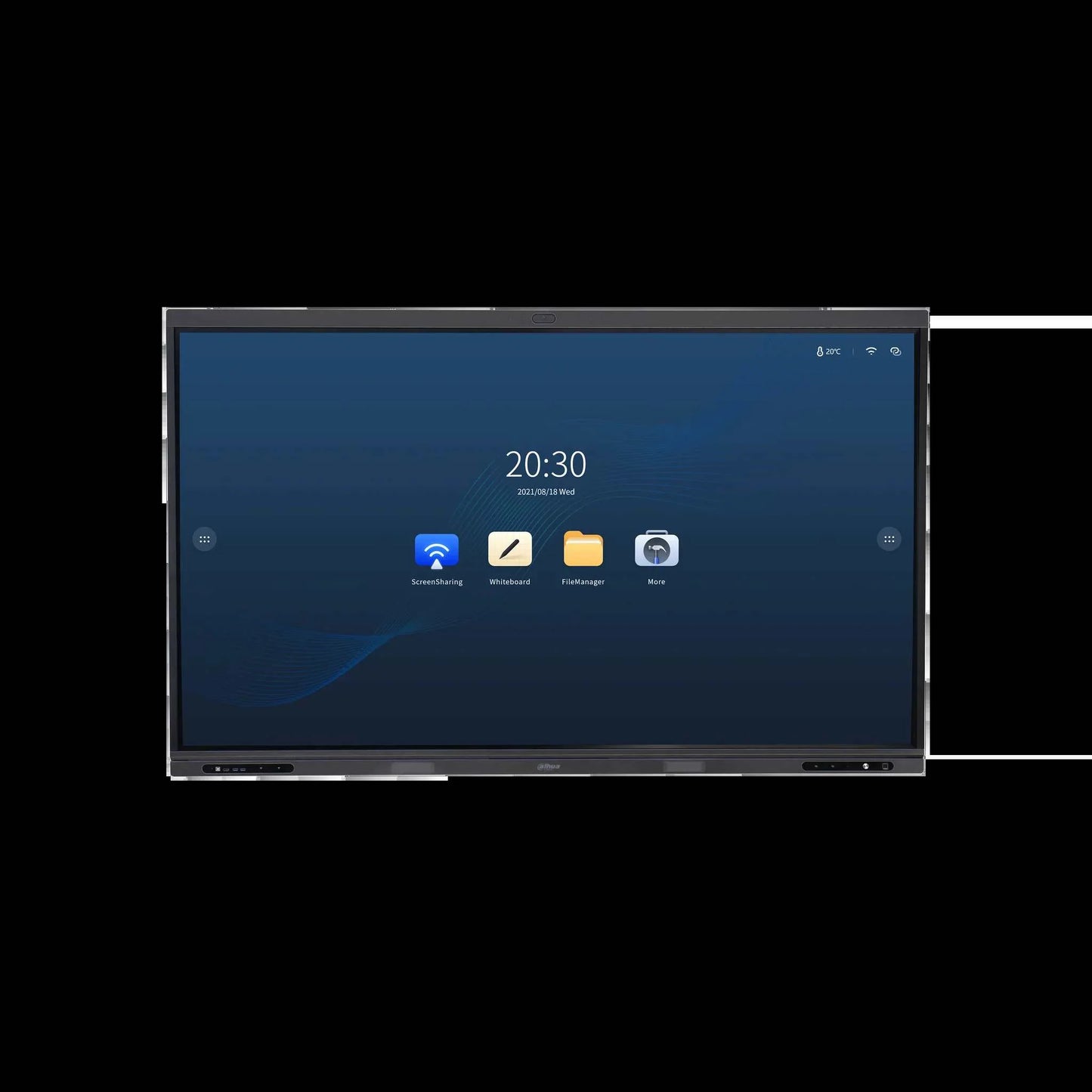

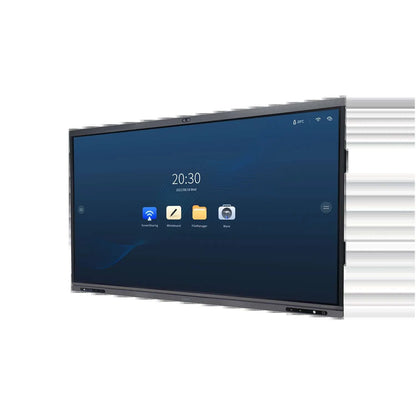

Dahua DHI-LPH75-MT440-C 75'' UHD Smart Interactive Whiteboard

Name: Dahua DHI-LPH75-MT440-C 75'' UHD Smart Interactive Whiteboard
Brand: CCTV Tradie
SKU: DHI-LPH75-MT440-CSEC
Price: 5231.58 AUD
Availability: InStock

Dahua DHI-LPH75-MT440-C 75'' UHD Smart Interactive Whiteboard

$5,231.58 AUD

~~$6,120.00 AUD~~ $5,231.58 AUD

Sale Sold out

Duties and taxes included. Shipping calculated at checkout.

Product Highlights:

Large 75-inch 4K Display: Features a stunning 75-inch 4K DLED display with Zero Air Gap technology, offering sharp, vivid images and exceptional clarity.
Built-in High-Definition Camera: Equipped with an 8-MP camera that supports 4K resolution at 30 fps, providing superior video quality for clear visual communication. The camera has an ultra-wide field of view (diagonal 112.7°, horizontal 104°, vertical 70.2°) suitable for large meeting rooms.
Integrated Microphone Array: Includes an array of 8 microphones with far-field sound pickup (6 m–8 m), automatic gain control, echo cancellation, and intelligent noise filtering for excellent audio performance.
Wireless Screen Sharing: Allows seamless sharing from multiple devices with features like screen grouping, real-time camera and audio transmission, host mode for overall control, and split-screen mode for displaying up to 9 splits simultaneously.
Interactive Writing Experience: Utilizes a pressure and tilt-sensitive stylus designed for a smooth, natural writing experience, mimicking real writing with high precision.
Secure File Sharing: Quickly share files by scanning a QR code with encryption for privacy and security, requiring a 6-digit password for access.
Dual-System Support: Optional OPS module with dual-system switchable functionality to meet diverse operational needs.
Advanced Security: Features a fingerprint lock system capable of storing up to 256 fingerprints with high resolution (508 DPI) for secure access and protection of user information.
Smart Operating System: Powered by Android 8.0 with a 4-core CPU and GPU, and 4G RAM / 32G ROM for robust performance. The whiteboard includes a high-precision infrared frame with a 2 mm touch identification diameter.
Elegant Design: Includes a hidden antenna design for stable signal strength and a sleek, modern appearance.

Applications:

Ideal for use in indoor environments such as meeting rooms, command centers, hospitals, and banks to enhance communication and productivity.

Specifications:

Panel Dimensions: 75-inch
Brightness: 400 cd/m²
Contrast Ratio: VA: 4000 (typ.)
Refresh Rate: 60 Hz
Response Time: 8 ms (typ.)
Resolution: 3840 × 2160 (4K)
Viewing Angle: H: 178°, V: 178°
Touch Technology: Infrared touch technology with 20 touch points
Power Supply: 100–240 VAC, 50/60 Hz
Power Consumption: 170 W (typ.); 300 W (max.)
Product Dimensions: 1,715.5 mm × 1,066.7 mm × 85.4 mm
Net Weight: 54 kg
Gross Weight: 71.5 kg
Installation: Wall mount or floor-standing

Enhance your meeting and collaboration experiences with the Dahua 75'' UHD Smart Interactive Whiteboard, designed to provide high-quality visual and audio communication, secure interactions, and an intuitive user experience.

Dahua DHI-LPH65-MT440-C Technical Specifications

Category	Specification
Built-in System
Operating System	Android 8.0
CPU	Dual-core A53 + dual-core A73
CPU Frequency	1.5 GHz
GPU	Mali-G51
RAM	4 GB
ROM	32 GB
LCD Panel
Panel Dimensions	65-inch; 75-inch; 86-inch
Brightness	65-inch: 350 cd/m²; 75-inch & 86-inch: 400 cd/m²
Static Contrast	VA: 4000 (typ.); IPS: 1200 (typ.)
Display Color	1.07 B/10 bit (8 bit + FRC)
Refresh Rate	60 Hz
Response Time	8 ms (typ.)
Resolution	3840 (H) × 2160 (V)
Aspect Ratio	16:9
Backlight	DLED
Lifespan	30,000 hours
Viewing Angle	H: 178°; V: 178°
Touchscreen
Touch Technology Type	Infrared touch technology
Touch Points	20
Writing Mode	Finger + Pen
Response Time	<10 ms
Valid Touch	2 mm
Communication Mode	USB
Touch Resolution	32767 × 32767
Number of Multi-user Writing Points	2
Anti-light Interference	Anti-dazzle tempered glass
Surface Hardness	8H
Camera
Pixel	8 MP (live view)
Auto Control	Auto white balance
Distortion	≤5%
Max. Resolution	4K@30 fps
Field of View	H: 104°; V: 70.2°; D: 112.7°
Speaker
Built-in Speaker	Full frequency: 15 W × 2; bass: 15 W × 1
Microphone
Pick-up Distance	6 m–8 m (19.69 ft–26.25 ft)
Number of Microphones	8
AGC	Yes
Echo Cancellation	Yes
Intelligent Noise Filtering	Yes
Polar Pattern	Omnidirectional
Fingerprint
Fingerprint Capacity	256
Fingerprint Resolution	508 DPI
FAR	<0.001%
FRR	<0.1%
Function
Operating System of External Module	Windows 7/8/10; Android
WiFi	Dual-band 2.4G/5G
Wi-Fi Hotspot	Dual-band 2.4G/5G; supports simultaneous Hotspot and Wi-Fi
Device Ports
Light Sensor	1
Front Button	1 × power button
Front Ports	1 × HDMI IN; 1 × touch; 2 × USB3.0
Network Port	2 × RJ-45
Wi-Fi	1 × Wi-Fi; 1 × Hotspot
USB	3 × USB3.0; 1 × USB2.0
RS-232	1 × RS-232
Video Input	3 × HDMI IN; 1 × DP; 1 × MINI AV IN; 1 × MINI YPBPR; 1 × VGA IN
Video Output	1 × HDMI OUT
Audio Input	1 × 3.5 mm; 1 × MIC IN
Audio Output	1 × 3.5 mm (EarPhone OUT); 1 × SPDIF
IrDA	1
Others	2 × Touch
General
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	65-inch: 140 W (typ.); 150 W (max.); <br> 75-inch: 170 W (typ.); 300 W (max.); <br> 86-inch: 250 W (typ.); 400 W (max.)
Installation	Wall mount; floor-standing
Product Dimensions	65-inch: 1,504.5 mm × 952.5 mm × 86.1 mm; <br> 75-inch: 1,715.5 mm × 1,066.7 mm × 85.4 mm; <br> 86-inch: 1,960.8 mm × 1,204.7 mm × 85.4 mm
Packaging Dimensions	65-inch: 1,660 mm × 1,045 mm × 245 mm; <br> 75-inch: 1,880 mm × 1,160 mm × 280 mm; <br> 86-inch: 2,140 mm × 1,340 mm × 280 mm
Operating Temperature	–10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature	–20 °C to +55 °C (–4 °F to +131 °F)
Operating Humidity	10%–90%
Storage Humidity	10%–90%
Product Material	Metal casing
Casing Color (Frame/Rear)	Bottom: Space gray; top/left/right: black
Net Weight	65-inch: 44 kg; 75-inch: 54 kg; 86-inch: 66.75 kg
Gross Weight	65-inch: 56 kg; 75-inch: 71.5 kg; 86-inch: 87.05 kg
Standby Power Consumption	≤0.5 W
Packing List	Whiteboard × 1, wall mount bracket × 2, remote control × 1, double-end stylus pen × 2, quick start guide × 1, certificate × 1, power cord × 3 (European, UK, US standards), pack of expansion screws for wall mount
Certifications	CE; FCC
