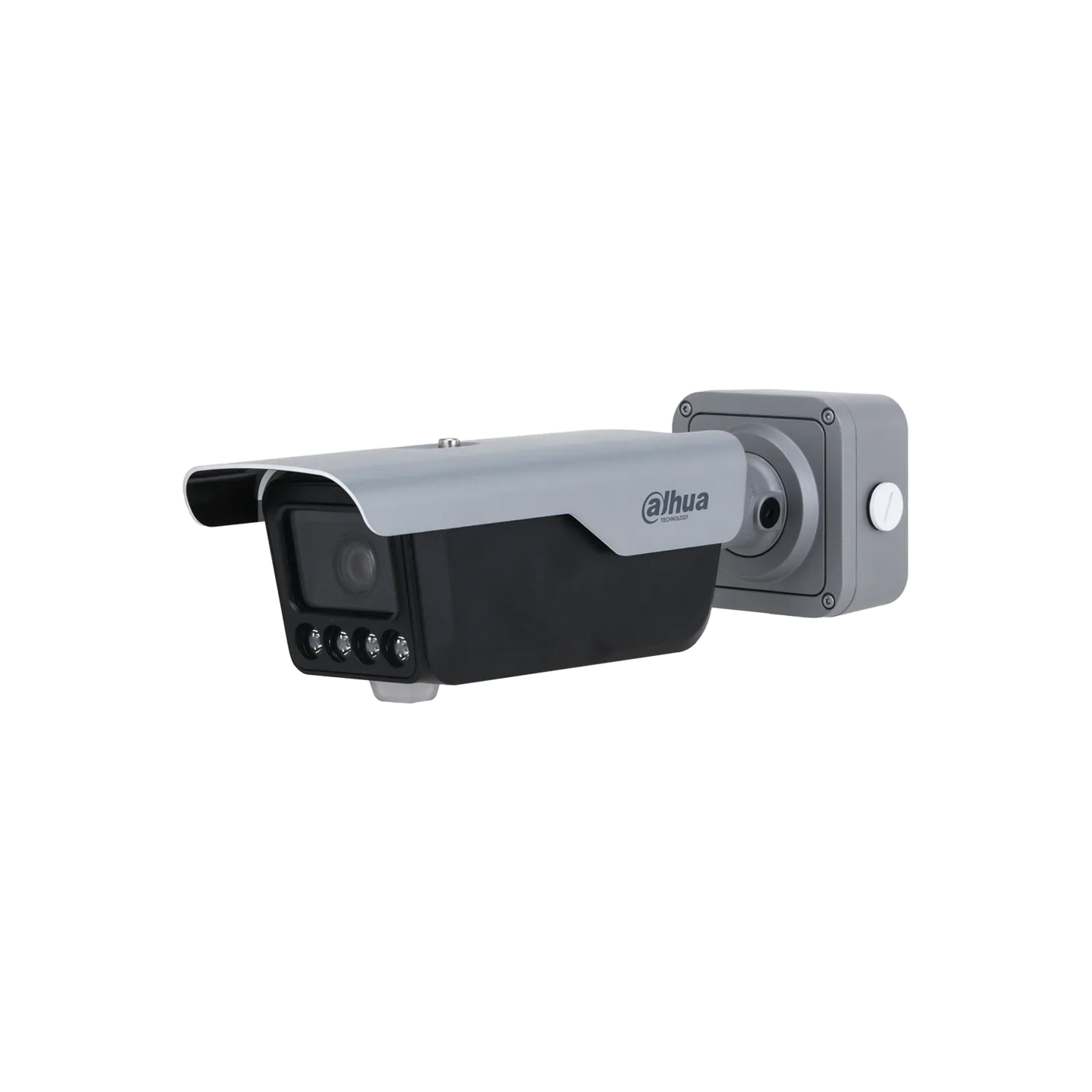

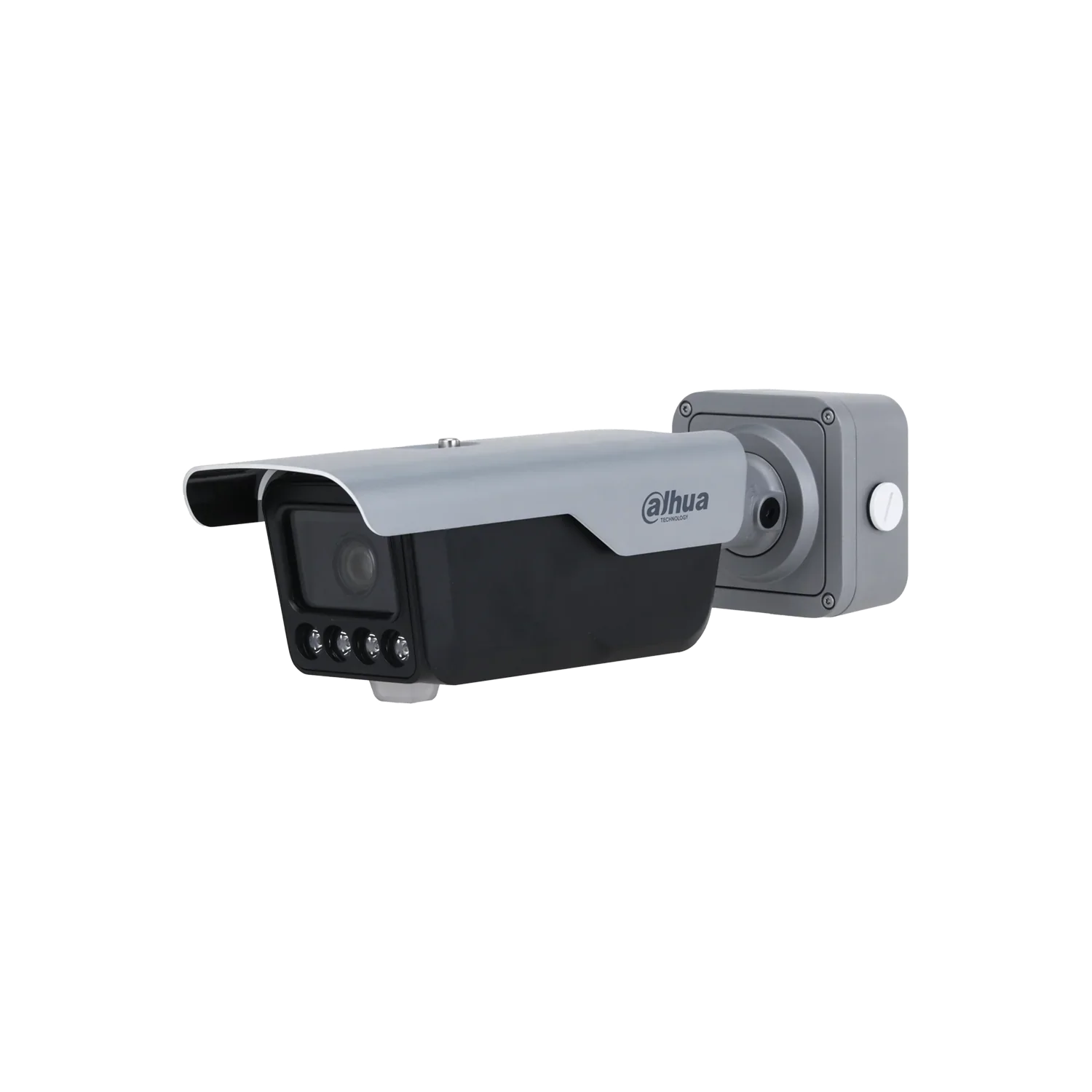

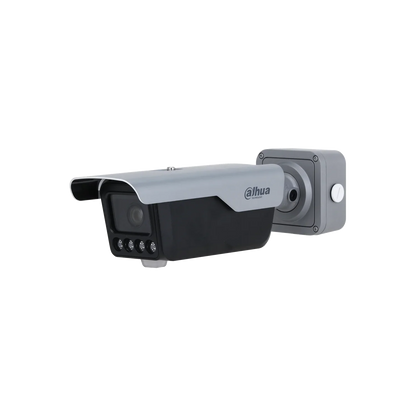

Dahua DHI-ITC413-PW4D-IZ1 ANPR Number plate Long-Range Camera – 30M Detection Distance

The Dahua DHI-ITC413-PW4D-IZ1 Smart ANPR Camera is an advanced Automatic Number Plate Recognition (ANPR) solution designed for high-accuracy vehicle identification and security applications. Powered by cutting-edge deep learning algorithms, this intelligent camera can capture and analyze vehicle plates, brand, type, and color with superior precision. Its robust construction and all-in-one design make it ideal for parking management, law enforcement, toll collection, and high-security areas.

Equipped with a motorized vari-focal lens and 30M detection distance, the DHI-ITC413-PW4D-IZ1 provides unparalleled flexibility in monitoring traffic environments. With built-in LED illumination, IP67-rated weather resistance, and IK10 impact protection, this camera performs optimally even in harsh outdoor conditions. Additionally, custom audio alarms and intrusion detection enhance perimeter security, making it an ideal solution for intelligent surveillance and vehicle management.

Key Features

• Advanced ANPR Technology – High-accuracy automatic number plate recognition powered by deep learning.

• 30M Detection Distance – Long-range recognition suitable for road monitoring and gated facilities.

• Motorized Vari-Focal Lens – Adjustable 2.7mm–12mm lens for precise focus control.

• Multi-Vehicle Recognition – Detects vehicle type, brand, and color, including unlicensed vehicles.

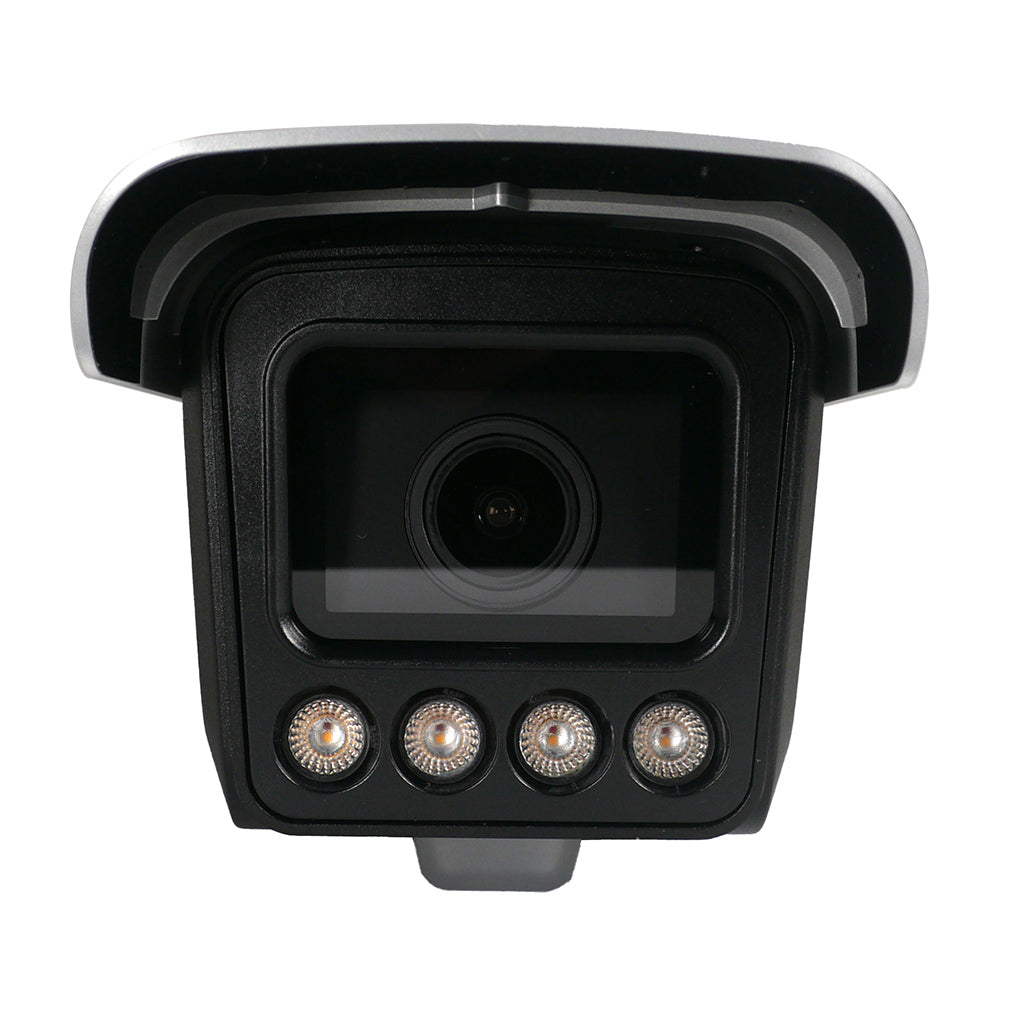

• Built-in LED Illumination – Ensures clear image capture even in low-light conditions.

• High-Performance Image Processing – 4MP CMOS sensor with WDR and low-light performance.

• Intrusion and Loitering Detection – Triggers sound and light alarms to deter unauthorized activity.

• All-in-One Structure – Integrated junction box, bracket, and low power consumption.

• Rugged Design – IP67 waterproof and IK10 impact-resistant for durability in extreme environments.

• Smart Storage & Connectivity – Supports FTP upload, memory card storage, and remote monitoring.

• Multi-Protocol Compatibility – ONVIF, HTTPs, RTSP, and integration with DSS Pro, DSS Express, and other management platforms.

Specifications

• Image Sensor: 1/1.8" CMOS

• Resolution: 2688 × 1520

• Shutter Speed: 1/25s–1/100,000s

• Max Detection Speed: 80 km/h

• Min Illumination: 0.001 Lux (Color), 0.0002 Lux (B/W), 0 Lux (Illuminator on)

• Lens: 2.7mm–12mm Motorized Vari-Focal

• Field of View: H: 92°–46.1°, V: 49°–26.0°

• Illumination Distance: ANPR: 10m, Video Monitoring: 30m

• Video Compression: H.264, H.265, MJPEG

• Storage: Supports TF cards up to 256GB

• Alarm Inputs/Outputs: 2 inputs, 2 relay outputs

• Network Protocols: HTTPs, TCP, RTSP, DHCP, IPv4/v6, NTP, SNMP

• Audio: Built-in microphone and speaker for two-way communication

• Power Supply: 12VDC, PoE (802.3at)

• Operating Temperature: –30°C to +65°C

• Protection Ratings: IP67 (waterproof), IK10 (impact-resistant)

• Dimensions: 395mm × 120.8mm × 127.8mm

• Weight: 2.3kg (Net), 3.2kg (Gross)

What's Included

• 1x Dahua DHI-ITC413-PW4D-IZ1 Smart ANPR Camera

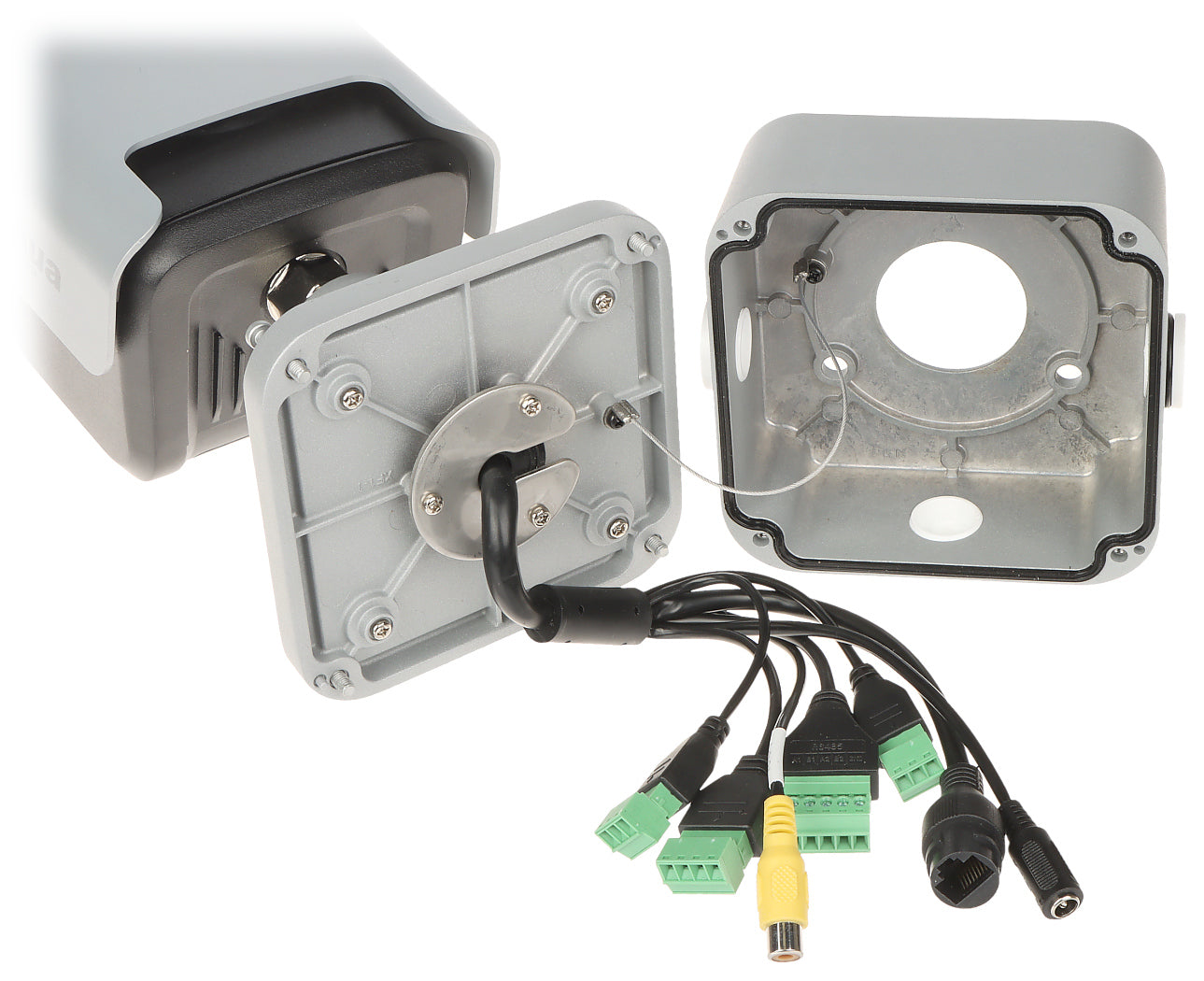

• 1x Mounting Bracket & Junction Box

• 1x Power Adapter (12VDC, 2A)

• 1x Quick Installation Guide

• 1x Pole Mount Adapter (Optional Accessory: PFA150)

Datasheets

Ideal Use Cases

• Parking Lot Management – Automates entry/exit monitoring with ANPR technology.

• Toll Collection – Recognizes license plates for seamless toll processing.

• Gated Communities & Industrial Complexes – Enhances access control security.

• City Surveillance & Law Enforcement – Identifies vehicles involved in incidents.

• Retail & Shopping Malls – Monitors and manages parking lot activity.

Excellence for the Australian and New Zealand Market

The Dahua DHI-ITC413-PW4D-IZ1 is optimized for Australian and New Zealand conditions, ensuring compliance with local quality standards and seamless integration with existing security infrastructure. Sourced exclusively from authorized distributors, this camera meets the highest industry standards and is backed by local warranty support for peace of mind.

Frequently Asked Questions (FAQs)

1. What is the detection range of the Dahua DHI-ITC413-PW4D-IZ1?

This camera supports ANPR detection up to 30 meters and can capture vehicle license plates at speeds up to 80 km/h.

2. Is this camera suitable for outdoor use?

Yes, it is IP67-rated (waterproof and dustproof) and IK10-rated (impact-resistant), making it ideal for outdoor installations in all weather conditions.

3. Can the camera recognize vehicles without license plates?

Yes, it uses deep learning AI to identify vehicles without plates and detect vehicle type, brand, and color.

4. Does this camera support PoE?

Yes, it supports Power over Ethernet (PoE 802.3at) for simplified installation.

5. Can I integrate this camera with third-party security systems?

Yes, it supports ONVIF, HTTPs, RTSP, and multiple network protocols for easy integration.

6. Does the camera have built-in storage?

Yes, it supports microSD cards up to 256GB for local recording.
