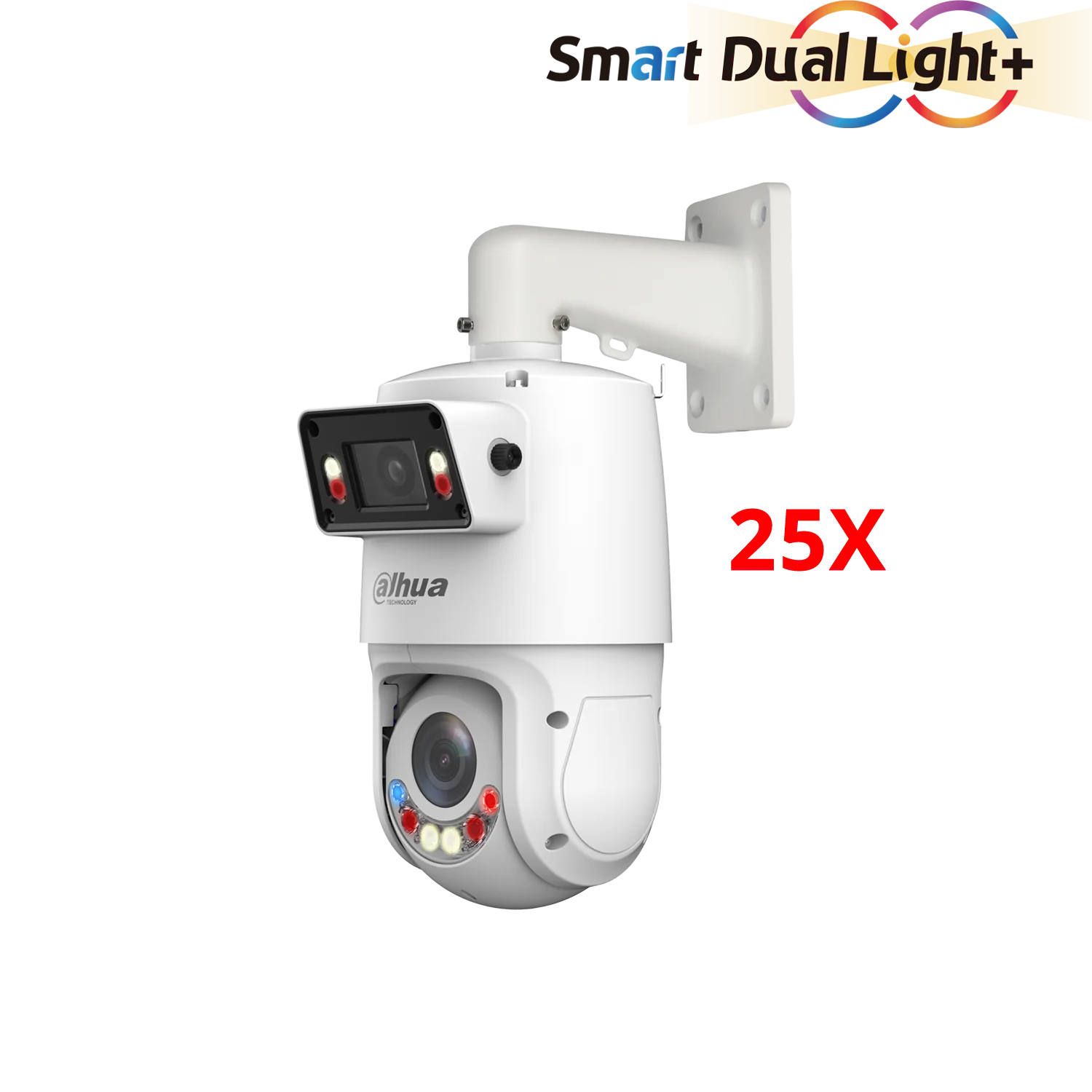

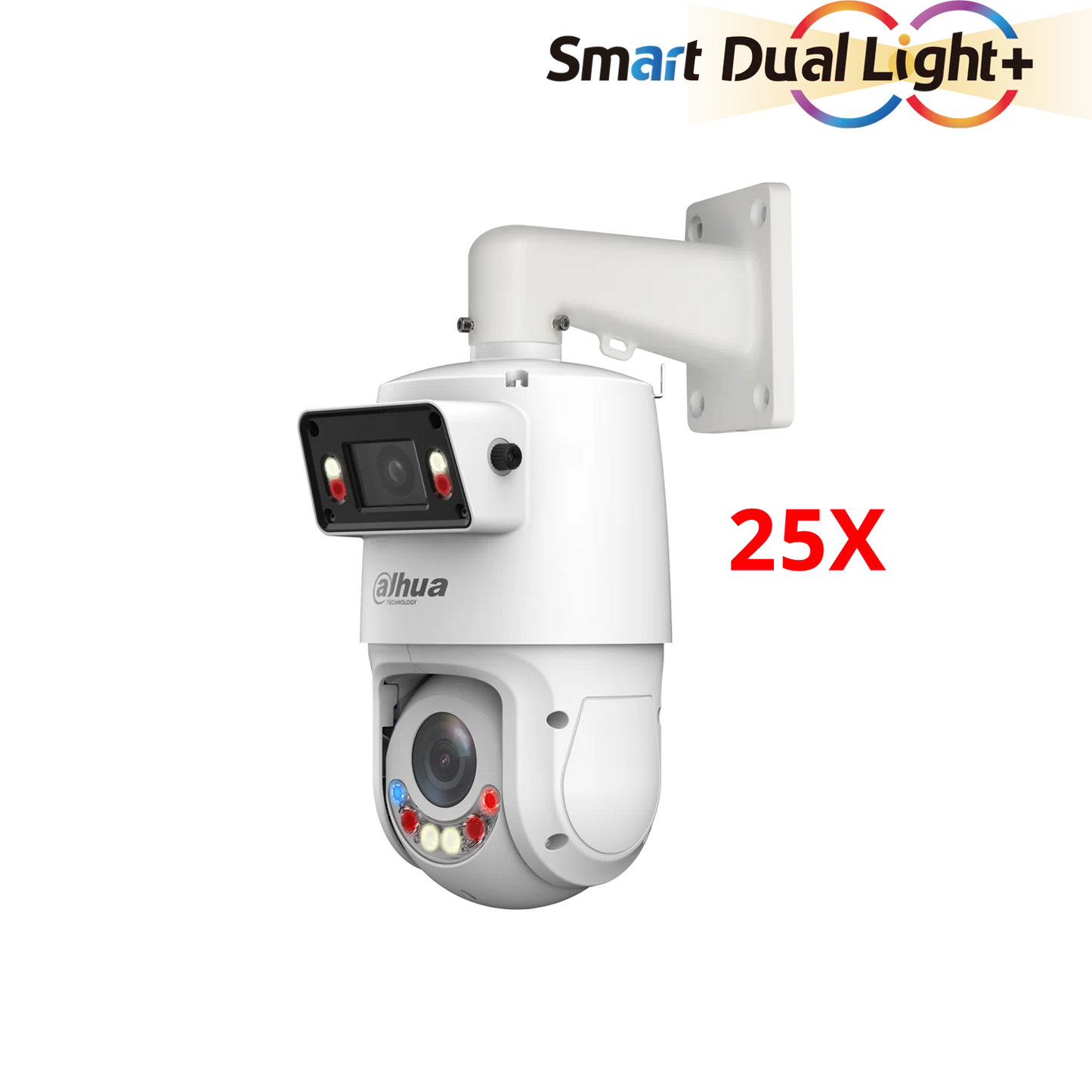

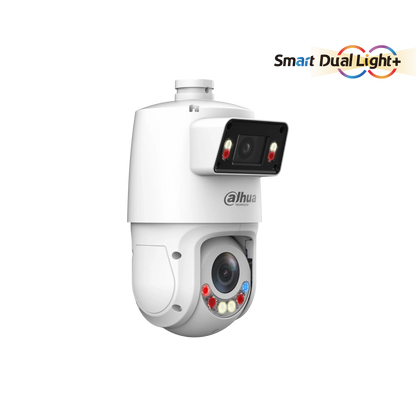

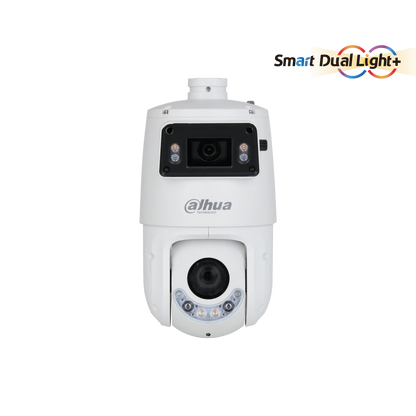

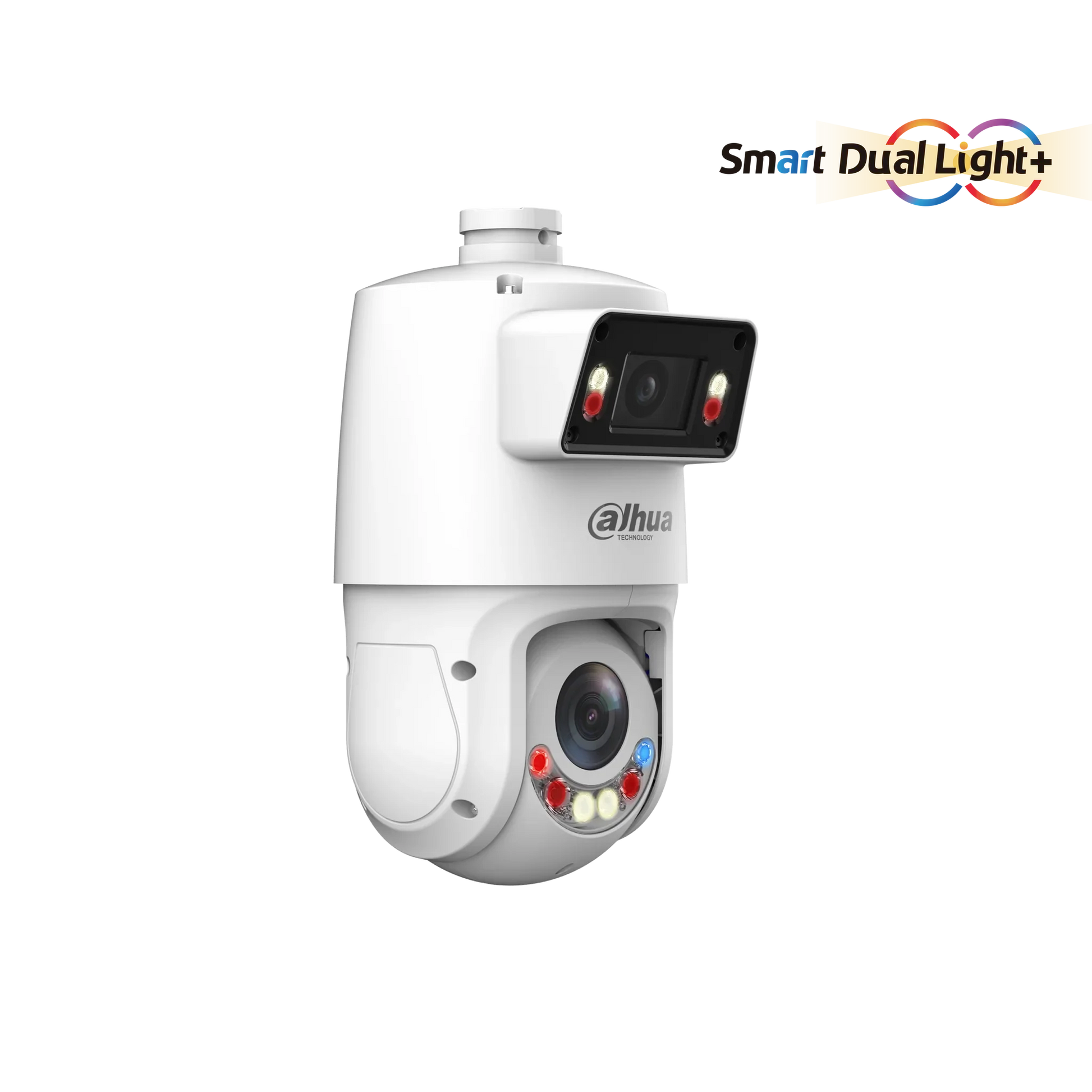

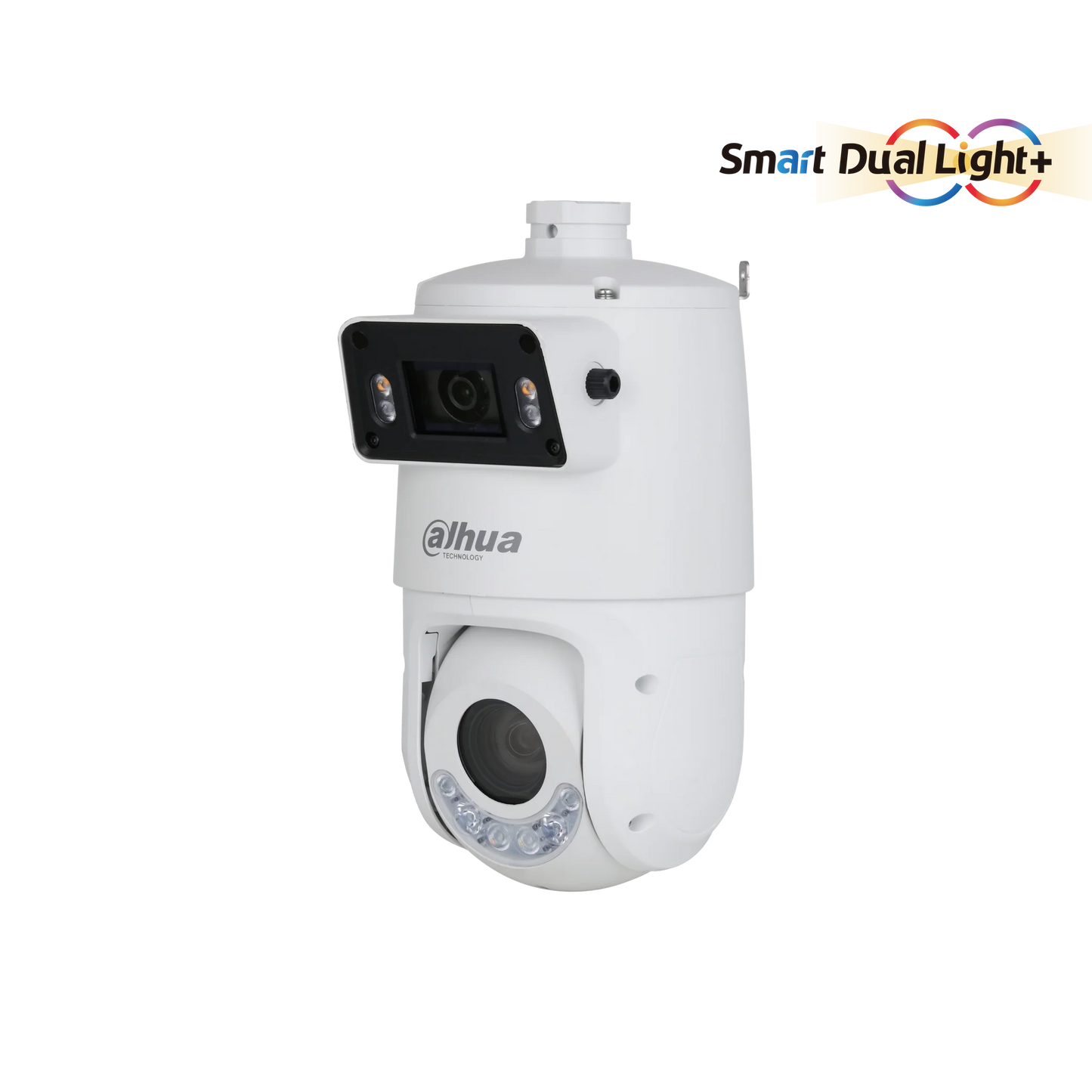

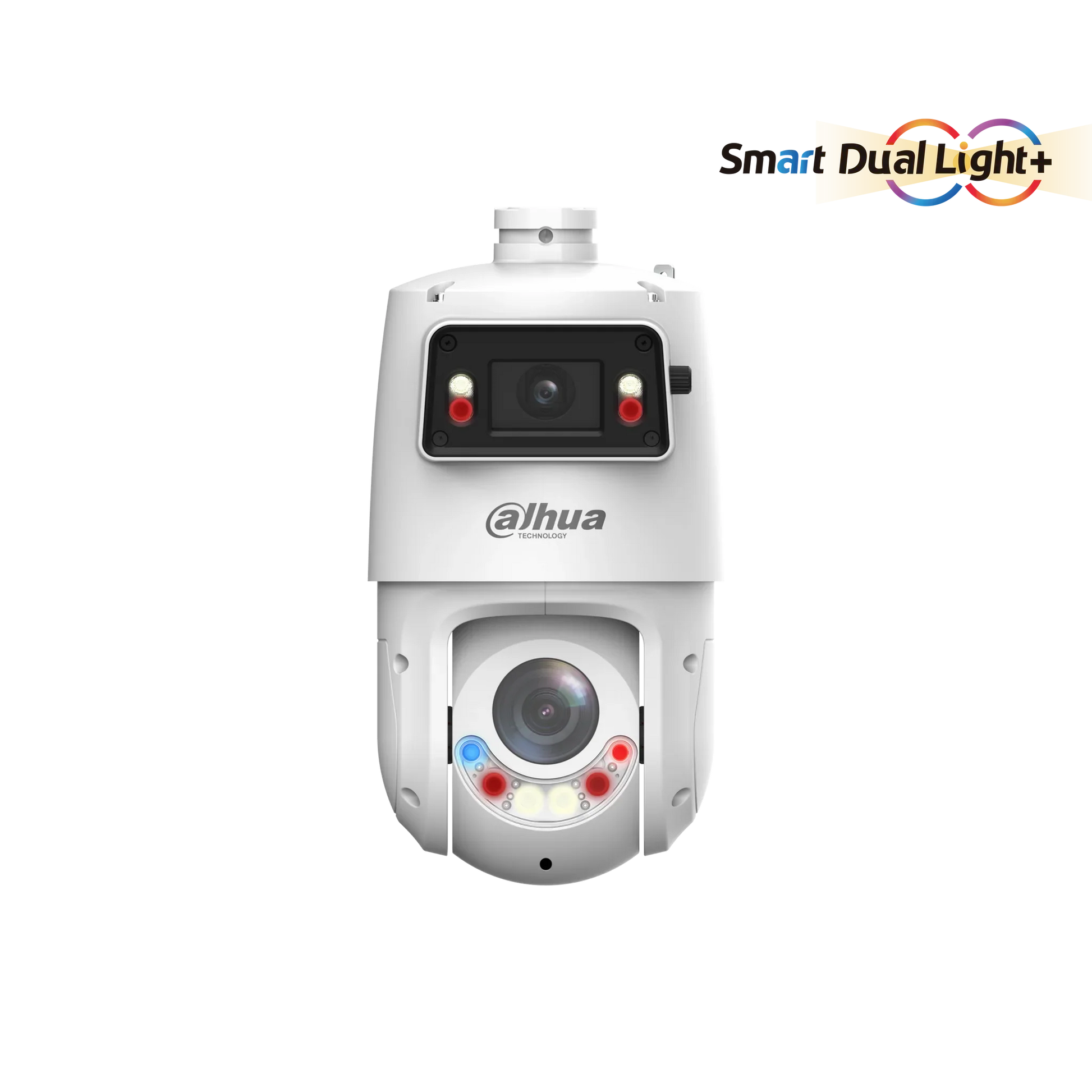

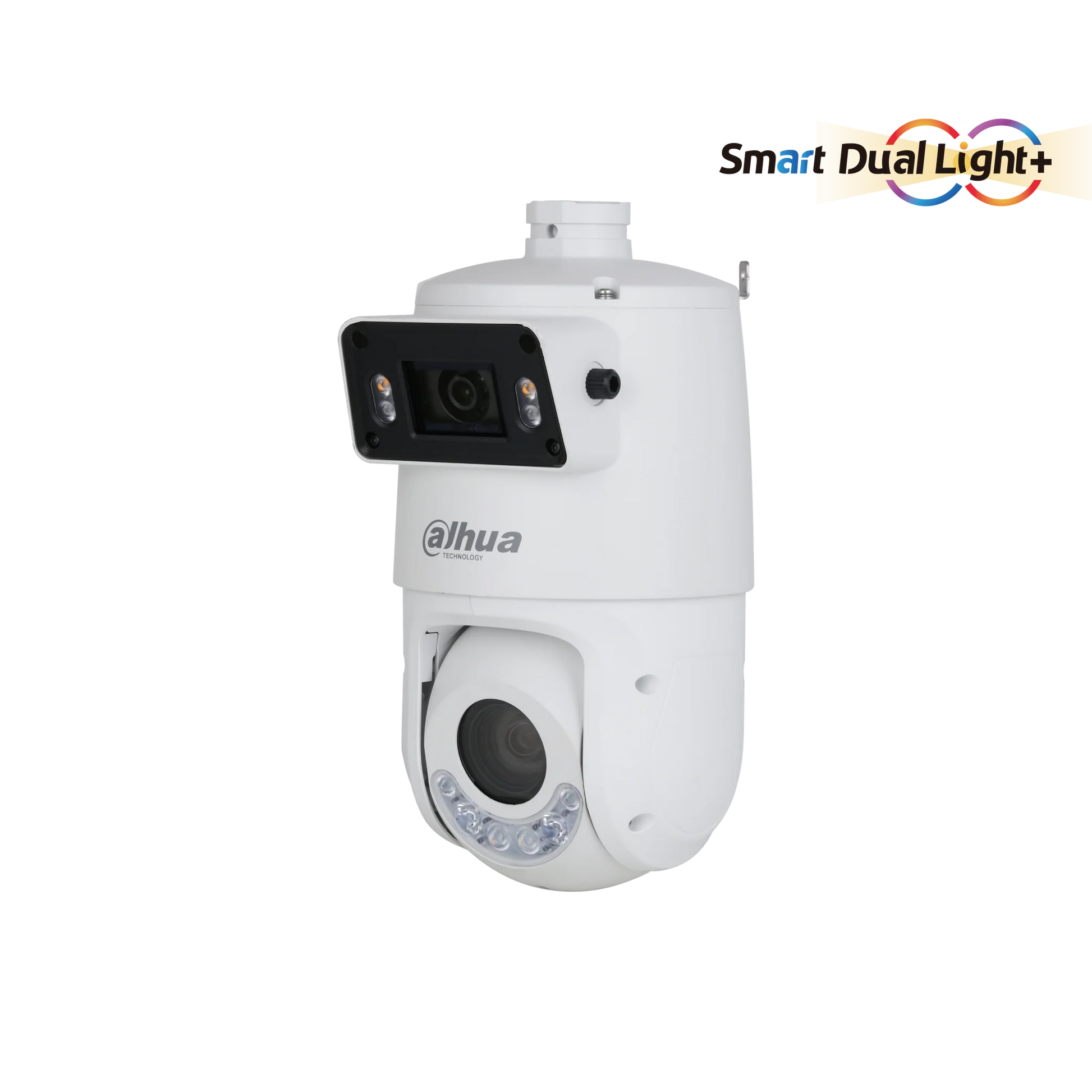

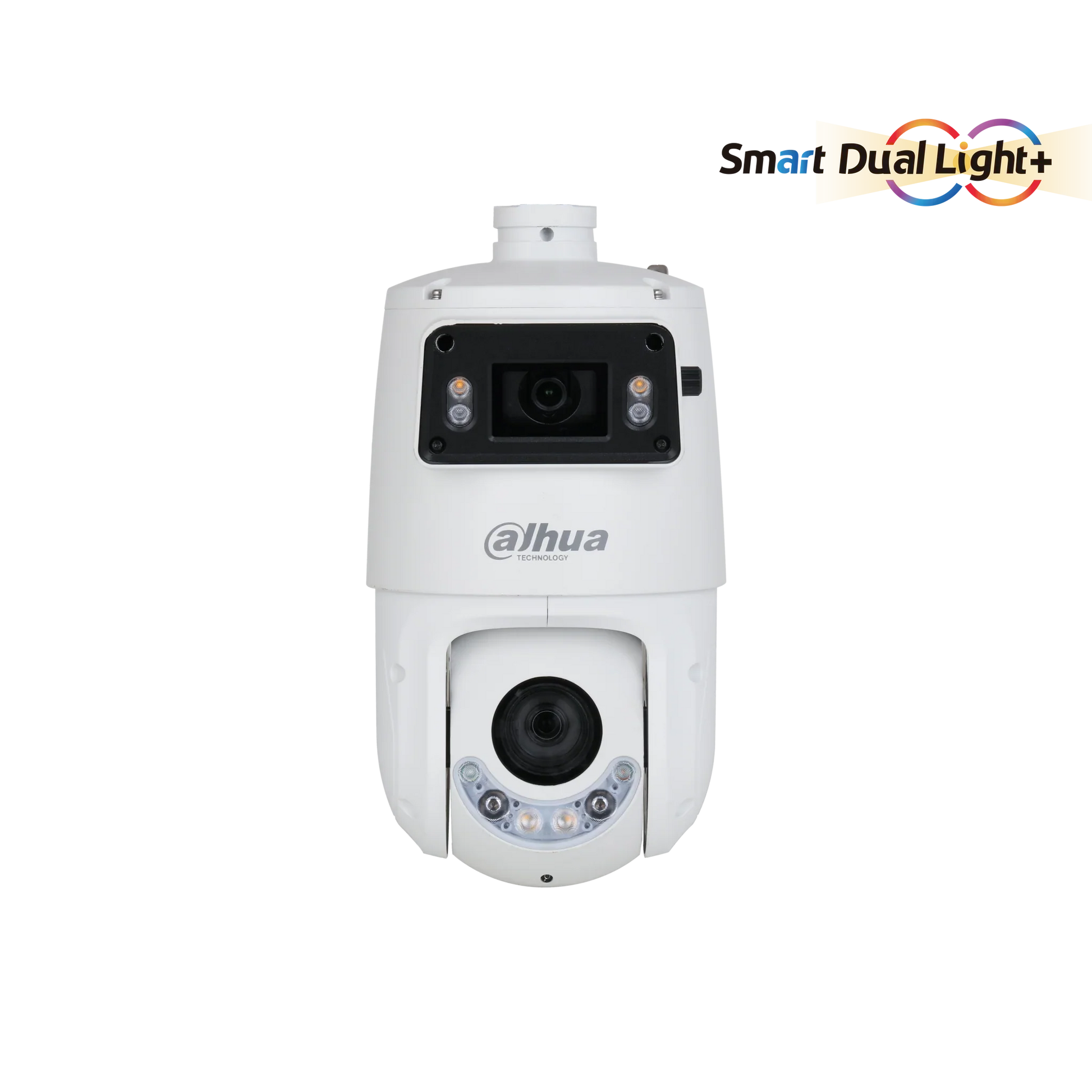

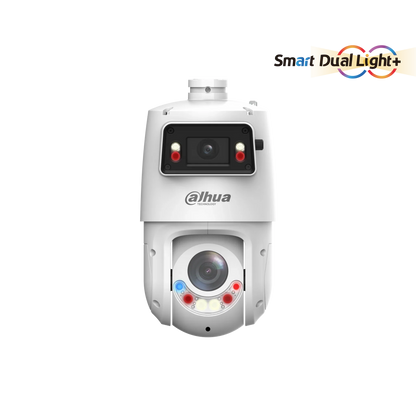

Dahua DH-SDT4E425-4F-GB-A-PV1 X-Spans 4MP+4MP 25x TiOC WizSense Network PTZ Camera

The Dahua DH-SDT4E425-4F-GB-A-PV1 is a cutting-edge network PTZ camera combining dual 4MP sensors with advanced WizSense AI technology. Featuring a panoramic camera for wide-area coverage and a detailed PTZ camera with 25x optical zoom, it delivers unparalleled surveillance precision. The camera supports TiOC (Three-in-One Camera) functionalities, including active deterrence, Smart Dual Light+, and SMD 4.0 for accurate human and vehicle detection.

With its IP66-rated housing, lightning protection, and reliable operation in extreme temperatures (-40°C to +65°C), the camera is built for challenging outdoor environments. Ideal for large-scale surveillance, it combines exceptional image quality with intelligent detection and active deterrence.

Key Features

• Dual 4MP Cameras: Panoramic and detailed cameras provide 4MP resolution for comprehensive coverage.
• 25x Optical Zoom: Captures fine details from long distances without compromising clarity.
• Starlight Technology: Ensures superior low-light performance for clear images in challenging lighting.
• Smart Dual Light+: IR and white light illumination with a range of up to 100 m for detailed nighttime monitoring.
• Advanced AI Detection:
  • SMD 4.0: Filters irrelevant motion and accurately detects humans and vehicles.
  • Perimeter Protection: Supports tripwire, intrusion, and loitering detection for secure boundaries.
  • Auto Tracking 3.0: Automatically follows moving targets for precise monitoring.
• Active Deterrence:
  • Built-in red and blue warning lights and customizable sound alarms.
  • Configurable light flash duration and frequency.
• Wide Dynamic Range (WDR): 120 dB for high-quality imaging in scenes with extreme contrasts.
• Robust Design: Weatherproof IP66 housing with lightning protection ensures durability in harsh conditions.

Specifications

• Camera:

  • Sensors: 1/2.8" CMOS for both panoramic and detailed cameras.
  • Lens:
    • Panoramic: 2.8 mm, F1.0.
    • Detail: 5–125 mm, F1.6–F3.6, 25x optical zoom.
  • IR Range:
    • Panoramic: Up to 30 m.
    • Detail: Up to 100 m.
  • Field of View:
    • Panoramic: H: 101°, V: 53°, D: 120°.
    • Detail: H: 51.9°–3.0°, V: 39.7°–2.2°.

• PTZ Capabilities:

  • Pan Range: 0°–360° endless (Detail camera).
  • Tilt Range: -15° to 90°, with auto-flip (Detail camera).
  • Presets: 300, with 8 tours and 5 patterns.

• Video:

  • Resolution: 4MP, 1080p, 720p, and more for both cameras.
  • Compression: Smart H.265+, H.265, Smart H.264+, H.264.
  • Frame Rate: Up to 30 fps.

• Environment:

  • Operating Temperature: -40°C to +65°C.
  • Ingress Protection: IP66 for weather resistance.

What's Included in the Box

1. Dahua DH-SDT4E425-4F-GB-A-PV1 PTZ Camera.
2. DC12V/3A Power Adapter.
3. PFB305W Wall Mount Bracket.
4. Mounting hardware.
5. Quick start guide.
6. Warranty card.

Warranty Information

The product includes a 3-year warranty, offering peace of mind with comprehensive support for defects and technical issues.

Brand Description

Dahua Technology is a globally recognized leader in intelligent video surveillance, delivering innovative and reliable solutions for diverse industries. Dahua’s cutting-edge technology ensures robust performance, adaptability, and customer satisfaction.

Practical Use Scenarios

• Large-scale perimeter security for industrial and commercial facilities.
• Monitoring wide-open areas such as stadiums, parking lots, and public spaces.
• Enhancing safety with active deterrence in residential communities or retail environments.
• Tracking and analyzing human and vehicle movement with intelligent detection.

Datasheets and Resources

Download the datasheet for full technical details:

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian and New Zealand standards, including CE certifications.
• Engineered for diverse environmental conditions, with reliable operation from -40°C to +65°C.
• IP66-rated for outdoor durability and reliability.
• Distributed exclusively through authorized Dahua representatives for authenticity.
• Local support for warranty and technical assistance ensures hassle-free service.

SKU: DH-SDT4E425-4F-GB-A-PV1
Elevate your surveillance capabilities with the Dahua DH-SDT4E425-4F-GB-A-PV1 PTZ Camera. Order now to experience advanced monitoring with AI-powered precision!
