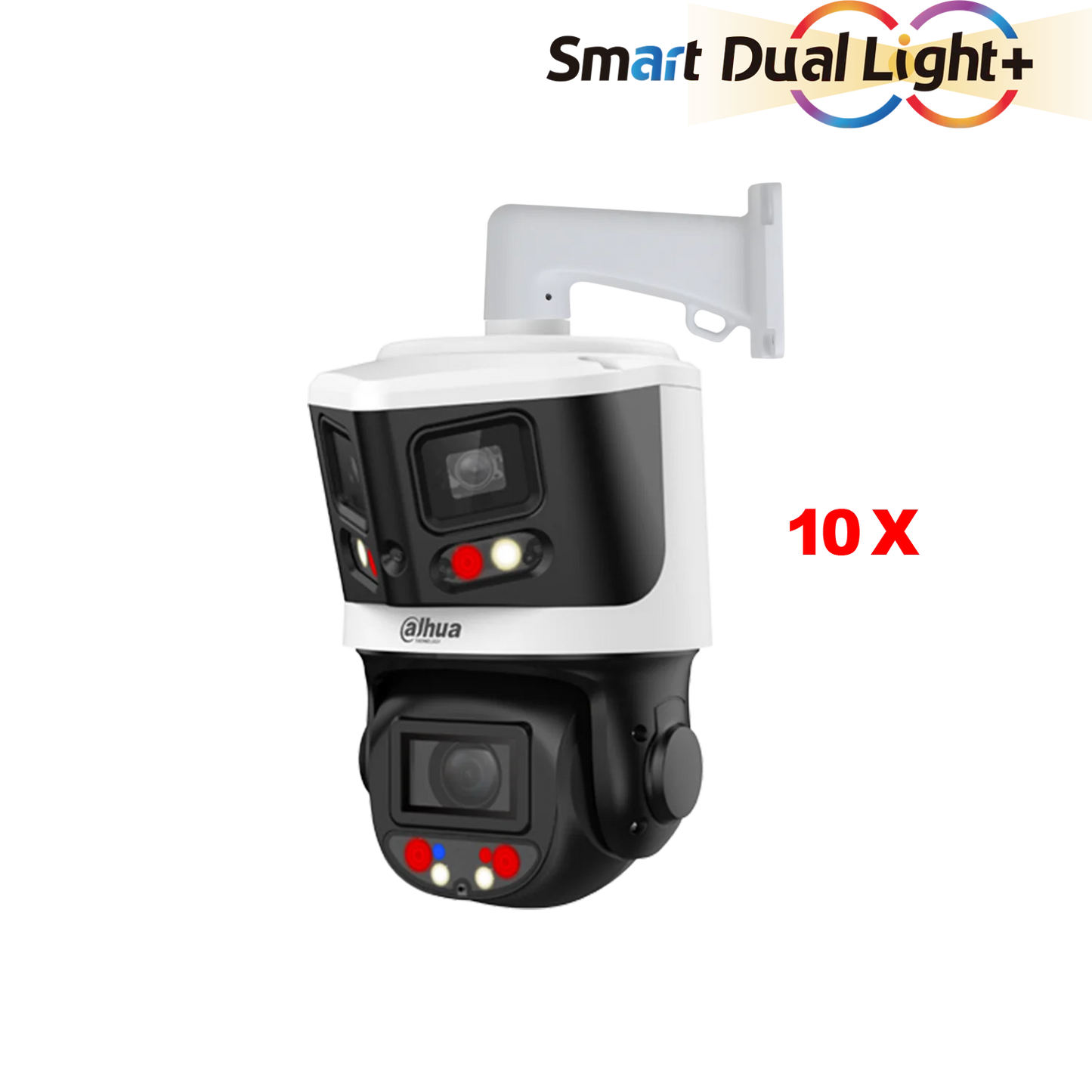

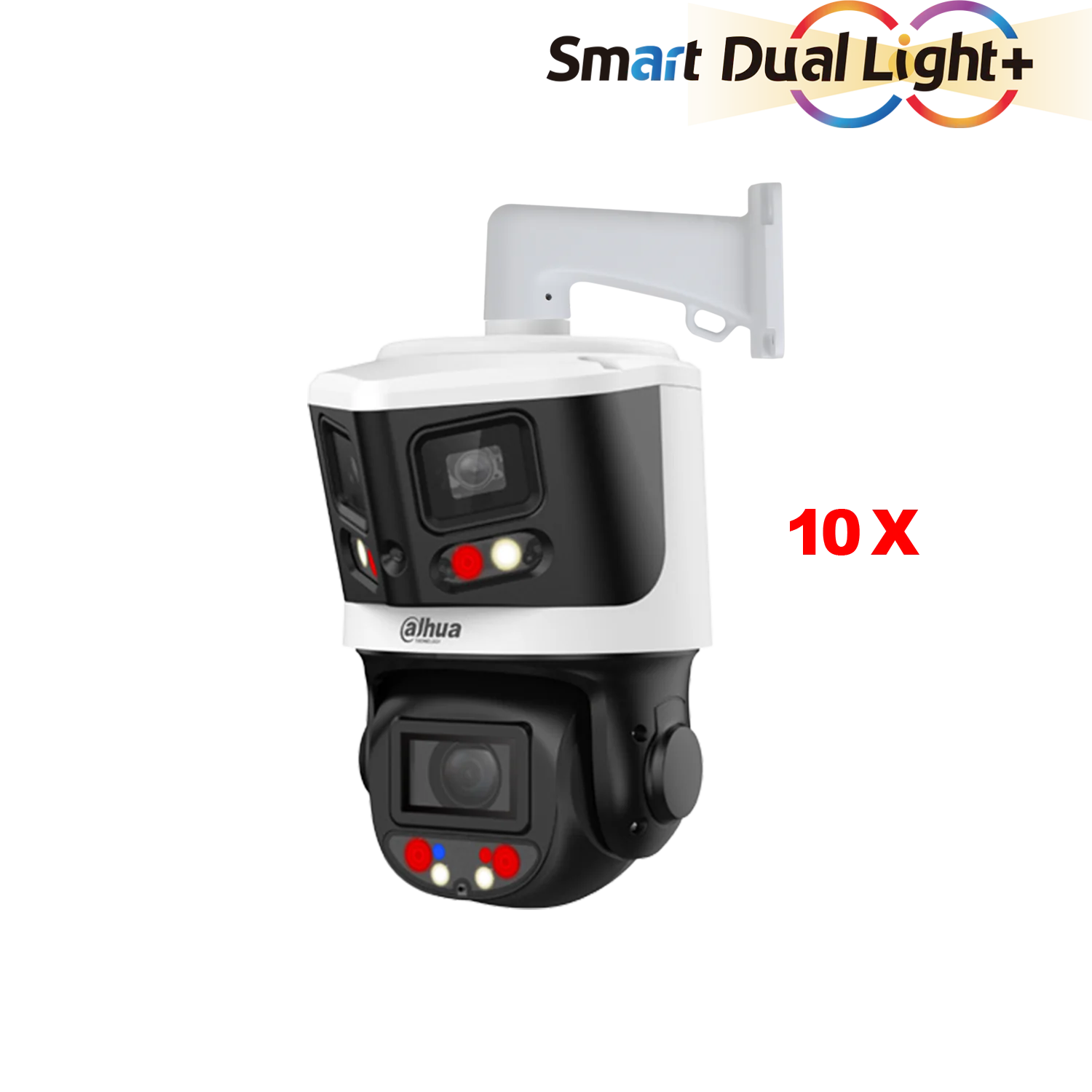

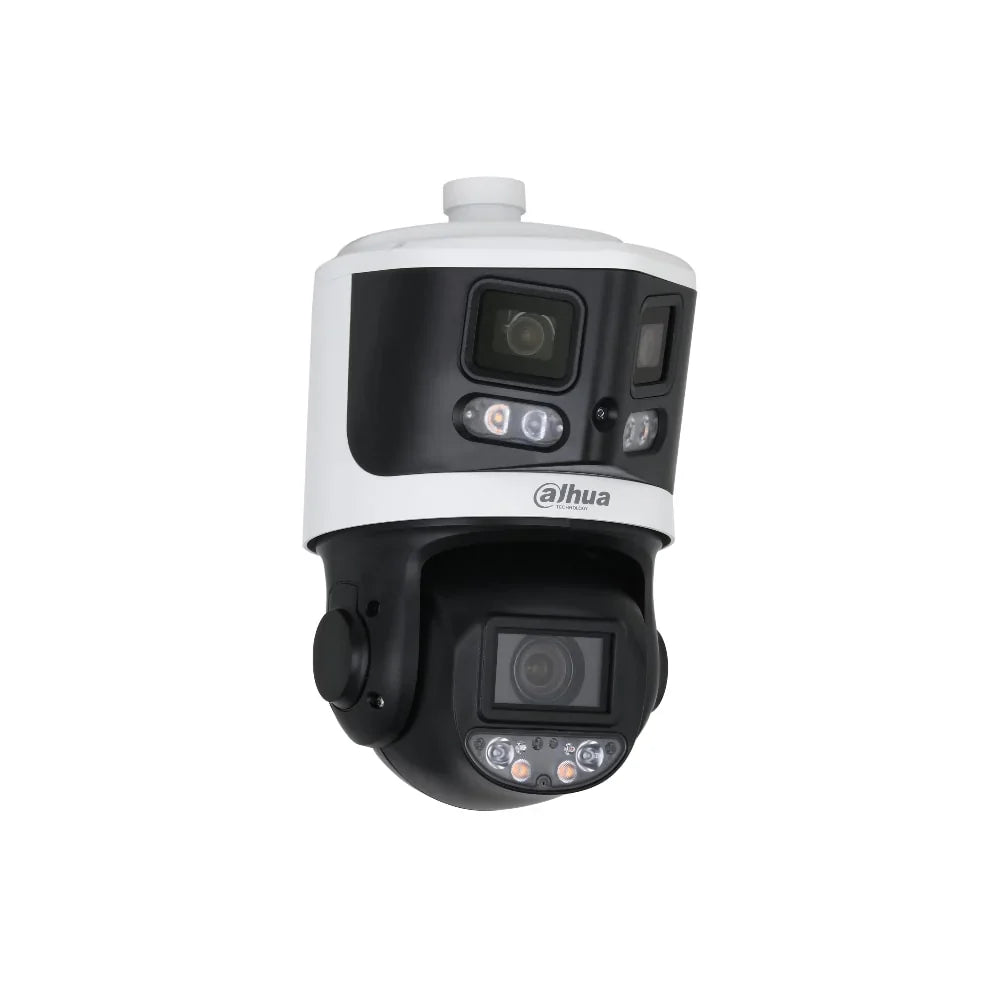

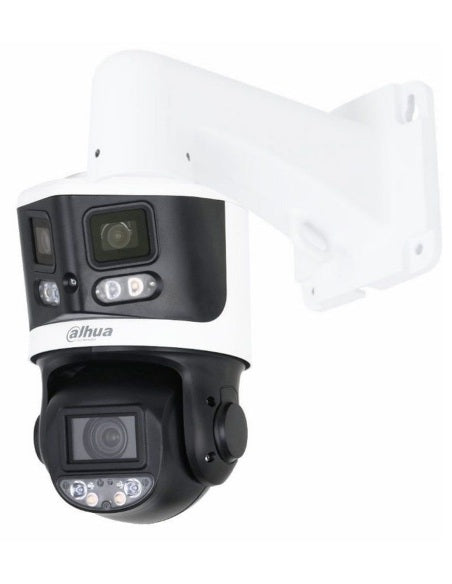

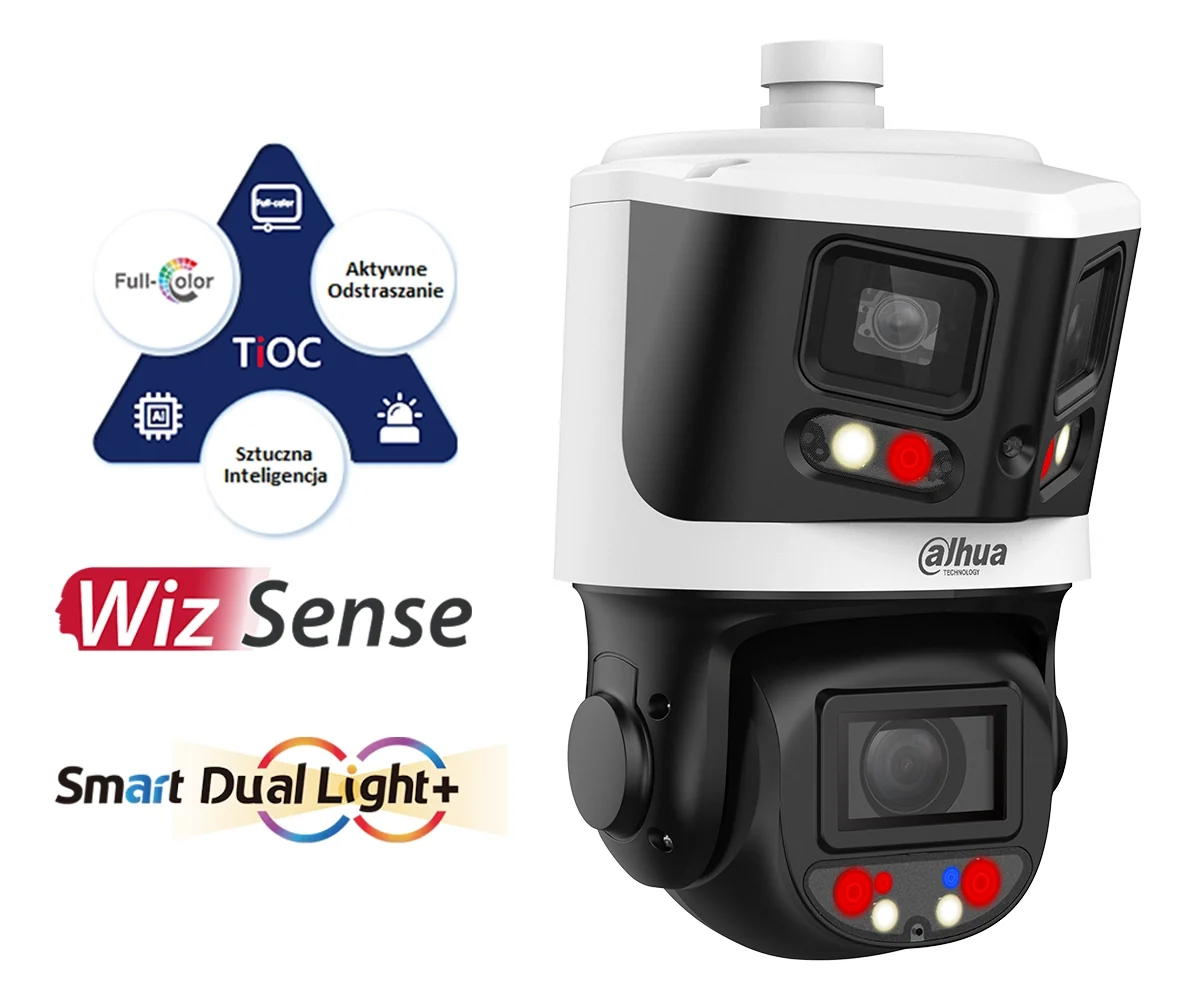

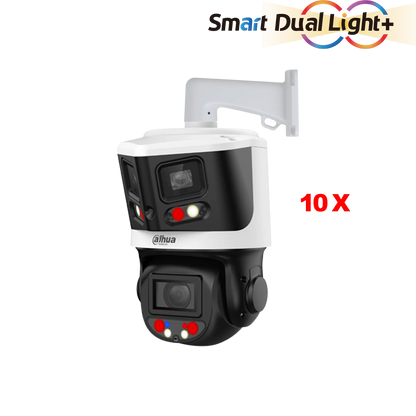

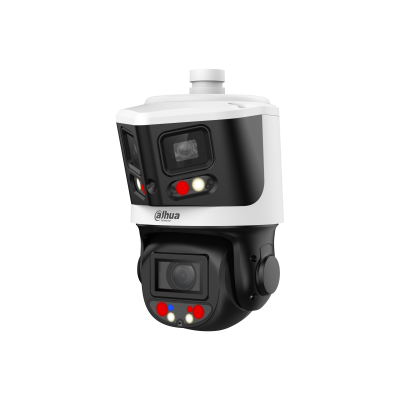

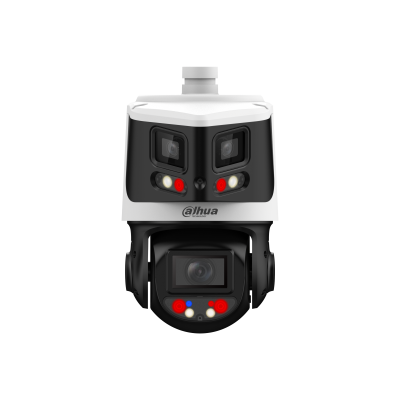

Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Network Panoramic & PTZ Camera

The Dahua DH-SDT3E410-8P-MB-A-PV1 TiOC Network Camera is an innovative security solution combining panoramic and detailed surveillance capabilities. Featuring an 8 MP panoramic lens and a 4 MP PTZ lens with 10x optical zoom, it provides unparalleled coverage and detail. With advanced Starlight technology, Smart Dual Light, and active deterrence features, this camera ensures 24/7 monitoring with exceptional clarity and proactive security measures.

This camera is engineered to detect and track targets across its field of view, offering smart perimeter protection, face detection, and accurate alerts powered by SMD 4.0. Its durable IP66-rated design and lightning protection ensure reliable operation in harsh environments.

Key Features

• Panoramic Coverage and Detail:
  • Outputs a 180° panoramic view (8 MP) and detailed zoomed-in views (4 MP) simultaneously.
  • 10x optical zoom on the PTZ lens for precise close-ups.
• Superior Low-Light Performance:
  • Starlight technology for vivid color imaging in low-light conditions.
  • IR illumination up to 70 m and warm light illumination up to 30 m.
• Active Deterrence:
  • Red and blue flashing lights combined with an audio alarm to deter intruders.
  • Customizable sound warnings and smart light activation based on motion detection.
• Smart Dual Light Technology:
  • Automatically switches between IR and white light for optimized night surveillance and reduced light pollution.
• Advanced Detection and Tracking:
  • Auto Tracking Lite for intelligent monitoring of moving targets.
  • Smart Perimeter Protection with human and vehicle classification.
  • Face detection with attribute extraction and high-quality snapshots.
• Weatherproof and Robust:
  • IP66-rated for resistance to water and dust.
  • TVS 6000 V lightning proof and surge protection.

Specifications

• Camera:
  • Panoramic Lens: 8 MP, 180° horizontal field of view.
  • PTZ Lens: 4 MP, 10x optical zoom, 4–40 mm focal length.
  • Starlight Technology: Minimum illumination as low as 0.0005 lux.
  • IR/Warm Light Range: 70 m (IR), 30 m (white light).
• Video:
  • Resolution: 8 MP (5376 × 1520) for panoramic; 4 MP (2560 × 1440) for PTZ.
  • Compression: H.265+/H.264+ for efficient storage.
  • Frame Rate: Up to 30 fps at maximum resolution.
• Intelligent Features:
  • Perimeter Protection: Tripwire, intrusion, loitering detection.
  • Smart Motion Detection (SMD 4.0): Human and vehicle classification.
  • Face Detection: Attribute extraction and high-quality face cutouts.
• Durability:
  • Operating Temperature: -30°C to +60°C.
  • Weather Resistance: IP66-rated.
  • Dimensions: 140.3 × 181.7 × 238.8 mm.
  • Weight: Net weight 2.17 kg.
• Power:
  • Power Supply: 12 VDC or PoE+ (802.3at).
  • Max Power Consumption: 25 W.

What's Included in the Box

1. Dahua DH-SDT3E410-8P-MB-A-PV1 TiOC Network Camera.
2. Mounting hardware and accessories.
3. User manual.
4. Warranty card.

Warranty Information

This product comes with a 3-year warranty, ensuring reliable performance and support. Warranty covers defects in materials and workmanship under normal use conditions.

Brand Description

Dahua Technology is a global leader in video-centric smart IoT solutions and services. With a commitment to innovation and reliability, Dahua delivers cutting-edge security products that ensure safety and peace of mind.

Practical Use Scenarios

• Comprehensive perimeter monitoring in industrial facilities.
• Proactive intrusion prevention for commercial properties.
• Enhanced residential security with detailed tracking of suspicious activity.
• Wide-angle surveillance for parking lots and open areas.

Datasheets and Resources

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian and New Zealand standards, including CE and RCM certifications.
• Optimized for operation in diverse climates, with temperature tolerance from -30°C to +60°C.
• Distributed by authorized Dahua partners for guaranteed authenticity and support.
• Warranty and technical assistance provided directly by Dahua’s dedicated service teams.

SKU: DH-SDT3E410-8P-MB-A-PV1
Equip your property with the Dahua DH-SDT3E410-8P-MB-A-PV1 for advanced, proactive surveillance. Order today!
