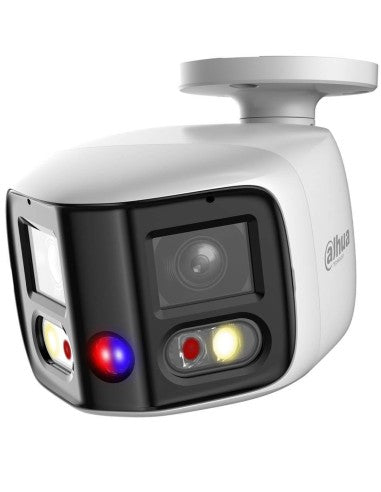

DAHUA DH-IPC-PFW3849S-A180-AS-PV-ANZ wizsense series ip camera AI 180° tioc duo eptz 4mp bullet Camera dual lens 120 wdr metal 2.8mm fixed lens full colour

Introducing the Dahua WizSense Series IP Camera in white, a cutting-edge surveillance solution designed to meet your security needs. Equipped with advanced AI technology and a 180° TIOC Duo with EPTZ, this camera ensures comprehensive coverage of your premises.

With a 4MP resolution and H.264/4+/5/5+ compression, you'll capture clear and detailed footage at all times. The dual lens design and 120 WDR ensure optimal image quality, even in challenging lighting conditions. Plus, the metal construction and IP67 rating provide durability and protection against harsh weather.

Experience enhanced night vision with warm LED and full-color IR+white LED illumination, extending up to 25 meters. Whether day or night, you'll have clear visibility of your surroundings.

This camera is packed with features, including a built-in microphone, audio in/out ports, and support for up to 256GB SD storage. Additionally, it comes with 1 x alarm in and 1 x alarm out for added security.

Backed by a 36-month warranty, you can trust in the reliability and performance of the Dahua WizSense Series IP Camera. Upgrade your surveillance system today and enjoy peace of mind knowing your property is protected.

Camera

• Image Sensor: Dual 1/2.7" CMOS
• Max. Resolution: 4096 (H) × 1860 (V)
• ROM: 128 MB
• RAM: 1 GB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination:
  • Color: 0.005 lux@F1.4 (30 IRE)
  • B/W: 0.0005 lux@F1.4 (30 IRE)
  • Illuminator on: 0 lux
• S/N Ratio: >56 dB
• Illumination Distance:
  • IR LED: Up to 25 m (82.02 ft)
  • Warm light: Up to 20 m (65.62 ft)
• Illuminator On/Off Control: Auto; Manual
• Illuminator Number: 2 (IR LED); 2 (Warm light)
• Angle Adjustment:
  • Pan: 0°–360°
  • Tilt: 0°–77°
  • Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm
• Field of View: Horizontal: 180°; Vertical: 86°
• Max. Aperture: F1.4
• Iris Control: Fixed
• Close Focus Distance: 0.8 m (2.62 ft)

Intelligence

• IVS (Perimeter Protection): Intrusion, tripwire
• SMD: SMD 4.0
• Quick Pick: With AI NVR
• Smart Search: Work together with Smart NVR
• EPTZ: Enlarge and track the targets of intelligent alarms

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• AI Coding: AI H.265; AI H.264
• Video Frame Rate
  • Main stream: 4096 × 1860@(1–20 fps )
  • Sub stream: 1200 × 530@(1–20 fps)
  • Third stream: 1920 × 860@(1–20 fps)
• Stream Capability: 3 streams
• Resolution: Various resolutions
• Bit Rate Control: CBR/VBR
• Video Bit Rate: Variable
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Privacy Masking: 4 areas
• Defog: Yes

Audio

• Built-in MIC: Yes, built-in dual Mic
• Built-in Speaker: Yes, built-in speaker
• Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Alarm

• Alarm Event: Various alarm events

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes

Cyber Security

• Various security measures

Network Protocol

• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI

User/Host: 20 (Total bandwidth: 64 M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

• IE: IE 8 and later
• Chrome
• Firefox

Management Software: Smart PSS Lite; DSS; DMSS

Mobile Client: iOS; Android

Certification

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• FCC: 47 CFR FCC Part 15, Subpart B

Port

• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: wet contact, 5 mA 3 V–5 VDC
• Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC

Power

• Power Supply: 12 VDC (±30%); PoE (802.3af)
• Power Consumption: Variable

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95%
• Storage Temperature: –40 °C

Datasheets

Datasheet

Warranty

3 years warranty
