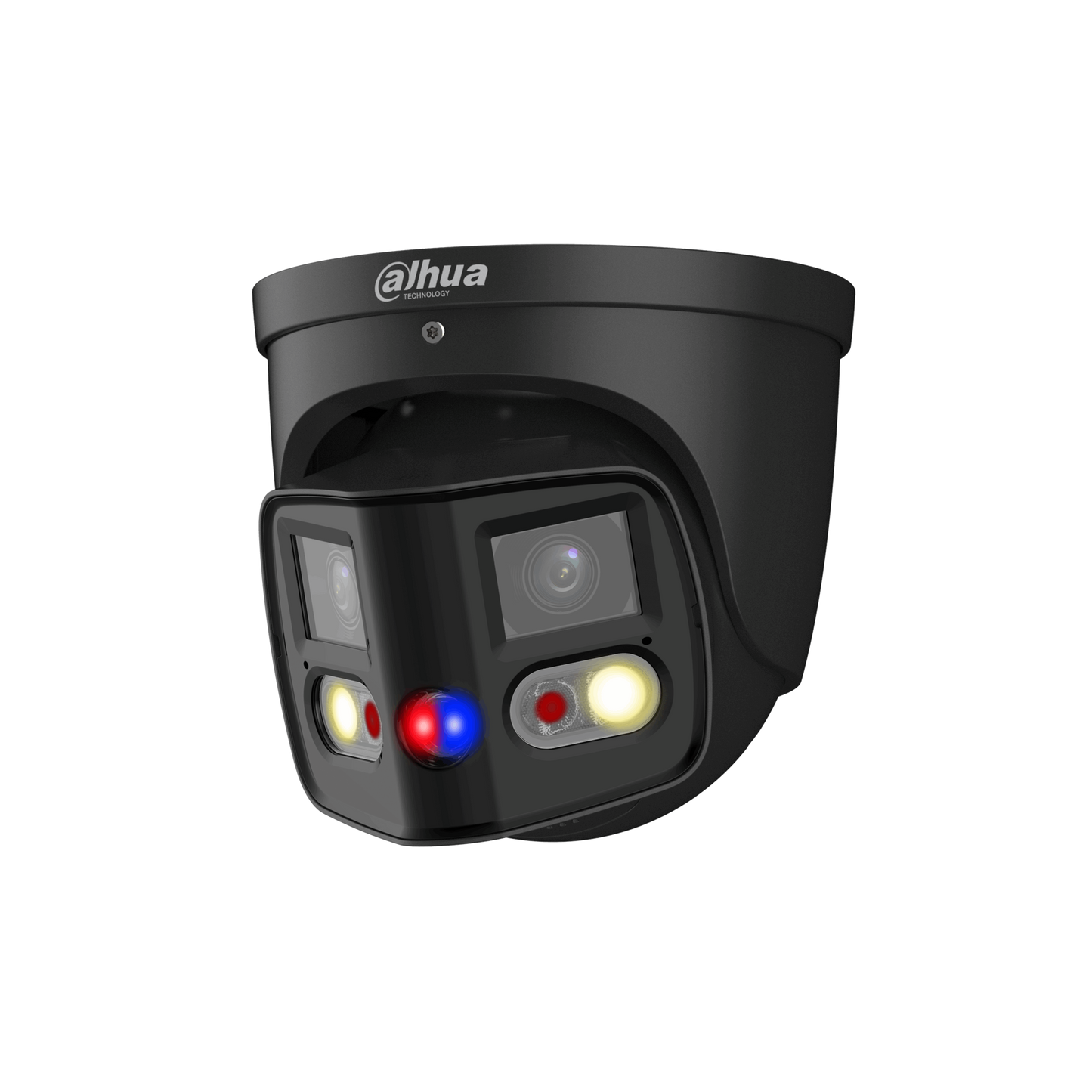

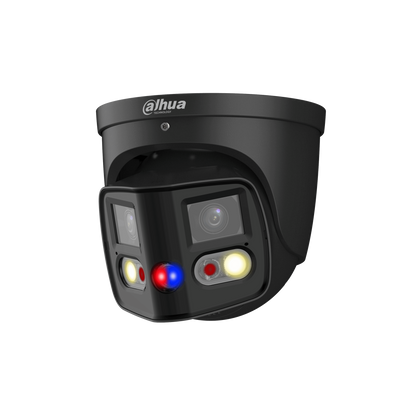

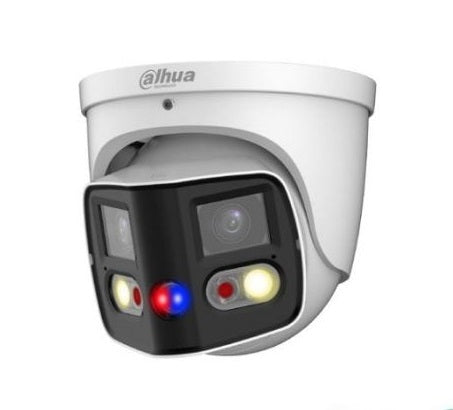

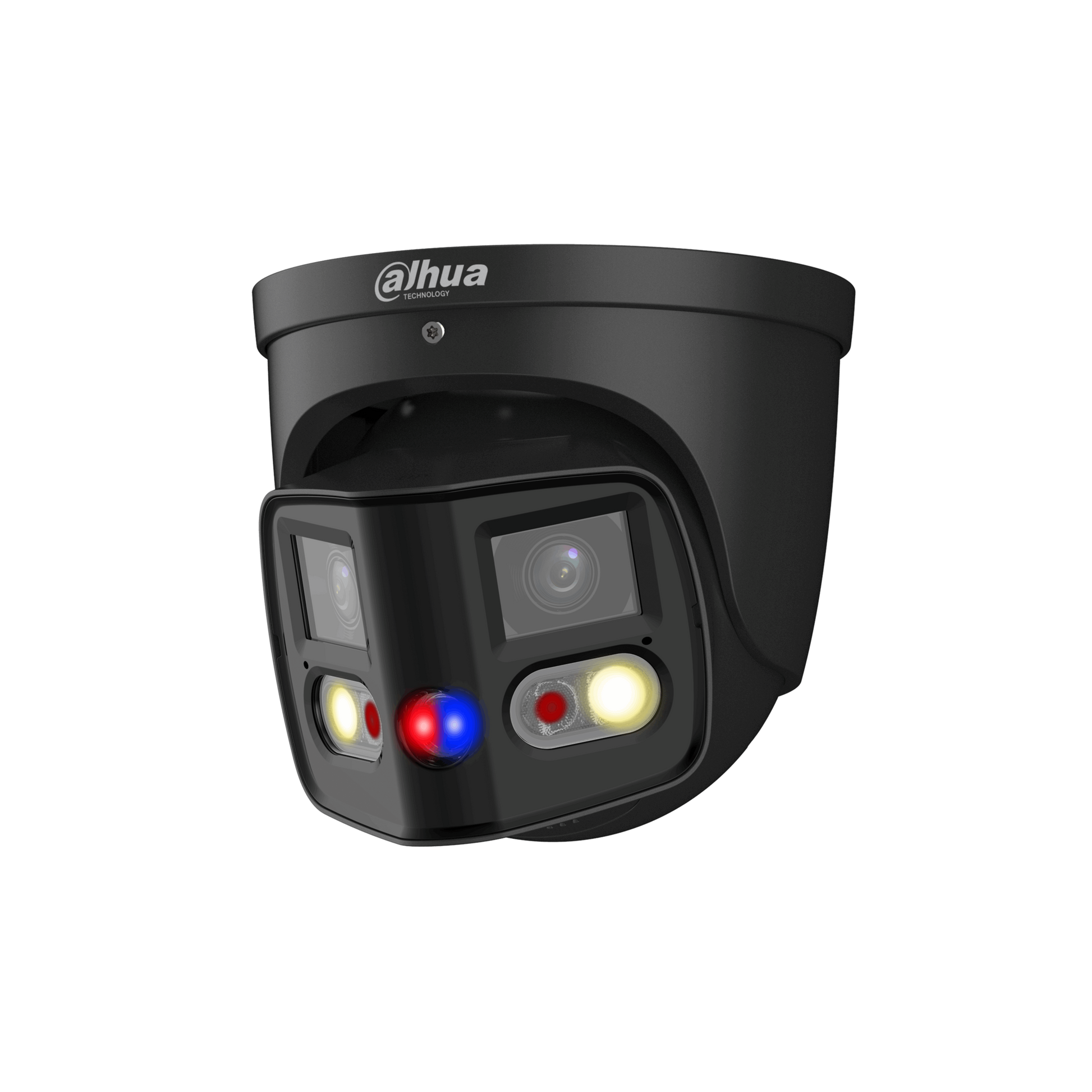

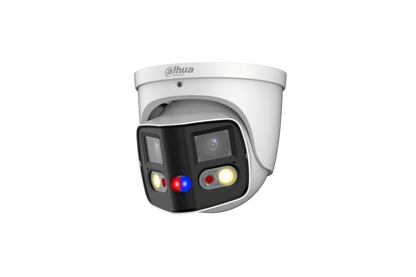

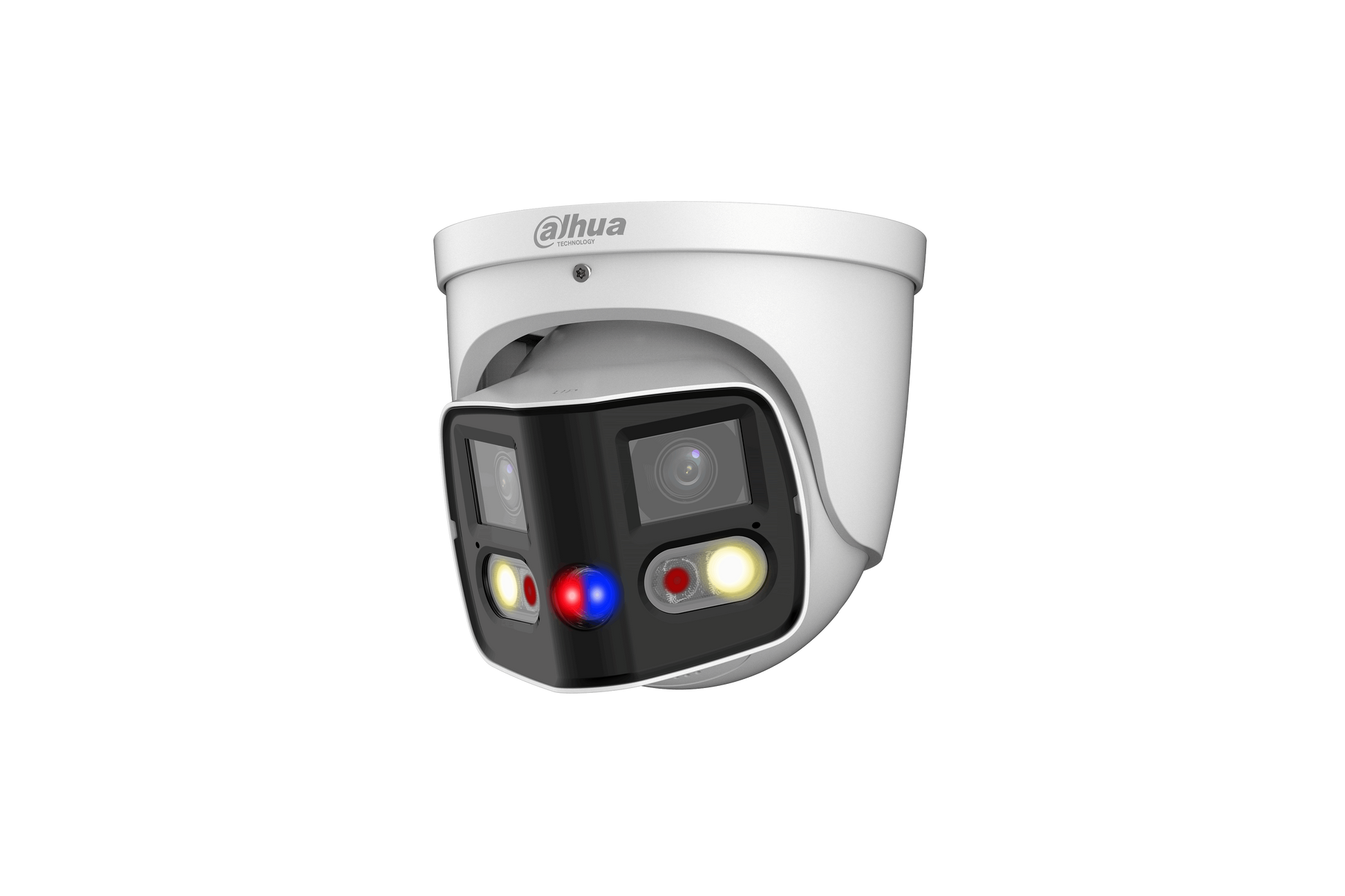

Dahua DH‑IPC‑PDW3849‑A180‑AS‑PV 8MP TiOC Duo Splicing 180° Wide‑Angle Eyeball WizSense Network Camera (IP67, Smart Dual Light, EPTZ)

Dahua DH‑IPC‑PDW3849‑A180‑AS‑PV 8MP TiOC Duo Splicing 180° Wide‑Angle Eyeball WizSense Network Camera (IP67, Smart Dual Light, EPTZ)

$387.60 AUD
$535.50 AUD $387.60 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

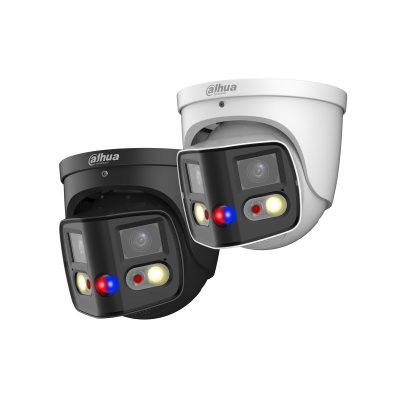

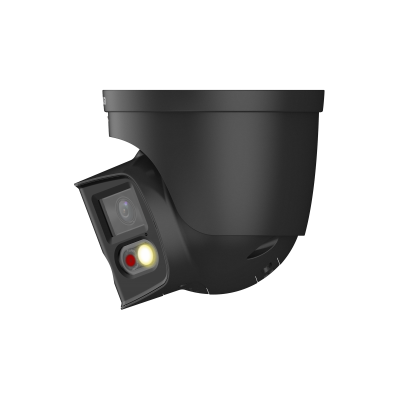

Color

The Dahua DH‑IPC‑PDW3849‑A180‑AS‑PV is a high-performance dual-lens network camera that merges two 4MP streams into a seamless 180° panoramic view 8MP. Part of Dahua’s advanced WizSense series, this camera is equipped with intelligent AI features, dual light technology (IR and warm light), and active deterrence capabilities, making it ideal for monitoring wide and open areas with minimal blind spots.

Delivering up to 8MP (4096 × 1860) resolution at 20fps, the camera features AI Coding (AI H.265/H.264), Smart H.265+/H.264+, Wide Dynamic Range (WDR), 3D Noise Reduction, and multiple smart detection functions including intrusion, tripwire, and loitering detection. The integrated Smart Dual Light switches between infrared and warm light based on detection, enabling full-color recording of key events under low-light conditions.

It also includes a built-in microphone, speaker for two-way audio, siren and light alarm, EPTZ for smart tracking, and IP67-rated weatherproof construction. Designed to simplify installation and maximize perimeter protection, this model supports one-tap arming/disarming and local storage up to 512 GB via MicroSD.

What’s Included in the Box

  • 1 × Dahua DH‑IPC‑PDW3849‑A180‑AS‑PV Network Camera

  • Mounting template and accessories

  • Quick installation guide

  • Waterproofing materials

  • Warranty and product documentation

Main Features

Feature Description
180° Splicing Panorama Seamless wide-angle view using dual 4MP sensors
8MP Output at 20fps High-resolution imaging across the entire field of view
AI Coding (Smart H.265+/H.264+) Reduces bandwidth and storage usage
Smart Dual Light IR for night, warm light for full-color event capture
Built-in Siren and Light Alarm Active deterrence with visual and audio alerts
Advanced AI Detection Human/vehicle classification, loitering, stay detection
EPTZ Tracking Intelligent zoom and tracking of targets
Two-Way Audio Built-in microphone and speaker for real-time communication
IP67 Weatherproof Suitable for outdoor installations in harsh environments
One-Tap Arming/Disarming Simplified security control via mobile app

Detailed Specifications

Category Specification
Image Sensor Dual 1/2.7" CMOS
Max. Resolution 4096 × 1860
Frame Rate Main: 20 fps
Lens Type Fixed, 2.8 mm focal length
Field of View Horizontal: 180°, Vertical: 86°
Min. Illumination 0.005 lux (Color), 0 lux (IR on)
IR Range Up to 25 m
Warm Light Range Up to 20 m
WDR 120 dB
Audio I/O 1 in / 1 out, built-in mic and speaker
Alarm I/O 1 input, 1 output
MicroSD Slot Supports up to 512 GB
Power Supply 12 VDC ±30% / PoE (802.3af)
Power Consumption Max: 8.7 W (12 VDC), 10.85 W (PoE)
Operating Temp –40 °C to +60 °C
Ingress Protection IP67

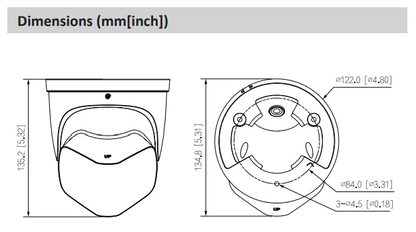

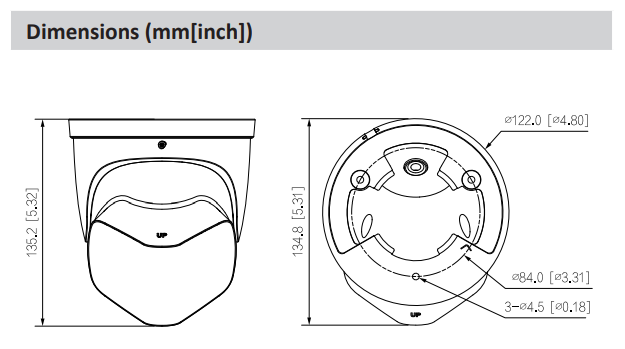

Housing Metal, Ø122 mm × 135.2 mm
Weight Net: 990 g

Warranty Information

  • Covered by Dahua’s manufacturer warranty

  • Warranty duration varies by region or distributor

  • Covers factory defects only; excludes misuse or water ingress outside IP67 limits

Brand Description

Dahua Technology is a global leader in video surveillance and smart security solutions. Known for pioneering innovation in AI-driven surveillance, Dahua’s WizSense product line offers intelligent detection, enhanced reliability, and cost-effective solutions for modern security environments.

SKU / Model Code

DH‑IPC‑PDW3849‑A180‑AS‑PV

Practical Use Scenarios

  • Warehouse & Industrial Surveillance: Monitor large spaces with a single wide-angle camera.

  • Retail & Mall Entrances: Broad area coverage with active deterrence to prevent incidents.

  • Carparks & Open Lots: Seamless panoramic view of entry and exit zones.

  • Perimeter Security: AI detection helps identify real threats and reduce false alarms.

  • School Campuses & Corridors: Full coverage with minimal blind spots and easy remote disarming.

Datasheets & Downloadable Resources

Excellence for the Australian and New Zealand Market

  • Meets IP67 environmental and durability standards for outdoor installations

  • Operates within wide voltage and temperature ranges suitable for ANZ climates

  • Compatible with PoE infrastructure used widely across commercial properties

  • Supplied exclusively via authorized brand partners for genuine warranty coverage

  • Warranty servicing handled locally through official Dahua representatives or approved distributors

  • Designed to align with Australian and New Zealand security compliance standards

FAQs

Q1: What is the maximum resolution and frame rate of the DH-IPC-PDW3849-A180-AS-PV?
A1: The DH-IPC-PDW3849-A180-AS-PV provides a stitched 180° panoramic image at up to 8MP resolution (4096 × 1860) at 20 frames per second.

Q2: Does the DH-IPC-PDW3849-A180-AS-PV support night vision and color imaging?
A2: Yes, the DH-IPC-PDW3849-A180-AS-PV supports Smart Dual Light with infrared and warm light for optimal full-color imaging even in low-light conditions.

Q3: What smart analytics are included in the DH-IPC-PDW3849-A180-AS-PV?
A3: The DH-IPC-PDW3849-A180-AS-PV includes AI-powered perimeter protection such as tripwire, intrusion, loitering detection, stay detection, and Smart Motion Detection (SMD 4.0).

Q4: Is the DH-IPC-PDW3849-A180-AS-PV weatherproof and suitable for outdoor use?
A4: Absolutely. The DH-IPC-PDW3849-A180-AS-PV is rated IP67, making it resistant to dust and water, and capable of operating in temperatures from –40°C to +60°C.

Q5: How is the DH-IPC-PDW3849-A180-AS-PV powered?
A5: The DH-IPC-PDW3849-A180-AS-PV can be powered via 12 VDC (±30%) or PoE (802.3af), providing flexible installation options.

Q6: Can the DH-IPC-PDW3849-A180-AS-PV record locally?
A6: Yes, the DH-IPC-PDW3849-A180-AS-PV supports local recording to a MicroSD card up to 512 GB, allowing for edge-based video storage.
