Dahua DH-IPC-HFW3649T1-AS-PV-PRO-ANZ 6MP TiOC Wizcolor Smart Dual Light Active Deterrence Fixed-Focal Bullet WizSense Network Camera

The Dahua DH-IPC-HFW3649T1-AS-PV-PRO-ANZ 6MP Smart Dual Light Active Deterrence Bullet Camera delivers ultra-clear 6MP resolution, advanced AI-powered human and vehicle classification, and proactive sound and light deterrence in a robust IP67-rated bullet design. Featuring 50m IR and warm light range, SMD 4.0, WizSense deep learning technology, and AI Coding for bandwidth optimisation, this camera provides reliable perimeter protection and full-colour evidence capture in low-light conditions. Purpose-built for demanding Australian and New Zealand environments, it ensures intelligent, accurate, and highly efficient surveillance performance.

---

What’s Included in the Box

• 1 × Dahua DH-IPC-HFW3649T1-AS-PV-PRO-ANZ Network Camera

• Mounting hardware

• Waterproof connector

• Quick installation guide

• Warranty documentation

---

Key Features

🔹 6MP High-Definition Imaging

• 1/1.8" CMOS image sensor

• Max resolution: 3288 × 1850 @ 25/30fps

• Ultra-low illumination:

  • 0.0005 Lux (Colour)

  • 0 Lux with illuminator on

• 120dB Wide Dynamic Range

🔹 Smart Dual Light (50m Range)

• IR illumination up to 50m

• Warm light illumination up to 50m

• Automatically switches to full-colour recording when a target is detected

• Reduces unnecessary light pollution

🔹 Active Deterrence – Siren & Red/Blue Warning Lights

• Built-in speaker with selectable voice prompts

• Custom voice import supported

• Red & blue flashing lights

• Immediate audible and visual deterrence on perimeter trigger

🔹 Advanced AI Detection (WizSense 3 Series)

• Intrusion detection

• Tripwire protection

• Human & vehicle classification

• SMD 4.0 smart motion detection

• AcuPick for rapid target search

• AI Scene Self-Adaptation (AI SSA)

• One-tap arming/disarming via mobile app

🔹 Smart Compression & Storage Efficiency

• H.265 / H.264 compression

• Smart H.265+ / H.264+

• AI Coding (≥25% compression efficiency improvement)

• Triple stream support

• MicroSD support up to 512GB

🔹 Audio & Alarm Integration

• Built-in dual microphones

• Built-in speaker (two-way talk)

• 1 × Alarm input / 1 × Alarm output

• 1 × Audio input / 1 × Audio output

🔹 Cyber Security Protection

• HTTPS & 802.1x authentication

• IP/MAC filtering

• Firmware & configuration encryption

• Trusted boot & secure upgrade

---

Detailed Technical Specifications

Camera

• Image Sensor: 1/1.8" CMOS

• Max Resolution: 3288 × 1850

• ROM: 256MB

• RAM: 2GB

• Shutter Speed: 1/3s–1/100,000s

• S/N Ratio: >56dB

Lens Options

• Aperture: F1.0

• Mount: M16

Illumination

• IR Distance: Up to 50m

• Warm Light Distance: Up to 50m

• 4 Multi-core LEDs (IR + Warm)

Video

• Compression: H.265 / H.264 / MJPEG (sub stream)

• Smart Codec: Smart H.265+ / H.264+

• AI Coding: Supported

• Bit Rate: 3kbps–16384kbps

• 3 Streams supported

Storage

• Micro SD up to 512GB

• FTP / SFTP / NAS

Network

• RJ-45 (10/100 Base-T)

• ONVIF Profile S / G / T

• IPv4 / IPv6 supported

• Maximum 20 users

Power

• 12V DC or PoE+ (802.3at)

• Max consumption:

  • 11.8W (DC)

  • 15.1W (PoE+)

Environmental

• Operating Temp: -40°C to +60°C

• Humidity: ≤95% (non-condensing)

• Protection: IP67

Physical

• Metal + Plastic housing

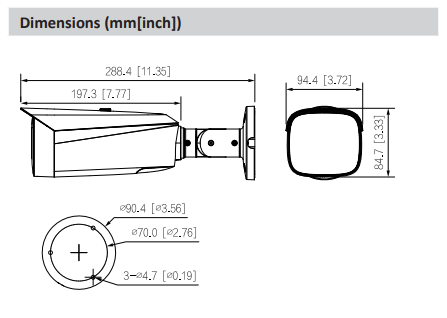

• Dimensions: 288.4 × 94.4 × 84.7mm

• Net Weight: 1.0kg

---

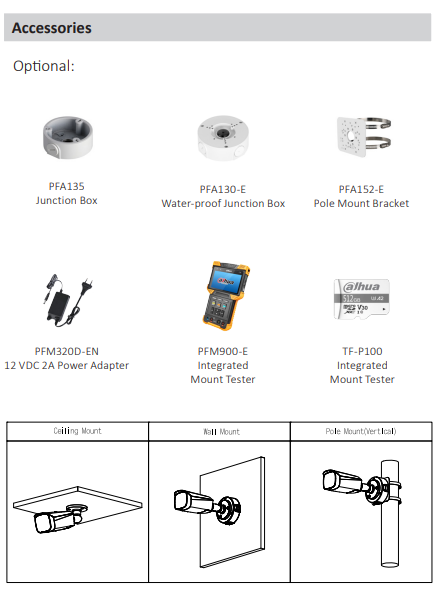

Optional Accessories

• PFA135 Junction Box

• PFA130-E Waterproof Junction Box

• PFA152-E Pole Mount Bracket

• PFM320D-EN 12V 2A Power Adapter

• PFM900-E Integrated Mount Tester

• TF-P100 MicroSD Card

---

Practical Use Scenarios

✔ Driveways and perimeter fencing
✔ Commercial building exteriors
✔ Warehouse loading zones
✔ Industrial facilities
✔ School campuses
✔ Car parks and vehicle entry points

The extended 50m illumination range makes this bullet camera ideal for larger open areas requiring long-distance coverage and proactive deterrence.

---

Warranty Information

• Manufacturer-backed warranty

• Supplied through authorised ANZ distribution

• Full compliance with regional support standards

---

About Dahua Technology

Dahua Technology is a global provider of AIoT-based smart video surveillance solutions. The WizSense series integrates independent AI chips and deep learning algorithms to deliver precise human and vehicle detection while minimising false alarms and storage consumption.

---

Datasheets & Resources

• Official datasheet

---

Excellence for the Australian and New Zealand Market

The DH-IPC-HFW3649T1-AS-PV-PRO-ANZ model is specifically supplied for the Australian and New Zealand market, ensuring:

• Compliance with CE-LVD (EN 62368-1) and CE-EMC standards

• Optimised voltage tolerance for unstable outdoor power conditions

• IP67-rated weatherproof protection for harsh climates

• PoE+ (802.3at) support for professional commercial installations

• Supplied through authorised brand channels

• Warranty support aligned with ANZ service standards

Built to withstand extreme temperatures and demanding outdoor environments, this model delivers reliable long-term performance across residential, commercial, and industrial applications.

---

Frequently Asked Questions (FAQs)

1. Does DH-IPC-HFW3649T1-AS-PV-PRO-ANZ support full-colour recording at night?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ uses Smart Dual Light technology to switch to warm light for full-colour recording when a target is detected.

2. What is the illumination range of DH-IPC-HFW3649T1-AS-PV-PRO-ANZ?

DH-IPC-HFW3649T1-AS-PV-PRO-ANZ provides up to 50 metres of IR and 50 metres of warm light illumination.

3. Does DH-IPC-HFW3649T1-AS-PV-PRO-ANZ support PoE?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ supports both 12V DC and PoE+ (802.3at) power supply.

4. Can DH-IPC-HFW3649T1-AS-PV-PRO-ANZ reduce false alarms?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ features SMD 4.0 with AI human and vehicle classification to significantly minimise false triggers.

5. Is DH-IPC-HFW3649T1-AS-PV-PRO-ANZ suitable for harsh outdoor conditions?

Yes, DH-IPC-HFW3649T1-AS-PV-PRO-ANZ is IP67-rated and operates from -40°C to +60°C.

6. What storage options are supported by DH-IPC-HFW3649T1-AS-PV-PRO-ANZ?

DH-IPC-HFW3649T1-AS-PV-PRO-ANZ supports Micro SD cards up to 512GB and network storage including FTP, SFTP, and NAS.
