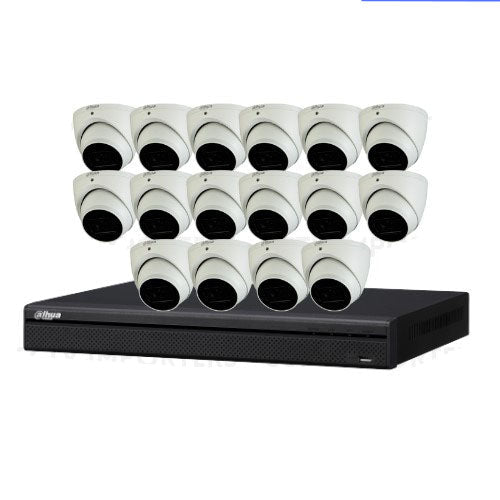

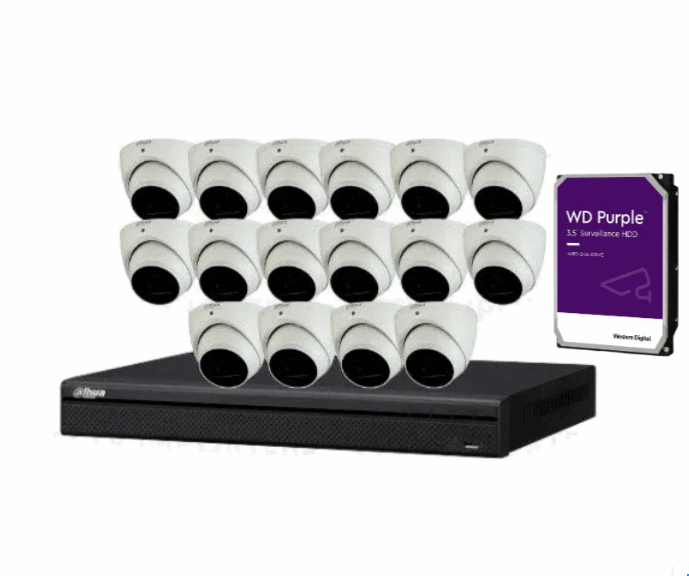

Dahua DH-IPC-HDW3866EMP-S-AUS 16 Camera 8MP CCTV Kit with 16CH AI PoE NVR – 4K WizSense Surveillance System with Optional HDD

Replaced by NEW* Dahua DH-IPC-HDW3867EM-S-IL-ANZ

Secure large residential, commercial, and industrial sites with the Dahua DH-IPC-HDW3866EMP-S-AUS 16 Camera 8MP CCTV Kit featuring a 16 Channel AI PoE Network Video Recorder and WD Purple HDD storage. This professional-grade 4K surveillance system delivers ultra-high-definition 8MP recording, intelligent perimeter protection, built-in microphone audio, Smart H.265 compression, and IP67-rated weather protection—engineered for Australian conditions and long-term reliability.

What’s Included in the Box

• 16 × Dahua DH-IPC-HDW3866EMP-S-AUS 8MP Starlight Network Cameras

• 1 × Dahua NVR4216-16P-AI/ANZ 16CH 16PoE 2HDD WizSense Network Video Recorder

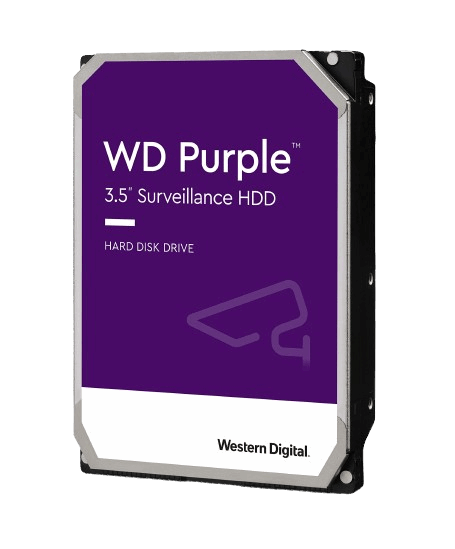

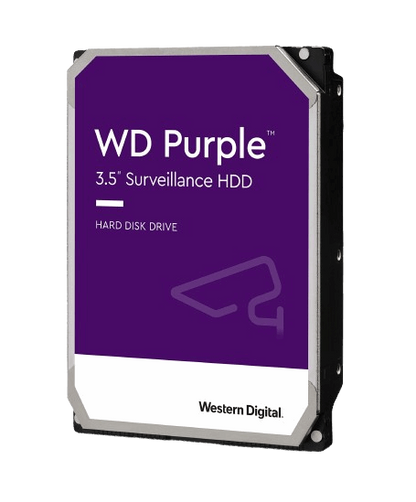

• WD Purple Surveillance HDD (Choose your HDD below)

• Power supply and accessories

• Quick installation guide

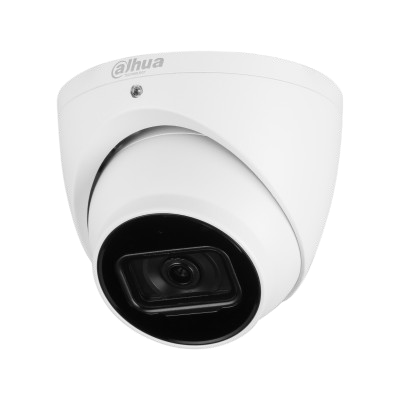

Dahua DH-IPC-HDW3866EMP-S-AUS 8MP Starlight Network Camera

The DH-IPC-HDW3866EMP-S-AUS delivers crystal-clear 4K (8MP) resolution with advanced AI detection and enhanced low-light performance.

Key Features

• 8MP 1/2.7” CMOS image sensor

• Max 3840 × 2160 @15fps

• Supports 2688 × 1520 @25/30fps

• H.265 / Smart H.265 / H.264 compression

• Ultra-low bit rate for storage efficiency

• Built-in IR LEDs – up to 30m night vision

• Starlight technology for superior low-light imaging

• Intelligent detection: Intrusion & Tripwire

• Built-in microphone (audio recording supported)

• Abnormality detection (SD card error, network conflict, tampering, voltage detection)

• Supports up to 256GB Micro SD card

• 12V DC & PoE power support

• IP67 weatherproof rating

Designed for perimeter security and critical monitoring areas, this camera provides high-definition detail with advanced AI-based event detection.

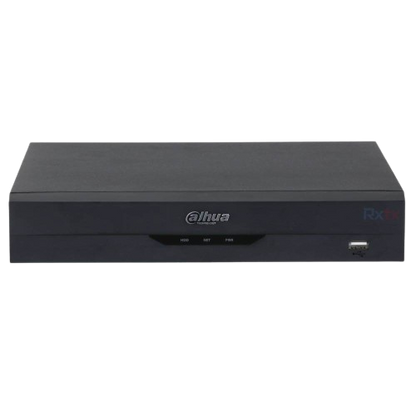

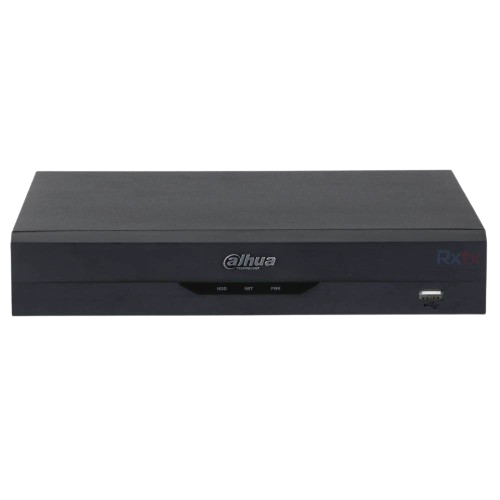

Dahua NVR4216-16P-AI/ANZ 16CH AI PoE Network Video Recorder

This powerful 16-channel NVR is built to handle high-resolution surveillance with intelligent analytics and robust recording performance.

Key Features

• 16-channel IP video access

• 16 built-in PoE ports (Plug & Play setup)

• Smart H.265+ / Smart H.264+ / H.265 / H.264 / MJPEG

• Max 320Mbps incoming bandwidth

• Supports up to 24MP live view & playback

• AI by Camera:

  • Perimeter protection

  • Face detection & recognition

  • SMD Plus

  • Video metadata

  • ANPR (Automatic Number Plate Recognition)

  • People counting

  • Stereo analysis

  • Crowd distribution & heat map

• 2 HDD bays

• IPC UPnP support

This AI-powered NVR enhances system performance by filtering false alarms and improving event accuracy.

Technical Specifications

Cameras – DH-IPC-HDW3866EMP-S-AUS

• Resolution: 8MP (3840 × 2160)

• Sensor: 1/2.7″ CMOS

• IR Distance: 30m

• Compression: H.265 / H.264 / Smart H.265

• Storage: Micro SD up to 256GB

• Audio: Built-in Mic

• Weather Rating: IP67

• Power: PoE / 12V DC

NVR – NVR4216-16P-AI/ANZ

• Channels: 16CH

• PoE Ports: 16

• Incoming Bandwidth: 320Mbps

• Max Live View Resolution: 24MP

• HDD Bays: 2

• Compression: Smart H.265+/H.264+

Practical Use Scenarios

• Shopping centres & large retail stores

• Warehouses & logistics facilities

• Office complexes

• Schools & universities

• Industrial sites

• Apartment buildings & residential estates

The 16-camera configuration provides comprehensive site-wide monitoring with AI-powered detection for perimeter and high-traffic zones.

SKU

DHK-3866-16CH-AI

Warranty Information

• 3 Years Manufacturer Warranty

• Warranty support handled via authorized Australian distribution channels

Dataheets

Shipping Information

• FREE shipping Australia-wide on orders over $200

• Flat rate $12 for orders under $200

• Delivery: 3–5 business days across Australia (including Tasmania)

• New Zealand delivery: 10–15 business days

• Shipped via Australia Post

About Dahua Technology

Dahua Technology is a globally recognized manufacturer of advanced video surveillance solutions. Known for innovation in AI-driven security systems, Dahua’s WizSense series combines intelligent analytics with high-resolution imaging for professional-grade monitoring performance.

Excellence for the Australian and New Zealand Market

This Dahua CCTV kit is optimized for Australian and New Zealand installations.

• AUS/ANZ compliant model (DH-IPC-HDW3866EMP-S-AUS)

• Designed for harsh Australian weather conditions (IP67 rated)

• Suitable for commercial and large-scale residential installations

• Supplied through authorized local distribution channels

• Manufacturer-backed 3-year warranty support

• Engineered for reliable long-term operation in ANZ environments

Frequently Asked Questions (FAQs)

1. Does the DHK-3866-16CH-AI kit support full 4K recording?

Yes, the DHK-3866-16CH-AI kit includes 8MP (4K) cameras capable of recording at 3840 × 2160 resolution.

2. How much storage can the DHK-3866-16CH-AI system support?

The NVR supports 2 HDDs, and you can select the WD Purple HDD capacity based on your storage requirements.

3. Is the DHK-3866-16CH-AI suitable for outdoor installation?

Yes, the DH-IPC-HDW3866EMP-S-AUS cameras are IP67-rated for weatherproof outdoor use.

4. Does the DHK-3866-16CH-AI include AI detection features?

Yes, the system supports intelligent perimeter protection, intrusion detection, tripwire detection, face detection, and other AI analytics.

5. Can I remotely access the DHK-3866-16CH-AI system?

Yes, remote access is supported via Dahua’s mobile and desktop applications.

6. Is the DHK-3866-16CH-AI suitable for large commercial sites?

Yes, with 16 cameras and AI-enabled analytics, this kit is ideal for warehouses, retail centres, and large facilities across Australia.
