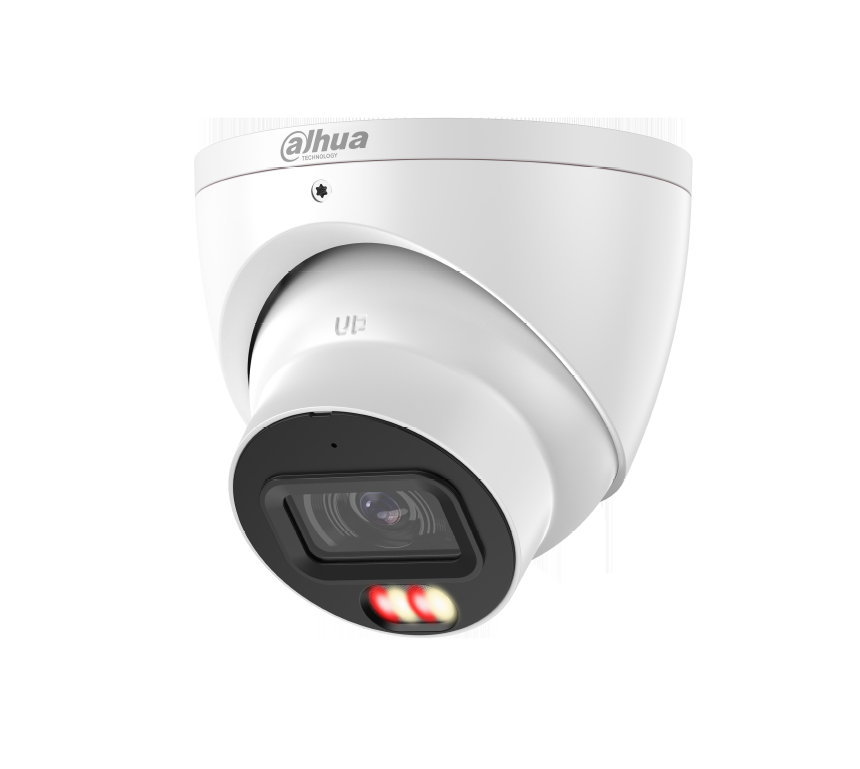

Dahua DH-IPC-HDW3667T-ZS-IL-ANZ 6MP Smart Dual Light Vari-Focal Eyeball WizSense Network Camera

The IPC-HDW3667T-ZS-IL-ANZ 6MP Smart Dual Light Vari-Focal Eyeball WizSense Network Camera is a professional surveillance solution designed for high-definition security monitoring across commercial, residential, retail, warehouse, car park, office, and perimeter applications. Featuring a 6MP 1/2.7" CMOS sensor, motorised vari-focal lens, Smart Dual Light illumination, SMD 4.0, AI SSA, built-in microphone, IP67 weather protection, and flexible H.265 video compression, the IPC-HDW3667T-ZS-IL-ANZ delivers detailed image capture, intelligent detection, and reliable performance in demanding security environments.

With a maximum resolution of 3288 × 1850 at up to 25/30fps, the IPC-HDW3667T-ZS-IL-ANZ provides sharp image quality with advanced imaging features including 120dB WDR, 3D noise reduction, HLC, BLC, defog, ROI, privacy masking, electronic image stabilisation, and smart illumination. Its intelligent monitoring capabilities support intrusion and tripwire detection with human and vehicle classification, helping reduce false alerts and improve event accuracy.

---

What's Included in the Box

Package contents were not fully specified in the supplied information. Standard package contents may vary by supplier or region.

Typically supplied items may include:

• 1 × IPC-HDW3667T-ZS-IL-ANZ Network Camera

• Installation accessories

• Quick installation documentation

Please refer to the official package label or authorised supplier documentation for confirmed in-box accessories.

---

Main Features

• 6MP Smart Dual Light WizSense network camera

• 1/2.7" CMOS image sensor

• Maximum resolution: 3288 × 1850

• Up to 25/30fps at 6MP resolution

• Motorised vari-focal lens

• 2.7mm–13.5mm focal length

• Smart Dual Light technology

• IR illumination distance up to 50m

• Warm light illumination distance up to 40m

• Built-in microphone

• H.265 and H.264 video compression

• Smart H.264+/H.265+

• AI H.264/H.265 coding

• SMD 4.0 smart motion detection

• AI SSA scene self-adaptation

• Intrusion and tripwire detection

• Human and vehicle classification

• 120dB WDR

• 3D noise reduction

• HLC and BLC support

• Region of Interest support

• Digital watermarking

• Privacy masking up to 8 areas

• Micro SD card support up to 512GB

• IP67 weather protection

• 12VDC or PoE power supply

• ONVIF Profile S, G, T and M support

• Metal casing

---

Detailed Specifications

Camera

Image Sensor

• 1/2.7" CMOS

Maximum Resolution

• 3288 × 1850

Memory

• ROM: 256MB

• RAM: 1GB

Scanning System

• Progressive

Electronic Shutter Speed

• Auto/Manual: 1/3s–1/100,000s

Minimum Illumination

• 0.005 lux @ F1.4, colour, 30 IRE

• 0.0005 lux @ F1.4, black and white, 30 IRE

• 0 lux with illuminator on

Signal-to-Noise Ratio

• 56dB

Illumination Distance

• IR: Up to 50m

• Warm Light: Up to 40m

Illuminator Control

• Auto

• Manual

Illuminator Quantity

• 4 × Multi-core IR and warm light illuminators

Angle Adjustment

• Pan: 0°–360°

• Tilt: 0°–78°

• Rotation: 0°–360°

---

Lens

Lens Type

• Motorised vari-focal

Lens Mount

• φ14

Focal Length

• 2.7mm–13.5mm

Maximum Aperture

• F1.4

Field of View

• Horizontal: 114°–32°

• Vertical: 58°–17°

• Diagonal: 138°–36°

Iris Control

• Fixed

Close Focus Distance

• 0.1m

---

DORI Distance

Wide Angle

• Detect: 85.3m

• Observe: 34.0m

• Recognise: 17.1m

• Identify: 8.5m

Telephoto

• Detect: 280.0m

• Observe: 112.0m

• Recognise: 56.0m

• Identify: 28.0m

DORI values are based on the EN-62676-4 standard and are intended to describe viewing capability. Intelligent detection distances may vary depending on installation, target type, lighting, configuration, and project conditions.

---

Intelligence Features

IVS Perimeter Protection

• Tripwire

• Intrusion

• Human classification

• Vehicle classification

SMD

• SMD 4.0

AcuPick

• Supports accurate target matching with compatible back-end devices

• Helps locate people and motor vehicles in live or recorded video

AI SSA

• Uses deep learning algorithms to adjust image parameters based on scene conditions

Smart Search

• Works with compatible Smart NVR systems for refined intelligent search, event extraction, and event video merging

---

Video Specifications

Video Compression

• H.265

• H.264

• H.264H

• H.264B

• MJPEG, sub stream only

AI Coding

• AI H.264/H.265

• Smart H.264+/H.265+

Video Frame Rate

• Main Stream: 3288 × 1850 at 1–25/30fps

• Sub Stream: 1920 × 1080 at 1–25/30fps

• Third Stream: 1920 × 1080 at 1–25/30fps

Frame rate may vary when multiple streams are enabled and is subject to total encoding capacity.

Stream Capability

• 3 Streams

Supported Resolutions

• 6MP: 3288 × 1850 / 3200 × 1800

• 5MP: 2960 × 1688 / 2880 × 1620

• 4MP: 2688 × 1520 / 2560 × 1440

• 3MP: 2304 × 1296

• 1080p: 1920 × 1080

• 720p: 1280 × 720

• D1: 704 × 576 / 704 × 480

• VGA: 640 × 480

• CIF: 352 × 288 / 352 × 240

Bit Rate Control

• VBR

• CBR

• ABR

Video Bit Rate

• H.264: 3kbps–16384kbps

• H.265: 3kbps–16384kbps

---

Image Enhancement Features

• Auto ICR day/night switching

• Colour / black and white mode

• 120dB WDR

• BLC

• HLC

• 3D NR

• Motion detection, 4 rectangular areas

• Electronic Image Stabilisation

• Region of Interest, 4 areas

• Smart illumination

• Smart Dual Light

• Defog

• AFSA

• Mirror

• Privacy masking, 8 areas

• Image rotation: 0° / 90° / 180° / 270°

90° and 270° image rotation are supported at 2688 × 1520 resolution and lower.

---

Audio Specifications

Built-In Microphone

• Yes

Audio Compression

• G.711a

• G.711Mu

• PCM

• G.726

• G.723

---

Alarm & Event Detection

Supported alarm and abnormality events include:

• No SD card

• SD card full

• SD card error

• Service life warning, supported with compatible Dahua card

• Network disconnection

• IP conflict

• Illegal access

• Motion detection

• Video tampering

• Intrusion

• Tripwire

• Scene changing

• Audio detection

• Voltage detection

• Defocus detection

• SMD

• Safety exception

---

Network Specifications

Network Port

• RJ-45 10/100 Base-T

SDK and API

• Supported

Network Protocols

• IPv4

• IPv6

• HTTP

• TCP

• UDP

• ARP

• RTP

• RTSP

• RTCP

• RTMP

• SMTP

• FTP

• SFTP

• DHCP

• DNS

• DDNS

• QoS

• UPnP

• NTP

• Multicast

• ICMP

• IGMP

• NFS

• SAMBA

• PPPoE

• SNMP

• P2P

Interoperability

• ONVIF Profile S

• ONVIF Profile G

• ONVIF Profile T

• ONVIF Profile M

• CGI

User / Host

• 20 users

• Total bandwidth: 64M

Storage

• FTP

• SFTP

• Micro SD card up to 512GB

• NAS

Browser Support

• IE11

• Chrome

• Firefox

Management Software

• SmartPSS Lite

• DSS

• DMSS

Mobile Client

• iOS

• Android

---

Security Features

• Digest authentication

• WSSE

• Account lockout

• Security logs

• IP/MAC filtering

• X.509 certificate generation and importing

• Syslog

• HTTPS

• 802.1x

• Trusted boot

• Trusted execution

• Trusted upgrade

• Session security

• Security warning

---

Certification

Listed Certifications

• CE-LVD: EN62368-1

• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

---

Power Specifications

Power Supply

• 12VDC

• PoE, IEEE 802.3af

Dual Power Backup

When the power adapter and PoE provide power at the same time, the device will continue operating if one power source is disconnected, without restarting.

Power Consumption

Basic

• 3.7W at 12VDC

• 4.5W via PoE

Maximum

• 8.2W at 12VDC

• 9.8W via PoE

Maximum consumption is based on H.265, WDR, warm light, and intelligence enabled.

---

Environmental Specifications

Operating Temperature

• –30°C to +60°C

Operating Humidity

• ≤95% RH, non-condensing

Storage Temperature

• –40°C to +60°C

Storage Humidity

• ≤95% RH, non-condensing

Protection

• IP67

---

Structure

Casing

• Metal

Product Dimensions

• 108.3mm × Φ122.0mm

Net Weight

• 690g

Gross Weight

• 920g

---

Practical Use Scenarios

Commercial Surveillance

The IPC-HDW3667T-ZS-IL-ANZ is suitable for shops, offices, warehouses, reception areas, loading docks, and general business security applications requiring detailed 6MP video.

Perimeter Monitoring

Tripwire and intrusion detection with human and vehicle classification makes the IPC-HDW3667T-ZS-IL-ANZ useful for entrances, driveways, car parks, gates, and perimeter zones.

Low-Light Security

With Smart Dual Light, IR illumination up to 50m, warm light up to 40m, and low-light sensitivity, the IPC-HDW3667T-ZS-IL-ANZ is suitable for day and night monitoring.

Flexible Viewing Angles

The motorised 2.7mm–13.5mm vari-focal lens allows installers to adjust the viewing angle for wide area coverage or narrower long-distance monitoring.

Audio-Enabled Monitoring

The built-in microphone enables audio capture where permitted by local laws and project requirements.

Edge Storage Applications

Micro SD card support up to 512GB allows local recording for backup, standalone deployments, or network interruption scenarios.

---

Warranty Information

• Manufacturer warranty applies according to the official warranty terms for the relevant region.

• Warranty processing should be completed through authorised distributors, resellers, or official brand support channels.

• Installation, configuration, storage media, and power supply conditions may affect warranty eligibility.

• Always follow official installation and commissioning instructions for outdoor, PoE, and SD card deployments.

---

Brand Description

Dahua WizSense

WizSense is an intelligent video surveillance technology range focused on practical AI-powered detection, including human and vehicle classification, smart motion detection, and improved event accuracy. Designed for modern security environments, WizSense cameras combine high-resolution imaging, efficient compression, smart analytics, and remote management compatibility for professional surveillance deployments.

---

Datasheets & Resources

Available resources may include:

• Product Datasheet

• Installation Manual

• Commissioning Guide

• Project Design Tool

• Firmware Downloads

• Software Downloads

• Compliance Documentation

• ONVIF Compatibility Information

• SmartPSS Lite Resources

• DSS Resources

• DMSS Mobile App Resources

---

Excellence for the Australian and New Zealand Market

The IPC-HDW3667T-ZS-IL-ANZ is suitable for Australian and New Zealand surveillance projects requiring high-resolution image capture, reliable outdoor protection, and intelligent event detection. The ANZ model designation supports product identification for local project quoting, distribution, and installation workflows.

Key advantages for Australian and New Zealand customers include:

• 6MP resolution for detailed commercial and residential surveillance

• IP67 protection for outdoor installation environments

• Wide operating temperature range from –30°C to +60°C

• PoE support for simplified professional installation

• Smart Dual Light for flexible night monitoring

• Human and vehicle classification to improve event accuracy

• Built-in microphone for audio-supported monitoring where legally permitted

• ONVIF support for integration with compatible systems

• Micro SD card support up to 512GB for edge recording

• Products should be sourced through authorised local distribution channels

• Warranty support should be handled through the authorised supplier or official brand pathway

• Compliance documentation should be reviewed for the specific Australian or New Zealand project requirement

---

FAQs

Q1: What resolution does the IPC-HDW3667T-ZS-IL-ANZ support?

The IPC-HDW3667T-ZS-IL-ANZ supports a maximum resolution of 3288 × 1850, providing 6MP high-definition video output.

Q2: Does the IPC-HDW3667T-ZS-IL-ANZ support Smart Dual Light?

Yes, the IPC-HDW3667T-ZS-IL-ANZ supports Smart Dual Light with IR illumination up to 50m and warm light illumination up to 40m.

Q3: What lens does the IPC-HDW3667T-ZS-IL-ANZ use?

The IPC-HDW3667T-ZS-IL-ANZ uses a motorised vari-focal lens with a 2.7mm–13.5mm focal length.

Q4: Does the IPC-HDW3667T-ZS-IL-ANZ support human and vehicle detection?

Yes, the IPC-HDW3667T-ZS-IL-ANZ supports intrusion and tripwire detection with human and vehicle classification.

Q5: Does the IPC-HDW3667T-ZS-IL-ANZ support SMD 4.0?

Yes, the IPC-HDW3667T-ZS-IL-ANZ supports SMD 4.0 for improved smart motion detection.

Q6: Does the IPC-HDW3667T-ZS-IL-ANZ have a built-in microphone?

Yes, the IPC-HDW3667T-ZS-IL-ANZ includes a built-in microphone for audio capture where permitted by local regulations.

Q7: What is the maximum Micro SD card capacity for the IPC-HDW3667T-ZS-IL-ANZ?

The IPC-HDW3667T-ZS-IL-ANZ supports Micro SD cards up to 512GB.

Q8: Is the IPC-HDW3667T-ZS-IL-ANZ weather resistant?

Yes, the IPC-HDW3667T-ZS-IL-ANZ has an IP67 protection rating, making it suitable for outdoor surveillance installations.

Q9: Does the IPC-HDW3667T-ZS-IL-ANZ support PoE?

Yes, the IPC-HDW3667T-ZS-IL-ANZ supports PoE using IEEE 802.3af, as well as 12VDC power.

Q10: What video compression formats does the IPC-HDW3667T-ZS-IL-ANZ support?

The IPC-HDW3667T-ZS-IL-ANZ supports H.265, H.264, H.264H, H.264B, MJPEG on the sub stream, Smart H.264+/H.265+, and AI H.264/H.265.

Q11: Does the IPC-HDW3667T-ZS-IL-ANZ support ONVIF?

Yes, the IPC-HDW3667T-ZS-IL-ANZ supports ONVIF Profile S, Profile G, Profile T, and Profile M.

Q12: What is the night vision distance of the IPC-HDW3667T-ZS-IL-ANZ?

The IPC-HDW3667T-ZS-IL-ANZ supports IR illumination up to 50m and warm light illumination up to 40m.

Q13: Does the IPC-HDW3667T-ZS-IL-ANZ support WDR?

Yes, the IPC-HDW3667T-ZS-IL-ANZ supports 120dB WDR for improved image quality in high-contrast lighting environments.

Q14: What mobile apps support the IPC-HDW3667T-ZS-IL-ANZ?

The IPC-HDW3667T-ZS-IL-ANZ supports mobile access through iOS and Android clients, including DMSS.

Q15: Is the IPC-HDW3667T-ZS-IL-ANZ suitable for car park monitoring?

Yes, the IPC-HDW3667T-ZS-IL-ANZ is suitable for car park monitoring due to its 6MP resolution, vari-focal lens, Smart Dual Light, IP67 protection, and human/vehicle classification.
