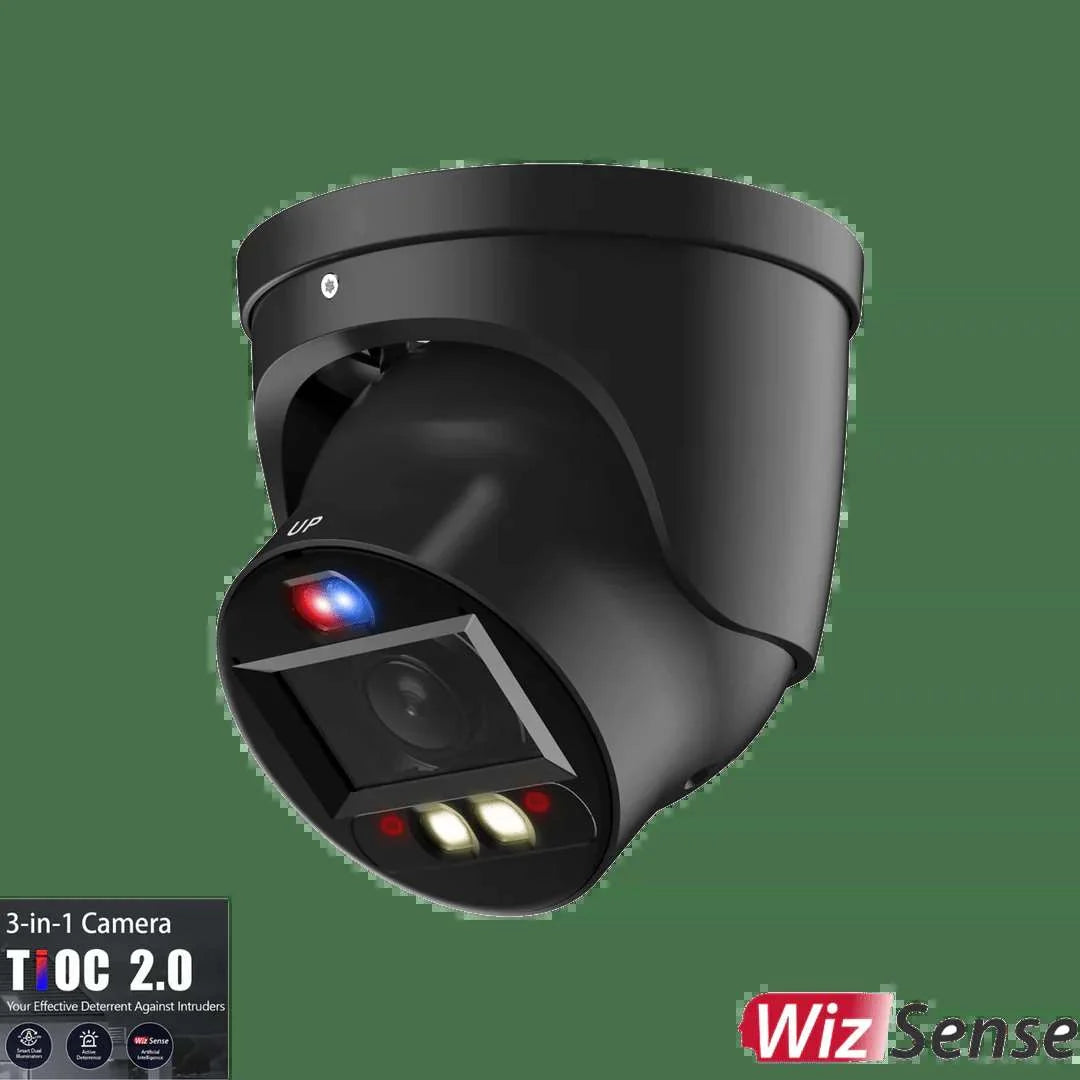

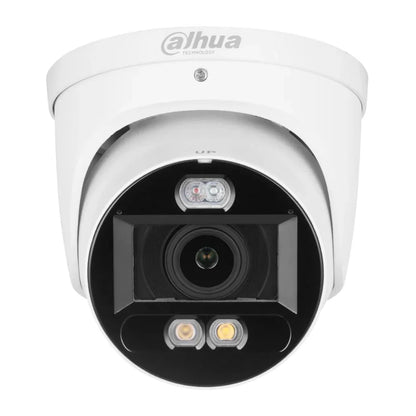

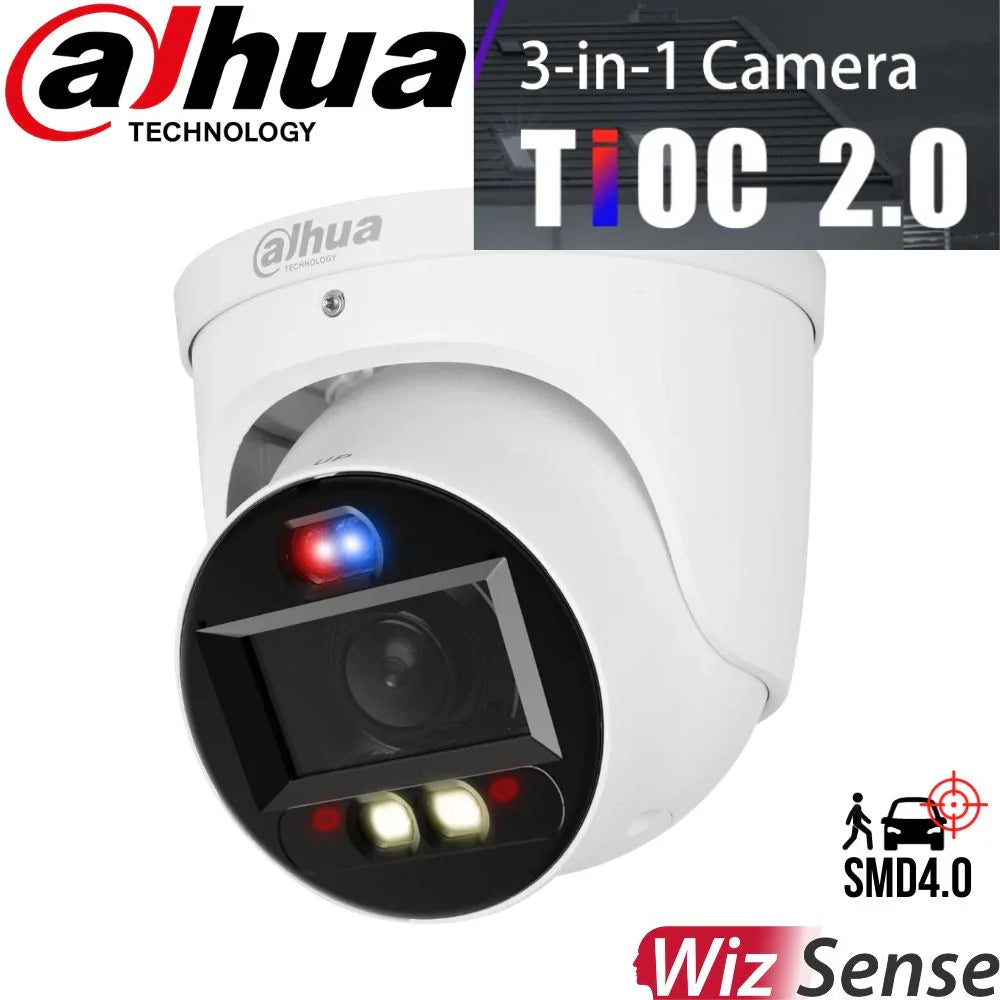

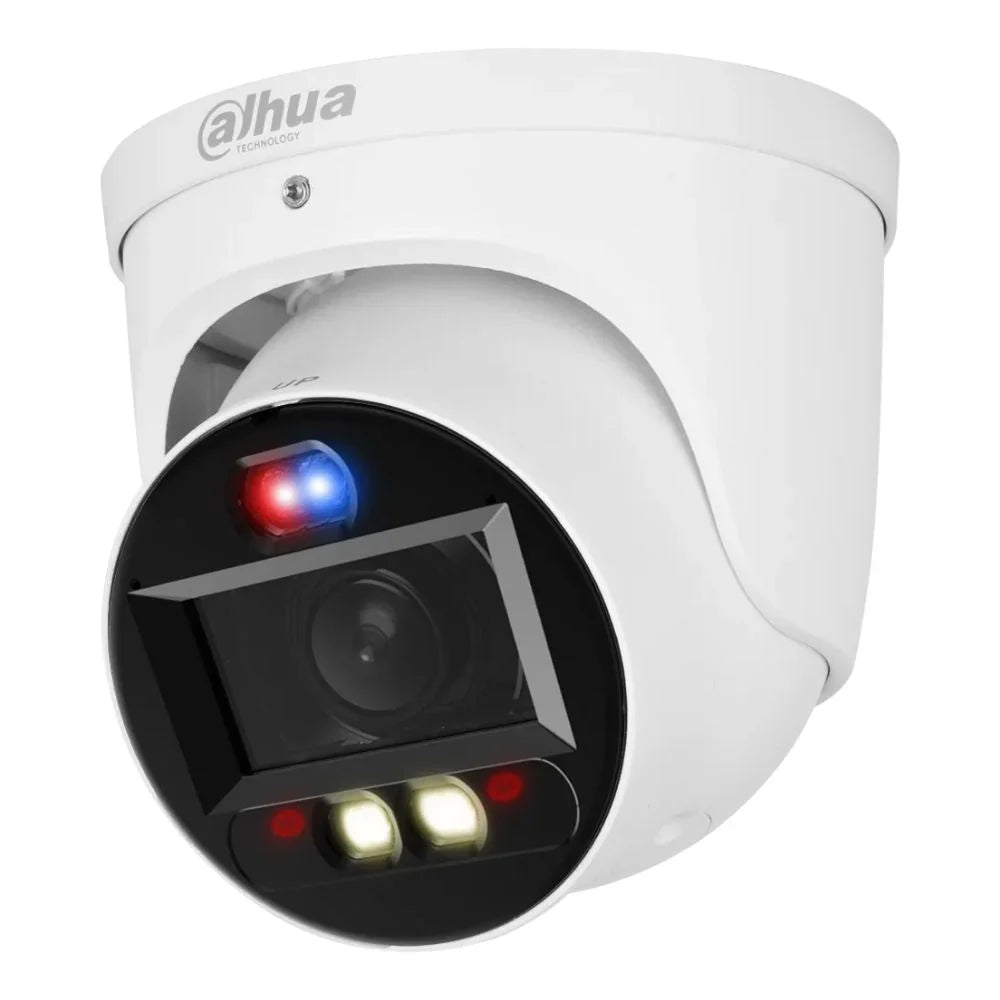

Dahua DH-IPC-HDW3649H-ZAS-PV-ANZ 6MP TIOC 2.0 Active Deterrence Turret Motorised CCTV IP Camera

The Dahua DH-IPC-HDW3649H-ZAS-PV 6MP WizSense Network Camera delivers intelligent perimeter protection, Smart Dual Light full-colour night monitoring, and active deterrence with siren and red/blue warning lights. Featuring a motorised 2.7–13.5mm vari-focal lens, 120dB WDR, SMD 4.0 human & vehicle classification, IP67 weatherproof housing, and PoE support, this professional-grade security camera is engineered for high-performance surveillance across residential, commercial, and industrial applications in Australia and New Zealand.

Product Description

The DH-IPC-HDW3649H-ZAS-PV from Dahua Technology is part of the advanced WizSense 3 Series, powered by a dedicated AI chip and deep learning algorithms. It focuses on accurate human and vehicle detection, dramatically reducing false alarms while enhancing real-time response capability.

With 6MP (3200 × 1800) resolution at up to 30fps, this camera captures ultra-clear footage with outstanding detail. Its Smart Dual Light technology automatically switches between IR and warm LED illumination, providing full-colour evidence when an event occurs while minimising light pollution.

Designed for active deterrence, the built-in siren and red/blue flashing lights activate upon intrusion or tripwire events, helping prevent incidents before escalation. Combined with SMD 4.0, AI coding (H.265/H.264), and up to 256GB microSD storage, this camera is ideal for professional-grade perimeter security systems.

What’s Included in the Box

• 1 × Dahua DH-IPC-HDW3649H-ZAS-PV Network Camera

• Mounting Hardware Kit

• Installation Guide

• Waterproof Connector Components

Main Features

• ✅ 6MP Resolution (3200 × 1800 @ 25/30fps)

• ✅ Motorised Vari-focal Lens (2.7mm–13.5mm)

• ✅ Smart Dual Light (IR 50m / Warm Light 40m)

• ✅ Active Deterrence (Siren + Red/Blue Light Alarm)

• ✅ SMD 4.0 Human & Vehicle Classification

• ✅ Perimeter Protection (Tripwire & Intrusion)

• ✅ 120dB Wide Dynamic Range (WDR)

• ✅ Built-in Dual Microphone & Speaker (Two-way Audio)

• ✅ Supports 256GB MicroSD Card

• ✅ AI H.265 / Smart H.265+ Compression

• ✅ IP67 Weatherproof Metal Housing

• ✅ 12V DC & PoE (802.3af) Support

Detailed Specifications

Camera & Image

• Image Sensor: 1/2.7" CMOS

• Max Resolution: 2960 × 1668

• Minimum Illumination:

  • 0.003 lux (Colour)

  • 0.0003 lux (B/W)

  • 0 lux (Illuminator On)

• WDR: 120dB

• Noise Reduction: 3D NR

• Electronic Image Stabilisation (EIS): Yes

Lens

• Type: Motorised Vari-focal

• Focal Length: 2.7mm–13.5mm

• Field of View:

  • Horizontal: 113°–36°

• Close Focus Distance: 1.5m

Illumination

• IR Distance: Up to 50m

• Warm Light Distance: Up to 40m

• Smart Illumination Control: Auto / Manual

Video & Compression

• Compression: H.265, H.264, Smart H.265+, AI H.265

• Triple Stream Support

• Bit Rate: 32 kbps–16,384 kbps

• ROI: 4 Areas

Audio & Alarm

• Built-in Dual Mic

• Built-in Speaker

• Audio In/Out: 1/1 (RCA)

• Alarm In/Out: 1/1

• Sound & Light Alarm (Red/Blue Lights)

Network & Storage

• RJ-45 (10/100 Base-T)

• ONVIF (Profile S/G/T)

• Max 256GB MicroSD

• Supports NAS / FTP / SFTP

Power & Environment

• Power Supply: 12V DC / PoE (802.3af)

• Max Power Consumption: 10.6W (PoE full load)

• Operating Temperature: -30°C to +60°C

• Protection: IP67

• Casing: Metal

Physical

• Dimensions: 127.6mm × Φ122.0mm

• Net Weight: 885g

Practical Use Scenarios

• Residential driveways and front yards

• Commercial warehouses and loading docks

• Retail shop entrances

• School and campus perimeter monitoring

• Industrial yards and car parks

• Remote sites requiring active deterrence

Warranty Information

• Manufacturer Warranty: 3 Years

• Warranty handled through authorised Dahua distribution channels

• Full technical support available

About the Brand – Dahua Technology

Dahua Technology is a globally recognised leader in video surveillance solutions. Its WizSense AI-powered products combine deep learning technology with practical security applications, delivering intelligent, reliable, and high-performance surveillance systems trusted worldwide.

SKU

DH-IPC-HDW3649H-ZAS-PV

Datasheets & Downloads

Excellence for the Australian and New Zealand Market

The DH-IPC-HDW3649H-ZAS-PV is optimised for Australian and New Zealand security environments, supporting local compliance standards and harsh outdoor operating conditions.

• ✔ IP67 weatherproof rating for Australian climate conditions

• ✔ Wide voltage tolerance (±30%) for unstable power environments

• ✔ Fully compatible with ONVIF-compliant NVR systems used in AU/NZ

• ✔ Sourced from authorised Dahua representatives

• ✔ Local warranty support with direct brand communication

• ✔ Engineered for commercial and residential compliance requirements

Frequently Asked Questions (FAQs)

1. Does DH-IPC-HDW3649H-ZAS-PV support full-colour night recording?

Yes. The DH-IPC-HDW3649H-ZAS-PV uses Smart Dual Light technology to switch to warm LED illumination when a target is detected, recording full-colour video at night.

2. What is the maximum IR distance of DH-IPC-HDW3649H-ZAS-PV?

The DH-IPC-HDW3649H-ZAS-PV provides up to 50 metres of IR illumination and up to 40 metres with warm light.

3. Can DH-IPC-HDW3649H-ZAS-PV distinguish between humans and vehicles?

Yes. DH-IPC-HDW3649H-ZAS-PV features SMD 4.0 with AI-based human and vehicle classification to significantly reduce false alarms.

4. Does DH-IPC-HDW3649H-ZAS-PV support two-way audio?

Yes. DH-IPC-HDW3649H-ZAS-PV includes built-in dual microphones and a speaker, supporting two-way talk.

5. Is DH-IPC-HDW3649H-ZAS-PV suitable for outdoor installation?

Yes. DH-IPC-HDW3649H-ZAS-PV features an IP67-rated metal housing, making it suitable for harsh outdoor environments.

6. What storage options are available for DH-IPC-HDW3649H-ZAS-PV?

DH-IPC-HDW3649H-ZAS-PV supports up to 256GB MicroSD card storage and NAS/FTP recording.

7. Does DH-IPC-HDW3649H-ZAS-PV support PoE?

Yes. DH-IPC-HDW3649H-ZAS-PV supports PoE (802.3af) as well as 12V DC power input.
