Upgrade to professional-grade 24/7 surveillance with the Dahua 16-Camera 6MP CCTV Kit, combining ultra-high-definition imaging, advanced AI features, and robust recording with a powerful 16-channel PoE NVR. Featuring 16x 6MP WizSense fixed lens eyeball cameras and a 4K-ready NVR with 2 HDD bays, this comprehensive system is ideal for large-scale installations such as warehouses, multi-level homes, offices, and commercial properties.
Product Description
The Dahua DH-IPC-HDW3641EM-S-S2 CCTV Kit offers crystal-clear 6MP video resolution, intelligent event detection, and smart H.265+ compression for optimized storage. This kit includes 16 high-performance IR eyeball cameras (upgradable to the latest model DH-IPC-HDW3666EMP-S-AUS) equipped with Starlight technology, built-in microphones, and smart detection features like intrusion and tripwire.
The NVR4216-16P-4KS2/L 16-channel NVR delivers high-efficiency recording, remote access, and AI-powered camera integration for smart analytics like face detection, people counting, and perimeter protection. The NVR supports simultaneous HDMI and VGA output, with a maximum 4K HDMI resolution and seamless mobile connectivity.
Perfectly suited for indoor and outdoor deployment, this solution ensures reliability, clarity, and security at scale.
What’s Included in the Box
-

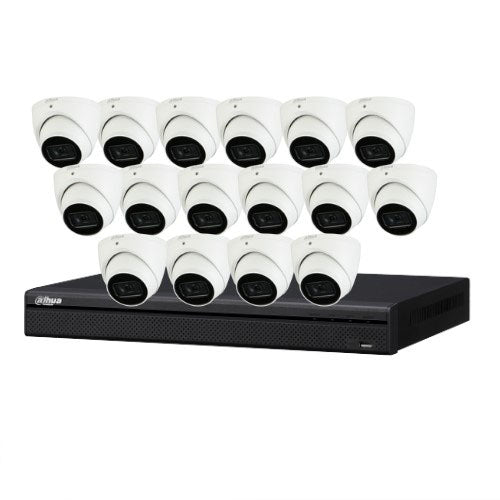

16 × Dahua DH-IPC-HDW3641EM-S-S2 6MP IR Fixed Focal Eyeball Cameras
(Upgrade option: DH-IPC-HDW3666EMP-S-AUS) -
1 × Dahua NVR4216-16P-4KS2/L 16-Channel PoE Network Video Recorder

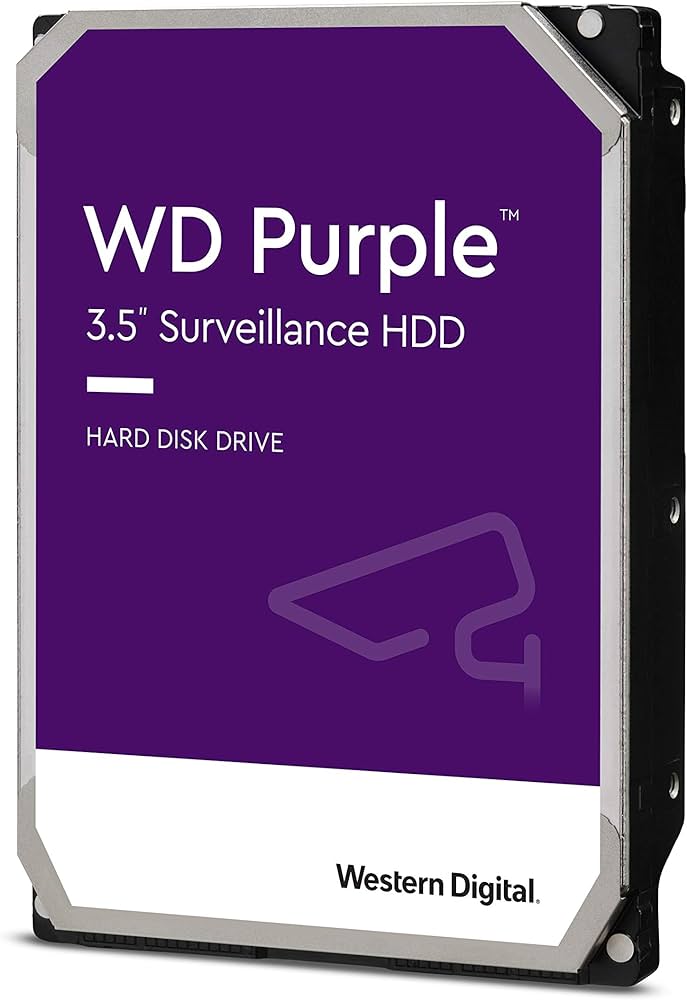

- Optional HDD (Choose your HDD below)
-
Power cables & accessories
-
Installation and user guides
Main Features
-
6MP Ultra-HD Resolution (3072 × 1728 @ 20 fps)
-
Smart IR LEDs: 50m infrared night vision
-
Wide Dynamic Range (WDR), 3D DNR, HLC, BLC for challenging lighting
-
H.265+ Smart Compression for efficient storage
-
Built-in Microphones for synchronized audio and video
-
MicroSD Support: Up to 256GB edge storage per camera
-
IP67 Rated Cameras: Weatherproof for outdoor use
-
Smart Motion Detection Plus (SMD Plus): Reduces false alarms
-
AI Features via Camera: Face detection, tripwire, intrusion, people counting, heatmap
Technical Specifications

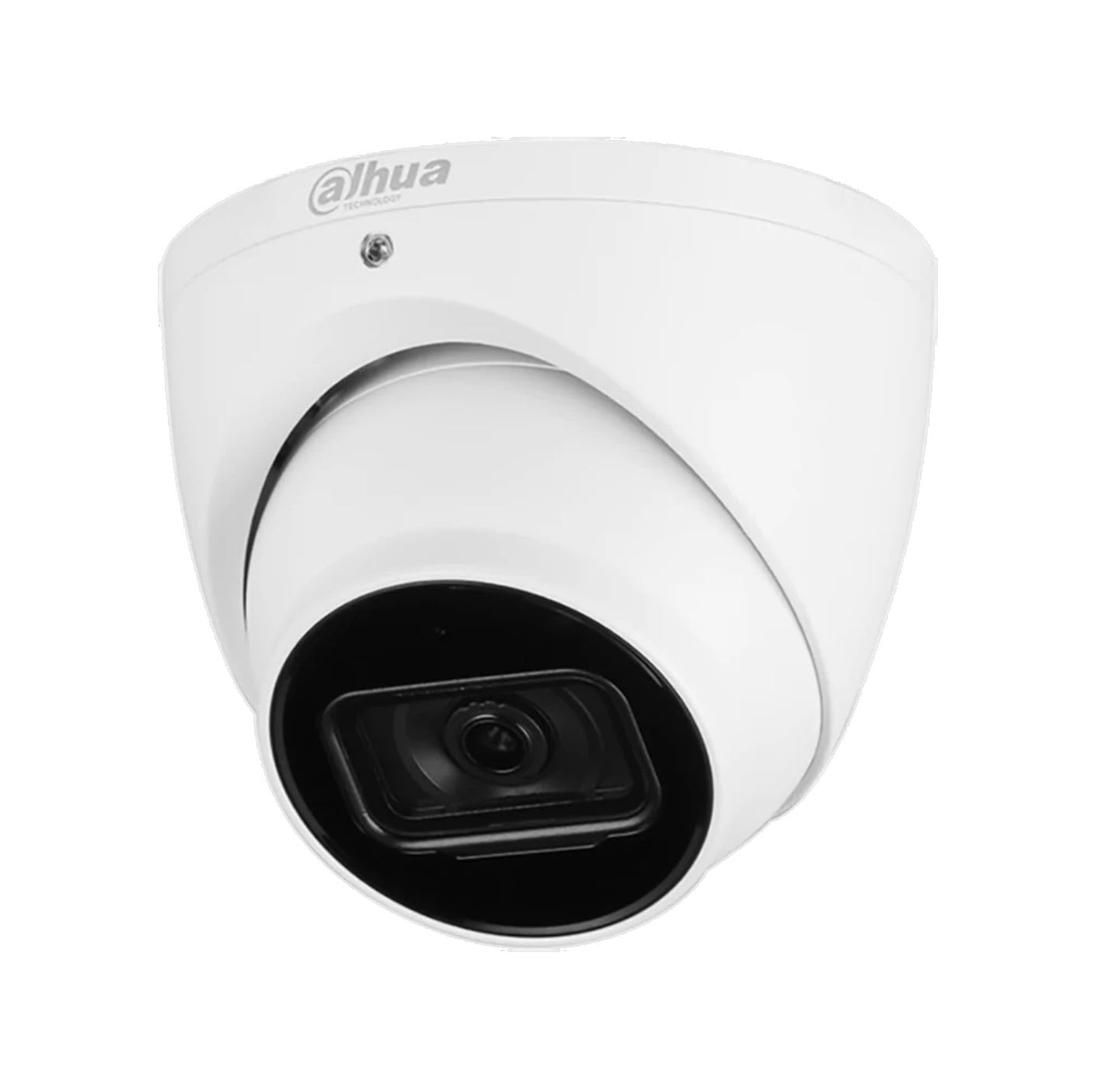

Cameras – DH-IPC-HDW3641EM-S-S2 / DH-IPC-HDW3666EMP-S-AUS
-
Image Sensor: 1/2.7” progressive scan CMOS
-
Max Resolution: 6MP (3072 × 1728 @20fps)
-
Lens: Fixed focal
-
IR Distance: Up to 50 meters
-
Audio: Built-in microphone
-
Smart Detection: Tripwire, Intrusion
-
Storage: Supports microSD up to 256GB
-
Protection: IP67-rated
-
Power: 12V DC / PoE

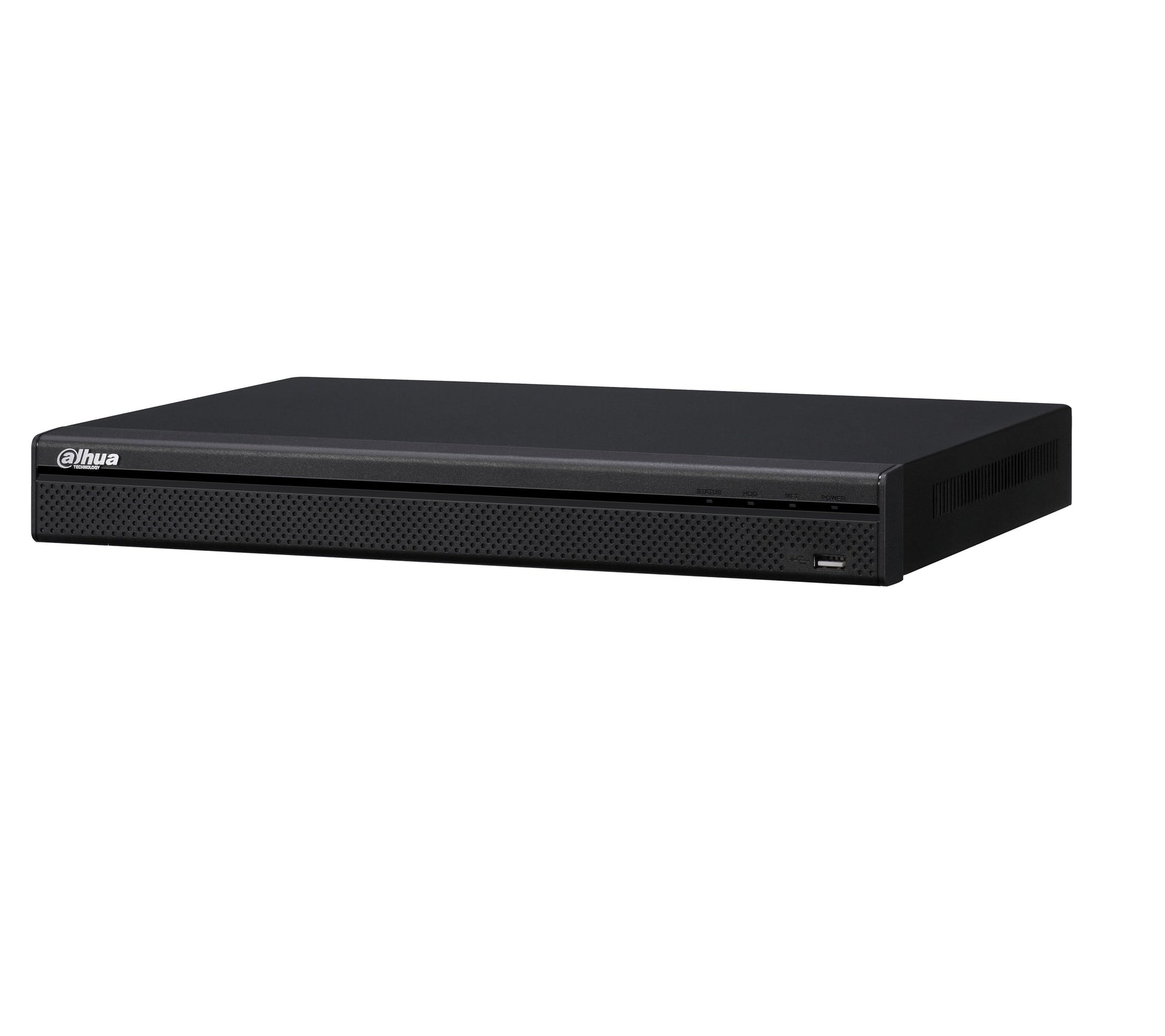

NVR – NVR4216-16P-4KS2/L
-
Channels: 16 IP camera inputs
-
PoE Ports: 16 × PoE
-
Decoding: Up to 8 × 1080p @ 30 fps
-
Video Outputs: HDMI (4K), VGA
-
Compression: H.264, H.265, Smart H.264+/H.265+
-
Storage: 2 × HDD bays (up to 10TB each)
-
AI by Camera: Face detection, perimeter protection, IVS, people counting
-
Remote Access: Mobile app and web interface
-
Dimensions: Compact 1U design
Warranty Information
-
3-Year Manufacturer Warranty
Covers both cameras and NVR. Warranty supported via official Dahua distribution network across Australia and New Zealand.
Brand Information – Dahua Technology
Dahua Technology is a global leader in AI-driven video surveillance, offering premium-grade CCTV solutions trusted by security professionals worldwide. With a focus on reliability, innovation, and compliance, Dahua products power advanced security systems in homes, government, retail, and enterprise sectors.
SKU
DH-IPC-HDW3641EM-S-S2-KIT-16CH
Practical Use Scenarios
-
Commercial Buildings: Complete perimeter and internal security for multiple zones.
-
Warehouses & Factories: Monitor large storage areas with audio and motion detection.
-
Retail Chains: Face detection and tripwire analytics to protect assets.
-
Schools & Campuses: Secure entry points and common areas with smart alerts.
-
Residential Estates: Full-coverage security for driveways, garages, and yards.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Dahua DH-IPC-HDW3641EM-S-S2 16-Camera Kit is meticulously designed for compliance with Australian and New Zealand safety and performance standards, featuring region-specific firmware and NDSS certification. All products are exclusively sourced through authorized ANZ distributors, ensuring genuine equipment, timely warranty service, and full technical support. With robust weatherproofing, AI-driven analytics, and local power compliance, this kit is a perfect match for the ANZ environment.
FAQs – DH-IPC-HDW3641EM-S-S2-KIT-16CH
Q1: Can the DH-IPC-HDW3641EM-S-S2-KIT-16CH support live remote viewing?
Yes, this system supports remote access via Dahua’s DMSS app, enabling you to monitor your cameras from anywhere.
Q2: What’s the difference between DH-IPC-HDW3641EM-S-S2 and DH-IPC-HDW3666EMP-S-AUS in the KIT DH-IPC-HDW3641EM-S-S2-KIT-16CH?
The DH-IPC-HDW3666EMP-S-AUS is the updated model offering enhanced AI features and improved image processing, fully compatible with the original system.
Q3: Does the DH-IPC-HDW3641EM-S-S2-KIT-16CH record audio?
Yes, each camera includes a built-in microphone for real-time audio alongside video.
Q4: Can I expand the storage on the DH-IPC-HDW3641EM-S-S2-KIT-16CH?
Yes, the NVR supports two HDDs, each up to 10TB, and individual cameras support microSD cards up to 256GB.
Q5: Is the DH-IPC-HDW3641EM-S-S2-KIT-16CH system suitable for outdoor use?
Yes, all cameras are IP67-rated, making them ideal for harsh outdoor environments.
Q6: What AI features are available in the DH-IPC-HDW3641EM-S-S2-KIT-16CH?
AI analytics via camera include face detection, perimeter protection, people counting, tripwire, and SMD Plus for smart motion detection with reduced false alerts.
