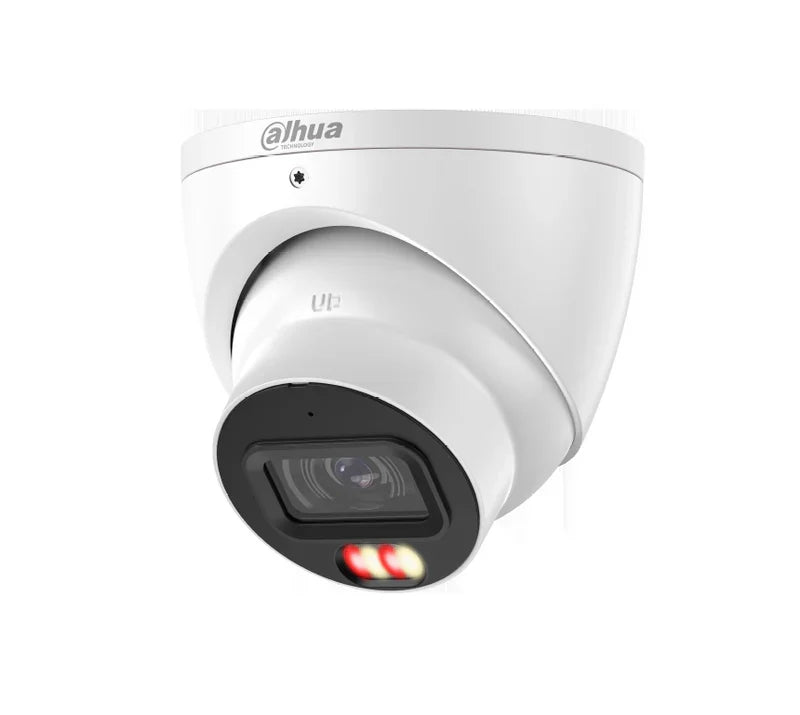

Dahua DH-IPC-HDW3467EM-S-IL-ANZ 4MP Smart Dual Light Eyeball Camera | WizSense AI | SMD 4.0 | IP67 | PoE | 50m IR | ANZ Model

The Dahua DH-IPC-HDW3467EM-S-IL-ANZ 4MP Smart Dual Light Eyeball Camera delivers crystal-clear 4MP (2688 × 1520) resolution with advanced WizSense AI technology, perimeter protection, and Smart Motion Detection (SMD 4.0) for accurate human and vehicle classification. Featuring Smart Dual Light with up to 50m IR and warm light illumination, 120dB WDR, AI Scene Self-Adaptation (AI SSA), and H.265 smart compression, this IP67-rated network camera is engineered for reliable, intelligent surveillance across Australian and New Zealand residential, commercial, and industrial environments.

Designed with a 1/2.9” CMOS sensor and Starlight technology, this fixed-focal eyeball camera ensures superior low-light performance while maintaining sharp detail and colour accuracy. Its intelligent dual illumination system automatically switches between infrared and white light to capture full-colour evidence when motion events occur, reducing light pollution and improving nighttime clarity.

As part of Dahua’s WizSense 3 Series, the camera leverages deep learning algorithms to enhance detection accuracy, reduce false alarms, and optimise bandwidth and storage efficiency.

What’s Included in the Box

• 1 × Dahua DH-IPC-HDW3467EM-S-IL-ANZ 4MP Eyeball Camera

• Mounting Hardware Kit

• Waterproof Connector

• Quick Installation Guide

Key Features

• 4MP Resolution (2688 × 1520 @ 30fps)

• 1/2.9” CMOS Sensor with Starlight Technology

• Smart Dual Light (IR + Warm Light up to 50m)

• SMD 4.0 – Advanced Human & Vehicle Detection

• Perimeter Protection (Tripwire & Intrusion Detection)

• AI SSA (AI Scene Self-Adaptation)

• Smart H.265+ & AI H.265 Compression

• 120dB Wide Dynamic Range (WDR)

• Built-in Microphone for Audio Recording

• Supports MicroSD up to 512GB

• IP67 Weatherproof Metal Housing

• 12V DC / PoE (802.3af)

• ONVIF Profile S/G/T/M Compatible

Detailed Specifications

Camera & Imaging

• Image Sensor: 1/2.9” CMOS

• Max Resolution: 2688 × 1520

• Min Illumination:

  • 0.005 Lux (Colour)

  • 0.0005 Lux (B/W)

  • 0 Lux (Illuminator On)

• Electronic Shutter: 1/3s – 1/100,000s

• S/N Ratio: >56 dB

Lens Options

• Fixed Focal: 2.8mm / 3.6mm / 6mm

• Max Aperture: F1.4

• Field of View:

  • 2.8mm: H 100°

  • 3.6mm: H 83°

  • 6mm: H 51°

Illumination

• IR Distance: Up to 50m

• Warm Light Distance: Up to 50m

• Smart Dual Light with Auto Switching

AI & Intelligence

• IVS: Intrusion & Tripwire (Human/Vehicle Classification)

• SMD 4.0 Smart Motion Detection

• AI SSA Scene Optimisation

• AcuPick Target Search (with compatible AI NVR)

• Smart Search (with Smart NVR)

Video & Compression

• H.265 / H.264 / Smart H.265+

• AI H.265 & AI H.264

• Triple Stream Support

• Bitrate: 3 kbps–16384 kbps

Audio

• Built-in Microphone

• Audio Compression: PCM / G.711a / G.711Mu / G.726 / G.723

Network & Storage

• RJ-45 (10/100 Base-T)

• ONVIF Profile S, G, T & M

• MicroSD Card Support up to 512GB

• NAS / FTP / SFTP Recording

Environmental

• Operating Temp: –40°C to +60°C

• Humidity: ≤95% RH

• Protection: IP67

Power

• 12V DC

• PoE (802.3af)

• Max Power Consumption: 9.2W (PoE)

Physical

• Dimensions: 93.6 mm × Φ106.0 mm

• Weight: 0.53 kg

• Housing: Metal

Practical Use Scenarios

• Retail stores and shopfront monitoring

• Office and commercial building security

• School and educational facility surveillance

• Residential driveways and entry points

• Warehouses and storage facilities

• Outdoor perimeter protection in harsh environments

Optional Accessories

• PFA139 Junction Box

• PFB204W Wall Mount

• PFA106 Ceiling Mount

• PFB220C Ceiling Mount

• PFA152-E Pole Mount

• PFM900-E Integrated Mount Tester

• TF-P100 TLC SD Card

Warranty Information

• 3-year Manufacturer’s Warranty (as per Dahua ANZ policy)

• Supplied via authorised Australian & New Zealand distribution

• Local warranty and technical support available

About Dahua Technology

Founded in 2001, Dahua Technology is a global leader in video surveillance solutions and AI-powered security systems. The WizSense range utilises deep learning AI chips to deliver accurate human and vehicle detection while optimising storage and bandwidth efficiency for modern surveillance needs.

SKU

DH-IPC-HDW3467EM-S-IL-ANZ

Datasheets & Resources

• Official Product Datasheet

Excellence for the Australian and New Zealand Market 🇦🇺 🇳🇿

The DH-IPC-HDW3467EM-S-IL-ANZ is specifically supplied for the Australian and New Zealand market, ensuring:

• Compliance with applicable AU/NZ regulatory requirements

• Sourced through authorised ANZ distribution channels

• Local warranty handling and support

• Firmware optimised for regional requirements

• Built to withstand harsh Australian outdoor conditions (IP67, –40°C to +60°C)

This ensures long-term reliability, genuine manufacturer backing, and peace of mind for professional installations.

Frequently Asked Questions (FAQs)

1. Does the DH-IPC-HDW3467EM-S-IL-ANZ support human and vehicle detection?

Yes, the DH-IPC-HDW3467EM-S-IL-ANZ features SMD 4.0 and perimeter protection for accurate human and vehicle classification.

2. What is the maximum night vision range of the DH-IPC-HDW3467EM-S-IL-ANZ?

The DH-IPC-HDW3467EM-S-IL-ANZ supports up to 50 metres IR illumination and 50 metres warm light range.

3. Can the DH-IPC-HDW3467EM-S-IL-ANZ record audio?

Yes, the DH-IPC-HDW3467EM-S-IL-ANZ includes a built-in microphone for audio recording.

4. Is the DH-IPC-HDW3467EM-S-IL-ANZ suitable for outdoor installation?

Yes, the DH-IPC-HDW3467EM-S-IL-ANZ is IP67 rated and operates from –40°C to +60°C, making it suitable for outdoor use in Australia and New Zealand.

5. What storage options are available for the DH-IPC-HDW3467EM-S-IL-ANZ?

The DH-IPC-HDW3467EM-S-IL-ANZ supports MicroSD cards up to 512GB, NAS storage, FTP, and SFTP recording.

6. Does the DH-IPC-HDW3467EM-S-IL-ANZ support PoE power?

Yes, the DH-IPC-HDW3467EM-S-IL-ANZ supports PoE (802.3af) as well as 12V DC power input.
