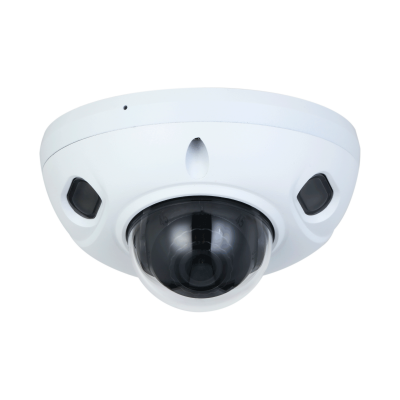

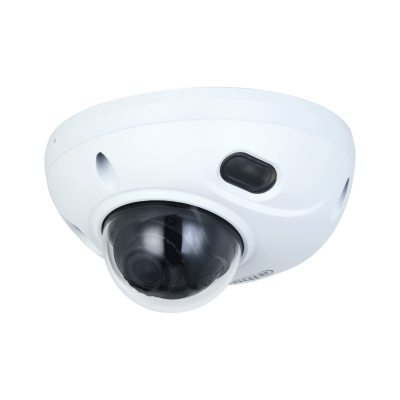

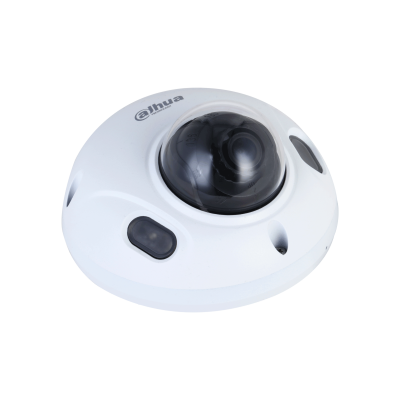

Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-Focal Dome WizSense AI Security Camera – IK10, IP67, PoE, SMD 4.0

Dahua DH-IPC-HDBW3466FP-AS-AUS 4MP IR Fixed-Focal Dome WizSense AI Security Camera – IK10, IP67, PoE, SMD 4.0

$158.10 AUD
$331.50 AUD $158.10 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Dahua DH-IPC-HDBW3466FP-AS-AUS is a robust and intelligent 4MP fixed-focal dome network camera designed to deliver exceptional performance in any environment. Equipped with advanced AI features, WizSense technology, and SMD 4.0, it ensures accurate detection of human and vehicle targets while minimizing false alarms. This compact camera offers clear video in both day and night conditions with powerful IR illumination up to 30 metres and features high-level protection ratings for vandal and weather resistance. Ideal for retail, commercial, and critical infrastructure sites across Australia and New Zealand.

What’s Included in the Box

  • Dahua DH-IPC-HDBW3466FP-AS-AUS Camera

  • Mounting hardware and screws

  • Waterproof connector kit

  • Quick Start Guide

  • Warranty Information

Main Features

  • 4MP High-Resolution Imaging – 2688 × 1520 @ 25/30 fps with excellent low-light clarity

  • Powerful IR Night Vision – Built-in IR LEDs with up to 30 m visibility

  • WizSense & SMD 4.0 – Accurate AI-based human and vehicle detection

  • Perimeter Protection – Intrusion and tripwire detection with classification

  • Built-in Microphone – Captures high-quality audio alongside video

  • H.265/H.264 Smart Codec – Ultra-efficient video compression for reduced bandwidth and storage

  • Multi-Lens Options – Fixed focal lengths: 2.1 mm, 2.8 mm, 3.6 mm, or 6 mm for varied field of view

  • Wide Dynamic Range (WDR) – 120 dB WDR for strong backlight performance

  • IP67 & IK10 Rated – Dust-tight, weather-resistant and vandal-proof metal housing

  • Dual Power Options – 12V DC or PoE (802.3af) for flexible installation

Detailed Specifications

Category Details
Model DH-IPC-HDBW3466FP-AS-AUS
Image Sensor 1/3" CMOS, 4MP
Max Resolution 2688 × 1520 @ 25/30 fps
Lens Options Fixed: 2.1 mm / 2.8 mm / 3.6 mm / 6 mm
IR Distance Up to 30 metres
Day/Night Mode Auto (ICR), Color, B/W
Smart Detection SMD 4.0, Perimeter (Tripwire, Intrusion), Scene Change, Audio Detection
AI Capabilities Human/Vehicle Classification, AI SSA, Smart Search
Field of View Up to 137° Horizontal (2.1 mm lens)
Video Compression H.265, H.264, AI H.265/H.264, MJPEG (sub stream)
Audio Input/Output 1 in / 1 out (RCA), built-in mic
Alarm I/O 1 input / 1 output
Storage Support MicroSD card up to 256GB, NAS, FTP, SFTP
Operating Temp –40°C to +60°C
Protection Ratings IP67 (weatherproof), IK10 (vandal-proof)
Power Supply 12V DC or PoE (802.3af)
Power Consumption Max: 7.2W (PoE), 5.9W (12V DC)
Material Metal housing
Dimensions 64.8 mm × Ø111 mm
Weight Net: 423 g; Gross: 530 g
Certifications CE, FCC, UL, CUL, RoHS

Warranty Information

  • 3-Year Manufacturer Warranty

Brand Description

Dahua Technology is a global leader in video surveillance equipment, offering innovative solutions with AI, IoT, and cloud integration. Its WizSense series leverages advanced algorithms to enhance detection accuracy, simplify deployment, and ensure robust performance, particularly in commercial and industrial security environments.

SKU

DH-IPC-HDBW3466FP-AS-AUS

Practical Use Scenarios

  • Commercial Entrances – Monitor foot and vehicle traffic with precision using AI-powered detection

  • Warehouses & Storage Areas – Detect motion, intrusion, or scene changes even in dark environments

  • Retail Stores – Protect assets with 24/7 surveillance and real-time alerts via smart motion detection

  • Parking Facilities – Optimize vehicle monitoring with wide field of view and IR visibility

  • Public Spaces – Deter vandalism and capture clear evidence with IK10-rated housing and audio support

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

  • Fully compliant with ANZ electrical and safety standards

  • Engineered for harsh weather and outdoor environments, operating from –40°C to +60°C

  • IP67 and IK10 ratings provide superior protection against dust, rain, and vandalism

  • Distributed through authorized ANZ channels for seamless local support and service

  • Supports microSD local storage up to 256GB, ideal for ANZ compliance and privacy policies

FAQs

Q1: What resolution does the DH-IPC-HDBW3466FP-AS-AUS camera support?
The DH-IPC-HDBW3466FP-AS-AUS supports up to 4MP resolution (2688 × 1520) at 25/30 fps, offering high-definition imaging for security-critical areas.

Q2: Can the DH-IPC-HDBW3466FP-AS-AUS detect humans and vehicles separately?
Yes, thanks to WizSense AI and SMD 4.0, this camera can accurately differentiate between humans and vehicles, reducing false alarms.

Q3: Is the DH-IPC-HDBW3466FP-AS-AUS suitable for outdoor installations?
Absolutely. It is IP67 weatherproof and IK10 vandal-resistant, making it ideal for outdoor use in Australian and New Zealand environments.

Q4: What power options are available for the DH-IPC-HDBW3466FP-AS-AUS?
The camera supports both 12V DC and Power over Ethernet (PoE), offering flexibility during installation.

Q5: What lens options are available with the DH-IPC-HDBW3466FP-AS-AUS?
It is available in 2.1 mm, 2.8 mm, 3.6 mm, and 6 mm fixed lenses, offering different fields of view depending on the coverage requirement.
