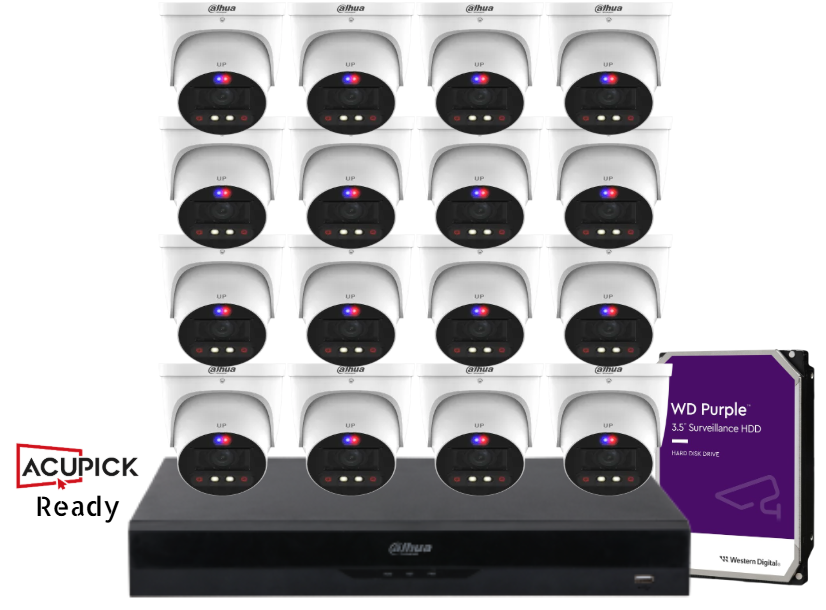

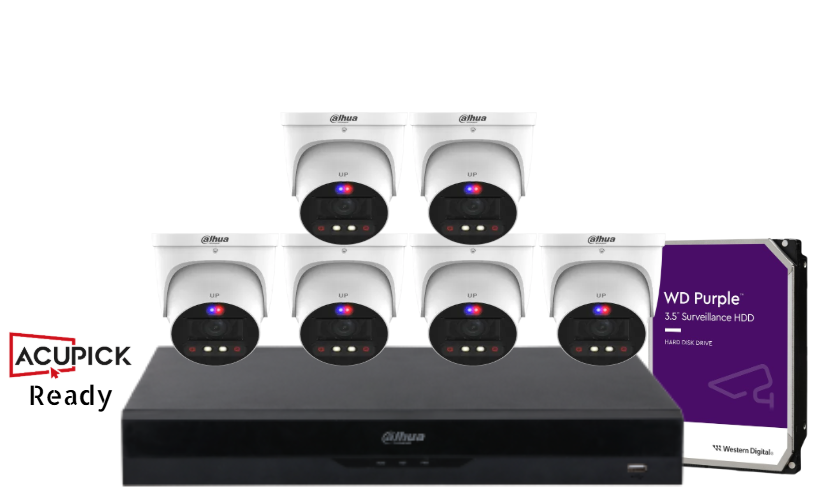

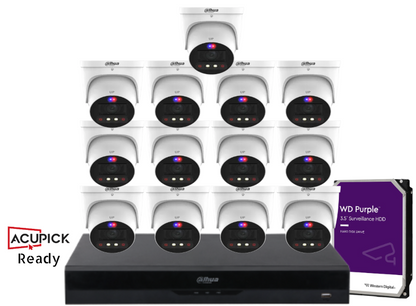

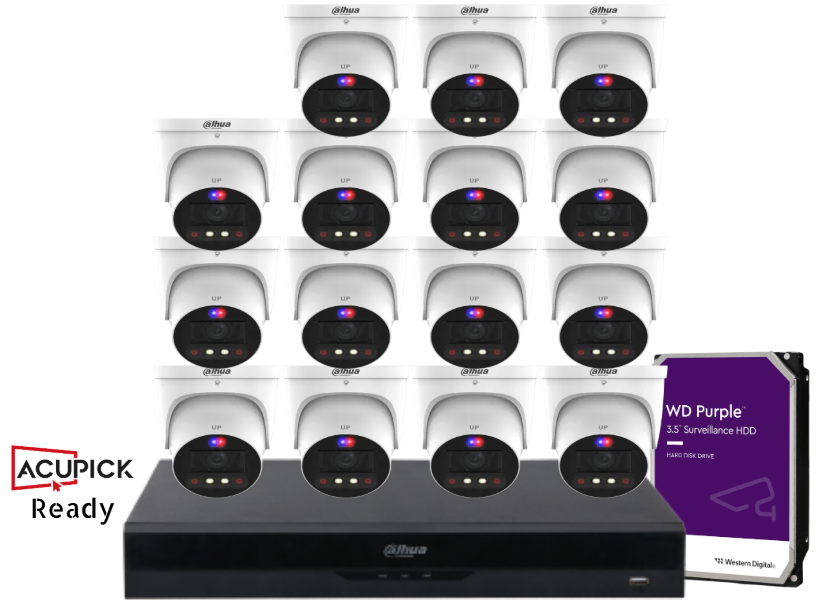

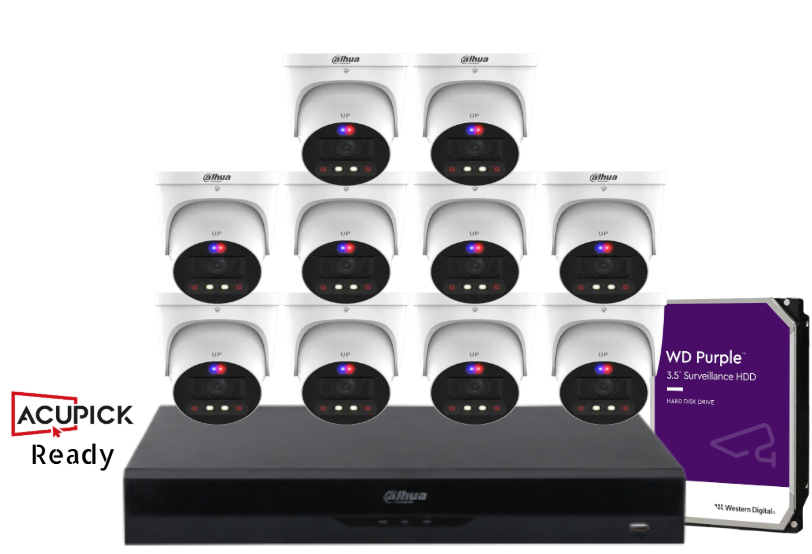

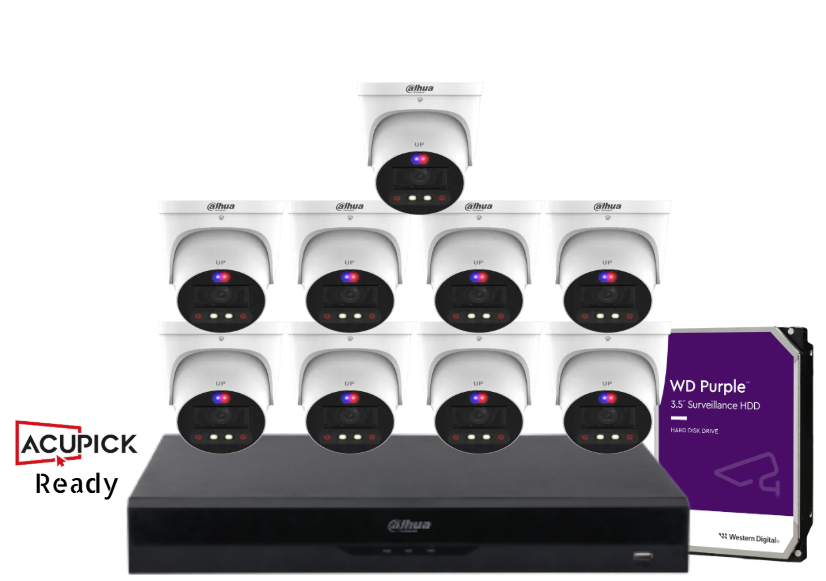

Dahua AcuPick Ready 8MP TiOC PRO Turret CCTV Kit – DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 | 4/8/16 Cameras + 16CH NVR + HDD | AI Smart Surveillance System

Experience industry-leading video surveillance with the Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 CCTV kit, a premium 8MP turret IP camera bundle with a powerful 16-channel AcuPick-enabled NVR. Designed for high-resolution, intelligent monitoring in residential, commercial, and public settings, this all-in-one security solution combines 4K video clarity, AI analytics, and active deterrence for unmatched protection. With configurations available in 4, 8, or 16-camera options and integrated storage, this kit is ideal for scalable, smart surveillance installations.

What’s Included in the Box

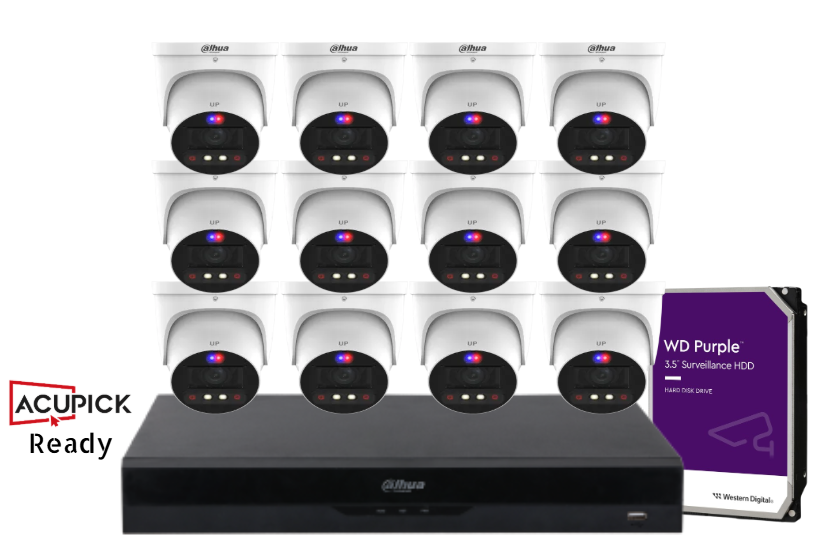

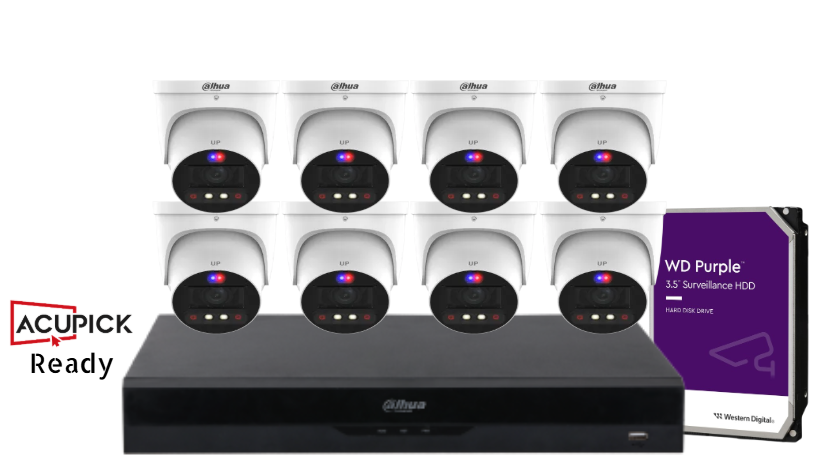

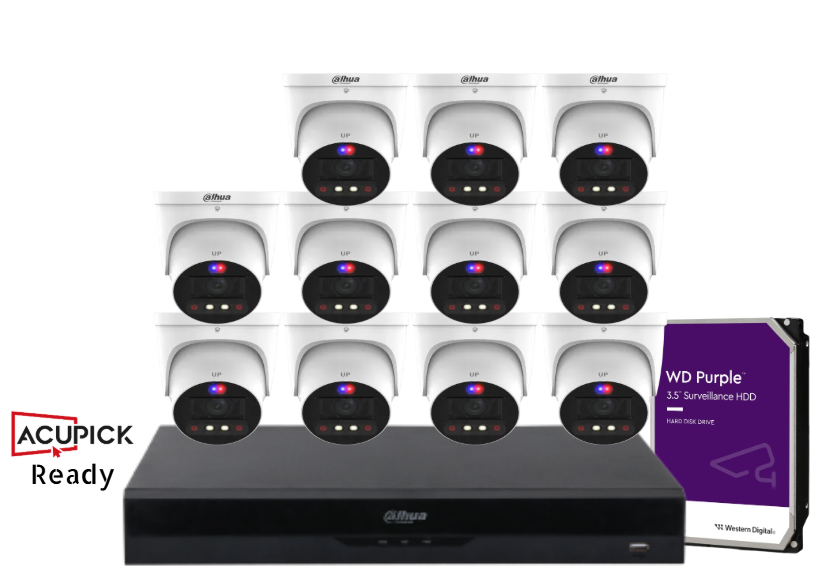

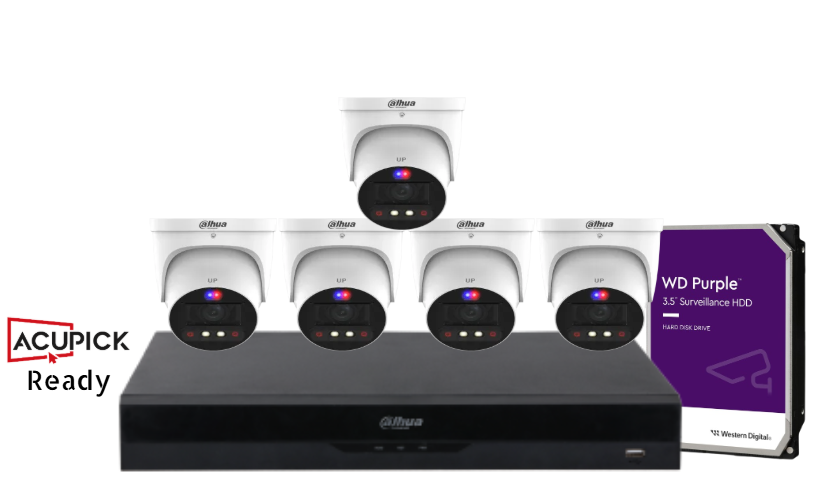

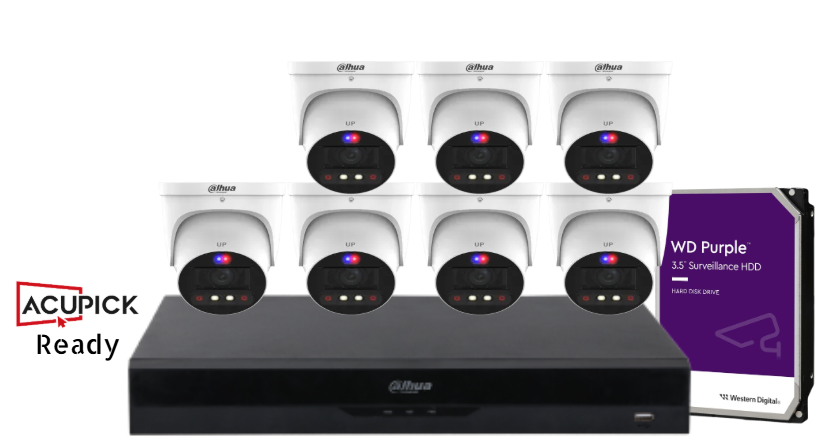

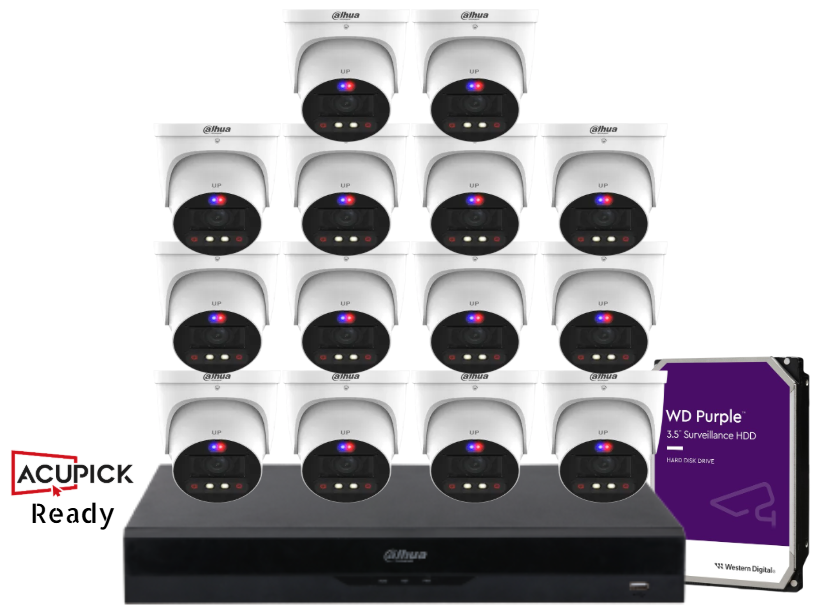

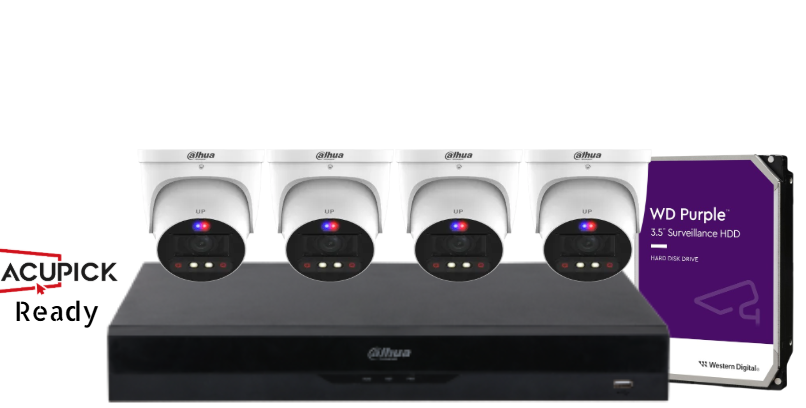

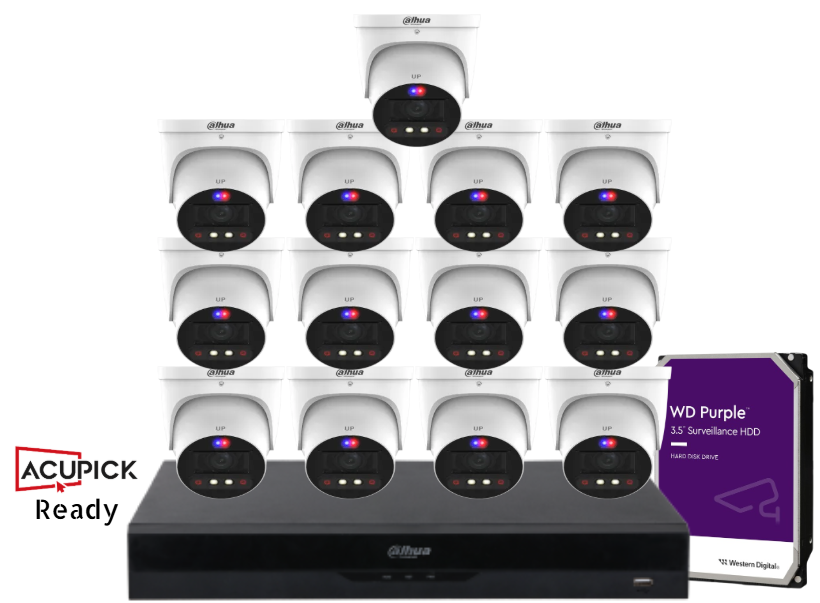

• 4 / 8 / 16 × Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 8MP TiOC AcuPick IP Cameras

• 1 × Dahua NVR5216-16P-AI/ANZ 16-Channel Network Video Recorder with PoE

• 1 × Surveillance-grade HDD (Choose your HDD below)

• Power cable, USB mouse, and SATA data cables

• Quick Start Guide & Mounting accessories

Dahua AcuPick – Intelligent Video Search Made Simple

Dahua AcuPick is an advanced AI-powered video search technology that enables users to locate people, vehicles, or animals in recorded footage with remarkable speed and accuracy. By simply clicking on a subject within recorded video, AcuPick identifies and retrieves all matching appearances across multiple camera feeds—no need to review footage manually.

Key Features:

• Instant Target Search: Reduces search time by up to 99% using intelligent image-based detection.

• One-Click Operation: Select a person, vehicle, or object in playback, and the system does the rest.

• Smart Filtering: Supports pre-search filters like motion detection, tripwires, or specific attributes like clothing color.

• Enhanced Accuracy (AcuPick 2.0): Now includes animal tracking, facial recognition support, and trajectory mapping.

• Privacy-Conscious: Uses appearance-based identification, not facial biometrics, ensuring data privacy compliance.

• Low Infrastructure Cost: Processes searches directly on compatible Dahua cameras or NVRs—no external servers required.

Main Features

Dahua DH-IPC-HDW3849H-ZAS-PV-ANZ-S2 Camera

• 8MP CMOS sensor with 3840x2160 resolution at 25/30 fps

• Dual illumination: IR (50m) and warm light (40m)

• AI SMD 4.0: Smart detection with human/vehicle classification

• Two-way audio with built-in mic & speaker

• Motorized vari-focal lens (2.7–13.5mm)

• Sound and light active deterrence

• IP67-rated weatherproof design

• H.265 video compression

Dahua NVR5216-16P-AI/ANZ Recorder

• Supports up to 16 IP cameras with 16 PoE ports

• AI analytics by recorder and camera: face detection, people counting, metadata, ANPR

• 2 × SATA bays for up to 32TB storage

• Smart playback and multi-mode search

• HDMI/VGA output with intuitive GUI

• Heat map and traffic flow analysis

Detailed Specifications

Camera (DH-IPC-HDW3849H-ZAS-PV-ANZ-S2):

• Image Sensor: 1/2.8” CMOS

• Illumination: 0.004 Lux (Color), 0.0004 Lux (B/W), 0 Lux with IR

• Lens: 2.7–13.5 mm motorized

• Field of View: 108°–34°

• Smart Detection: Intrusion, tripwire, motion

• Audio: Two-way communication

• Construction: Metal housing, IP67

Recorder (NVR5216-16P-AI/ANZ):

• Video Input: 16 channels

• Storage: 2 SATA interfaces, up to 16TB each

• AI Functions: AcuPick, perimeter protection, face recognition

• PoE: 16 ports, 130W total budget

• Decoding Capacity: Up to 4MP AI analysis on 12 channels

• Interfaces: 1 HDMI, 1 VGA, 2 USB, Audio I/O

Warranty Information

• Warranty: 3-Year Limited Manufacturer Warranty

• Coverage includes defects in materials or workmanship under normal use.

Brand Description

Dahua Technology is a global innovator in video surveillance, offering reliable, high-performance solutions driven by AI and advanced analytics. Their products are trusted in over 180 countries for public safety, retail, commercial, and industrial applications.

SKU

DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2

Practical Use Scenarios

• Home Security: Monitor driveways and front doors with real-time alerts and full-color night vision.

• Retail Stores: Deter theft and analyze customer movement via people counting and heat mapping.

• Industrial Zones: Secure large perimeters with AcuPick search and AI-based filtering.

• Office Buildings: Integrate with access control and utilize face recognition for verification.

• Remote Properties: Cloud and mobile access ensures 24/7 monitoring from anywhere.

Datasheets and Downloads

• IPC-HDW3849H-ZAS-PV-ANZ-S2 Datasheet

• DHI-NVR5216-16P-AI/ANZ

Excellence for the Australian and New Zealand Market

• Fully compliant with AS/NZS standards and local electrical safety requirements

• NDSS-approved components for professional-grade installations

• Region-optimized firmware ensures network and environmental compatibility

• Locally sourced from authorized Australian and New Zealand distributors

• Hassle-free warranty and support through certified local agents

FAQs – DH-IPC-HDW3849H-ZAS-PV-ANZ-S2

Q1: Can I mix different camera counts with the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 kit?
A1: Yes, the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 supports 4, 8, or 16 cameras depending on your surveillance needs.

Q2: Does the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 system support remote viewing?
A2: Absolutely. The DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 includes mobile app access for iOS and Android devices, offering live monitoring and playback.

Q3: What is the maximum IR distance for the cameras in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 kit?
A3: The cameras in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 offer up to 50 meters of IR illumination and 40 meters with warm light.

Q4: How does AcuPick work in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 system?
A4: AcuPick in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 enables fast retrieval of footage by selecting human or vehicle targets, streamlining incident investigations.

Q5: Are the cameras in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 weatherproof?
A5: Yes, each camera in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 kit has an IP67 rating, making it suitable for all outdoor conditions.

Q6: What AI features are included in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 cameras?
A6: The DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 cameras support AI functions like intrusion detection, tripwire alerts, people/vehicle classification, and smart motion detection (SMD 4.0).

Q7: Is the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 compatible with other third-party cameras?
A7: While optimized for Dahua equipment, the NVR in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 supports ONVIF standards, allowing integration with many third-party IP cameras.

Q8: What kind of storage does the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 system offer?
A8: The NVR in the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 supports up to 2 HDDs with a maximum of 16TB each, ideal for long-term recording.

Q9: Can I receive audio alerts from the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 system?
A9: Yes, the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 includes built-in microphones and speakers for real-time audio alerts and two-way communication.

Q10: How is the DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 supported in ANZ?
A10: The DH-IPC-HDW3849H-ZAS-PV-ANZ-S2SEC-2 is backed by a 3-year warranty and supported by authorized local distributors across Australia and New Zealand.
