Dahua 8MP TIOC 3.0 12-Camera AI CCTV Surveillance Kit with 16CH WizSense AI NVR System & HDD (DH-IPC-HDW3849H-AS-PV-S2) ACUPICK

Take your security to the next level with the Dahua TIOC 3.0 AI 12-Camera Surveillance Kit, featuring DH-IPC-HDW3849H-AS-PV-S2 8MP Active Deterrence Turret Cameras and a powerful 16-Channel AI WizSense NVR (with 16 PoE ports and dual HDD support). Built to deliver AI-driven analytics, real-time intruder deterrence, and full-color night vision, this system is the ultimate solution for medium-to-large-scale residential, commercial, and industrial sites.

This future-proof system combines the latest Dahua TIOC 3.0 innovations like AcuPick Smart Search, SMD 4.0, and AI SSA with high-bandwidth, multi-channel AI video processing — ensuring you're always ahead of potential threats.

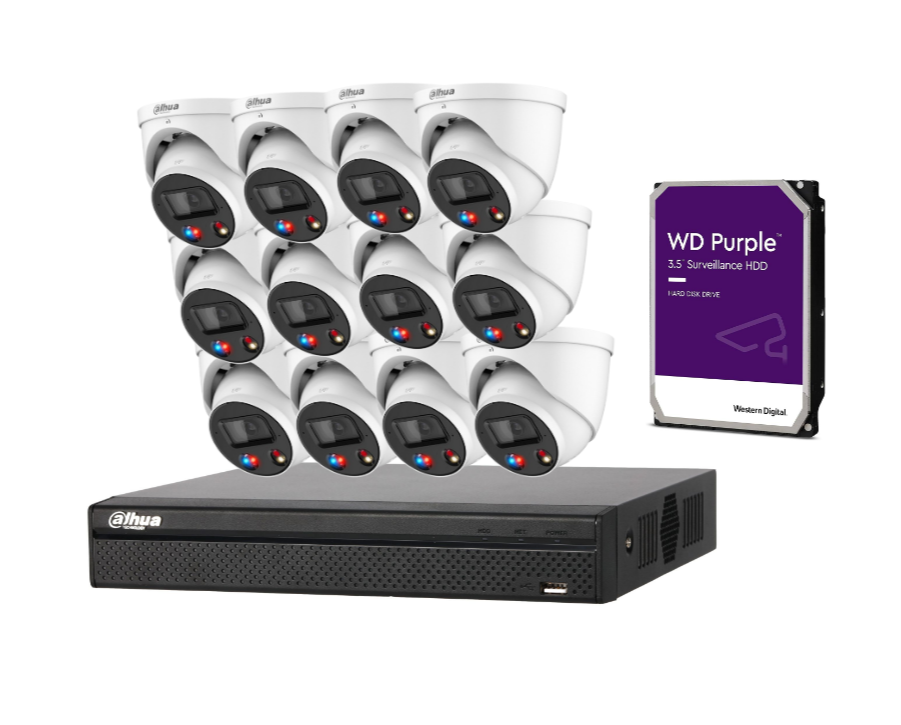

What’s Included in the Box

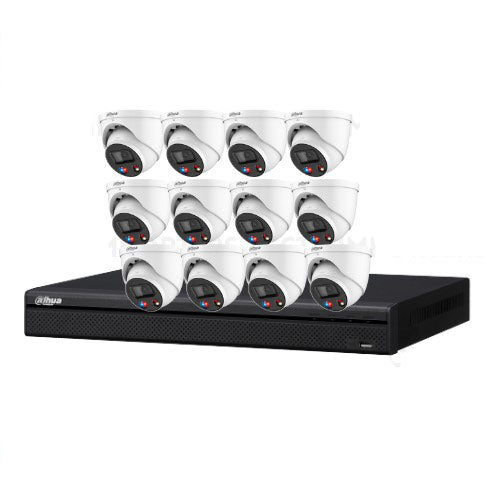

• 12 × Dahua DH-IPC-HDW3849H-AS-PV-S2 8MP AI Active Deterrence TIOC 3.0 IP Cameras
• 1 × Dahua 16CH AI NVR with 16 PoE Ports (NVR4216-16P-AI/ANZ or NVR5216-16P-AI/ANZ)

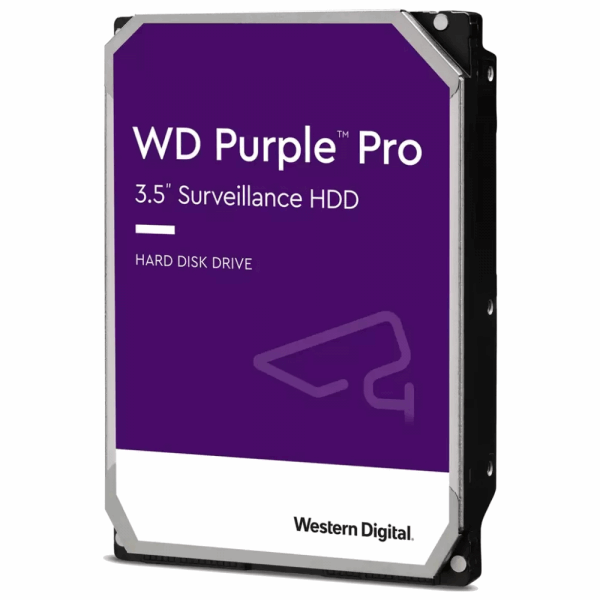

• 1 × Surveillance-Grade Pre-Installed Hard Drive (Choose your HDD below)
• Mounting Screws and Camera Accessories
• Quick Start Guides for Camera and NVR
• Power Adapter

Main Features

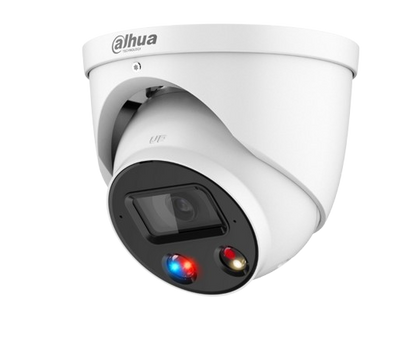

Cameras – DH-IPC-HDW3849H-AS-PV-S2 (TIOC 3.0 Series)

• 8MP 4K Ultra HD Video: Crisp 3840 × 2160 recording @ 25/30 fps
• Full-Color Night Vision: Dual IR + warm LED lighting up to 30m range
• Smart Dual Illumination: Automatically switches between IR and visible light
• SMD 4.0 (Smart Motion Detection): Accurately distinguishes humans/vehicles
• Active Deterrence: Red/blue strobe lights & siren respond to real-time threats
• Two-Way Audio: Built-in mic & speaker for direct communication

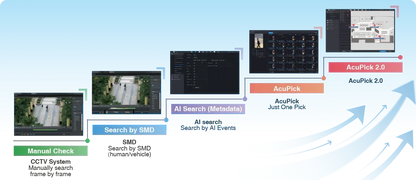

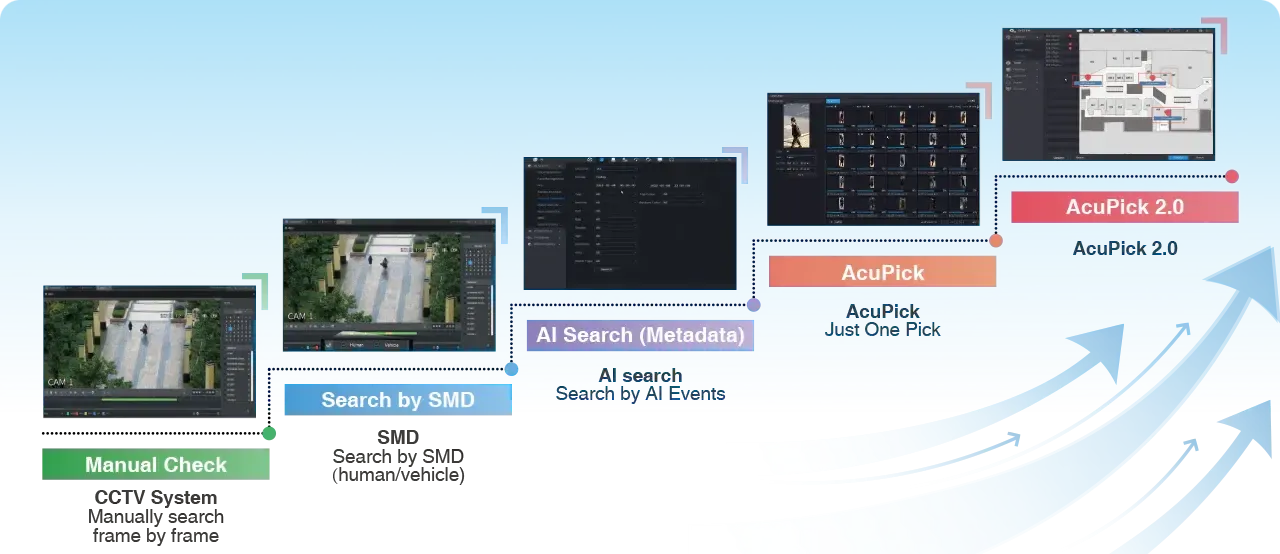

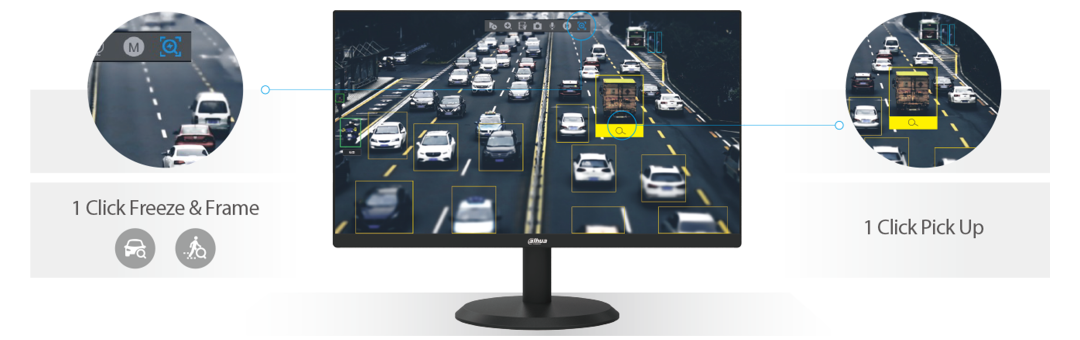

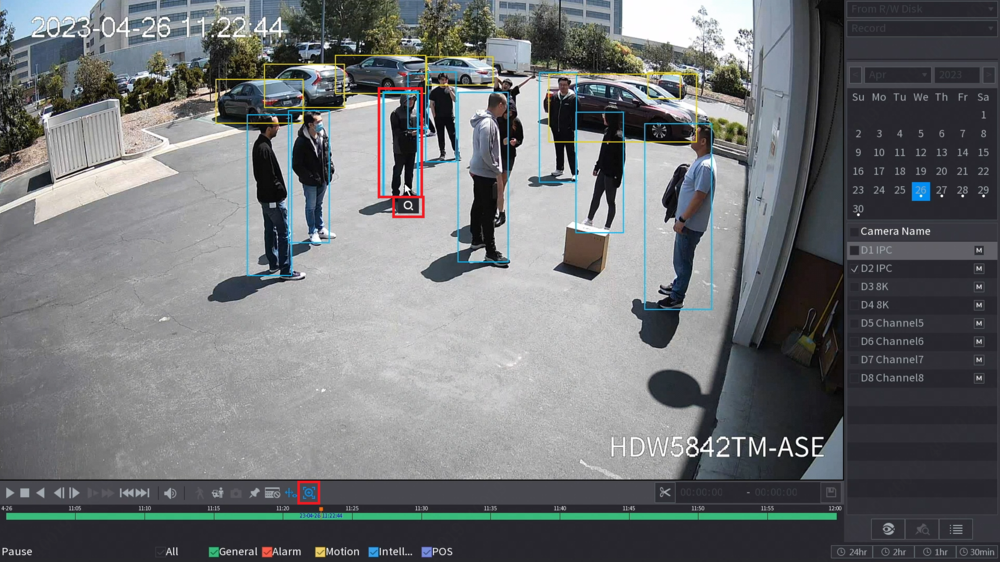

• AcuPick Smart Search: Locate events fast using AI-powered object recognition
• AI Scene Self-Adaptation (AI SSA): Intelligent brightness/contrast adjustment
• IP67-Rated: Weatherproof metal housing for reliable outdoor use
• Cybersecurity Ready: Includes encryption and access control mechanisms

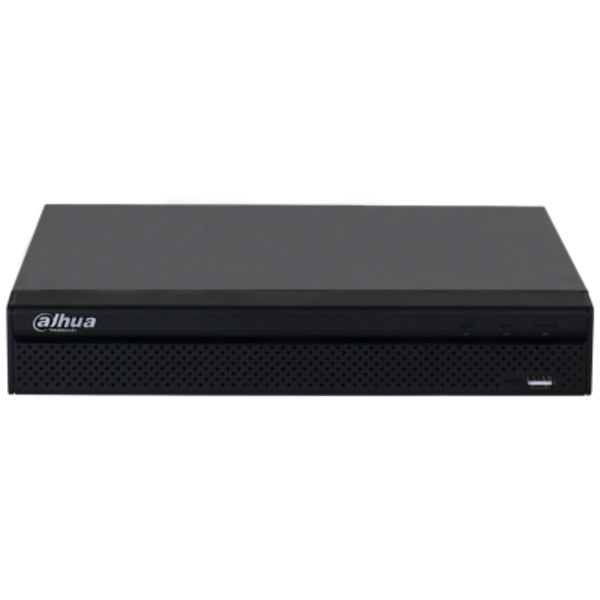

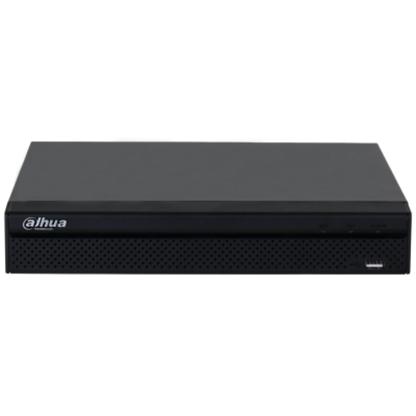

NVR – Choose from Two Dahua AI WizSense Models

✅ Option 1: Dahua NVR4216-16P-AI/ANZ

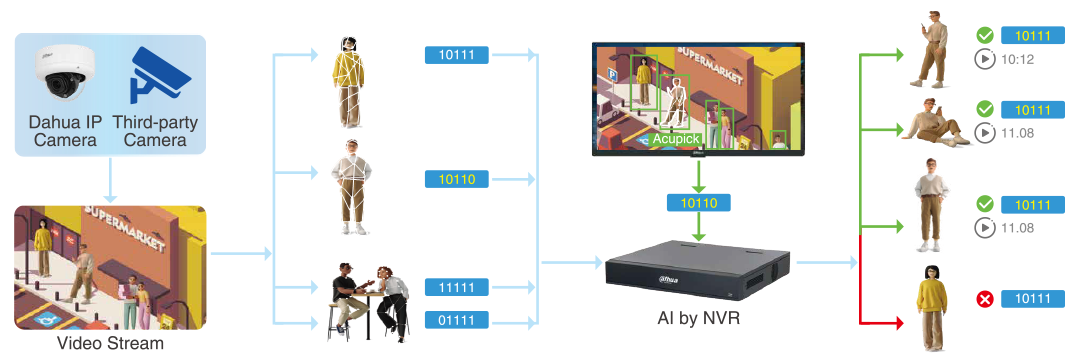

• AI by NVR:

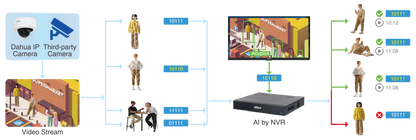

  • 1-Channel Face Detection & Recognition
  • 2-Channel Perimeter Protection
  • 4-Channel SMD Plus
  • 10 Face Databases with up to 20,000 Images
• Bandwidth: 256 Mbps (180 Mbps with AI enabled)
• Decoding: 16 × 1080p @ 30fps adaptive decoding
• Dual HDD Bays: Support for up to 2 HDDs
• PoE Ports: 16 × Built-in PoE for direct IP camera connection
• ONVIF Compatible: Integrates with third-party cameras
• Security Baseline 2.3: Hardened network protection

✅ Option 2: Dahua NVR5216-16P-AI/ANZ (Enhanced Performance) ACUPICK

• AI by NVR:
  • 2-Channel Face Detection & Recognition
  • 4-Channel Perimeter Protection
  • 8-Channel SMD Plus
• Bandwidth: 384 Mbps input/output
• Decoding Capability: Up to 32 channels of 1080p adaptive decoding
• AcuPick Enabled: Built-in advanced video search
• Dual HDD Support: Enhanced recording capacity
• Security Baseline 2.3: Enterprise-grade cybersecurity layer

Detailed Specifications

Camera – DH-IPC-HDW3849H-AS-PV-S2

• Image Sensor: 1/2.7" CMOS
• Resolution: 3840 × 2160 (8MP)
• Lens Options: 2.8mm or 3.6mm | Up to 125° FOV
• Illumination: IR + Warm Light up to 30m
• Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Audio: Built-in speaker and mic (two-way audio)
• Power Supply: 12V DC or PoE (802.3af)
• Edge Storage: MicroSD (up to 256GB), NAS, FTP
• Operating Temp: -40°C to +60°C
• Protection: IP67 rated

NVR – 16CH WizSense Models

• Channels Supported: 16 IP Channels
• Video Outputs: HDMI & VGA
• Storage: Dual SATA interfaces, each supporting up to 10TB
• Audio Inputs/Outputs: 1/1 RCA
• PoE Ports: 16 × 10/100 Mbps (IEEE802.3af/at)
• Mobile App: DMSS (iOS & Android) for live view, playback, and notifications

Warranty Information

• ✅ 3-Year Manufacturer Warranty
• ✅ Support Available in Australia & New Zealand
• ✅ Genuine Warranty Handling via Authorized Dahua Partners

Brand Overview: Dahua Technology

Dahua Technology is a global leader in surveillance innovation, recognized for developing high-performance AI-based security systems. The TIOC 3.0 Series, powered by deep learning, provides smart detection, voice deterrence, AcuPick smart search, and full-color monitoring – delivering total protection for modern applications. Their WizSense NVRs extend this intelligence across the entire networked surveillance infrastructure.

Practical Use Scenarios

• Apartment Blocks & Housing Estates: Multi-point perimeter protection and remote visitor communication
• Retail Complexes: AI-based monitoring of entrances, aisles, and parking zones
• Large Warehouses & Industrial Sites: 24/7 surveillance, license plate capture, and people counting
• Office Parks & Educational Campuses: Track faces, prevent intrusion, and review footage fast with AcuPick

Excellence for the Australian and New Zealand Market

• ✅ RCM, CE-EMC & CE-RoHS Certified – Meets AU/NZ compliance requirements
• ✅ NDSS-Compliant – Install-ready for professional-grade security deployments
• ✅ Optimized for Local ISPs and Infrastructure – Seamless integration into AU/NZ networks
• ✅ Authorized Regional Supply Channels – Genuine hardware & licensed firmware
• ✅ Local Technical & Warranty Support – Backed by Dahua’s verified ANZ partners

Additional Resources

• Datasheet

• User Manual
•


FAQs – Dahua 12-Camera 8MP AI Kit (DH-IPC-HDW3849H-AS-PV-S2)

Q1: Can the DH-IPC-HDW3849H-AS-PV-S2 cameras operate in full-color at night?
A1: Yes, the dual illumination (IR + warm light) enables full-color night vision even in complete darkness.

Q2: What’s the main difference between the NVR4216-16P-AI/ANZ and NVR5216-16P-AI/ANZ models?
A2: The NVR5216 offers higher AI channel support, greater bandwidth (384 Mbps), and AcuPick search built-in, making it ideal for larger systems.

Q3: Does the DH-IPC-HDW3849H-AS-PV-S2 camera support remote viewing?
A3: Yes, it is compatible with the Dahua DMSS mobile app, allowing live view, alerts, and playback from anywhere.

Q4: How many AI channels does the NVR5216-16P-AI/ANZ support?
A4: It supports 2 channels of face recognition, 4 channels of perimeter protection, and 8 channels of SMD Plus, with full AI processing.

Q5: Can this system detect license plates or count people?
A5: Yes, both the cameras and NVR support ANPR and people counting through AI-based metadata analysis.

Q6: Are the DH-IPC-HDW3849H-AS-PV-S2 cameras suitable for outdoor use?
A6: Absolutely. They are IP67-rated, offering full protection against rain, dust, and extreme temperatures.

Q7: What storage is included with the Dahua 12-camera kit (DH-IPC-HDW3849H-AS-PV-S2)?
A7: The kit includes a pre-installed surveillance-grade HDD, and both NVR models support dual HDD bays for expansion up to 20TB.

SKU: DH-IPC-HDW3849H-AS-PV-S2-KIT-12CAM-16CH
