Dahua 8‑Channel 6 MP TiOC 2.0 Active Deterrence Motorised Turret CCTV Kit – DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ (White) + DHI‑NVR4108HS‑8P‑AI/ANZ & WD Purple HDD

Dahua 8‑Channel 6 MP TiOC 2.0 Active Deterrence Motorised Turret CCTV Kit – DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ (White) + DHI‑NVR4108HS‑8P‑AI/ANZ & WD Purple HDD

$1,920.75 AUD
$2,173.21 AUD $1,920.75 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

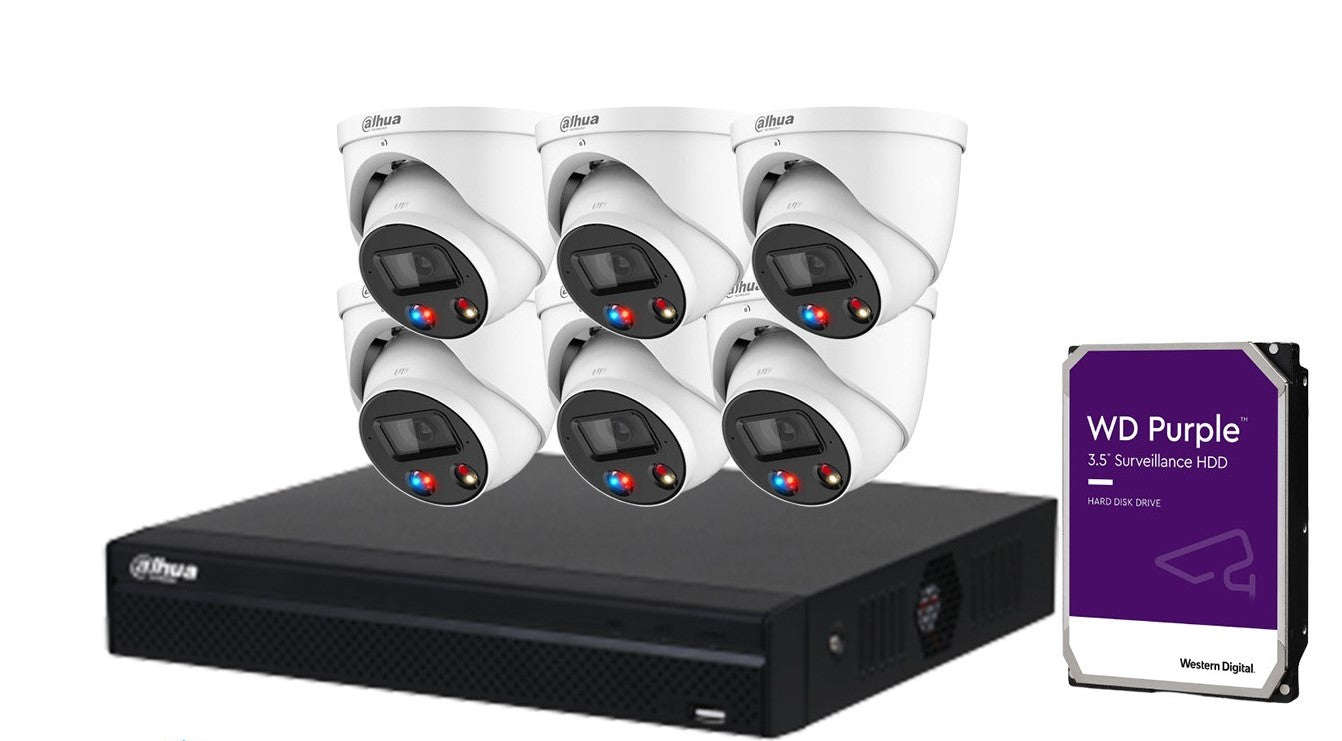

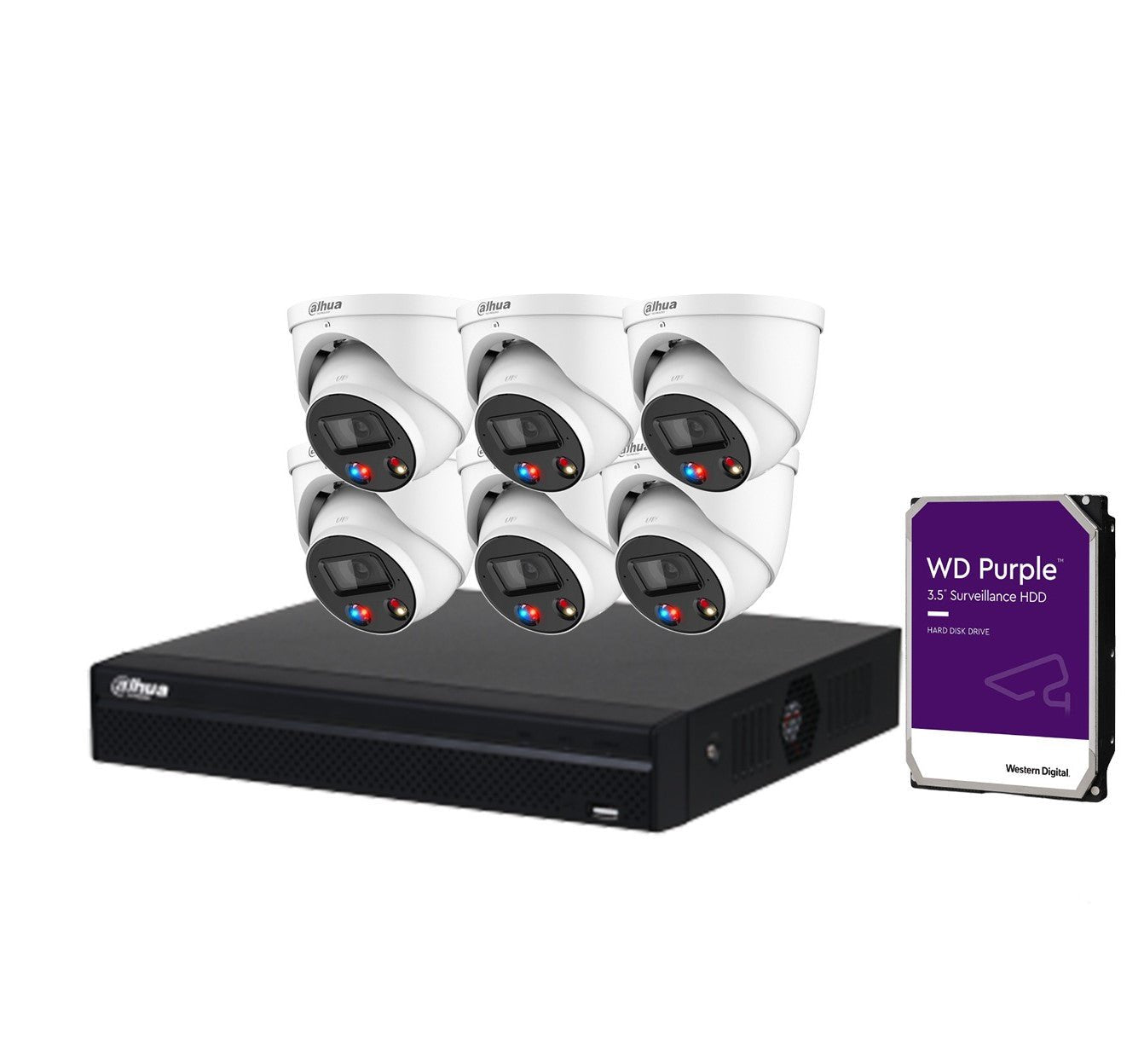

This premium surveillance kit pairs six Dahua DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ 6 MP TiOC 2.0 Active Deterrence turret cameras (in elegant white finish) with an advanced Dahua DHI‑NVR4108HS‑8P‑AI/ANZ WizSense AI NVR and a Western Digital Purple surveillance-grade HDD. Boasting TiOC technology—integrating thermal, AI, optical, color, and active deterrence—this system delivers crisp day/night imagery, smart AI detection, and proactive audio/visual warnings. Perfect for Australian and New Zealand settings, ensuring reliable surveillance coverage.

📦 What’s Included

  • 6× DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ TiOC turret cameras (6 MP, 2.7–13.5 mm motorised lens, white)

  • 1× DHI‑NVR4108HS‑8P‑AI/ANZ 8‑channel WizSense PoE NVR

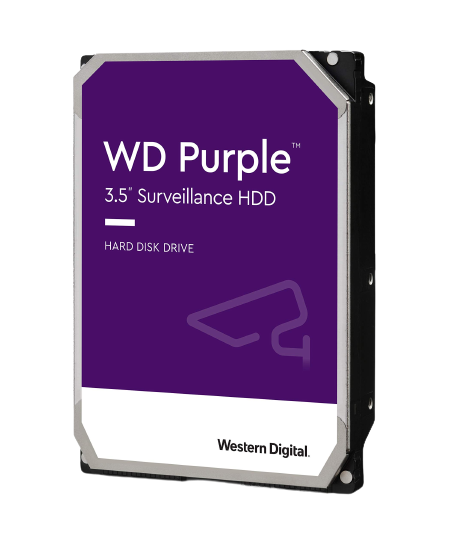

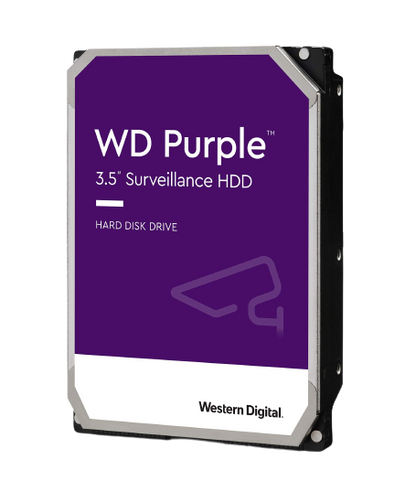

  • 1× Western Digital Purple HDD (Choose your HDD below)

  • PoE cables, power adaptors, mounting screws, and manuals

⚙️ Main Features

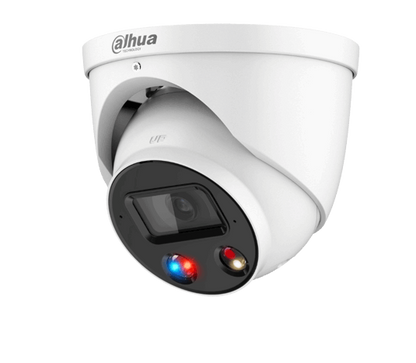

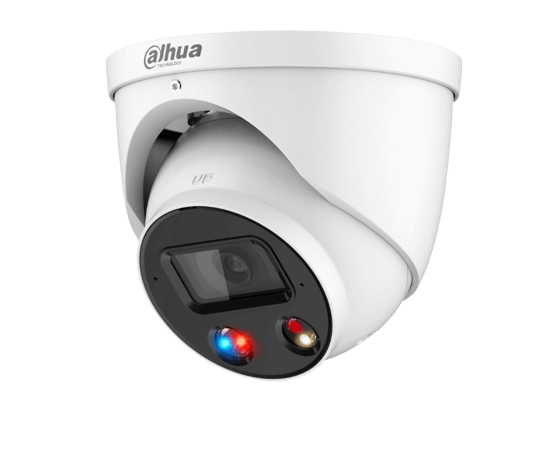

Cameras – DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ

  • 6 MP resolution (3200 × 2048 or 3072 × 2048) at 25/30 fps via 1/2.7″ CMOS sensor

  • Dual illumination: IR up to 50 m and warm light up to 40 m; audible siren + red/blue deterrent lights

  • AI features: human/vehicle detection, Intrusion/Tripwire, SMD 4.0 for high accuracy

  • H.265 compression with ROI, WDR, 3D NR, HLC/BLC, digital watermarking; micro‑SD support up to 256 GB

  • Two-way audio: dual mic, internal speaker, alarm I/O, one-touch arming/disarming

  • Durable IP67-rated housing; powered via PoE or 12 V DC

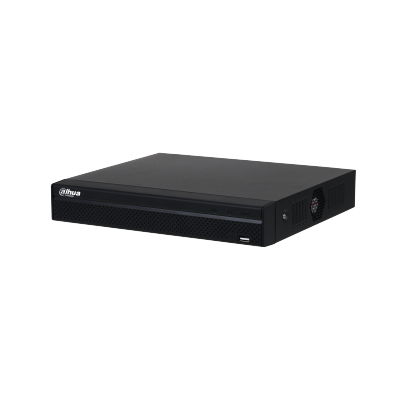

Recorder – DHI‑NVR4108HS‑8P‑AI/ANZ

  • 8 PoE ports (25.5 W per port) with one SATA bay supporting up to 10 TB HDD

  • Smart compression: H.265+/H.265/H.264+/H.264/MJPEG, 256 Mbps bandwidth (180 Mbps when AI active)

  • Edge AI: 1-channel face detection/recognition; 2-channel perimeter protection; 4-channel SMD Plus; plus ANPR, people counting, stereo analytics, heat maps

  • Decoding: up to 16×1080p @ 30 fps; HDMI/VGA output support; ONVIF-compliant; cyber-secured with Security Baseline 2.3

  • Compact 1U metal chassis (372×117×308 mm), operates from –10 °C to +55 °C

📊 Detailed Specifications

Feature Camera – DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ (White) Recorder – DHI‑NVR4108HS‑8P‑AI/ANZ
Resolution Up to 6 MP (3200×1800 or 3072×2048) @ 25/30 fps 8‑channel input; decodes 16×1080p
Lens Motorised 2.7–13.5 mm vari-focal N/A
Illumination 50 m IR + 40 m warm light; red/blue lights; siren N/A
AI Analytics Human/vehicle, Intrusion, Tripwire, SMD 4.0 Face detection/recognition; perimeter; SMD Plus; ANPR; heat maps
Compression H.265, H.265+, H.264+ Smart H.265+, H.265, H.264+/H.264, MJPEG
Storage micro‑SD up to 256 GB SATA up to 10 TB (WD Purple compatible)
Audio & I/O Dual mic, speaker, 1 in/1 out alarm & audio; 2-way talk Audio I/O via PoE cameras
Power/Housing PoE/12 V DC, metal turret, IP67 8× PoE ports, 1U chassis, rack/desktop
Warranty 3‑year regional warranty 3‑year regional warranty



DATA SHHET

Data sheet

🛡️ Warranty & Shipping

  • 3-year manufacturer warranty throughout Australia & New Zealand

  • Free shipping for orders over AUD 200 within Australia; AUD 12 flat rate under AUD 200

  • Delivery: 3–5 business days (Australia), 10–15 business days (New Zealand)

🏅 Brand Overview

Dahua’s TiOC 2.0 series combines thermal, optical, color imaging and AI with active deterrents like lights and siren—enhanced by the WizSense platform for human/vehicle analytics, cybersecurity and third-party camera integration. Widely trusted in ANZ for proactive, reliable surveillance.

🎯 Typical Use Scenarios

  • Perimeter defence: cameras alert and deter with siren and lights upon intrusion

  • Commercial/warehouse surveillance: motorised optics, heat mapping and AI triggers ensure broad visibility

  • Home and estate security: sleek white cameras match modern aesthetics while delivering full deterrence capabilities

  • Critical infrastructure: rugged IP67 construction and AI reduce false alerts, maintain clarity in low light

🇦🇺 Excellence for Australia & NZ Market

  • Engineered for regional climate and power (PoE, 12 V DC); robust IP67 build

  • Meets NDSS surveillance standards for compliance

  • Supplied through ANZ-authorised Dahua distributors—ensuring genuine products and local support

  • Warranty and assistance handled directly by Dahua Australia, no overseas delays

❓ FAQs (with Product Code)

Q: What is the maximum micro‑SD card size for DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ?
A: Supports micro‑SD cards up to 256 GB (model DH‑IPC‑HDW3649H‑ZAS‑PV‑ANZ).

Q: Does the NVR ship with a pre-installed HDD?
A: No, the NVR is shipped without HDD. Compatible with WD Purple HDDs up to 10 TB.

Q: Is active deterrence included?
A: Yes. Each turret features red/blue lights and an audible siren activated upon detection.

Q: Are AI features operational in ANZ regions?
A: Yes. Included firmware Security Baseline 2.3 ensures full AI functionality compliant with ANZ regulations.

View full details
