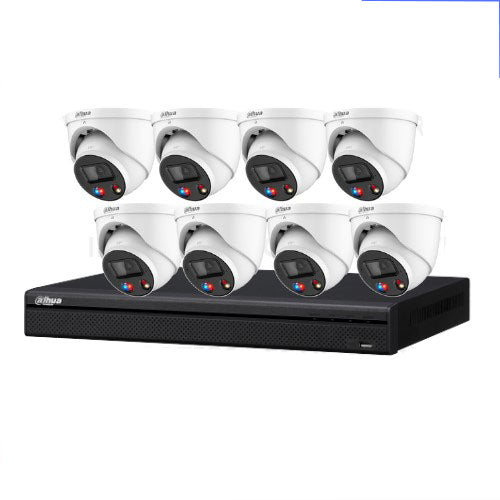

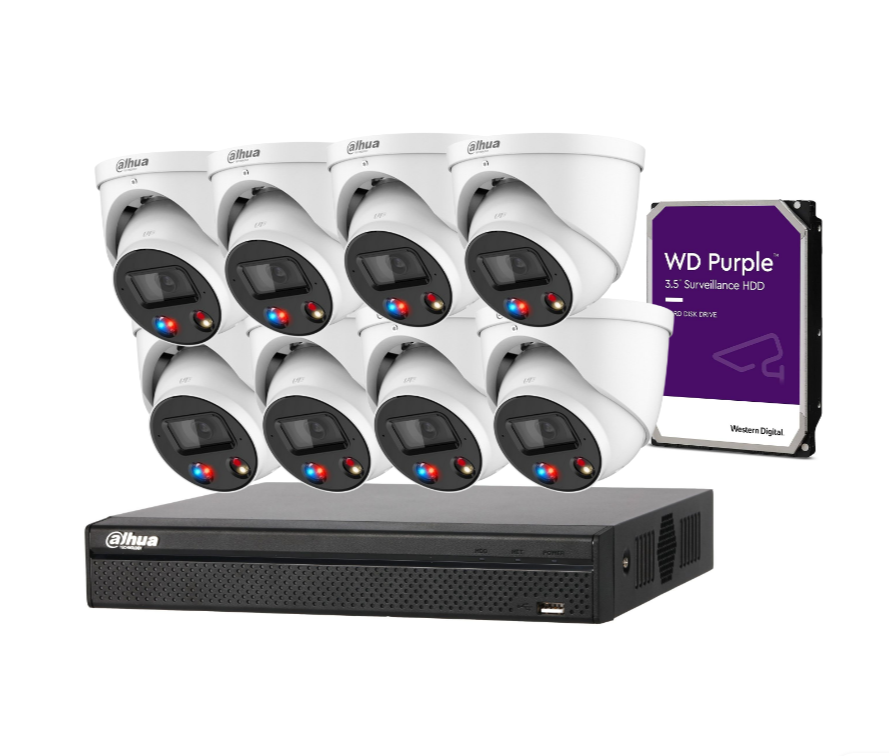

Dahua 8-Camera 8MP TIOC 3.0 Active Deterrence AI Kit with 8/16 Channel WizSense AI NVR System (DH-IPC-HDW3849H-AS-PV-S2)

Secure large residential, commercial, or industrial spaces with the powerful Dahua 8MP TIOC 3.0 AI 8-Camera Surveillance Kit, featuring the advanced DH-IPC-HDW3849H-AS-PV-S2 Active Deterrence Cameras and your choice of a Dahua 8CH or 16CH AI WizSense NVR. This professional-grade system delivers full-color night vision, proactive intruder deterrence, and AI-based analytics for real-time protection, accurate detection, and simplified monitoring.

Powered by TIOC 3.0 technology and AcuPick smart search, this future-ready surveillance package is ideal for users seeking reliable 24/7 coverage with cutting-edge AI performance.

What’s Included in the Box

• 8 × Dahua DH-IPC-HDW3849H-AS-PV-S2 8MP TIOC 3.0 Active Deterrence IP Cameras
• 1 × Dahua WizSense AI NVR (8-Channel or 16-Channel with PoE)
• Optional Surveillance-Grade Hard Drive (Choose your HDD below)
• Mounting Screws & Accessories
• Quick Start Guide
• Power Adapter

Main Features

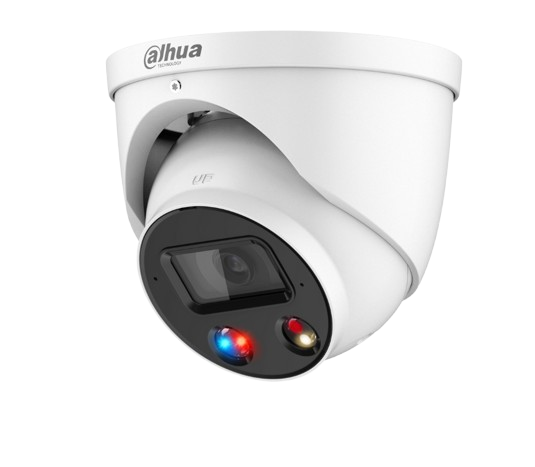

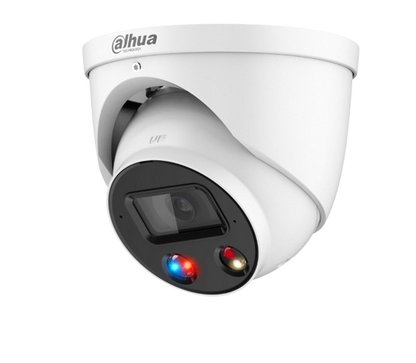

Cameras – Dahua DH-IPC-HDW3849H-AS-PV-S2 (TIOC 3.0 Series)

• 8MP 4K Ultra HD Video: Records at 3840 × 2160 resolution @ 25/30 fps
• Smart Dual Illumination: IR + warm light up to 30m with auto-switching
• Full-Color Night Vision: Enhanced low-light performance with starlight technology
• AI Detection (SMD 4.0): Filters out non-relevant movement for accurate alerts
• Active Deterrence: Flashing red/blue lights and integrated siren to scare off intruders
• Two-Way Audio: Built-in microphone and speaker for real-time conversation
• AcuPick Search: AI-powered search for quick retrieval of human/vehicle events
• AI Scene Self-Adaptation (AI SSA): Auto-optimizes image settings
• IP67 Rated: All-weather metal housing for outdoor deployment
• Cybersecurity Features: Secure access, encrypted communication, and authentication control

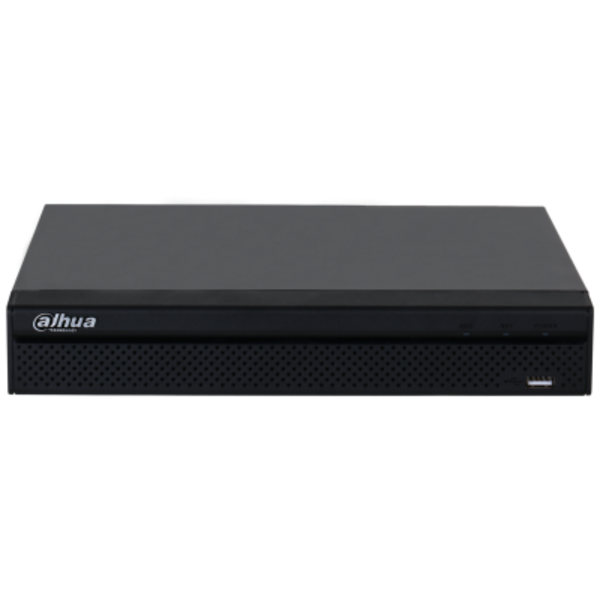

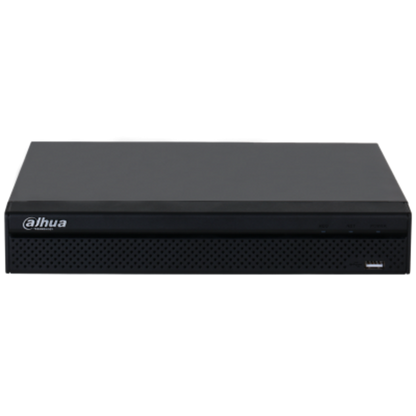

NVR – Dahua WizSense NVR (8CH or 16CH with AI)

(NVR4108HS-8P-AI/ANZ or NVR4216-16P-AI/ANZ )

• AI by NVR:
  • 1-Channel Face Detection & Recognition
  • 2-Channel Perimeter Protection
  • 4-Channel SMD Plus
  • Up to 10 Face Databases & 20,000 Face Images
• AI by Camera Support:
  • ANPR (Automatic Number Plate Recognition)
  • People Counting
  • Heat Map Analysis
  • Face & Object Recognition
• Bandwidth & Performance:
  • Up to 256 Mbps input (180 Mbps with AI enabled)
  • Max Decoding: 16 × 1080p @ 30 fps
• Video Compression: H.265+/H.265 & H.264+/H.264
• Storage: Comes with pre-installed HDD; supports SATA expansion
• Third-Party Compatibility: ONVIF-compliant for integration with other brands
• Security Baseline 2.3: Enhanced cyber protection protocols

Detailed Specifications

Camera – DH-IPC-HDW3849H-AS-PV-S2

• Sensor: 1/2.7" CMOS
• Max Resolution: 3840 × 2160 (8MP)
• Lens Options: 2.8mm or 3.6mm | FOV up to 125° diagonal
• Illumination Range: 30m (IR + warm light)
• Compression: H.265, H.264, MJPEG (sub-stream only)
• Audio: Integrated mic & speaker (two-way audio)
• Power Supply: 12V DC or PoE (802.3af)
• Storage Options: MicroSD (up to 256GB), NAS, FTP, SFTP
• Operating Temp: -40°C to +60°C

NVR – 8CH/16CH Dahua AI WizSense

• Main Features:

  • Smart H.265+/H.265 & H.264+/H.264 Video Compression – Efficient bandwidth and storage utilization.

  • 256 Mbps Network Bandwidth (180 Mbps with AI Enabled) – Handles multiple high-resolution streams.

  • Max. Decoding Capability: 16 × 1080p @ 30 fps – Supports adaptive decoding for smoother playback.

  • AI by NVR:

    • 1-Channel Face Detection & Recognition

    • 2-Channel Perimeter Protection

    • Up to 10 Face Databases & 20,000 Face Images

    • 4-Channel SMD Plus for Accurate Motion Detection

  • AI by Camera:

    • Face Detection & Recognition

    • Perimeter Protection & SMD Plus

    • ANPR (Automatic Number Plate Recognition)

    • People Counting & Heat Map Analysis

  • Third-Party Camera Support – Compatible with various brands and ONVIF-compliant devices.

  • Security Baseline 2.3 – Advanced cybersecurity protection for secure data transmission

Warranty Information

• ✅ 3-Year Manufacturer Warranty
• ✅ Authorized Support in Australia & New Zealand
• ✅ Genuine Warranty Handling by Dahua Representatives

Brand Overview: Dahua Technology

Dahua Technology is a global innovator in smart surveillance, offering high-performance AI-based camera systems for businesses and consumers alike. With its WizSense and TIOC 3.0 lines, Dahua has redefined active deterrence, full-color monitoring, and advanced AI video analytics – trusted by security professionals worldwide.

Practical Use Scenarios

• Residential Compounds: Full-color recording, live voice interaction, and smart alerts for perimeter security
• Retail Chains & Shopping Centres: Identify theft and monitor customer traffic with heat maps and AI search
• Commercial Buildings & Warehouses: Protect against unauthorized access with human/vehicle filtering
• Industrial & Critical Infrastructure: Enable 24/7 surveillance with AcuPick retrieval and high-resolution playback

Excellence for the Australian and New Zealand Market

• ✅ Certified for AU/NZ Standards (RCM, CE-EMC, CE-RoHS)

• ✅ Optimized for Local ISP Networks and Integration Platforms
• ✅ Authorized Regional Distribution with Genuine Firmware
• ✅ Local Warranty & After-Sales Support from Verified Providers

Additional Resources

• Datasheet

• User Manual


FAQs – Dahua TIOC 3.0 8-Camera AI Kit (DH-IPC-HDW3849H-AS-PV-S2)

Q1: Does the DH-IPC-HDW3849H-AS-PV-S2 support full-color night vision?
A1: Yes, it uses dual illumination (IR + warm light) to provide full-color video in complete darkness.

Q2: Can I choose between 8-channel or 16-channel NVR options with the DH-IPC-HDW3849H-AS-PV-S2 kit?
A2: Absolutely. This kit is available with either an 8CH or 16CH Dahua AI WizSense NVR to suit your scaling needs.

Q3: Is the DH-IPC-HDW3849H-AS-PV-S2 camera weatherproof?
A3: Yes, it’s IP67-rated and designed for reliable performance in harsh outdoor environments.

Q4: What AI features are available with the DH-IPC-HDW3849H-AS-PV-S2 and NVR system?
A4: Key features include human/vehicle filtering (SMD 4.0), face recognition, AcuPick search, perimeter protection, ANPR, and more.

Q5: Can I use the DH-IPC-HDW3849H-AS-PV-S2 cameras with a non-Dahua NVR?
A5: Yes, the cameras are ONVIF-compliant and can integrate with other ONVIF-supported NVRs, but advanced AI features are optimized for Dahua NVRs.

Q6: What mobile app supports remote viewing for the DH-IPC-HDW3849H-AS-PV-S2 system?
A6: The system is compatible with the Dahua DMSS app, available on iOS and Android for live view, playback, and alerts.

Q7: How does AcuPick work in the DH-IPC-HDW3849H-AS-PV-S2 kit?
A7: AcuPick uses AI to allow users to search recorded video by selecting a person or vehicle in a clip, dramatically reducing search time.

SKU: DH-IPC-HDW3849H-AS-PV-S2-KIT-8CAM-8/16CH
