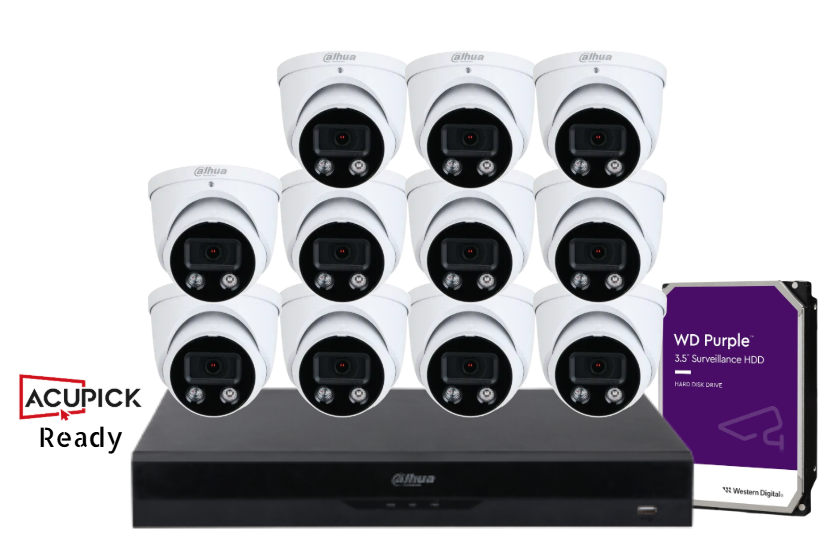

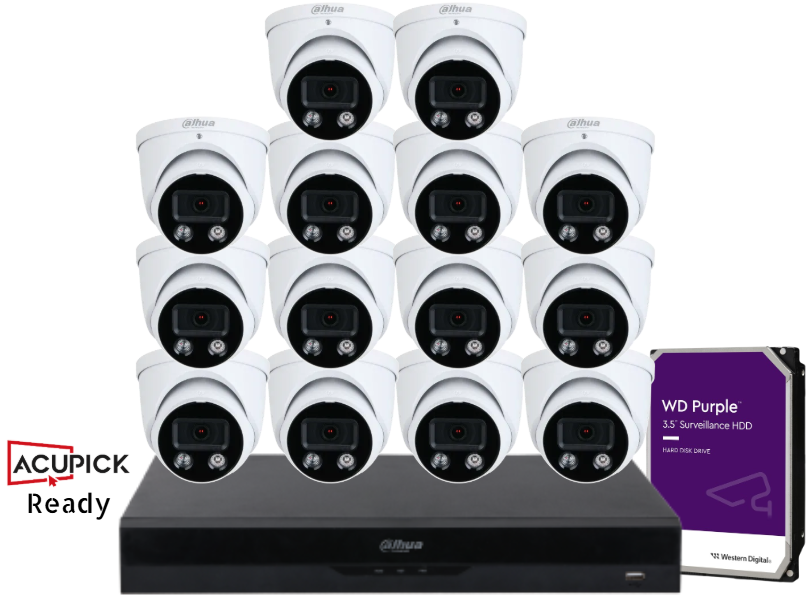

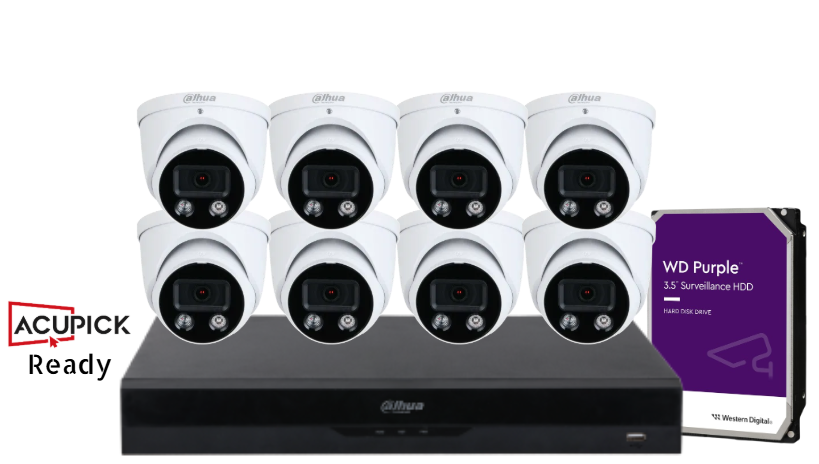

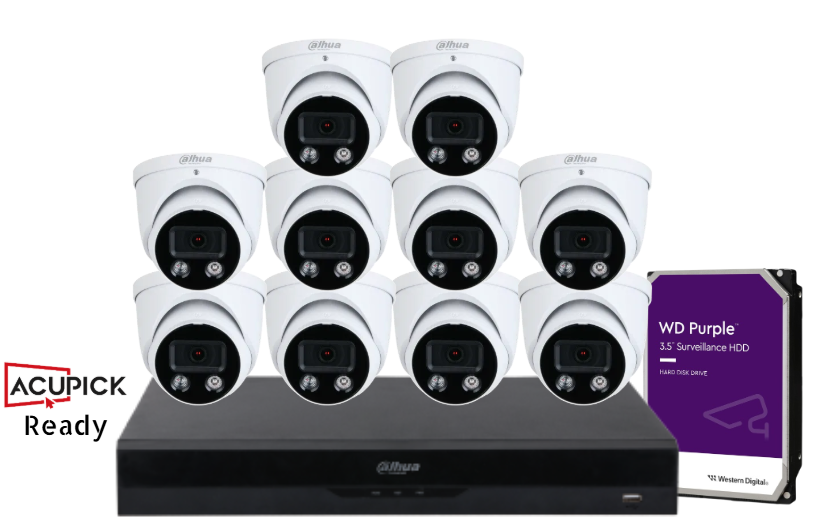

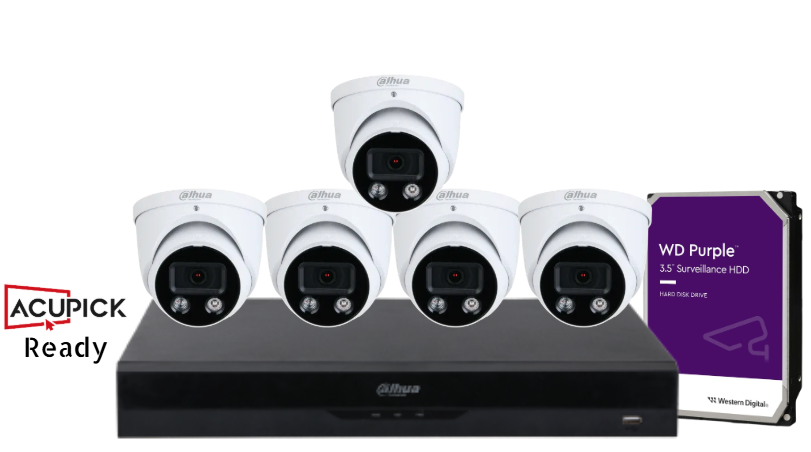

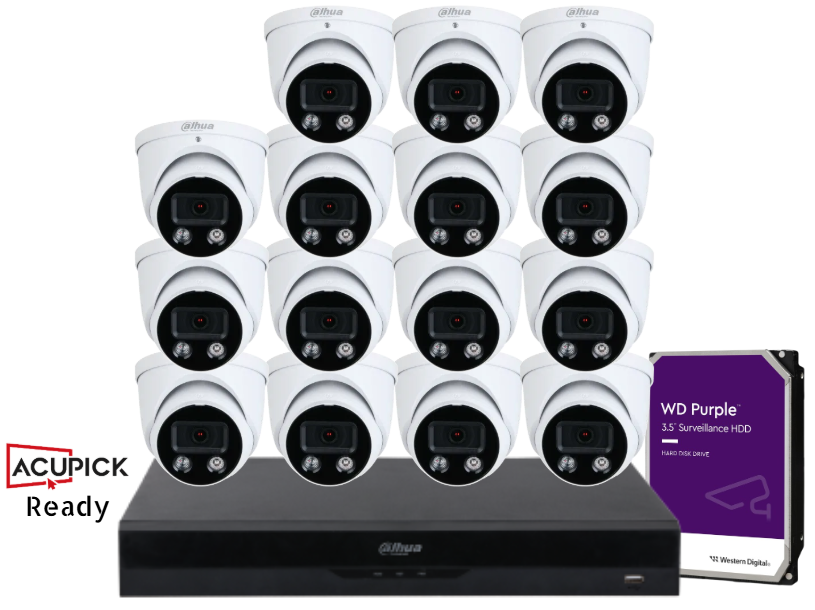

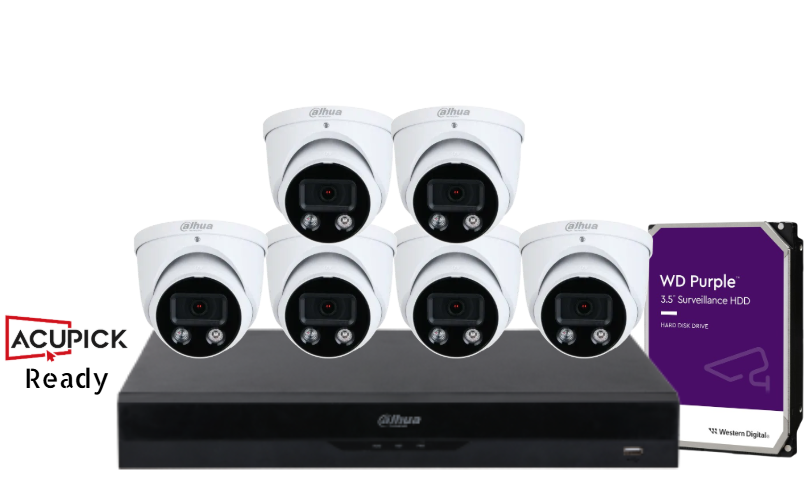

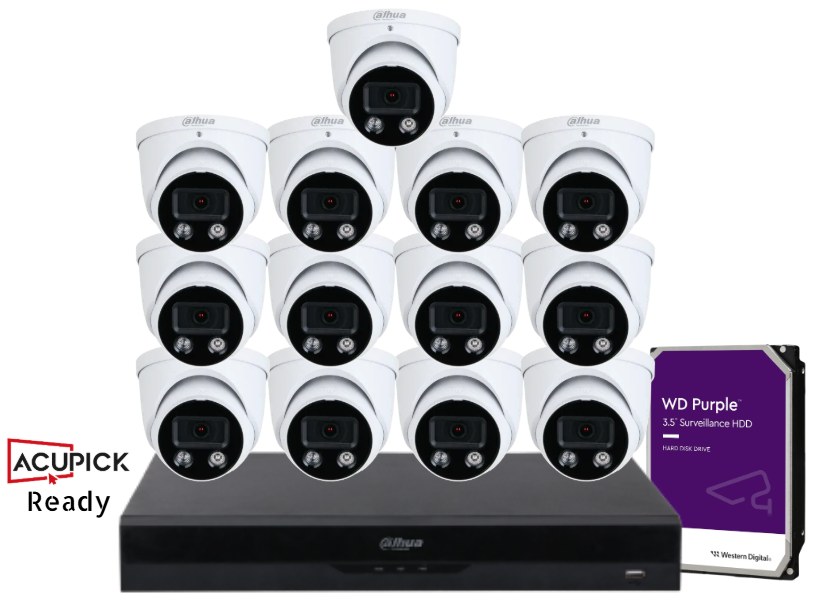

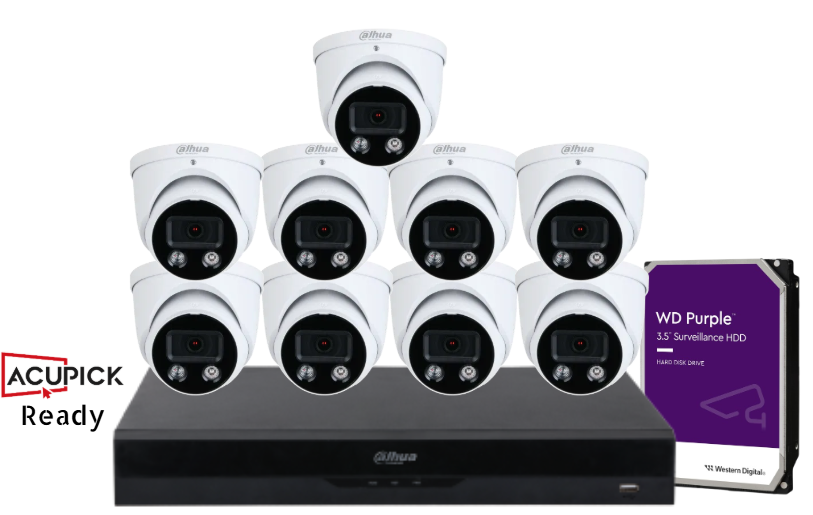

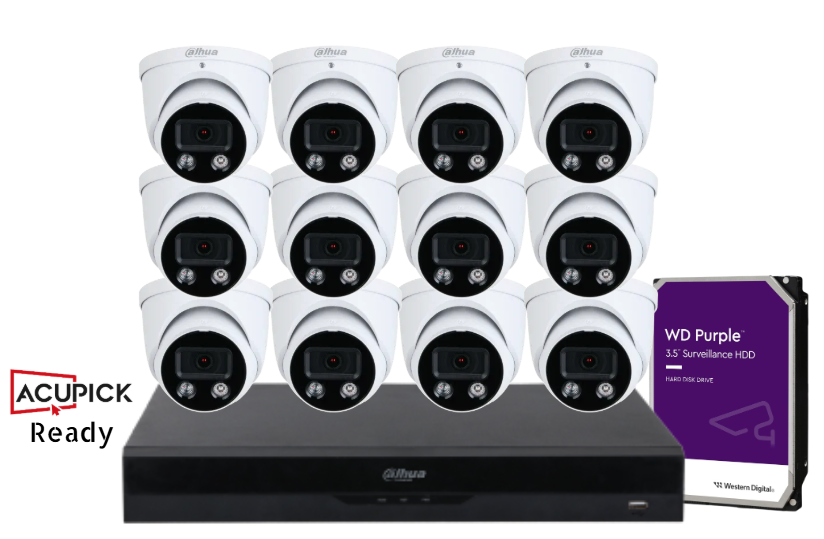

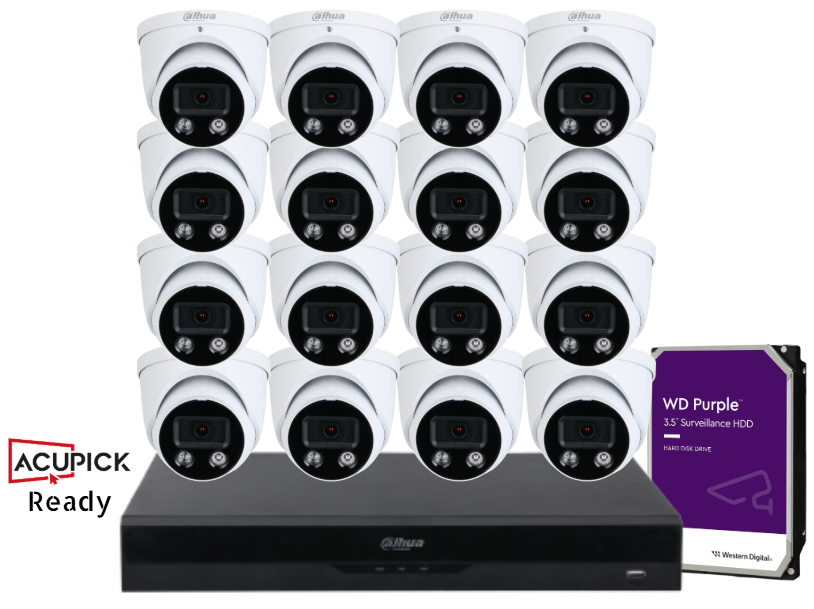

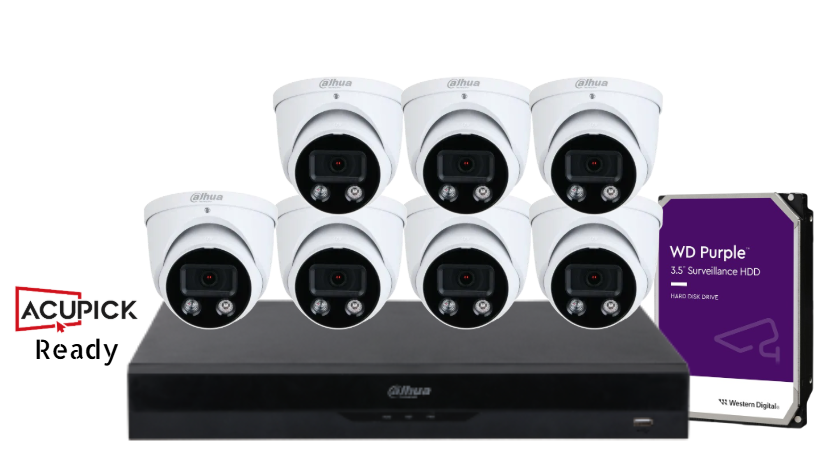

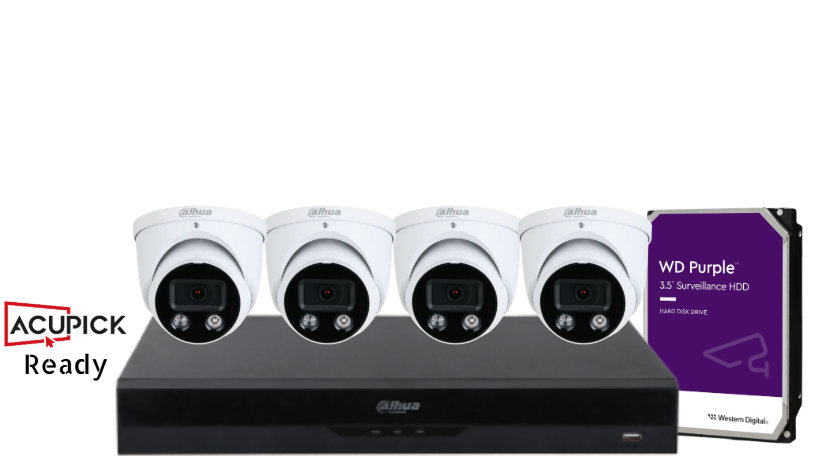

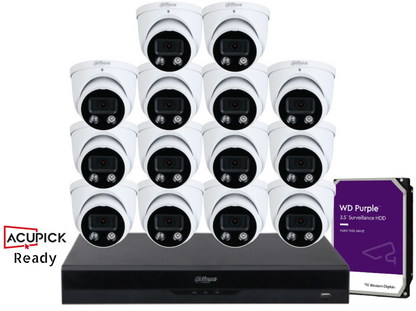

Dahua 6MP TiOC 3.0 AI AcuPick CCTV Kit – 16 Channel NVR upto x4 - x16 Cameras + HDD – Full-Color, Active Deterrence – SKU: DH-IPC-HDW3649H-AS-PV-ANZ-S2

Enhance your surveillance system with the Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2, a next-generation 6MP TiOC 3.0 IP camera with AcuPick AI search, active deterrence, and dual illumination. Paired with the Dahua NVR5216-16P-AI/ANZ, this CCTV kit supports configurations of up to 4, 8, or 16 cameras, making it ideal for scalable security deployments in residential, retail, and commercial environments.

TiOC 3.0 delivers Three-in-One Security: full-colour video, active deterrence (light + siren), and smart AI analytics including SMD 4.0, perimeter protection, and deep-learning-based AcuPick search. The camera’s 6MP CMOS sensor ensures high-resolution footage day or night, with IR and warm LED lights extending visibility up to 30m.

With AcuPick integration, users can instantly search for human or vehicle targets in live or recorded video. The system’s strong cybersecurity, smart event filtering, and 3-stream encoding provide unmatched surveillance efficiency.

What's Included in the Box

• Up to 16 × Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2 6MP TiOC 3.0 IP Cameras

• 1 × Dahua NVR5216-16P-AI/ANZ 16-Channel PoE NVR

• 1 ×Surveillance-Grade HDD (Choose your HDD below)

• Power Adapter

• USB Mouse

• Quick Start Guide

• Mounting Accessories (for each camera)

Dahua AcuPick – Intelligent Video Search Made Simple

Dahua AcuPick is an advanced AI-powered video search technology that enables users to locate people, vehicles, or animals in recorded footage with remarkable speed and accuracy. By simply clicking on a subject within recorded video, AcuPick identifies and retrieves all matching appearances across multiple camera feeds—no need to review footage manually.

Key Features:

• Instant Target Search: Reduces search time by up to 99% using intelligent image-based detection.

• One-Click Operation: Select a person, vehicle, or object in playback, and the system does the rest.

• Smart Filtering: Supports pre-search filters like motion detection, tripwires, or specific attributes like clothing color.

• Enhanced Accuracy (AcuPick 2.0): Now includes animal tracking, facial recognition support, and trajectory mapping.

• Privacy-Conscious: Uses appearance-based identification, not facial biometrics, ensuring data privacy compliance.

• Low Infrastructure Cost: Processes searches directly on compatible Dahua cameras or NVRs—no external servers required.

Ideal For:

• Retail and commercial spaces

• Security and law enforcement applications

• Property management and loss prevention

• Pet and family monitoring in residential settings

Dahua AcuPick is supported by select Dahua WizMind cameras and NVRs, offering unmatched efficiency for surveillance operations. Let me know if you'd like help choosing the best AcuPick-enabled products for your needs.

Main Features

• 6MP Resolution (3072 × 2048) at 25/30 fps – Captures rich detail in every frame.

• TiOC 3.0 (Three-in-One Camera): Active deterrence, AI detection, and full-colour video.

• Dual Illumination: IR + Warm LED for 30m night vision and deterrence lighting.

• AcuPick AI Search: Quickly identifies and tracks human/vehicle targets in footage.

• SMD 4.0 and IVS: Smart Motion Detection, tripwire, and intrusion with human/vehicle classification.

• Two-Way Audio: Built-in mic and speaker for real-time communication.

• IP67 Weatherproof and IK10 Vandal-Resistant – Built for outdoor environments.

• 3D NR, 120dB WDR, SSA: Optimized imaging even in complex lighting.

• PoE or 12V DC Powered, with low energy draw (Max: 8.8W).

Technical Specifications

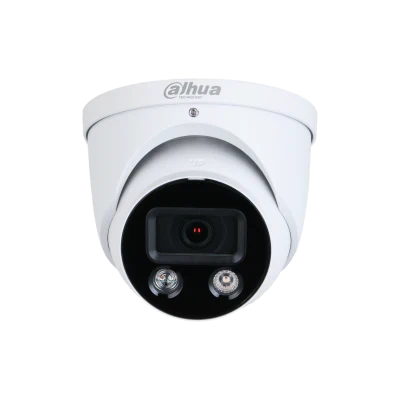

Camera – DH-IPC-HDW3649H-AS-PV-ANZ-S2

• Sensor: 1/2.7" CMOS, 6MP

• Illumination: IR & Warm Light – Up to 30m

• Aperture: F1.0 for ultra-low light performance

• Field of View:

  • 2.8mm: H 97°, V 70°, D 128°

  • 3.6mm: H 78°, V 58°, D 102°

• DORI Range (2.8mm): Detect: 66m | Identify: 6.6m

• Smart Functions: AcuPick, SMD 4.0, IVS, SSA

• Storage: MicroSD card (up to 256GB), NAS, FTP

• Smart Codecs: AI H.265/H.264, Smart H.265+, Smart H.264+

• Streams: Triple-streaming

• Power: 12V DC or PoE (Max. 8.8W)

• Build: Metal casing, IP67 weatherproof, Ø122 × 110.9 mm, 0.75 kg

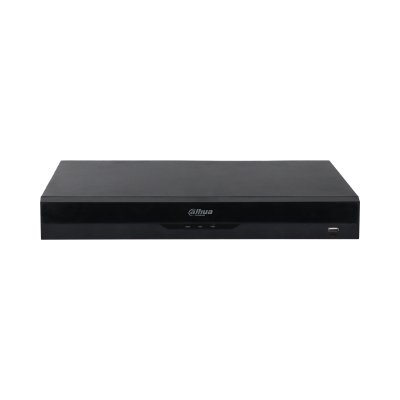

NVR – NVR5216-16P-AI/ANZ

• Channels: 16 IP inputs with 16 PoE ports

• Recording Resolution: Up to 12MP

• Decoding: AI-enabled decoding for face detection, SMD Plus, perimeter protection

• Storage: 2 × SATA ports, up to 32TB total (16TB each)

• Video Outputs: HDMI (4K) + VGA

• AI by Recorder:

  • Face detection: 2 ch

  • SMD Plus: 8 ch

  • Perimeter Protection: 4 ch

  • AcuPick AI search

• Audio I/O: 1 in, 1 out (RCA)

• ANR, Smart Playback, Heat Mapping

• PoE Power Budget: 130W total, 25.5W per port

Warranty Information

• Camera: 3-Year Manufacturer Warranty

• NVR: 3-Year Manufacturer Warranty
  Both components include access to authorized service support in Australia and New Zealand.

Brand Description

Dahua Technology is a global pioneer in intelligent video surveillance. Known for its innovations in AI and edge computing, Dahua’s TiOC and AcuPick solutions set a new benchmark in proactive monitoring, offering end-to-end protection across commercial, industrial, and residential sectors.

SKU

DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW

Practical Use Scenarios

• Commercial Retail: Monitor entrances and customer flow with alerts for unauthorized access.

• Warehouse & Logistics: Secure large perimeters with AcuPick target tracing and siren deterrence.

• Residential Homes: Two-way audio and smart lighting deter intruders and allow homeowner interaction.

• Education & Campus Security: Identify events with intelligent filtering and quick retrieval via AcuPick.

• Government Facilities: Monitor high-security zones with AI-enhanced event recognition.

Excellence for the Australian and New Zealand Market

• Fully RCM & CE Certified for electrical and safety compliance.

• NDSS-Compliant: Approved for high-integrity installations.

• Optimized Firmware for regional network environments and video formats.

• Authorized Distribution Channels: Genuine Dahua hardware sourced for ANZ.

• Warranty Managed Locally with full-service centers in Australia and New Zealand.

FAQs – Dahua DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW

Q: What makes the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW a TiOC 3.0 camera?
A: TiOC 3.0 combines three core functions: AI detection, full-colour night vision, and active deterrence (siren + lights), in one smart device.

Q: Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW support AcuPick search?
A: Yes, it works seamlessly with Dahua NVRs like NVR5216-16P-AI/ANZ to provide instant human/vehicle video search.

Q: What storage options are available for the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW system?
A: Cameras support up to 256GB microSD, and the NVR supports two HDDs up to 16TB each.

Q: Can I talk and listen remotely with the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW?
A: Yes, with its built-in microphones and speaker, real-time two-way audio is fully supported.

Q: How durable is the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW for outdoor use?
A: It’s IP67 rated for all-weather protection and built from vandal-resistant metal.

Q: What is the maximum number of supported cameras in the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW kit?
A: The system supports up to 16 IP cameras connected to the Dahua 16-channel NVR.

Q: Does the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW support ONVIF for third-party cameras?
A: Yes, it complies with ONVIF Profiles S, G, T, allowing integration with various IP cameras.

Q: Is remote access available with the DH-IPC-HDW3649H-AS-PV-ANZ-S2-TW system?
A: Yes, you can access the system remotely via Dahua DMSS mobile app or web browser.

Datasheets / Downloadable Resources

• 📄 Camera Datasheet – DH-IPC-HDW3649H-AS-PV-ANZ-S2

• 📄 NVR Datasheet – NVR5216-16P-AI/ANZ
