Dahua 6MP CCTV & Wireless Alarm Complete Home Security Kit – 4 Camera AI NVR System + Intercom & Siren Set for single storey house

Ensure full-spectrum protection for your single-storey residence with the Dahua Complete Security Kit, an advanced surveillance and alarm solution combining AI-powered 6MP cameras, a wireless alarm system, and an intuitive intercom kit—all optimized for easy installation and reliable performance. Designed for modern homes, this kit offers high-definition surveillance, smart motion detection, remote access, and instant alerts, making it ideal for safeguarding family and property 24/7.

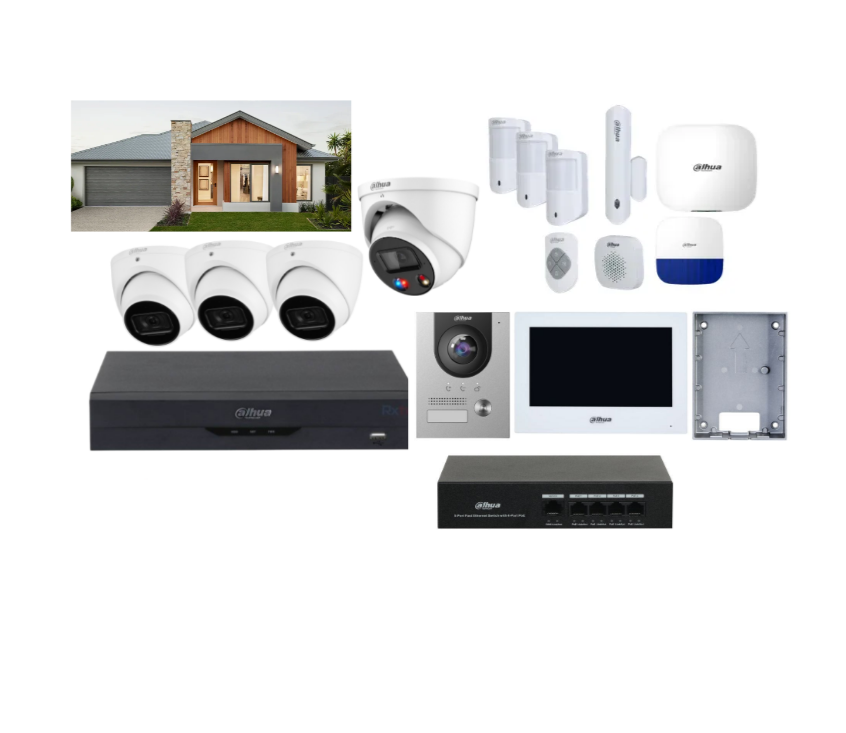

What’s Included in the Box

• 3 x Dahua 6MP Eyeball AI Cameras – Model: DH-IPC-HDW3666EMP-S-AUS

• 1 x Dahua 6MP TiOC Full-Color Camera – Model: DH-IPC-HDW3649H-AS-PV-ANZ-S2

• 1 x 4-Channel Dahua AI Network Video Recorder – Model: NVR4104HS-4P-AI/ANZ

• 1 x 2TB Surveillance Hard Drive

• 1 x Dahua Wireless Alarm Panel

• 3 x Passive Infrared Motion Sensors (DAHI9969)

• 1 x Door Reed Magnetic Contact Sensor (DAHI9986)

• 1 x 4-Button Wireless Remote (DAHI9971)

• 1 x Outdoor Siren (DAHI9960)

• 1 x Indoor Siren (DAHI9959)

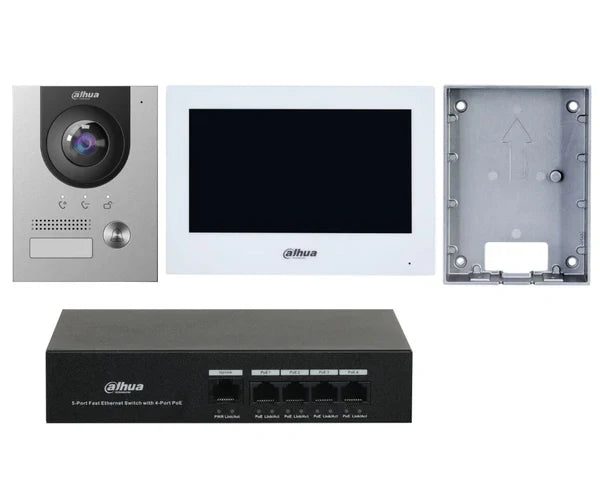

• 1 x Dahua KTP01(S) IP Video Intercom Kit with 7” Monitor and Outdoor Door Station

• 1 x 4-Port PoE Ethernet Switch

Main Features

• High-Definition AI Cameras: Crisp 6MP resolution with advanced motion detection and person/vehicle classification.

• Full-Color TiOC Camera: Built-in spotlight, red/blue strobe, and two-way audio for active deterrence.

• 8-Channel AI NVR: Supports face recognition, perimeter protection, and SMD Plus for intelligent recording.

• Wireless Alarm Kit: Intuitive control panel with PIR sensors, door reed sensor, remote key fob, and indoor/outdoor sirens.

• Smart Intercom System: 7” touch screen indoor monitor with two-way talk and remote door unlocking.

• PoE Integration: Easy plug-and-play setup for both the surveillance and intercom systems.

• Mobile App Support: Access live feeds, receive alerts, and manage security from anywhere via the DMSS app.

Detailed Specifications

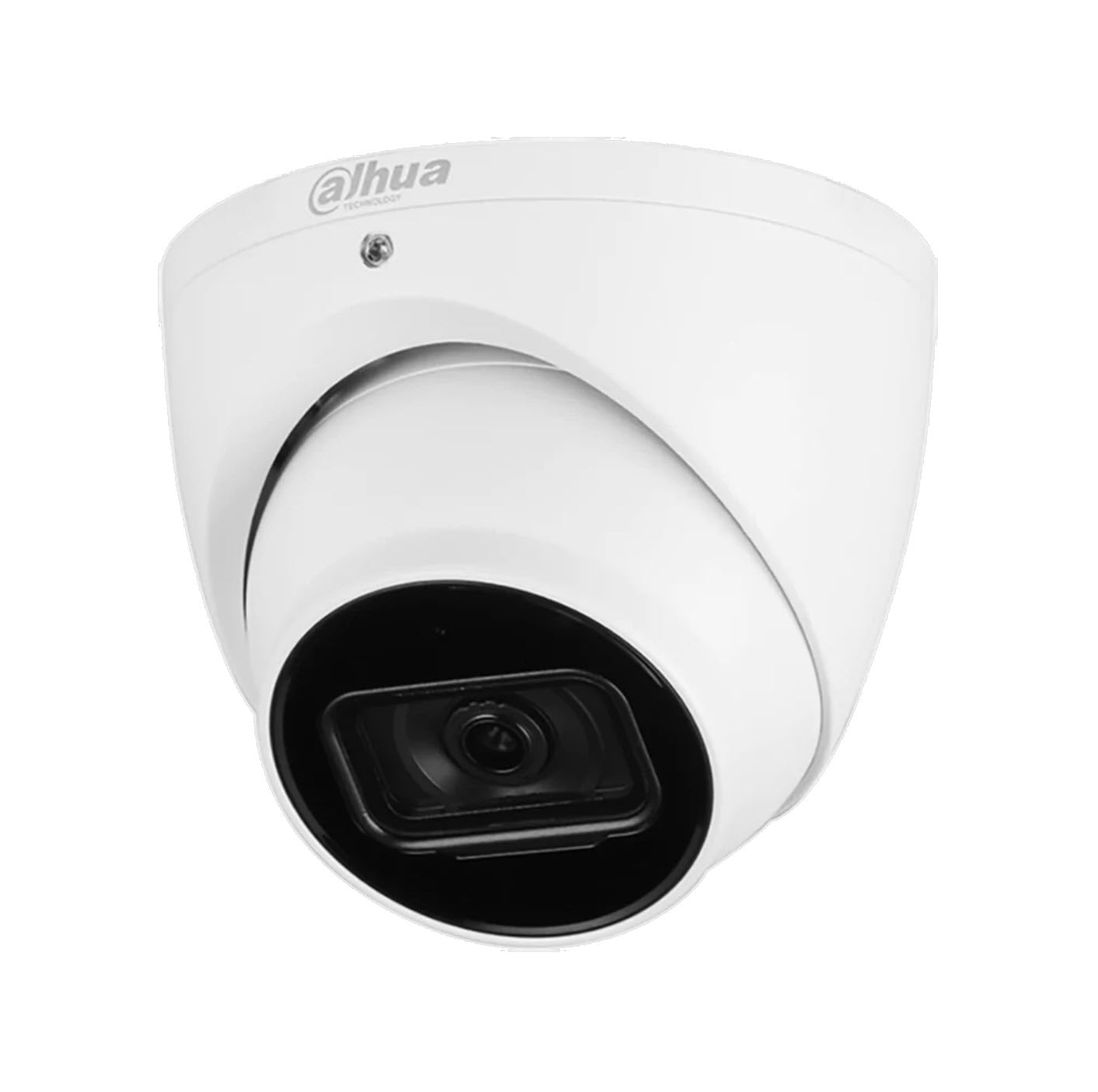

Dahua 6MP Eyeball Camera (DH-IPC-HDW3666EMP-S-AUS)

• 6MP CMOS sensor, 3072 × 2048 resolution

• Built-in Mic, IR up to 50m

• Intelligent detection: tripwire, intrusion

• SMD 4.0 and AI Scene Self-Adaptation (AI SSA)

• IP67 rated; PoE

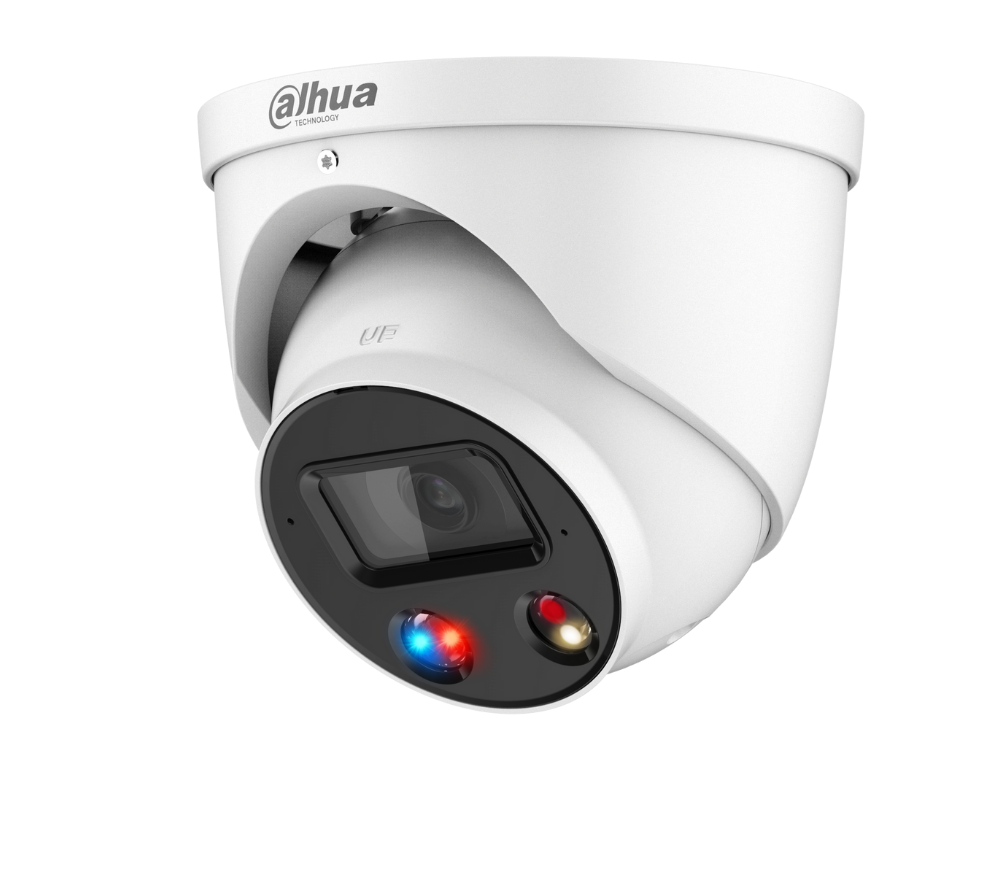

Dahua 6MP TiOC Full-Color Camera (DH-IPC-HDW3649H-AS-PV-ANZ-S2)

• Active deterrence with sound/light alarms

• Warm light and IR illumination up to 30m

• Two-way talk with built-in speaker & mic

• AI-powered SMD 4.0, perimeter protection

• IP67 rated; PoE

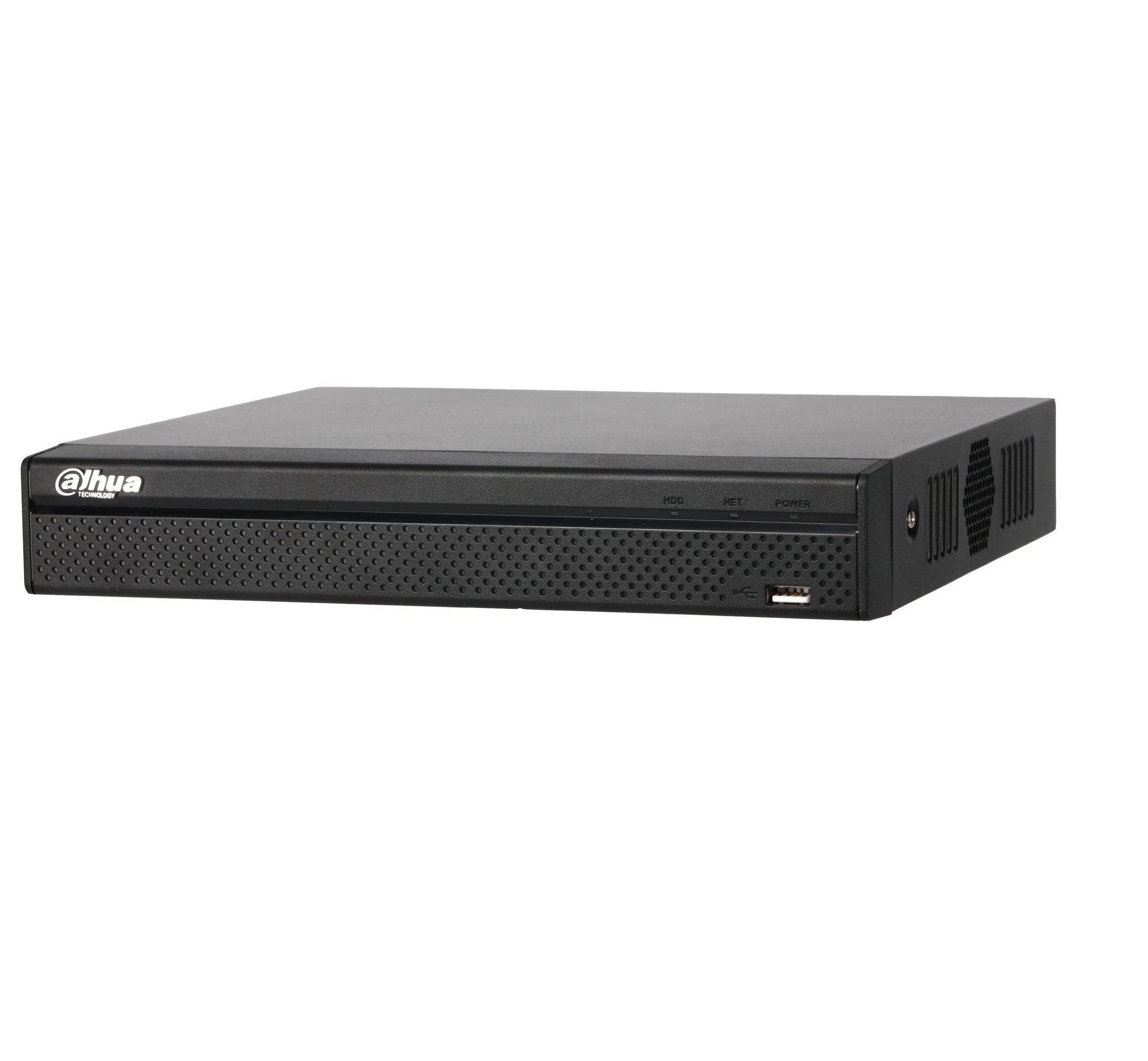

NVR4104HS-4P-AI/ANZ

• 4 PoE ports; supports 256 Mbps bandwidth

• 1HDD bay (included: 2TB HDD)

• Supports face detection, SMD Plus, ANPR, and people counting

Wireless Alarm Kit

• PIR sensors: DAHI9969

• Door reed sensor: DAHI9986

• Remote fob: DAHI9971

• Indoor siren: DAHI9959

• Outdoor siren: DAHI9960

Dahua IP Video Intercom (KTP01(S))

• Outdoor station with 2MP camera, IP65, IK07 rated

• 7" indoor monitor with 1024×600 resolution

• Built-in 8GB SD card

• Power via included 4-port PoE switch

Warranty Information

This kit is covered by a 3-year manufacturer’s warranty, handled directly through Dahua’s authorized representatives. All components are locally supported and comply with Australian standards.

About the Brand

Dahua Technology is a globally recognized leader in video surveillance and intelligent security solutions. With a commitment to cutting-edge AI, cyber security, and superior image quality, Dahua is trusted worldwide for both residential and commercial security needs.

SKU

DAH-AUS-SEC-KIT1

Practical Use Scenarios

• Single-storey homes seeking perimeter and interior protection

• Homeowners wanting active deterrence with voice, strobe, and remote access

• Elderly family homes needing intercom-based visitor management

• Pet owners wanting to avoid false alarms thanks to AI SMD

• Small offices or home businesses desiring integrated video + alarm coverage

Datasheets and Downloads

• DH-IPC-HDW3666EMP-S-AUS Datasheet

• DH-IPC-HDW3649H-AS-PV-ANZ-S2 Datasheet

• NVR4108HS-8P-AI/ANZ Datasheet

• Dahua Wireless Alarm System Overview

• KTP01(S) IP Intercom Kit Datasheet

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian security standards

• Alarm system components NDSS-approved

• Cameras and intercoms come with IP67/IP65 weather protection

• All equipment sourced exclusively via authorized Dahua ANZ distributors

• Warranty and technical support handled locally with direct brand liaison

• Designed with ANZ building layouts and installation environments in mind

FAQs – Dahua Complete Security Kit (SKU: DAH-AUS-SEC-KIT1)

Q1: Does the DAH-AUS-SEC-KIT1 support remote access and control via smartphone?
Yes, the system is fully compatible with the DMSS mobile app, allowing real-time view, playback, alarm notifications, and two-way intercom from anywhere.

Q2: Can I expand the DAH-AUS-SEC-KIT1 system later with more cameras or sensors?
Absolutely. The included 8-channel NVR allows for the addition of 4 more cameras, and the wireless alarm kit can be paired with extra PIRs or door sensors.

Q3: What power setup is required for the DAH-AUS-SEC-KIT1 kit?
All key devices are PoE-enabled, simplifying installation. The wireless alarm system runs on low-voltage power, and the included PoE switch handles most of the network devices.

Q4: Is the DAH-AUS-SEC-KIT1 weatherproof for outdoor installation?
Yes. Both camera types are IP67-rated, and the intercom’s outdoor station is IP65 and IK07-rated, ideal for all weather conditions in Australia and NZ.

Q5: Will the DAH-AUS-SEC-KIT1 system still record if the internet goes down?
Yes, the NVR records locally to the included 2TB hard drive, ensuring uninterrupted footage even without internet access.
