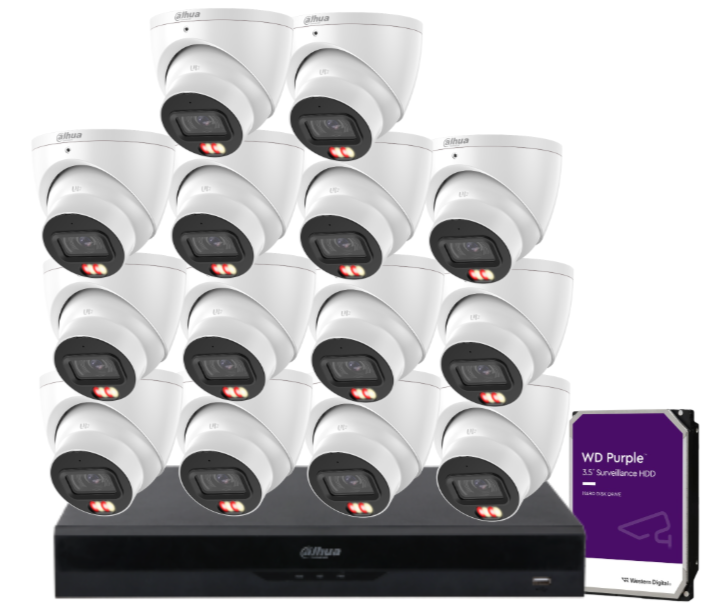

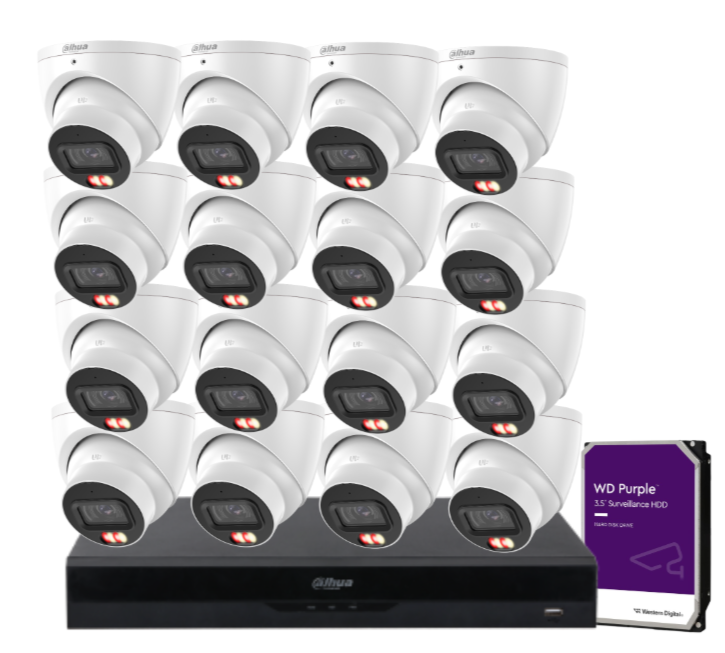

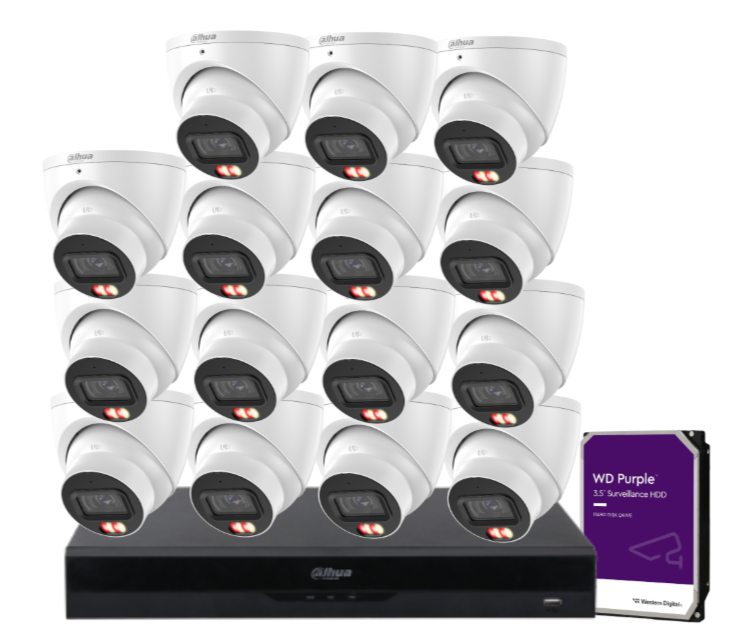

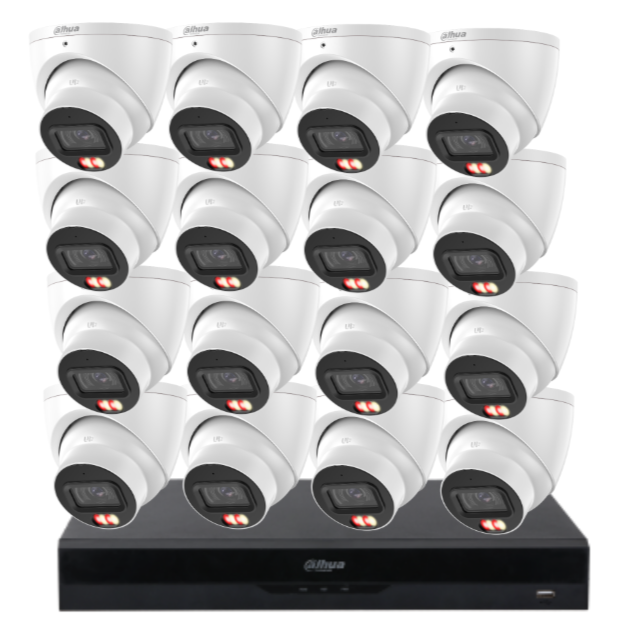

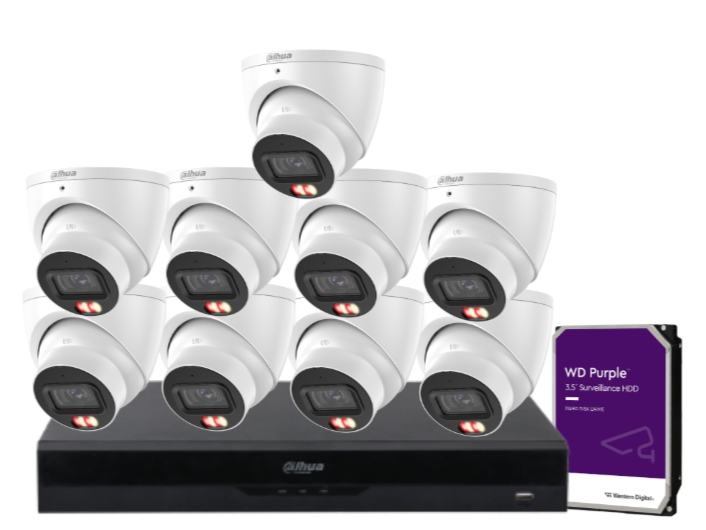

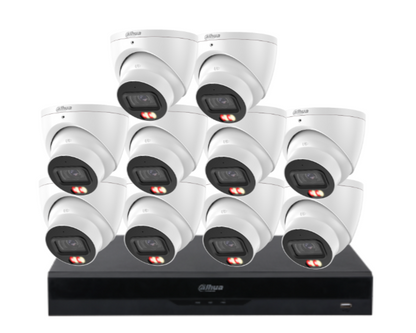

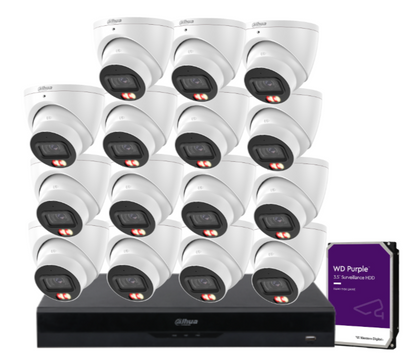

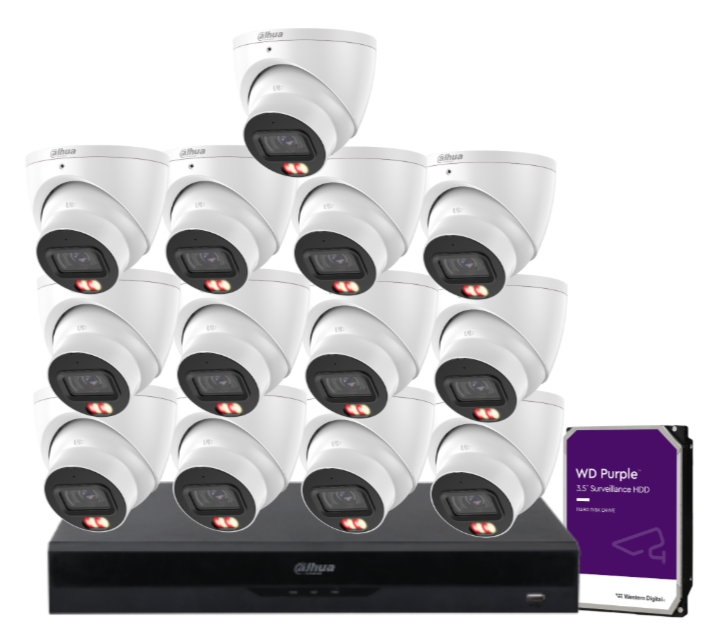

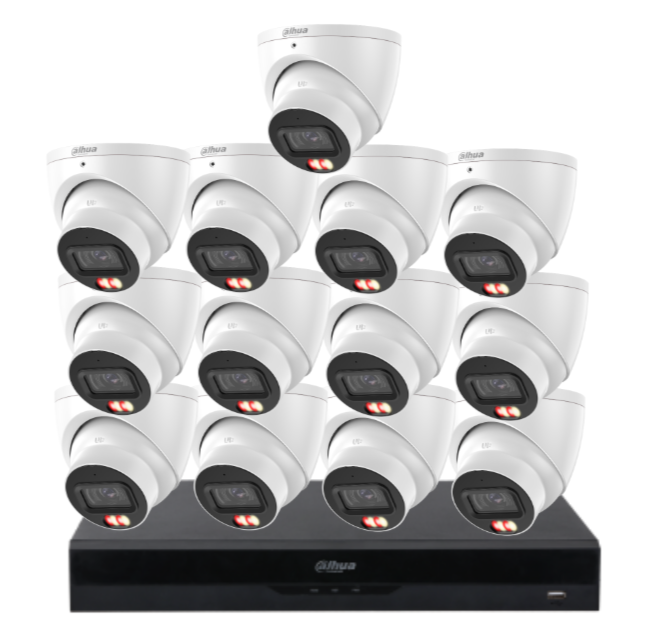

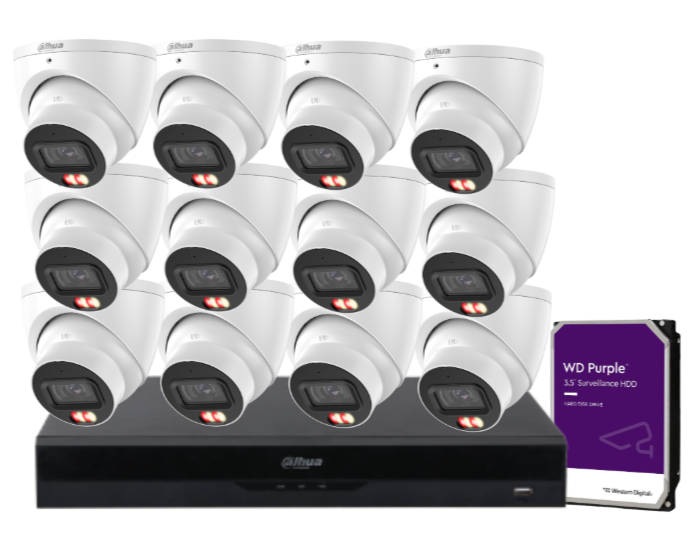

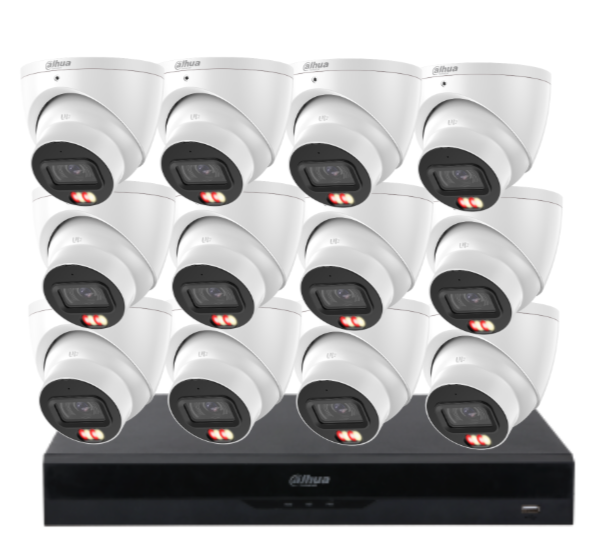

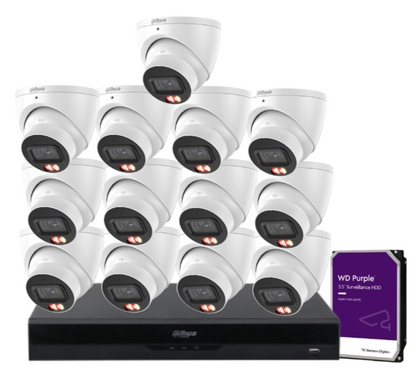

Dahua 16-Camera 6MP CCTV Kit with 16-Channel AI PoE NVR & Dual HDD Support | IPC-HDW3667EM-S-IL-ANZ-TW-1 + NVR4216-16P-AI/ANZ | Premium Smart Surveillance for AU/NZ

Secure your property with the latest in intelligent video surveillance using the Dahua 16-Camera 6MP AI CCTV Kit, featuring 16 x IPC-HDW3667EM-S-IL-ANZ-TW-1 Eyeball WizSense Cameras and the powerful Dahua NVR4216-16P-AI/ANZ 16-Channel AI PoE Network Video Recorder with dual HDD bays. This enterprise-grade solution is tailored for commercial, industrial, educational, and high-end residential applications across Australia and New Zealand.

With 6MP resolution, dual IR and warm-light LEDs, and AcuPick AI technology, the included cameras deliver crystal-clear footage in all lighting conditions. The NVR supports real-time AI analytics like facial recognition, perimeter protection, heat mapping, and license plate recognition, making it an ideal choice for sites that demand reliable and scalable security with future-proof technology.

What’s Included in the Box

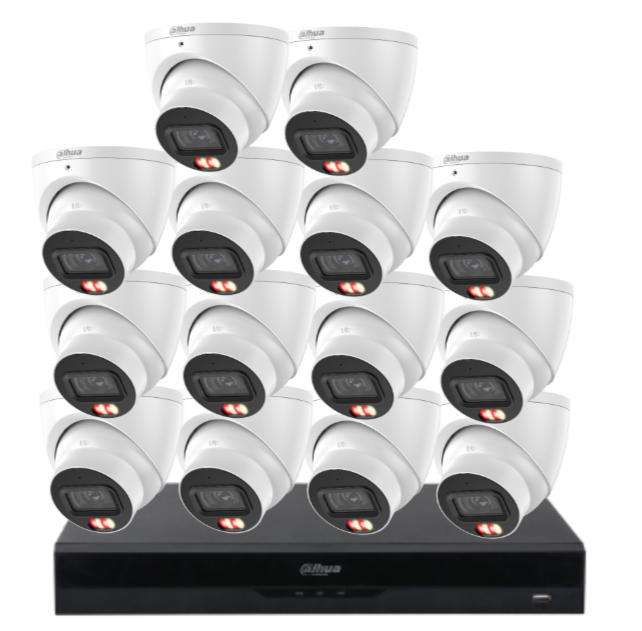

• 16 × Dahua IPC‑HDW3667EM‑S‑IL‑ANZ-TW-1 6MP WizSense Eyeball Cameras

• 1 × Dahua NVR4216-16P-AI/ANZ 16-Channel PoE AI Network Video Recorder

• 1 × Surveillance HDD (Choose your HDD below)

• 16 × Mounting Templates, Screws & Anchors

• 16 × Power Supply Brackets / Covers

• 1 × Power Adapter & Cable

• 1 × USB Mouse

Quick Start Guides for Cameras and NVR

Main Features

IPC-HDW3667EM-S-IL-ANZ-TW-1 Cameras:

• 6MP (3288×1850) resolution @30fps

• Dual lighting (IR + warm light) up to 30m for full-color night vision

• SMD 4.0 & AcuPick: AI-driven human/vehicle classification

• Built-in microphone & Micro SD support (512 GB max)

• Smart compression (H.265+/H.264+)

• Weatherproof IP67-rated casing

• PoE or 12VDC operation

NVR4216-16P-AI/ANZ Recorder:

• 16 PoE Ports for plug-and-play camera connection

• Dual HDD bays (up to 20TB total)

• 256 Mbps input bandwidth; 16 × 1080p decoding

• Built-in AI: face recognition (1 ch), perimeter protection (2 ch), SMD Plus (4 ch)

• AI via cameras: up to 8 ch face recognition, ANPR, heat maps, people counting

• Advanced Smart H.265+/H.264+ compression

• Dahua Quick Pick support for rapid search and event filtering

Detailed Specifications

Cameras:

• Lens: 2.8 mm (110°) / 3.6 mm (86°), F1.4

• Image Sensor: 1/2.7" CMOS

• IR/White Light Range: Up to 30 m

• DORI (2.8 mm): Detect: 84.8 m | Identify: 8.5 m

• Environmental: –40 °C to +60 °C, ≤95% RH

• Dimensions: Ø122 mm × 105.5 mm | Weight: 0.53 kg

Recorder:

• Processor: Embedded industrial-grade

• OS: Embedded Linux

• Decoding: AI Disabled: 16 × 1080p | AI Enabled: 12 × 1080p

• Outputs: 1 × HDMI (4K), 1 × VGA

• I/O: 2 × USB 2.0, 16 × PoE, 4 × Alarm In, 2 × Alarm Out

• Power: 100–240V AC, 130W PoE Budget

• Dimensions: 375 × 329.3 × 53 mm | Net Weight: 2.6 kg

Warranty Information

• 3-Year Manufacturer Warranty (NVR and all cameras)

• Full local support and servicing through authorized Dahua ANZ service centers

Brand Description

Dahua Technology is a global leader in AI-enhanced video security solutions, offering intuitive and highly intelligent systems under its WizSense lineup. Known for reliability, clarity, and innovation, Dahua products are trusted by businesses and governments across over 180 countries.

SKU

IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH

Practical Use Scenarios

• Commercial Campuses & Offices: AI-driven facial recognition for secure access and incident tracking

• Warehouses & Logistics: Wide coverage with SMD alerts and LPR support for vehicle tracking

• Retail Environments: Heat maps and people counting for security and marketing insights

• Hospitals & Schools: Monitor safety zones and entrances with reliable, AI-based perimeter protection

• Smart Cities & Public Surveillance: High-density IP67 cameras with central AI processing for quick response

Datasheets & Resources

• Camera Datasheet: IPC-HDW3667EM-S-IL-ANZ

• NVR Datasheet: NVR4216-16P-AI/ANZ

Excellence for the Australian and New Zealand Market

✅ Fully certified for RCM, CE-LVD, and CE-EMC compliance
✅ Supports NDSS-grade security and local firmware requirements
✅ Optimized for AU/NZ networks with compatible CMS/VMS platforms
✅ Distributed exclusively by authorized Dahua partners in AU/NZ
✅ Warranty, servicing, and tech support handled locally

Frequently Asked Questions (FAQs)

What resolution and frame rate do the cameras in IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH offer?
Each camera delivers 6MP resolution (3288×1850) at up to 30fps.

Can the IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH system operate using only Ethernet cables?
Yes, the NVR features 16 PoE ports that supply both power and data over a single Ethernet cable per camera.

Does IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH offer full-color night vision?
Yes, cameras are equipped with IR and warm-light LEDs (30 m range) for full-color visibility in complete darkness.

What is the total recording storage available in IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH?
The NVR supports up to 20TB (2 × 10TB HDDs); each camera also supports 512 GB Micro SD storage for edge recording.

Does IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH support AI analytics like face and vehicle detection?
Yes. It includes built-in and camera-based AI functions such as facial recognition, SMD Plus, ANPR, perimeter alerts, and people counting.

Can IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH work with third-party IP cameras?
Yes, the NVR supports ONVIF-compliant third-party devices.

Is the NVR4216-16P-AI/ANZ indoor or outdoor rated?
It is intended for indoor installation, but fully supports outdoor-rated cameras like the IPC-HDW3667EM-S-IL-ANZ-TW-1.

Which mobile app works with IPC-HDW3667EM-S-IL-ANZ-TW-1-KIT-16CH?
The system is compatible with the Dahua DMSS App for remote live viewing, playback, AI search, and real-time notifications.
