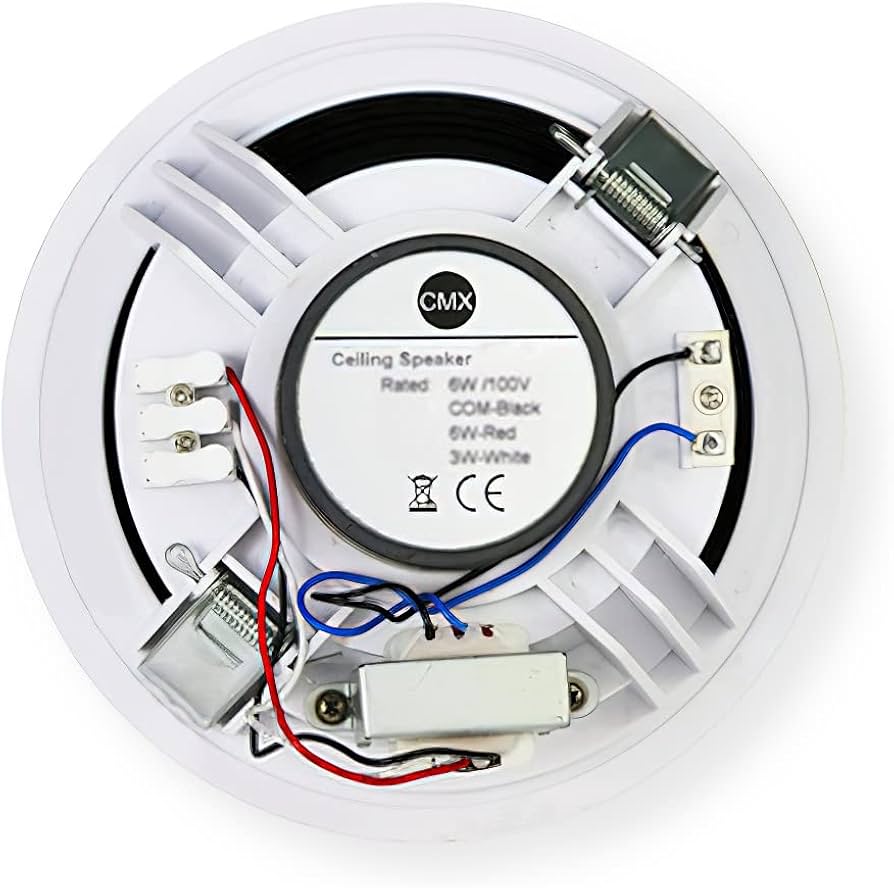

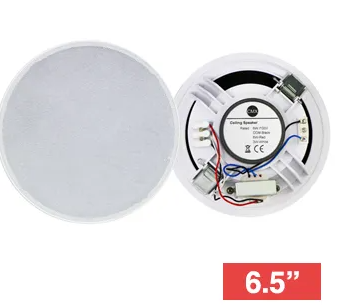

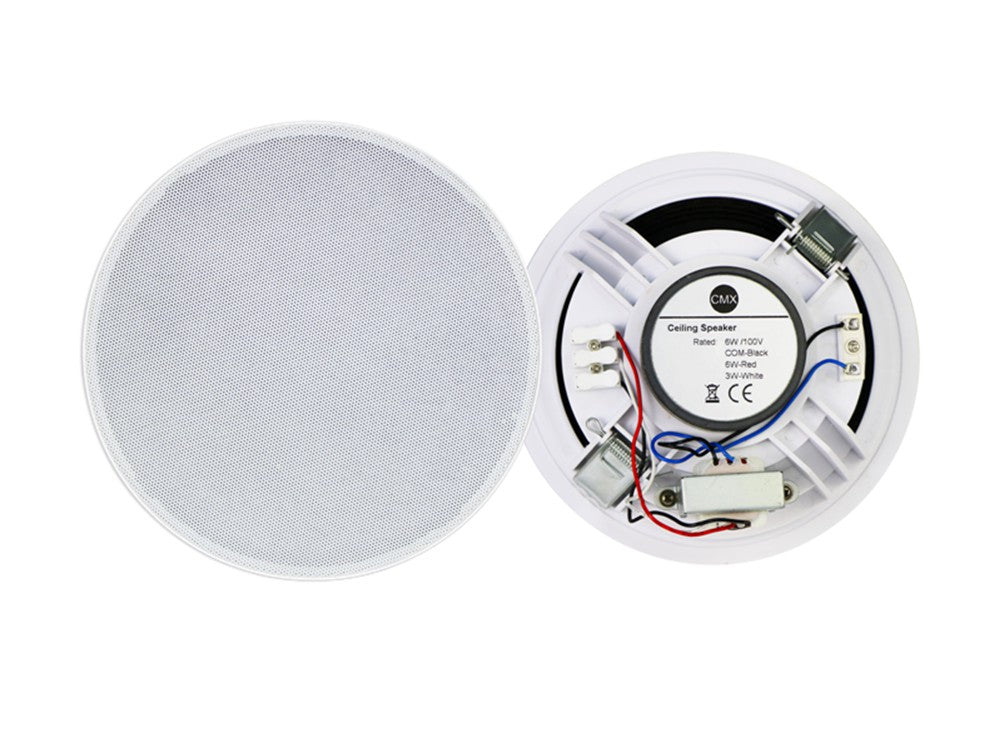

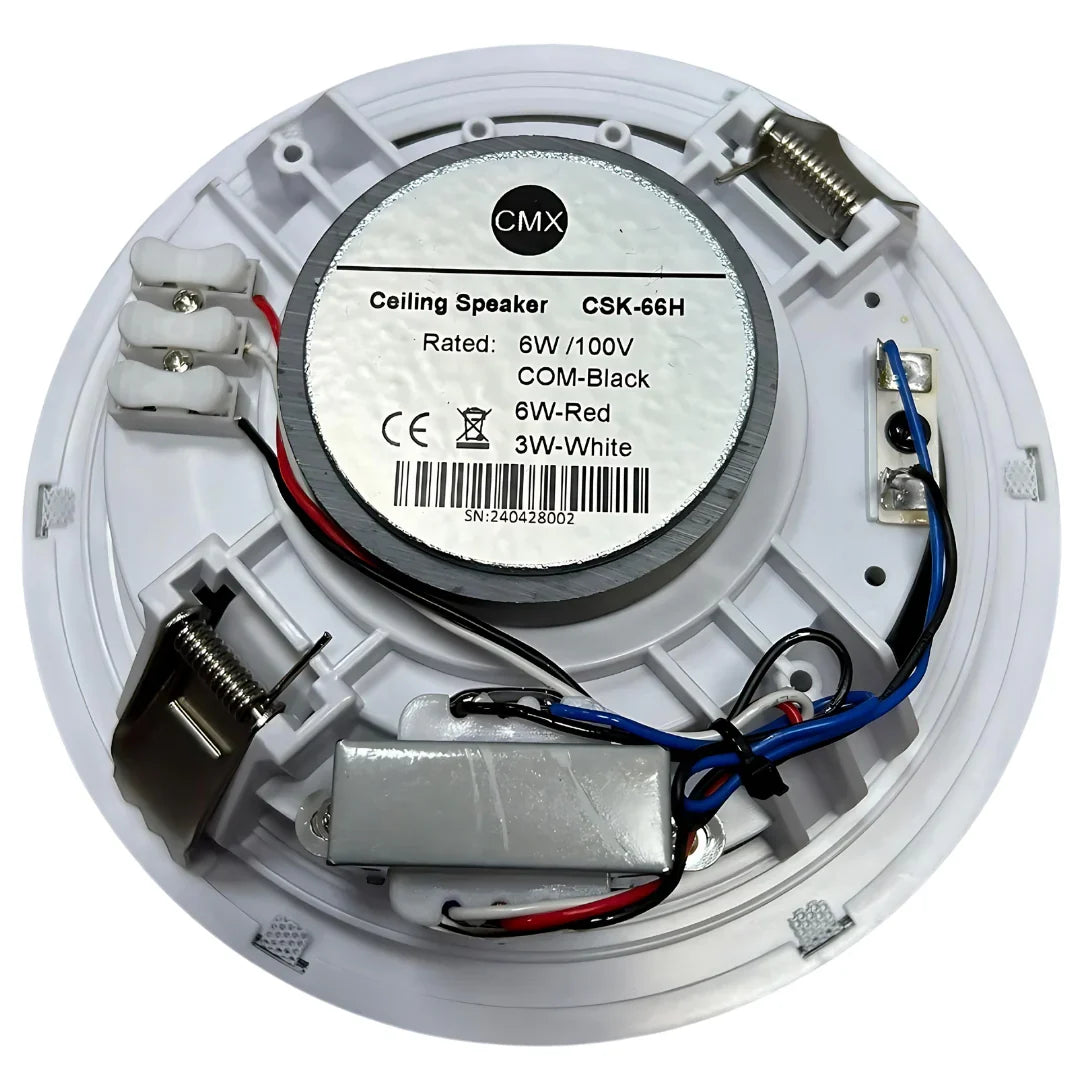

CMX CSK-66H Slim 6.5" Frameless Dual Cone Ceiling Speaker – 100V Line, 6W | CSK-66H

The CMX CSK-66H is a compact, frameless 6.5" ceiling-mounted dual cone speaker designed for efficient and elegant audio distribution in commercial environments. With a slim, unobtrusive profile and powerful full-range sound delivery, this speaker is ideal for background music and public address (PA) systems in offices, schools, hotels, retail spaces, and airports.

Featuring a 6.5” full-range paper cone driver and white metal grille, the CSK-66H ensures clear and consistent sound reproduction. Its integrated 100V transformer allows for flexible power tap selection (3W or 6W), making it suitable for both large and small distributed audio setups. The spring-clamp mounting system ensures quick and secure installation into ceiling cutouts with minimal effort.

What's Included in the Box

• 1 x CMX CSK-66H 6.5” Frameless Ceiling Speaker

• Pre-attached Spring Clamp Mounts

• Integrated 100V Line Transformer

• White Metal Grille

• User Installation Guide

Main Features

• Slim, frameless 6.5” ceiling speaker with clean, modern aesthetics

• Dual power taps: 3W / 6W @ 100V line

• 6.5” full-range paper cone for balanced audio delivery

• Spring-clamp mounting for easy in-ceiling installation

• Frequency response of 100Hz – 15kHz

• High SPL of 93±3dB for enhanced clarity

• Ideal for background music and PA applications

• ABS enclosure with metal grille in white finish

Detailed Specifications

Warranty Information

The CMX CSK-66H comes with a 12-month warranty, covering manufacturing defects under normal usage. All warranty claims are handled through authorized distributors for prompt and professional service.

Brand Description

CMX Audio is a professional audio solutions manufacturer known for delivering high-performance products for commercial and public environments. Their extensive range of speakers and PA systems is designed to meet the rigorous demands of modern installations with superior durability and acoustic quality.

Practical Use Scenarios

• Background music systems in cafes, shops, and restaurants

• Paging and announcement systems in schools and offices

• Commercial installations in hotels, conference rooms, and airports

• Distributed audio for public areas in retail and transportation hubs

Datasheets & Downloads

• CMX CSK-66H Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The CMX CSK-66H is selected and sourced with attention to the specific needs of the Australian and New Zealand commercial sectors. Its high-performance design meets regional compliance standards for public address systems and is backed by locally supported warranty service. This speaker is exclusively supplied through authorized distributors, ensuring authenticity and full technical support.

Frequently Asked Questions (FAQs)

Q1: What is the power rating of the CSK-66H speaker?
A1: The CMX CSK-66H supports 3W and 6W power taps on a 100V line system. (Product Code: CSK-66H)

Q2: What is the cutout size required for installation?
A2: A circular cutout of Ø165mm is required for mounting. (Product Code: CSK-66H)

Q3: Is this speaker suitable for background music in commercial spaces?
A3: Yes, it is ideal for delivering clear background audio in offices, shops, hotels, and similar settings. (Product Code: CSK-66H)

Q4: What materials are used in the CSK-66H speaker?
A4: The speaker features a durable ABS enclosure and a white metal grille for long-lasting performance. (Product Code: CSK-66H)

Q5: Is this speaker compatible with 8 Ohm audio systems?
A5: No, the CSK-66H is designed specifically for 100V line systems. (Product Code: CSK-66H)
