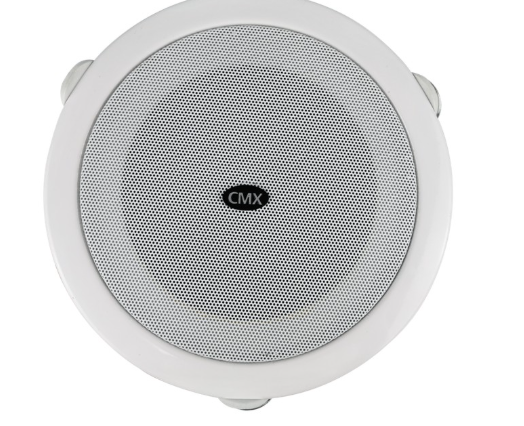

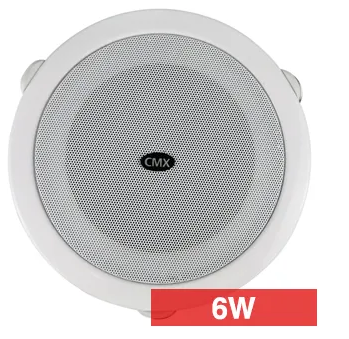

CMX CSK-46W 4" Quick Fit Ceiling Speaker – 100V Line, Dual Cone, Metal Grille, 6W

The CMX CSK-46W is a compact and efficient 4-inch dual-cone ceiling speaker designed for commercial background music (BGM) and public address (PA) systems. Engineered for ease of installation and superior sound clarity, this speaker features a 6W output with selectable 3W and 6W taps for 100V line systems. Its durable metal grille and white finish blend seamlessly into modern architectural environments such as schools, offices, hotels, and airports.

The spring-clamp mounting system allows for quick, secure installation without the need for additional brackets or supports. Built with a full-range paper driver, the CSK-46W delivers consistent and reliable audio performance for speech and music applications.

What's Included in the Box

• 1 x CMX CSK-46W 4" Ceiling Speaker

• 1 x White Metal Grille (pre-fitted)

• Integrated Spring Clamp Mounting System

• User Installation Guide

Main Features

• Compact 4” (100mm) full-range ceiling speaker

• Dual cone design for enhanced sound clarity

• 100V line transformer with 3W and 6W tap settings

• Quick-fit spring clamp system for easy ceiling mounting

• Full metal housing with white powder-coated grille

• Ideal for commercial BGM and paging systems

• Designed to match spotlight aesthetics in architectural layouts

Detailed Specifications

Warranty Information

All CMX audio products are covered under a 12-month manufacturer’s warranty, which ensures coverage for defects in materials and workmanship under normal operating conditions.

Brand Description

CMX Audio specializes in professional public address and background music solutions for commercial and industrial applications. Known for durability and clarity, CMX products are installed in schools, airports, corporate facilities, and hospitality venues worldwide.

Practical Use Scenarios

• Background music systems in office buildings

• Paging systems in educational institutions

• Announcement speakers in hotel corridors

• PA installations in airports and transit hubs

• Music playback in retail or commercial spaces

Datasheets & Resources

• Product Datasheet – CMX CSK-46W

Excellence for the Australian and New Zealand Market

The CMX CSK-46W is fully optimized for commercial environments across Australia and New Zealand. Designed with high safety and durability standards, it is suitable for installations requiring reliable 100V line audio performance. Sourced through authorized distributors, it includes full warranty coverage and compliance with regional specifications for professional AV hardware.

Frequently Asked Questions (FAQs)

Q1: What is the power tap configuration of the CSK-46W?
A1: The CSK-46W supports 3W and 6W power taps at 100V line input. (Product Code: CSK-46W)

Q2: How is the CSK-46W mounted to the ceiling?
A2: It uses a quick-fit spring clamp system for fast, tool-free ceiling installation. (Product Code: CSK-46W)

Q3: Is this speaker suitable for use in hotel and office environments?
A3: Yes, it is ideal for BGM and PA systems in hotels, offices, schools, and airports. (Product Code: CSK-46W)

Q4: Does the speaker support 70V systems as well?
A4: Yes, the CSK-46W is compatible with both 70V and 100V line systems. (Product Code: CSK-46W)

Q5: What materials are used for the enclosure and grille?
A5: The speaker features a white metal enclosure and grille for durability and aesthetic integration. (Product Code: CSK-46W)
