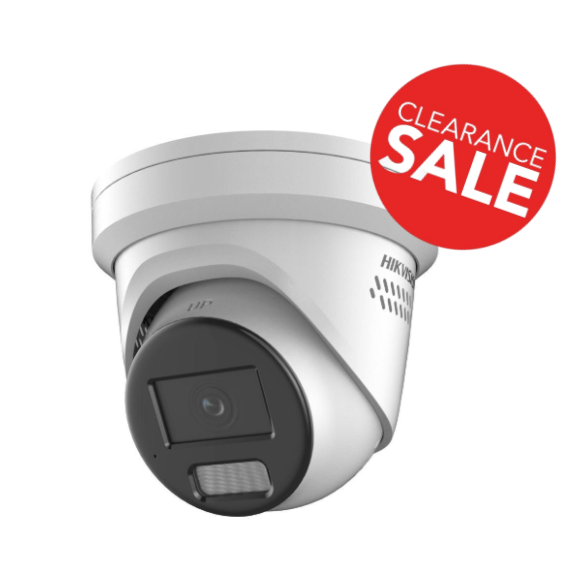

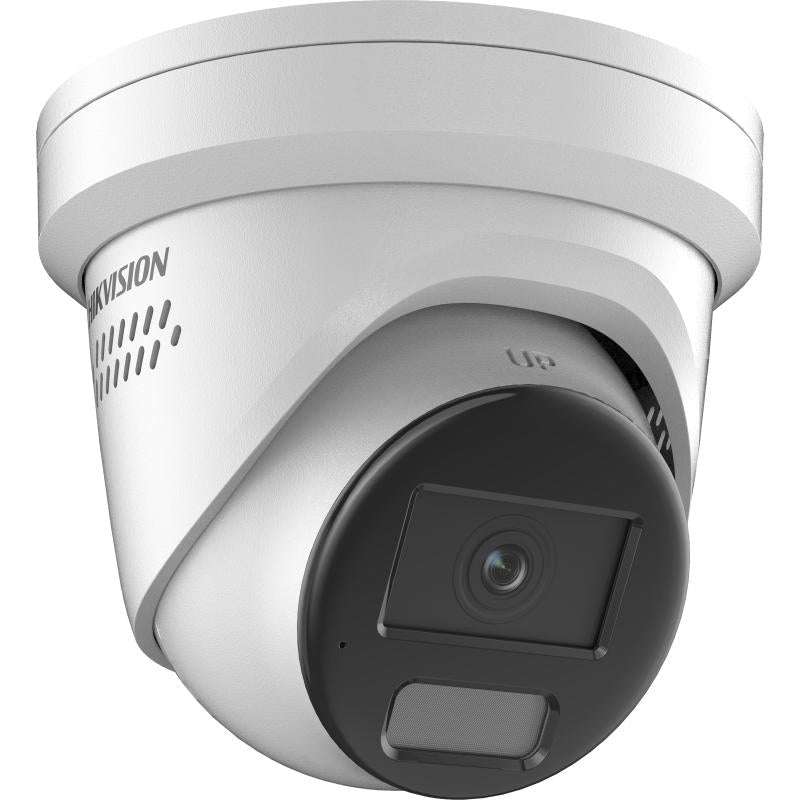

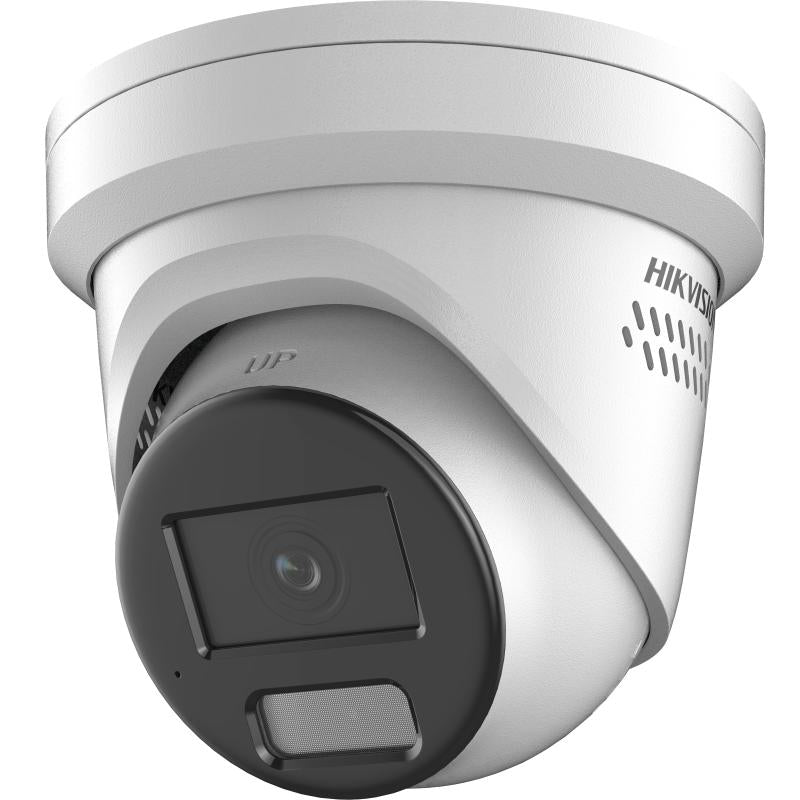

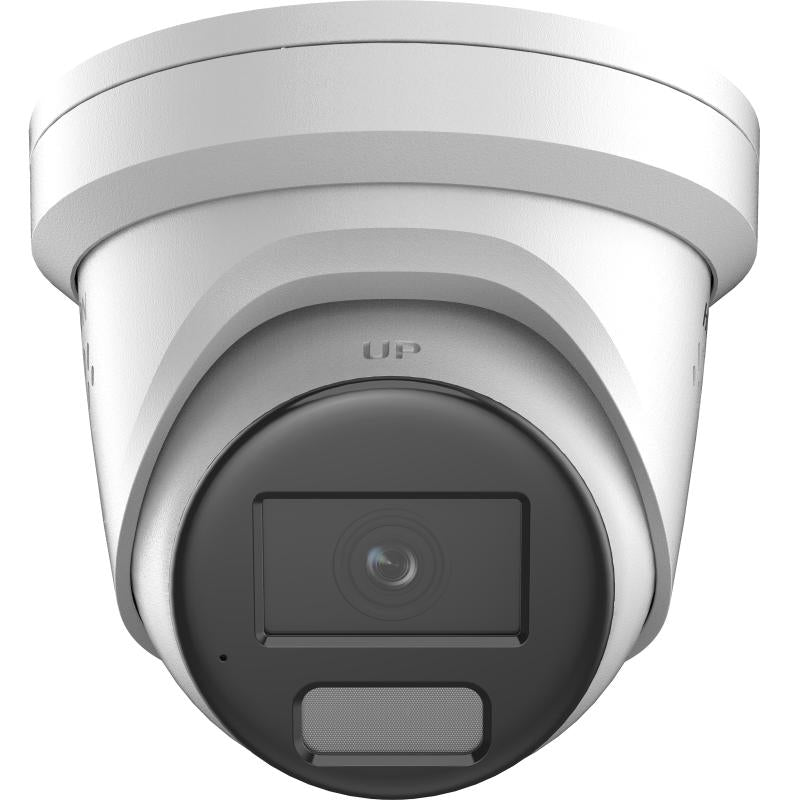

*Clearance Hikvision DS-2CD2367G2H-LISU/SL 6MP Smart Hybrid Light with ColorVu Fixed Turret Network CCTV Camera

The DS-2CD2367G2H-LISU/SL 6 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera is a high-performance surveillance camera offering superior clarity and advanced monitoring features designed for both indoor and outdoor security needs. This 6 MP ColorVu turret camera combines intelligent imaging technology, robust durability, and extensive connectivity options to enhance security in challenging lighting and environmental conditions.

Key Features

• High-Resolution Imaging: Delivers clear 6 MP resolution (3200 × 1800) with ColorVu technology, ensuring vivid color images even in low-light environments (0.0005 Lux sensitivity).
• Smart Hybrid Light: Integrates both IR and white light illuminators with a 30-meter range, adapting automatically based on ambient light for optimal visibility.
• Wide Dynamic Range (WDR): Advanced 130 dB WDR technology provides detailed imaging even under challenging backlight scenarios.
• Deep Learning Algorithms: Enhanced human and vehicle classification for accurate and efficient monitoring, reducing false alarms.
• Real-Time Security: Equipped with two-way audio for live communication and an active strobe light and alarm system to deter intruders.
• On-Board Storage: Supports microSD cards up to 512 GB for local storage, with NAS compatibility for extended recording capabilities.
• Durable Design: IP67-rated water and dust resistance and a sturdy metal casing for reliable performance in extreme temperatures from -30 °C to 60 °C (-22 °F to 140 °F).

Camera Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Lens Options: Fixed focal lengths of 2.8 mm (108.8° FOV) and 4 mm (93.3° FOV) available, with M16 lens mount.
• Shutter Speed: 1/3 s to 1/100,000 s
• Supplemental Light: IR and white light with a range of up to 30 meters, optimized by smart light control.

Video and Audio

• Video Compression: Supports H.265+, H.265, H.264+, and H.264 to maximize storage efficiency with bit rates between 32 Kbps and 16 Mbps.
• Streaming Capabilities: Offers up to three concurrent video streams with scalable video coding for efficient bandwidth use.
• Audio: Built-in microphone and speaker with noise filtering, supporting formats such as G.711, MP3, and AAC-LC.

Connectivity and Network

• Network Protocols: TCP/IP, HTTPS, FTP, RTSP, and more, supporting up to 32 users with multi-level access control.
• Compatibility: Integrates with iVMS-4200, Hik-Connect, and various web browsers (Chrome, Firefox, Edge).
• Security Features: Includes HTTPS encryption, IP filtering, 802.1X authentication, and complex password protection.

Additional Features

• Event Detection: Motion, video tampering, and scene change detection, with custom alerts for human and vehicle activity.
• Perimeter Protection: Line crossing, intrusion, region entry/exit detection, with precise alarm triggering based on target types.
• Privacy Masking: Supports four configurable privacy masks.

Power and Installation

• Power Options: Supports both 12 VDC and PoE (802.3af), with a maximum power consumption of 10.5 W.
• Dimensions: 138.3 mm × 115.4 mm, with a total weight of 820 g (1.8 lbs).

Box Contents

• Included in the Box: DS-2CD2367G2H-LISU/SL camera, mounting hardware, installation guide, and warranty documentation.

Warranty

• Warranty: 3-year limited warranty

The DS-2CD2367G2H-LISU/SL is ideal for high-security installations requiring reliable, high-quality surveillance in diverse lighting conditions, and it is perfect for property perimeter monitoring, building entry points, and public spaces.
