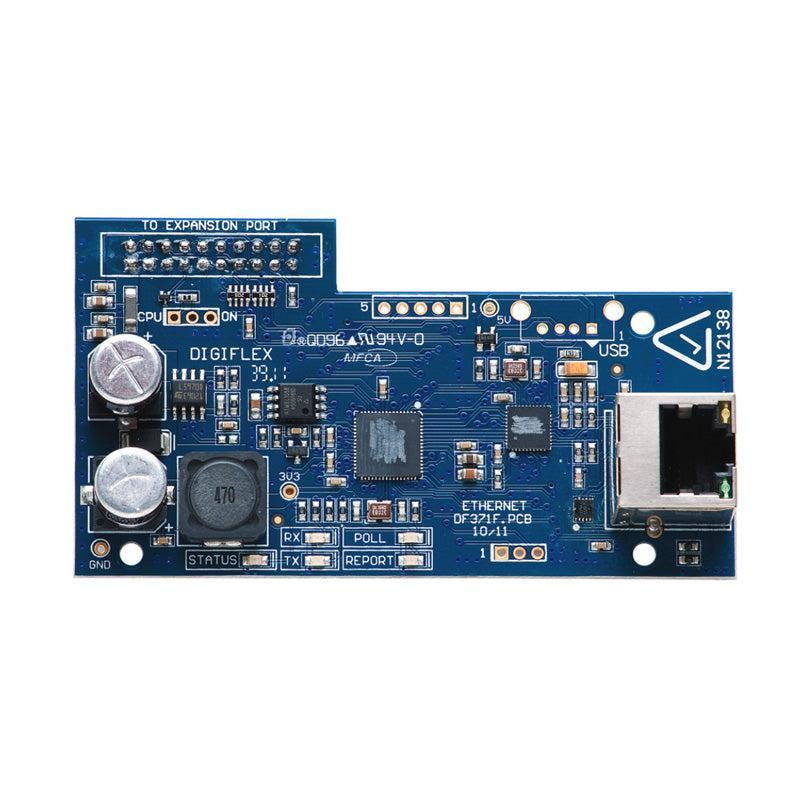

Bosch Solution Conettix IP Ethernet Module CM751B to Suit Solution 6000

The Bosch CM751B Solution Conettix IP Ethernet Module is a secure, cost-effective solution for upgrading alarm signal transmission from traditional PSTN lines to high-speed IP networks. This module provides a reliable, supervised alarm communication path over an existing LAN or WAN, utilizing secure 128-bit AES encryption. Designed to integrate seamlessly with Bosch’s Solution 16i and 144 control panels, the CM751B minimizes bandwidth usage while offering high-speed, cost-saving communication by eliminating the need for separate phone lines or dial-up costs.

Key Features

• High Security and Encryption: With 128-bit AES encryption and advanced authentication, the CM751B ensures secure data transmission, suitable for high-security applications.
• Flexible IP Connectivity: Supports both dynamic and fixed IP addresses and includes Conettix and CSV-IP reporting formats for versatile alarm signal communication.
• Remote Management: Enables remote upload/download, control of outputs, and area management over LAN/WAN, making it easy to operate the security system from afar.
• Efficient Data Transmission: Optimized for low bandwidth consumption while providing high-speed data transfer for alarm reporting and control panel configuration.
• User-Friendly Installation: Includes visual indicators for LAN connection status and activity, simplifying setup and troubleshooting.

Technical Specifications

• Power Requirements: Draws 60mA from the control panel's 12V accessory power.
• Network Interface: RJ45 Ethernet port supporting 10base-T and 100base-TX connections.
• Protocols Supported: RP, UDP/IP, TCP/IP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, Auto IP, SMTP, HTTP.
• Module Connection: Connects to the control panel’s expansion port using three PCB standoffs. Compatible with CM101B Voice Module via included HW750 Riser Kit.
• Operating Conditions: 0°C to 55°C, humidity up to 85% (non-condensing).
• Dimensions: 93 mm (W) x 52 mm (D) x 30 mm (H).

Certifications and Approvals

• C-tick: Supplier Code N12138
• CE Compliance: EN 55022:2010, EN 60950-1:2001
• Telepermit: PTC 211/12/017

In the Box

• CM751B Solution Conettix IP Ethernet Module
• HW750 Riser Kit for dual installation with CM101B Voice Module
• Installation Guide

Warranty

The Bosch CM751B IP Ethernet Module comes with a 3-year manufacturer’s warranty, covering any potential defects in materials or workmanship.

The CM751B Solution Conettix IP Ethernet Module is ideal for users seeking a robust, secure, and cost-effective IP solution for high-security alarm systems, offering flexibility and enhanced management capabilities on existing IP networks.
