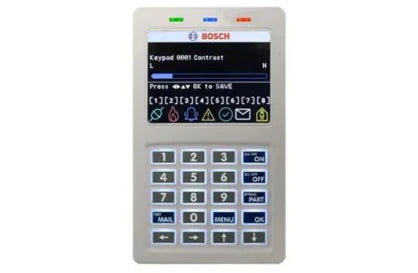

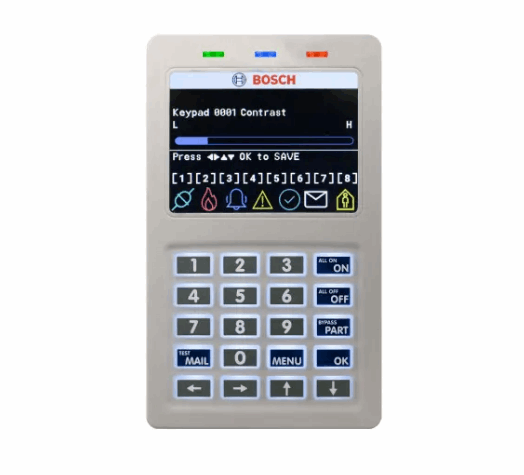

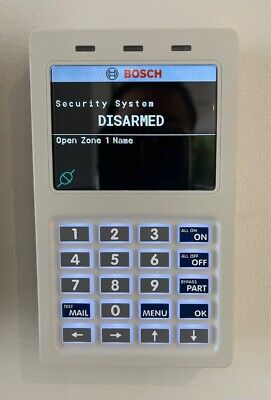

BOSCH Solution 6000 LCD 3.5” graphic Keypad + Smart Prox (CP736B)

The BOSCH CP736B Graphic Keypad is designed to provide an advanced, user-friendly interface for the Solution 6000 security panel. Encased in a sleek white plastic housing, this keypad seamlessly blends with any interior design. It features a 3.5" alphanumeric color LCD that utilizes the latest pixel technology for clear, vibrant displays.

Key Features:

• User-Friendly Interface: The CP736B keypad offers color-coded, illuminated rubber keys for easy identification and operation in any lighting conditions. Red and green indicators show the status of armed and disarmed areas, while a blue indicator provides door status during access control use.
• Adjustable Settings: Users can adjust the volume, backlight, and contrast for optimal clarity and usability. The keys emit a subtle white glow that intensifies during operation, enhancing ease of use.
• Smart Card Reader: The integrated Smart Card reader allows for convenient arming and disarming of the system with a simple card presentation, eliminating the need for PIN numbers. Dedicated Lock and Egress terminals simplify access control applications.
• Customizable Banner: Personalize the keypad with a customizable banner that can display a site name, company name, or contact number.

Display and Feedback:

• The 3.5” graphic color display uses variable font sizes and colors to clearly convey system conditions. Essential information is displayed in large, bold text, while additional details are shown in smaller fonts.
• The built-in sounder provides audible feedback during system operation and emits a siren sound during an alarm for early warning. Volume levels are individually programmable for each keypad connected to the system.

Connectivity:

• The CP736B keypad supports proprietary RS485 LAN connectivity and is compatible with Vision-X, Vision-XIP, Solution 6000, and Solution 6000-IP panels.

Technical Specifications:

• Power: +12VDC, 110mA Max (LAN powered +9VDC - +16VDC)
• Operating Temperature: 0 °C – 55 °C
• Operating Relative Humidity: 5% – 85% (non-condensing)
• Dimensions: 149 mm (H) x 88 mm (W) x 21.5 mm (D)
• Color: White

Parts Included:

• 1 Codepad
• 1 Manual
• 1 Mounting back plate

The BOSCH CP736B Graphic Keypad combines sophisticated functionality with user-friendly features, making it an ideal choice for modern security systems.
