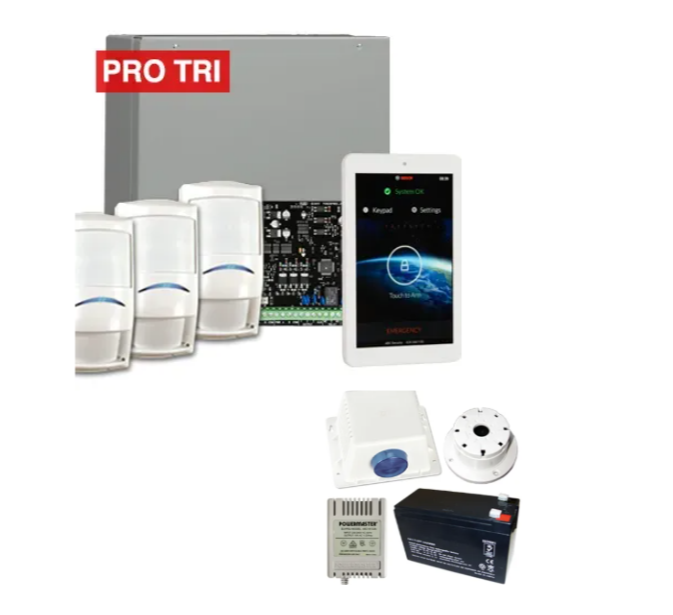

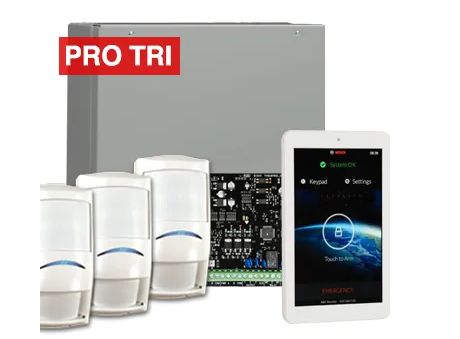

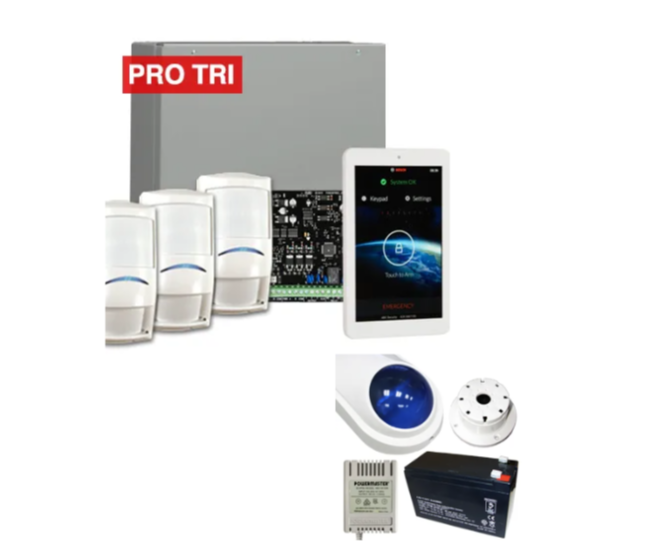

Bosch Solution 4000 Alarm Kit with ICP-SOL4-P Panel, IUI-SOL-TS7 7" Touchscreen Keypad, 3x ISC-PDL1-W18G Tri-Tech Detectors & Siren Kit – K4000-3PROTRI-TS7

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3PROTRI-TS7) is a premium, high-performance security system designed for residential and commercial applications where top-tier protection, advanced user interface, and low false alarm rates are critical. This powerful solution includes the ICP-SOL4-P 32-zone control panel, a high-resolution IUI-SOL-TS7 7" touchscreen keypad, and three ISC-PDL1-W18G Tri-Tech detectors, all complemented by a siren kit for immediate audio response.

Engineered with flexibility and user convenience in mind, the K4000-3PROTRI-TS7 system supports remote management via the Bosch RSC+ app and provides seamless compatibility with both wired and wireless accessories.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS7 7" Touchscreen Keypad

• 3x ISC-PDL1-W18G Tri-Tech Motion Detectors

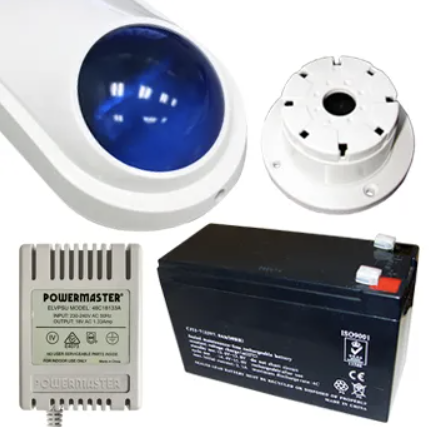

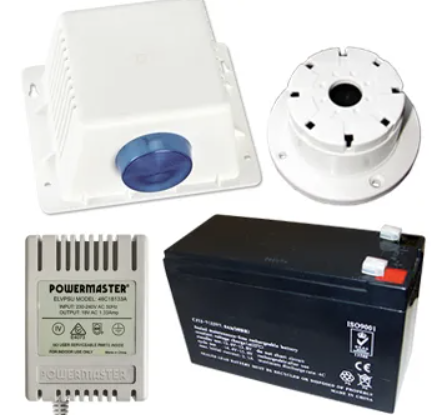

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zone Capacity: 16 zones onboard, expandable to 32

• Partitions: Dual partitioning for area-based arming/disarming

• User Support: 64 users (32 PINs + 32 key fobs)

• Advanced Detection: Tri-Tech technology (PIR + microwave) minimizes false alarms

• Touchscreen Interface: 7" intuitive full-color display keypad for simple control

• Door Integration: Manage up to 4 doors with the B901 controller

• Wireless Compatibility: Suits B810 RADION (devices/fobs) or WE800EV2 (fobs only)

• Remote Access: Fully integrated with Bosch RSC+ smartphone/tablet app

• Communications Ready: Supports IP and LTE via optional B426-M or B450-M modules

• Custom Notifications: Push alerts via the app for defined security events

Detailed Specifications

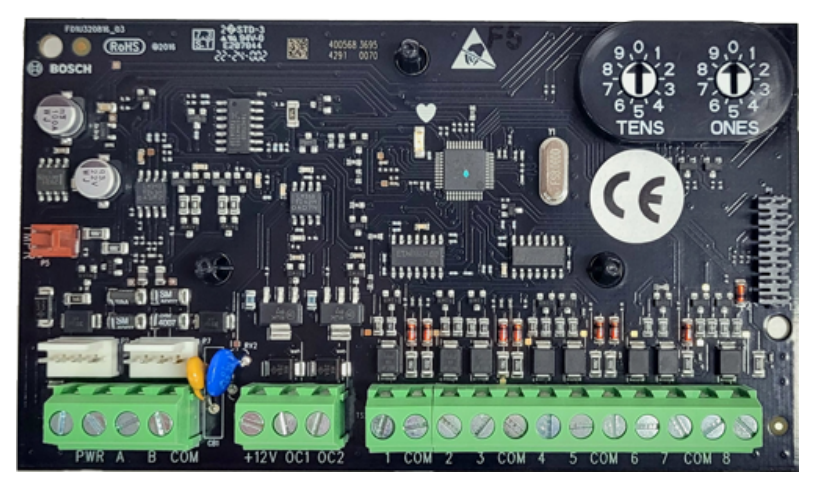

ICP-SOL4-P Control Panel:

• Zones: 32 total (16 onboard, 16 via expansion)

• Outputs: 4 onboard, expandable to 28

• User Codes: 64 user + 1 installer

• Power Supply: TF008 Plug Pack (primary), 12 VDC backup battery (secondary)

• Dimensions: 103 mm (H) x 183 mm (W) x 28 mm (D)

• Operating Temperature: 0 °C to 45 °C

• Humidity: 10%–95% RH (non-condensing)

• Communication: CID, SIA, CSV-IP, push notifications (via comms modules)

IUI-SOL-TS7 Keypad:

• Display: 7" full-color capacitive touchscreen

• Interface: Menu-driven graphical UI for intuitive control

• Functionality: Advanced system programming, arming/disarming, notifications, and more

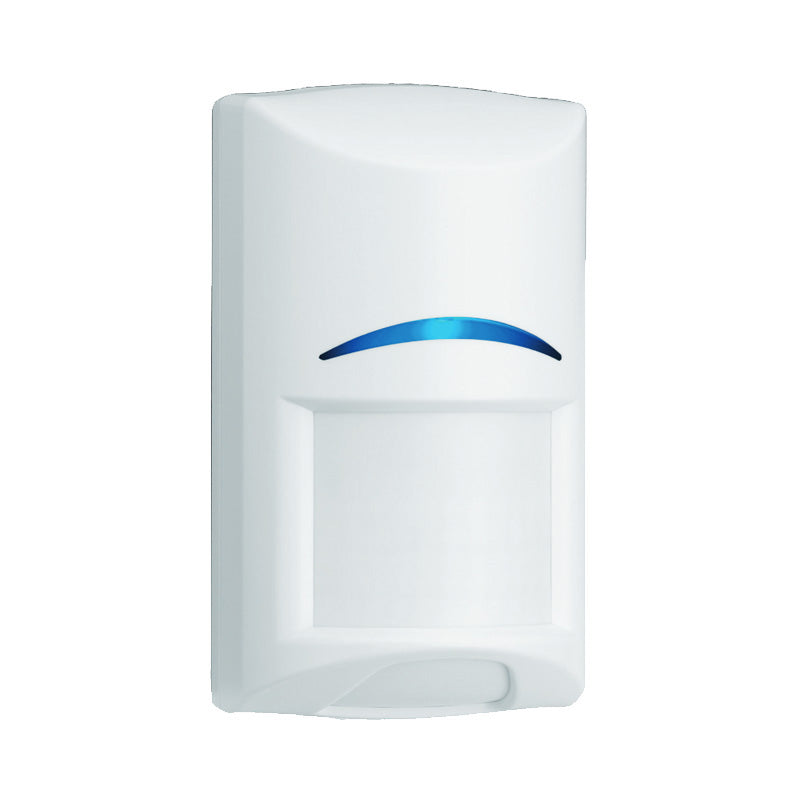

ISC-PDL1-W18G Tri-Tech Detectors:

• Detection Range: Up to 18 meters

• Technology: Combines passive infrared and microwave sensing

• Benefit: Excellent false alarm immunity in environments with air movement, heat, or light changes

Warranty Information

The K4000-3PROTRI-TS7 alarm kit is covered by Bosch’s 3-year manufacturer’s warranty, offering peace of mind through reliable protection and factory-backed support.

Brand Description

Bosch Security Systems is a trusted name worldwide, known for delivering innovation, quality, and performance in electronic security. With a strong presence in Australia and New Zealand, Bosch continues to set the benchmark in intrusion detection and smart security solutions.

SKU

K4000-3PROTRI-TS7

Practical Use Scenarios

• Luxury Residential Properties: Touchscreen control and Tri-Tech detectors suit high-value homes with minimal false alerts

• Retail Spaces: Dual-area support and smartphone control ideal for multi-zone store management

• Offices & Clinics: Discreet yet powerful detection and full keypad functionality for all staff levels

• Storage & Warehousing: Tri-Tech technology performs reliably even in thermally unstable conditions

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Regulatory Approval: Compliant with RCM (Australia) and Telepermit (NZ) certifications

• Standards Compliant: Built to meet EN50130-4:2011 and EN61000-3:2007/A1:2011

• Network-Ready: Fully NBN and fiber-compatible using Bosch communication modules

• Authorized Distribution Only: Sourced directly through Bosch-approved Australian and NZ channels

• Warranty Handling: All support managed by Bosch-authorized service centers in-region

FAQs

Q1: What detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS7)?
A1: The Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS7) includes three ISC-PDL1-W18G Tri-Tech motion detectors, which combine PIR and microwave technology to reduce false alarms.

Q2: Can the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS7) be remotely controlled?
A2: Yes, the Bosch K4000-3PROTRI-TS7 supports the Remote Security Control Plus (RSC+) app, enabling users to arm/disarm and manage the system remotely via mobile devices.

Q3: What makes the IUI-SOL-TS7 keypad in the K4000-3PROTRI-TS7 kit stand out?
A3: The IUI-SOL-TS7 features a 7" full-color touchscreen with a user-friendly graphical interface, offering advanced control over system settings and enhanced usability.

Q4: Is the Bosch K4000-3PROTRI-TS7 suitable for commercial installations?
A4: Absolutely. With support for 32 zones, 4 doors, and advanced keypad options, the K4000-3PROTRI-TS7 is ideal for offices, clinics, and retail premises.

Q5: Does the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS7) meet Australian and New Zealand standards?
A5: Yes, the K4000-3PROTRI-TS7 complies with both RCM (Australia) and Telepermit (NZ) regulatory requirements and is fully optimized for regional installation and operation.
