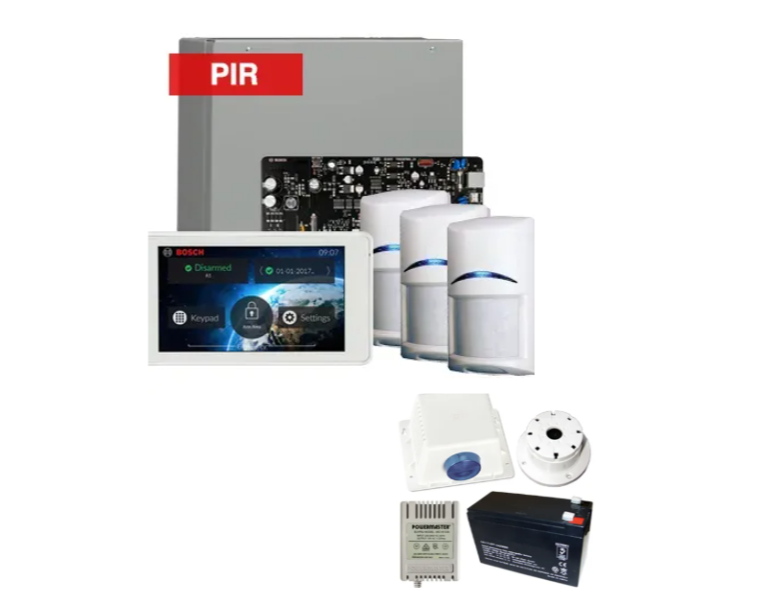

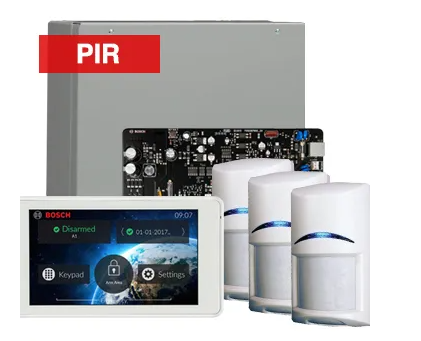

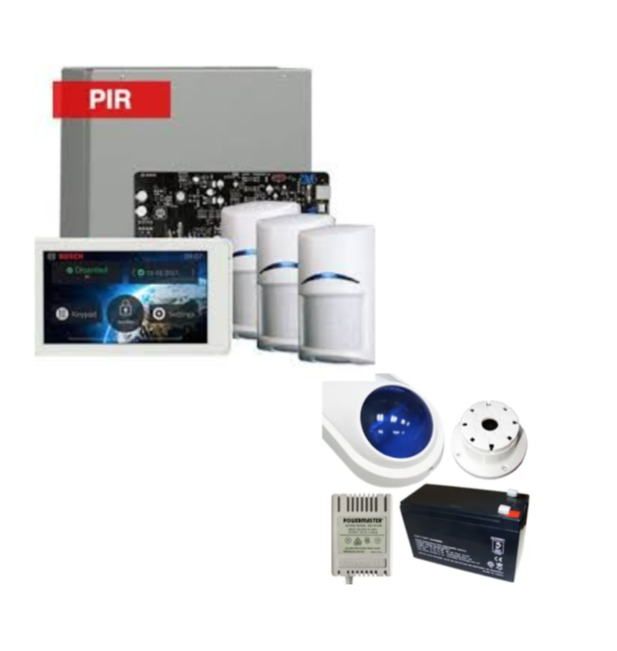

Bosch Solution 4000 Alarm Kit with ICP-SOL4-P Panel, IUI-SOL-TS5 Touchscreen Keypad, 3x ISC-BPR2-W12 PIR Detectors & Siren Kit – K4000-3PIR-TS

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3PIR-TS) is a comprehensive security solution tailored for small to medium residential and commercial applications. This kit combines advanced intrusion detection capabilities with user-friendly interfaces, ensuring robust protection and ease of use.

At its core is the ICP-SOL4-P control panel, supporting up to 32 fully programmable zones (16 onboard and 16 via expansion), 4 door zones, and accommodating 64 user codes. The system is partitionable into two areas, allowing for flexible security configurations. The included IUI-SOL-TS5 5" touchscreen keypad offers intuitive system control, while the three ISC-BPR2-W12 PIR detectors provide reliable motion detection. The kit also includes a siren kit for audible alerts.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS5 5" Touchscreen Keypad

• 3x ISC-BPR2-W12 PIR Motion Detectors

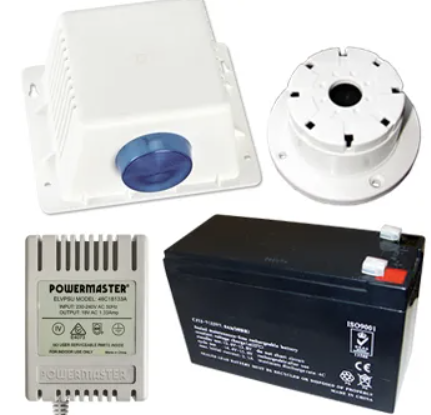

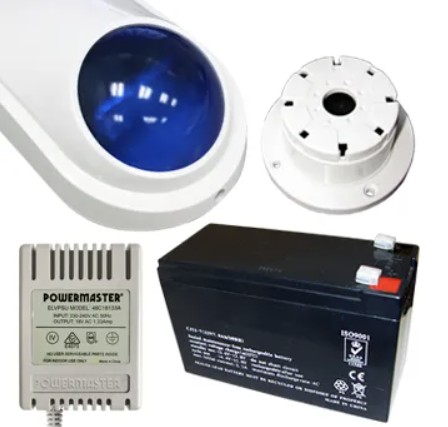

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Expandable Zones: 16 onboard zones, expandable to 32

• User Capacity: Supports up to 64 users (32 key fobs / 32 PINs)

• Partitioning: 2 separate areas for flexible security management

• Door Control: Supports up to 4 doors with full control capabilities

• Keypad Support: Compatible with up to 4 keypads

• Wireless Integration: Supports B810 Radion receiver (key fobs & devices) or WE800EV2 receiver (key fobs only)

• Remote Access: Compatible with Remote Security Control Plus (RSC+) app for mobile control

• Communication Modules: Supports Ethernet (B426-M) and cellular (B450-M) communication modules

Detailed Specifications

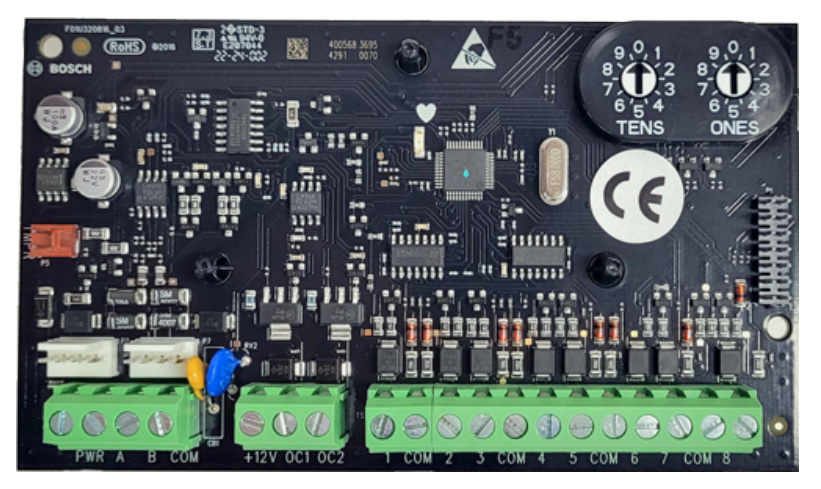

ICP-SOL4-P Control Panel:

• Zones: 32 intrusion alarm zones (16 onboard, 16 via expansion)

• Door Zones: 4

• User Codes: 64 (1 installer code, 63 user codes)

• Outputs: 4 onboard outputs, expandable to 28

• Partitions: 2

• Keypads: Supports up to 4

• Communication: CID, SIA, Email*, Domestic Dialing, CSV-IP, Push Notification* (*Requires B426-M or B450-M module)

• Power Supply: Primary TF008 Plug Pack (sold separately), Secondary 12 VDC, 6.5Ah from rechargeable sealed lead/acid battery

• Dimensions: 103 mm x 183 mm x 28 mm

• Weight: 165 g

• Operating Temperature: 0 °C – 45 °C

• Humidity: 10% – 95% non-condensing

IUI-SOL-TS5 Touchscreen Keypad:

• Display: 5" high-resolution color touchscreen

• Interface: Intuitive graphical user interface for easy operation

• Compatibility: Designed for use with Bosch Solution series control panels

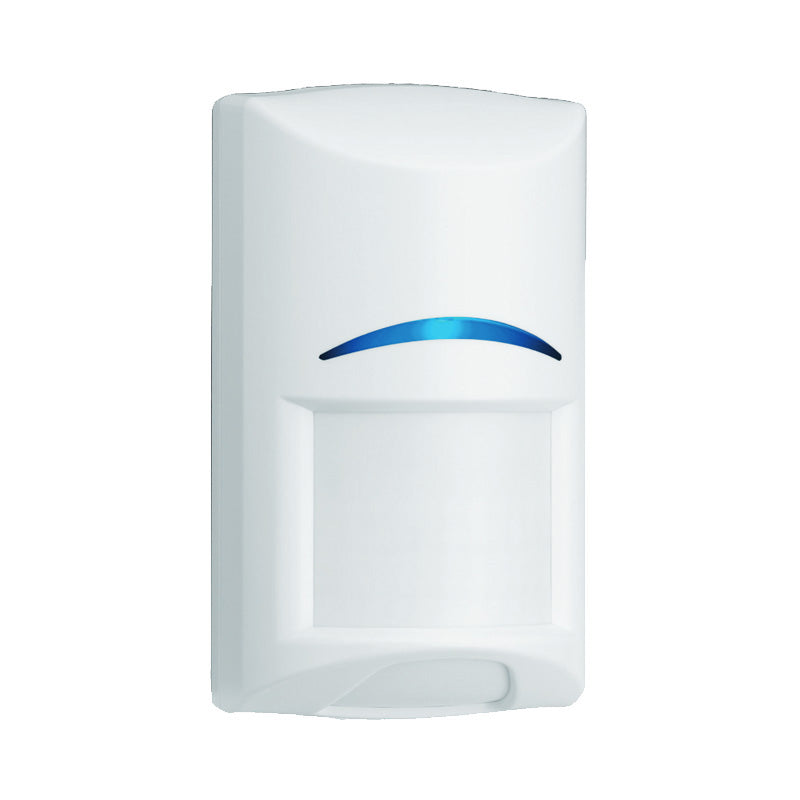

ISC-BPR2-W12 PIR Motion Detectors:

• Detection Range: 12 meters

• Technology: Advanced signal processing for reliable motion detection

• Installation: Easy to install with flexible mounting options

Warranty Information

Bosch offers a 3-year warranty on the Solution 4000 Alarm Kit, covering defects in materials and workmanship under normal use.

Brand Description

Bosch Security Systems is a globally recognized leader in security and safety solutions, offering innovative products designed to provide reliable protection for residential, commercial, and industrial applications.

SKU

K4000-3PIR-TS

Practical Use Scenarios

• Residential Homes: Protect your home with a reliable and expandable security system.

• Small Businesses: Secure your premises with flexible partitioning and user management.

• Retail Stores: Monitor multiple zones and control access to different areas.

• Offices: Manage employee access and ensure the security of sensitive areas.

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Meets Australian RCM and AS/CA S002:2010 standards, and New Zealand Telepermit requirements.

• Certifications: Compliant with EN50130-4:2011 and EN61000-3:2007/A1:2011 standards.

• Optimization: Designed specifically for the Australian and New Zealand markets, ensuring compatibility with local communication networks and monitoring centers.

• Authorized Sourcing: Products are sourced exclusively from authorized Bosch representatives, guaranteeing authenticity and support.

• Warranty Handling: Warranty claims are managed directly through Bosch, ensuring efficient and reliable service.

FAQs

Q1: What is the maximum number of zones supported by the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS)?
A1: The Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS) supports up to 32 fully programmable zones, with 16 zones onboard and an additional 16 zones available via expansion modules.

Q2: Can I control the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS) remotely?
A2: Yes, the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS) is compatible with the Remote Security Control Plus (RSC+) app, allowing you to arm/disarm the system and control connected devices remotely via your smartphone or tablet.

Q3: What type of motion detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS)?
A3: The kit includes three ISC-BPR2-W12 PIR motion detectors, which offer a 12-meter detection range and advanced signal processing for reliable motion detection.

Q4: Is the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS) suitable for commercial applications?
A4: Absolutely. The Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS) is designed for small to medium residential and commercial applications, offering features like partitioning, door control, and support for multiple users and keypads.

Q5: What warranty is provided with the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS)?
A5: Bosch offers a 3-year warranty on the Solution 4000 Alarm Kit (K4000-3PIR-TS), covering defects in materials and workmanship under normal use.
