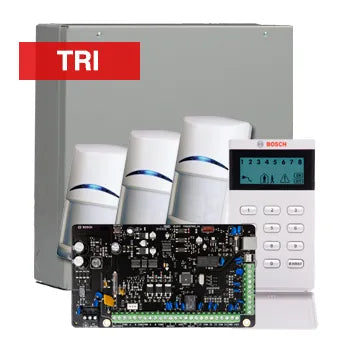

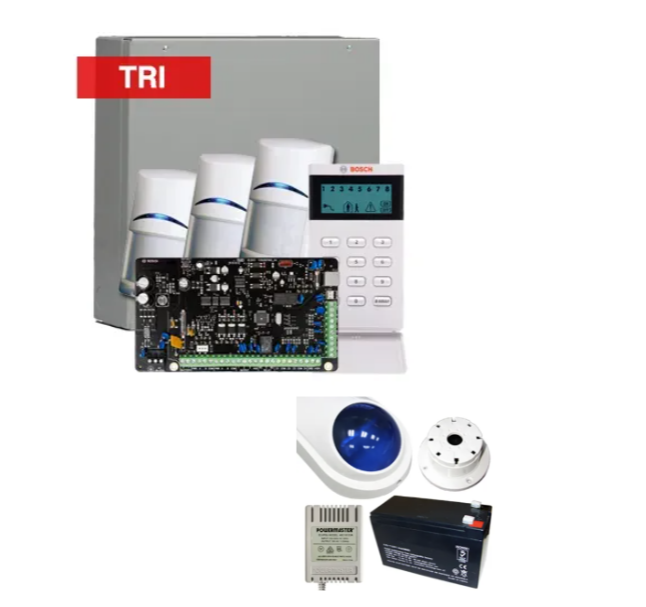

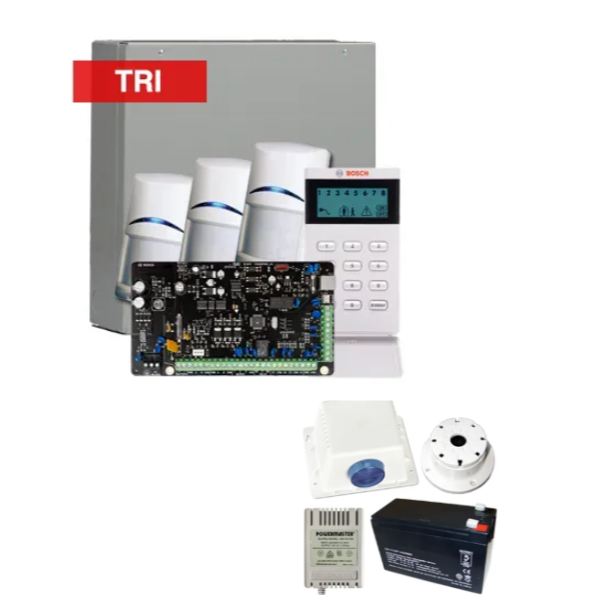

Bosch Solution 4000 Alarm Kit with ICP-SOL4-P Panel, IUI-SOL-ICON LCD Keypad, 3x ISC-BDL2-WP12G Tri-Tech Motion Detectors & Siren Kit – K4000-3TRI-ICON

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3TRI-ICON) is a premium-grade security solution designed for medium-sized residential and commercial applications requiring advanced intrusion detection and ease of control. This kit combines the ICP-SOL4-P 32-zone control panel, an intuitive IUI-SOL-ICON 16-zone LCD icon keypad, and three ISC-BDL2-WP12G Tri-Tech motion detectors engineered for enhanced false alarm immunity using both PIR and microwave sensing technologies. A complete siren kit is included for immediate audible response.

Compatible with both wired and wireless devices, this solution offers full system expandability, dual-area support, mobile access via the Bosch RSC+ app, and integration with door controllers and automation devices.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-ICON LCD Icon Keypad

• 3x ISC-BDL2-WP12G Tri-Tech PIR Motion Detectors

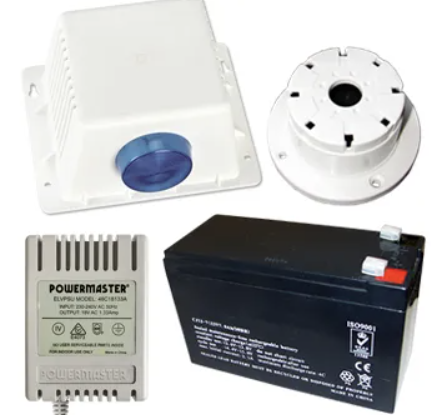

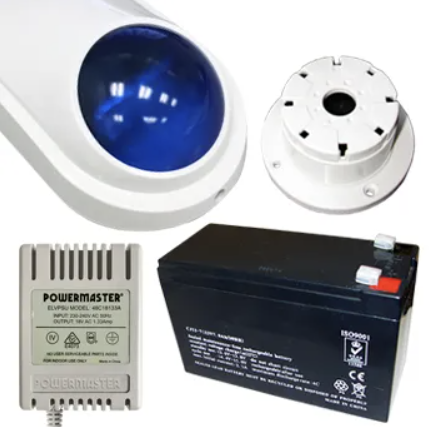

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick Start User Guide

Main Features

• Zone Coverage: 16 onboard zones, expandable to 32

• Partitioning: 2 fully independent areas

• User Support: Up to 64 users (32 PIN codes, 32 key fobs)

• Detection Technology: Tri-Tech PIR + microwave detection reduces false alarms

• Wireless Support: Compatible with B810 RADION (sensors & fobs) and WE800EV2 (fobs only)

• Remote Access: Bosch RSC+ mobile app control (with optional IP/cellular modules)

• Keypad Capacity: Supports up to 4 keypads, including the supplied IUI-SOL-ICON

• Door Control: Up to 4 doors using the B901 SDI2 door controller

• Output Control: 4 onboard outputs, expandable to 28 with B308 module

Detailed Specifications

ICP-SOL4-P Control Panel:

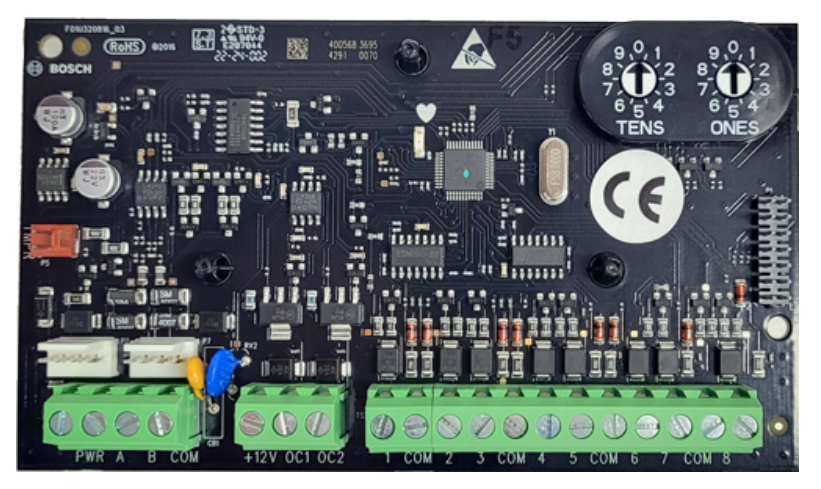

• Zones: 32 (16 onboard, 16 via B228 or RADION)

• Outputs: 4 onboard (expandable to 28)

• Users: 64 user codes + 1 installer code

• Communication: CID, SIA, CSV-IP, Push Notifications (B426-M or B450-M required)

• Power: 12 VDC, rechargeable SLA battery backup

• Dimensions: 103 mm (H) x 183 mm (W) x 28 mm (D)

• Operating Temperature: 0 °C to 45 °C

• Humidity: 10%–95% RH (non-condensing)

IUI-SOL-ICON LCD Keypad:

• Display: 16-zone LCD with status icons

• Interface: Icon-driven for intuitive operation

• Features: Zone status display, STAY/AWAY arming options, flip-down cover

ISC-BDL2-WP12G Tri-Tech Detectors:

• Detection Type: PIR + Microwave (Tri-Tech)

• Coverage: Up to 12 meters

• Pet Immunity: Yes, up to 45 kg

• Ideal For: Garages, warehouses, entry points, and climate-variable rooms

Warranty Information

The K4000-3TRI-ICON kit is backed by a 3-year Bosch manufacturer warranty, covering all hardware components when used under normal conditions in certified installations.

Brand Description

Bosch Security Systems is a globally trusted name in electronic security, delivering innovative, high-performance alarm systems engineered in Germany. Bosch systems are widely adopted across Australia and New Zealand for their dependability, expandability, and professional-grade integrations.

SKU

K4000-3TRI-ICON

Practical Use Scenarios

• Industrial Workshops: Tri-Tech detectors handle fluctuating temperatures and dust

• Warehouses or Logistics: Wide zone coverage and pet-immunity ideal for high-traffic indoor areas

• Family Homes with Pets: Tri-Tech sensors help avoid false alarms from movement of large pets

• Medical or Office Facilities: Intuitive keypad simplifies arming for staff with minimal training

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Certified Compliance: RCM (Australia) and Telepermit (New Zealand) approved

• Tested Standards: Meets EN61000-3:2007/A1:2011 and EN50130-4:2011

• IP/NBN Ready: IP modules enable compatibility with modern AU/NZ monitoring platforms

• Authorized Distribution: Supplied through Bosch-approved resellers in Australia and NZ

• Local Warranty Support: Full warranty and servicing backed by Bosch’s ANZ service network

SEO-Optimized FAQs

Q1: What kind of motion detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3TRI-ICON)?
A1: The kit includes three ISC-BDL2-WP12G Tri-Tech motion detectors, which use both PIR and microwave sensors for high-accuracy intrusion detection.

Q2: Is the Bosch Solution 4000 Alarm Kit (K4000-3TRI-ICON) pet-friendly?
A2: Yes, the included Tri-Tech detectors support pet immunity for animals up to 45 kg, reducing false alarms in pet-occupied environments.

Q3: Can the Bosch Solution 4000 Alarm Kit (K4000-3TRI-ICON) be expanded wirelessly?
A3: Absolutely. The system is compatible with the B810 RADION receiver for full wireless integration and with the WE800EV2 for key fob-only use.

Q4: How user-friendly is the Bosch Solution 4000 Alarm Kit (K4000-3TRI-ICON) for everyday use?
A4: Very user-friendly. The IUI-SOL-ICON keypad offers a simple icon-based interface for quick arming, disarming, and zone status checks.

Q5: Does the Bosch Solution 4000 Alarm Kit (K4000-3TRI-ICON) meet Australian and New Zealand compliance standards?
A5: Yes, it is fully certified under RCM and Telepermit and is optimized for NBN/fiber infrastructure used by AU/NZ monitoring centers.
