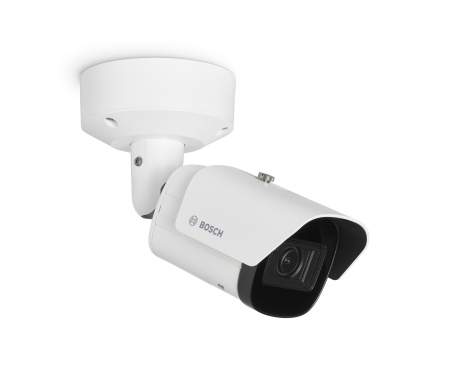

Bosch NBE-5703-AL DINION 5100i IR Bullet Camera 5MP HDR IP66/IP67 IK10 Outdoor CCTV Camera with IVA Pro, Starlight Technology & Motorized 3.2-10.5mm Lens

The Bosch NBE-5703-AL DINION 5100i IR Bullet Camera is a professional-grade 5MP outdoor surveillance solution designed to deliver exceptional image quality, advanced analytics, and reliable performance in challenging environments. Combining Bosch's renowned Starlight technology, High Dynamic Range (HDR), and Intelligent Video Analytics Pro (IVA Pro), this camera provides highly detailed video surveillance with superior low-light performance and accurate object detection.

Featuring a motorized 3.2–10.5mm varifocal lens, intelligent infrared illumination up to 60 metres, and deep-learning-based person and vehicle detection, the NBE-5703-AL is ideal for commercial facilities, industrial sites, transport infrastructure, educational campuses, government installations, and critical infrastructure projects. Its robust IP66/IP67 and IK10-rated housing ensures dependable operation in harsh weather conditions while protecting against vandalism and tampering.

Built on Bosch's latest H.265 encoding platform and equipped with advanced cybersecurity features including TPM hardware security, TLS encryption, and secure boot protection, the DINION 5100i IR offers a future-ready surveillance solution for enterprise security deployments.

What's Included in the Box

• 1 × Bosch NBE-5703-AL DINION 5100i IR Camera
• 1 × Mounting Plate
• 1 × Secure Screw (Pre-installed)
• 2 × Cable Grommets
• 1 × TR20 Allen Key
• 2 × Terminal Connectors (8-pin & 2-pin)
• 1 × RJ45 Guide
• 2 × Conduit Rubbers
• 1 × Desiccant Pack
• 1 × Quick Installation Guide
• 1 × Safety Information Guide
• 3 × Installer UX Labels

Main Features

5MP High-Resolution Surveillance

Captures highly detailed images at resolutions up to 2592 × 1944 for superior evidence collection.

Starlight Low-Light Technology

Exceptional image quality in challenging lighting conditions with colour imaging down to 0.044 lux.

IVA Pro Deep-Learning Analytics

Built-in IVA Pro Buildings delivers highly accurate detection, classification, and tracking of people and vehicles.

Intelligent Infrared Illumination

Integrated IR illuminator provides night-time visibility up to 60 metres with adaptive scene-based performance.

High Dynamic Range (HDR)

120 dB HDR ensures visibility of details in both bright and dark areas within the same scene.

Motorized Varifocal Lens

3.2–10.5mm motorized lens with automatic focus adjustment simplifies installation and commissioning.

Advanced Cybersecurity

Includes Secure Element TPM, secure boot, encrypted storage, TLS 1.3 support, and certificate management.

Enterprise Video Compression

Supports H.265, H.264, and MJPEG streaming for reduced bandwidth and storage requirements.

Rugged Outdoor Protection

IP66, IP67, NEMA 4X, and IK10 ratings provide superior environmental and vandal resistance.

NDAA Compliant

Suitable for government, critical infrastructure, and regulated security deployments.

Detailed Specifications

Specification	Details
Brand	Bosch
Series	DINION 5100i IR
Model	NBE-5703-AL
Camera Type	Outdoor IP Bullet Camera
Resolution	5MP
Sensor	1/2.7" CMOS
Effective Pixels	2688 × 1944
Lens	3.2–10.5mm Motorized Varifocal
Aperture	F1.6
HDR	Up to 120 dB
IR Range	Up to 60m
Compression	H.265, H.264, MJPEG
Analytics	IVA Pro Buildings
Frame Rate	Up to 30fps
Audio	Two-Way Audio
Memory Card Support	MicroSDHC / MicroSDXC up to 2TB
PoE	IEEE 802.3af/at Class 3
IP Rating	IP66, IP67
Impact Rating	IK10
NEMA Rating	NEMA 4X
Operating Temperature	-40°C to +55°C
Weight	2.5kg
Colour	White (RAL 9003)
Compliance	NDAA Compliant
Product Code	NBE-5703-AL

Video Analytics Capabilities

Built-in IVA Pro Buildings supports:

• Person Detection
• Vehicle Detection
• Line Crossing Detection
• Intrusion Detection
• Loitering Detection
• Occupancy Monitoring
• Route Following
• Object Tracking
• Object Classification
• Similarity Search
• Alarm Triggering
• Forensic Search

Optional Licenses:

• IVA Pro Perimeter
• IVA Pro Traffic

Warranty Information

Covered by Bosch manufacturer's warranty and support policies through authorized distribution channels.

About Bosch

Bosch is a world-leading manufacturer of professional security and surveillance technologies. Trusted across government, transportation, critical infrastructure, education, healthcare, and commercial sectors, Bosch delivers innovative video security solutions known for reliability, advanced analytics, cybersecurity, and exceptional image quality.

SKU

SKU / Product Code: NBE-5703-AL

Practical Use Scenarios

• Commercial building security
• Industrial site monitoring
• Warehouse surveillance
• Transport and railway security
• Government facilities
• Critical infrastructure protection
• Educational campus monitoring
• Car parks and public spaces
• Logistics and distribution centres
• Perimeter security applications

Datasheets & Downloadable Resources

• Bosch NBE-5703-AL Datasheet

Excellence for the Australian and New Zealand Market

• Suitable for harsh Australian and New Zealand environmental conditions with IP66/IP67 weather protection.
• Complies with AS/NZS CISPR 32 electromagnetic compatibility requirements.
• NDAA-compliant design suitable for government, infrastructure, and enterprise projects.
• IK10 vandal resistance makes it ideal for public-facing installations.
• Advanced analytics reduce false alarms caused by weather, wildlife, shadows, and environmental movement.
• Available through authorized Bosch Security distributors across Australia and New Zealand.
• Manufacturer-backed support and warranty services available through Bosch's professional partner network.

FAQs

Q1: What resolution does the NBE-5703-AL provide?

The NBE-5703-AL captures video at up to 5MP resolution (2592 × 1944) for highly detailed surveillance footage.

Q2: Does the NBE-5703-AL support night vision?

Yes. The NBE-5703-AL includes intelligent infrared illumination with a viewing range of up to 60 metres.

Q3: What analytics are included with the NBE-5703-AL?

The NBE-5703-AL includes IVA Pro Buildings with deep-learning-based person and vehicle detection and tracking.

Q4: Is the NBE-5703-AL suitable for outdoor use?

Yes. The NBE-5703-AL is rated IP66, IP67, NEMA 4X, and IK10 for outdoor and high-risk environments.

Q5: Does the NBE-5703-AL support H.265 video compression?

Yes. The NBE-5703-AL supports H.265, H.264, and MJPEG streaming formats.

Q6: What lens does the NBE-5703-AL use?

The NBE-5703-AL features a motorized 3.2–10.5mm varifocal lens with automatic focus adjustment.

Q7: Can the NBE-5703-AL record locally?

Yes. The NBE-5703-AL supports MicroSDHC and MicroSDXC cards up to 2TB capacity.

Q8: Is the NBE-5703-AL NDAA compliant?

Yes. The NBE-5703-AL is NDAA compliant and suitable for government and critical infrastructure projects.

Q9: Does the NBE-5703-AL support two-way audio?

Yes. The NBE-5703-AL includes audio input and output interfaces for two-way communication.

Q10: What cybersecurity features are included in the NBE-5703-AL?

The NBE-5703-AL includes TPM hardware security, TLS encryption, secure boot, certificate management, and encrypted local storage.
