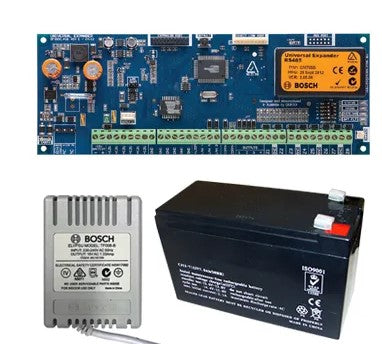

BOSCH CM705PB KIT Expansion Kit Solution 6000, Powered Expansion Kit, Includes CM705PB Universal Expander PCB, T1813S/T Plug Pack & TB100103 Battery

BOSCH CM705PB KIT Expansion Kit Solution 6000, Powered Expansion Kit, Includes CM705PB Universal Expander PCB, T1813S/T Plug Pack & TB100103 Battery

$530.40 AUD
$702.78 AUD $530.40 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Introducing the BOSCH Solution 6000 Powered Expansion Kit, a robust solution designed to enhance and extend the capabilities of your security system. This comprehensive kit includes the versatile CM705PB Universal Expander PCB, the reliable T1813S/T Plug Pack, and the resilient TB100103 Battery, providing a complete and powerful expansion for your BOSCH Solution 6000.

The heart of this expansion kit is the CM705PB Universal Expander PCB, offering unmatched flexibility and advanced features for seamless integration. With its support for up to four protected open-collector outputs, this powered expansion kit empowers your security infrastructure, ensuring optimal performance and monitoring capabilities.

The inclusion of the T1813S/T Plug Pack ensures a stable and efficient power source, facilitating the continuous operation of your expanded security system. Additionally, the TB100103 Battery, with its 12V DC, 7.2AH sealed rechargeable design, serves as a reliable secondary power source, ensuring uninterrupted functionality during power outages.

Whether you're looking to extend the range of your security network or enhance its capabilities, the BOSCH Solution 6000 Powered Expansion Kit is the ideal choice. Elevate your security measures with advanced technology and reliable components, all bundled in a convenient and comprehensive package. Trust BOSCH for unparalleled security solutions that deliver peace of mind.

  • High-security module with anti-substitution protection and resettable fuse protection on power output terminals.
  • Supports Single, Alarm+Tamper, and Split EOL configurations with up to 15 different EOL Resistor options.
  • 6 Power Out terminals simplify wiring, featuring overload and short circuit proof outputs.
  • Service Code Pad connection point for enhanced accessibility.
  • LAN Termination Shunt and status indicators are included for streamlined setup and monitoring.
Technical Specifications Details
Power Requirements
Operating Voltage 10.0V DC – 14.5V DC @ 90mA Max
Voltage Input (Primary Source) 16-18V AC 50-60Hz – 24VA (External Power Adaptor or 220-240V AC to 18V AC 50-60Hz – 24VA Internal Transformer)
Stand-By – Battery (Secondary Source) 12V DC, 7.2AH sealed rechargeable battery (Panasonic LC-P127R2P or equivalent)
Connections
Module Connection (RS485 LAN) Max total LAN length using multi-strand security cable = 300m; Max total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See manual for complete wiring instructions.
Programmable Outputs 4 protected open-collector outputs capable of providing a maximum of 500mA (-) each. Outputs are monitored for short and open circuit and can monitor the state of horn speakers and other connected devices.
Power Output Terminals COMM+ - 2.5A high current output for use with onboard outputs, PTC fuse protected. +12V -1A outputs for use with detectors or powering other modules, PTC fuse protected.
Environmental Considerations
Temperature -30o to 55oC Operating
Humidity 5% to 85% at 30oC non-condensing
PCB
Fixing Method The CM705B can be mounted in the MW700, MW710, MW720, or MW730 enclosures using clip-in PCB mounts supplied
PWA Dimensions 235(W) x 85(D) x 40(H)mm
Warranty 3 years





Datasheets

Datasheet

Manual
