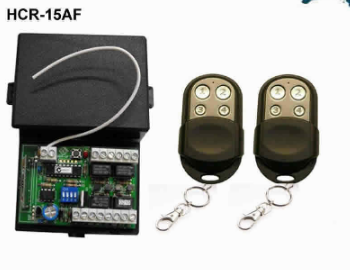

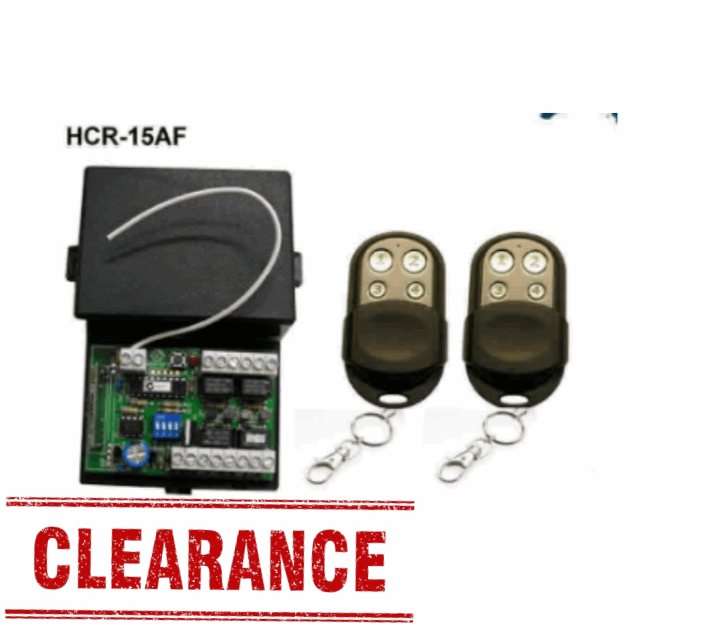

BOSCH 4 HCR-15 Channel Receiver Controller

High-Performance RF Receiver with Advanced Antenna System

Optimize your security and automation systems with our high-performance RF Receiver. Designed for versatility and reliability, this receiver ensures seamless integration and superior performance, especially in challenging environments. Follow our installation tips for the best results and explore the robust features this product offers.

Installation Tips for Best Performance:

• Avoid Metallic Surfaces: To ensure optimal performance, do not install the receiver on or next to a metallic surface. If installation near metal is unavoidable, use a coaxial cable (RG58) to bring the antenna clear of the metal.

• Antenna Setup: Terminate the coaxial cable at a 434MHz antenna. We recommend using the Circuit Level external antenna (ANT-01) for best results.

• Protection Near Salt Water: If installing near salt water, wrap the Antenna BNC connector (ANT-01) in self-amalgamating tape or coat the internal pin with silicone grease to protect against corrosion.

• Optimize Range: If the range is poor and interference has been ruled out, try moving or re-orienting the receiver for better performance.

Specifications:

• Operating Voltage: 9 to 24VDC, 9 to 24VAC
• Current Consumption:
  • @ 12VDC: Standby 14mA, All relays 56mA
  • @ 24VDC: Standby 28mA, All relays 75mA
  • @ 16VAC: Standby 28mA, All relays 73mA
• Physical Dimensions: Bulkhead case 108 x 70 x 34 mm
• Case Material: ABS plastic
• Output Channels: 4
• Output Ratings: SPDT relay, 1 Amp switching maximum @ 24VDC. Contacts are voltage-free.
• Reverse Polarity Protection: Yes (diode)
• RF Operating Frequency: 433.92 MHz
• RF Signal Type (Data Transfer): On-Off Keying (OOK)
• Security: Keeloq™ Code Hopping with 4.2 billion coding combinations
• Learning Capacity (RF Devices): 170 fobs
• Country of Manufacture: Australia
